FLUSH BOX SADDLE FOR ADVANCE HD
BB 240-3198-K
FLUSH BOX SADDLE FOR ADVANCE HD
Flush Box Saddle For Binks Trophy Gun(Std Trophy)
BB 240-3198-M
Flush Box Saddle For Binks Trophy Gun(Std Trophy)
GUARD, RAC 5, 11/16"
GG 243263
GUARD, RAC 5, 11/16"
Graco 243263 RAC 5 HandTite Tip Guard, 11/16 in
The RAC 5 HandTite Tip Guard helps to eliminate paint build-up, dripping and spitting. It also helps to provide safer spraying at higher pressures. Its finger grip design makes it easy to attach or remove without the need for tools. For use with all RAC 5 SwitchTips.
- Fits competitive guns with 11/16 in threads
- Model: RAC 5
- Series: Tip Guard
- Compatible Thread Size (in): 0.67
- Compatible Thread Size (mm): 17
- For Use With: RAC 5 SwitchTip, RAC IV SwitchTip, LineLazer RAC 5 SwitchTip
- Maximum Working Pressure (bar): 279.24
- Maximum Working Pressure (kg/cm²): 284.74
- Maximum Working Pressure (kPa): 27923.8
- Maximum Working Pressure (psi): 4050
RAC X WIDE RAC TIP, SPRAY, 1223
GG WR1223
RAC X WIDE RAC TIP, SPRAY, 1223
Graco WR1223 RAC X Wide RAC SwitchTip, 1223
The Reverse-A-Clean (RAC) 1223 RAC X Wide RAC SwitchTip produces a 24 inch fan and has a 0.023 inch orifice. Reverse the SwitchTip to easily clear clogs.
- RAC X - Wide RAC
The Wide RAC covers double the area in the same time - increased flow rate ensures the proper mil build
Wide RAC tips are made for high production, new construction applications which may require larger airless sprayers
- Superior Tip Design
Locking tab ensures tip stays securely in guard
&Prime, Snaps&Prime, tip in spray or reverse position
OneSeal tip installs with no tools
Solvent seal available when using extremely hot solvents
- Easy to Identify Tip Size
Large raised tip size numbers are always legible - even when covered with paint
- Model: RAC X
- Series: Wide RAC SwitchTip
- For Use With: RAC X HandTite Tip Guard
- Maximum Fan Width (cm): 61.0
- Maximum Fan Width (in): 24
- Maximum Fan Width (mm): 610
- Maximum Flow Rate (GPM): 0.57
- Maximum Flow Rate (L/min): 2.16
- Maximum Working Pressure (bar): 280
- Maximum Working Pressure (kPa): 28000
- Maximum Working Pressure (psi): 4050
- Minimum Fan Width (in): 24
- Minimum Fan Width (mm): 610
- Orifice Diameter (in): 0.023
- Pattern Size (in): 24
- Pattern Size (mm): 609.6
RAC X WIDE RAC TIP, SPRAY, 1225
GG WR1225
RAC X WIDE RAC TIP, SPRAY, 1225
Graco WR1225 RAC X Wide RAC SwitchTip, 1225
The Reverse-A-Clean (RAC) 1225 RAC X Wide RAC SwitchTip produces a 24 inch fan and has a 0.025 inch orifice. Reverse the SwitchTip to easily clear clogs.
- RAC X - Wide RAC
The Wide RAC covers double the area in the same time - increased flow rate ensures the proper mil build
Wide RAC tips are made for high production, new construction applications which may require larger airless sprayers
- Superior Tip Design
Locking tab ensures tip stays securely in guard
&Prime, Snaps&Prime, tip in spray or reverse position
OneSeal tip installs with no tools
Solvent seal available when using extremely hot solvents
- Easy to Identify Tip Size
Large raised tip size numbers are always legible - even when covered with paint
- Model: RAC X
- Series: Wide RAC SwitchTip
- For Use With: RAC X HandTite Tip Guard
- Maximum Fan Width (cm): 61.0
- Maximum Fan Width (in): 24
- Maximum Fan Width (mm): 610
- Maximum Flow Rate (GPM): 0.67
- Maximum Flow Rate (L/min): 2.54
- Maximum Working Pressure (bar): 280
- Maximum Working Pressure (kPa): 28000
- Maximum Working Pressure (psi): 4050
- Minimum Fan Width (in): 24
- Minimum Fan Width (mm): 610
- Orifice Diameter (in): 0.025
- Pattern Size (in): 24
- Pattern Size (mm): 609.6

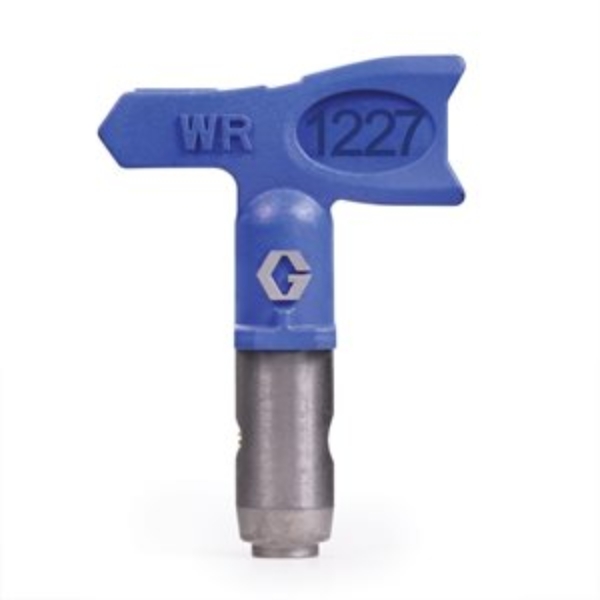

RAC X WIDE RAC TIP, SPRAY, 1227
GG WR1227
RAC X WIDE RAC TIP, SPRAY, 1227
RAC X Wide RAC SwitchTip, 1227 The Reverse-A-Clean (RAC) 1227 RAC X Wide RAC SwitchTip produces a 24 inch fan and has a 0.027 inch orifice. Reverse the SwitchTip to easily clear clogs. RAC X - Wide RAC- The Wide RAC covers double the area in the same time - increased flow rate ensures the proper mil build
- Wide RAC tips are made for high production, new construction applications which may require larger airless sprayers
- Locking tab ensures tip stays securely in guard
- “Snaps” tip in spray or reverse position
- OneSeal tip installs with no tools
- Solvent seal available when using extremely hot solvents
- Large raised tip size numbers are always legible - even when covered with paint
RAC X WIDE RAC TIP, SPRAY, 1235
GG WR1235
RAC X WIDE RAC TIP, SPRAY, 1235
RAC X Wide RAC SwitchTip, 1235 The Reverse-A-Clean (RAC) 1235 RAC X Wide RAC SwitchTip produces a 24 inch fan and has a 0.035 inch orifice. Reverse the SwitchTip to easily clear clogs. RAC X - Wide RAC- The Wide RAC covers double the area in the same time - increased flow rate ensures the proper mil build
- Wide RAC tips are made for high production, new construction applications which may require larger airless sprayers
- Locking tab ensures tip stays securely in guard
- “Snaps” tip in spray or reverse position
- OneSeal tip installs with no tools
- Solvent seal available when using extremely hot solvents
- Large raised tip size numbers are always legible - even when covered with paint
XHD RAC TIP, SPRAY, CYLINDER, 121
GG XHD121
XHD RAC TIP, SPRAY, CYLINDER, 121
Graco XHD121 XHD RAC SwitchTip, .121
With its Reverse-A-Clean (RAC) Tip, it’s easy to clear clogs. The Switch Tip design lets you change tip sizes in seconds – without removing the tip guard and housing.
Application: High-Pressure Airless Spray Tip for XTR and XHF Guns. Designed for spraying high-solids coatings at high pressures.- Saves time – no screwdriver required, change tip sizes in seconds
- For heavy-duty applications up to 7250 psi (500 bar)
- Recommended for use with Xtreme Sprayers and XTR Guns
- Model: XHD RAC
- Series: SwitchTip
- Compatible Material: Solvent borne Paints, Water-Based Paint
- For Use With: Xtreme Sprayers, XTR Airless Spray Guns
- Maximum Fan Width (cm): 10.2
- Maximum Fan Width (in): 4
- Maximum Fan Width (mm): 102
- Maximum Flow Rate (GPM): 0.47
- Maximum Flow Rate (L/min): 1.78
- Maximum Working Pressure (bar): 500
- Maximum Working Pressure (kPa): 50000
- Maximum Working Pressure (psi): 7250
- Minimum Fan Width (in): 2
- Minimum Fan Width (mm): 51
- Orifice Diameter (in): 0.021
XHD RAC TIP, SPRAY, CYLINDER, 139
GG XHD139
XHD RAC TIP, SPRAY, CYLINDER, 139
Graco XHD139 XHD RAC SwitchTip, .139
With its Reverse-A-Clean (RAC) Tip, it’s easy to clear clogs. The Switch Tip design lets you change tip sizes in seconds – without removing the tip guard and housing.
Application: High-Pressure Airless Spray Tip for XTR and XHF Guns. Designed for spraying high-solids coatings at high pressures.- Saves time – no screwdriver required, change tip sizes in seconds
- For heavy-duty applications up to 7250 psi (500 bar)
- Recommended for use with Xtreme Sprayers and XTR Guns
- Model: XHD RAC
- Series: SwitchTip
- Compatible Material: Solvent borne Paints, Water-Based Paint
- For Use With: Xtreme Sprayers, XTR Airless Spray Guns
- Maximum Fan Width (cm): 10.2
- Maximum Fan Width (in): 4
- Maximum Fan Width (mm): 102
- Maximum Flow Rate (GPM): 1.63
- Maximum Flow Rate (L/min): 6.17
- Maximum Working Pressure (bar): 500
- Maximum Working Pressure (kPa): 50000
- Maximum Working Pressure (psi): 7250
- Minimum Fan Width (in): 2
- Minimum Fan Width (mm): 51
- Orifice Diameter (in): 0.039

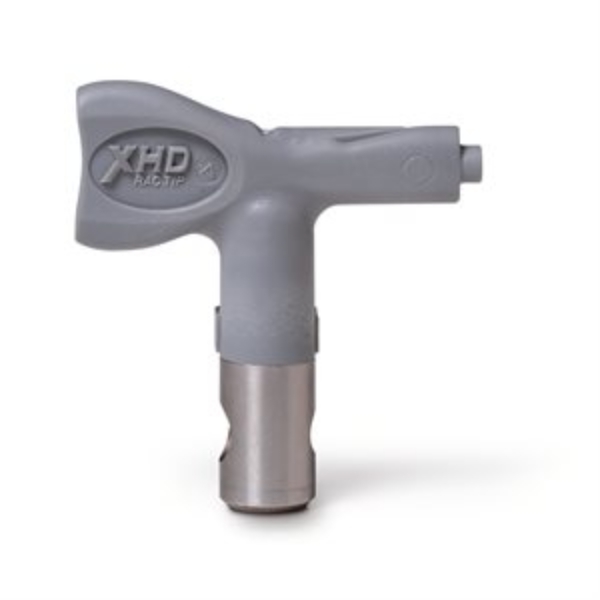

XHD RAC TIP, SPRAY, CYLINDER, 211
GG XHD211
XHD RAC TIP, SPRAY, CYLINDER, 211
XHD RAC SwitchTip, .211With its Reverse-A-Clean (RAC) Tip, it’s easy to clear clogs. The Switch Tip design lets you change tip sizes in seconds – without removing the tip guard and housing.
High-Pressure Airless Spray Tip for XTR and XHF Guns. Designed for spraying high-solids coatings at high pressures. Saves time – no screwdriver required, change tip sizes in seconds For heavy-duty applications up to 7250 psi (500 bar) Recommended for use with Xtreme Sprayers and XTR Guns Heavy-duty carbide tip
XHD RAC TIP, SPRAY, CYLINDER, 231
GG XHD231
XHD RAC TIP, SPRAY, CYLINDER, 231
Graco XHD231 XHD RAC SwitchTip, .231
With its Reverse-A-Clean (RAC) Tip, it’s easy to clear clogs. The Switch Tip design lets you change tip sizes in seconds – without removing the tip guard and housing.
Application: High-Pressure Airless Spray Tip for XTR and XHF Guns. Designed for spraying high-solids coatings at high pressures.- Saves time – no screwdriver required, change tip sizes in seconds
- For heavy-duty applications up to 7250 psi (500 bar)
- Recommended for use with Xtreme Sprayers and XTR Guns
- Model: XHD RAC
- Series: SwitchTip
- Compatible Material: Solvent borne Paints, Water-Based Paint
- For Use With: Xtreme Sprayers, XTR Airless Spray Guns
- Maximum Fan Width (cm): 15.2
- Maximum Fan Width (in): 6
- Maximum Fan Width (mm): 152
- Maximum Flow Rate (GPM): 1.03
- Maximum Flow Rate (L/min): 3.90
- Maximum Working Pressure (bar): 500
- Maximum Working Pressure (kPa): 50000
- Maximum Working Pressure (psi): 7250
- Minimum Fan Width (in): 4
- Minimum Fan Width (mm): 102
- Orifice Diameter (in): 0.031
XHD RAC TIP, SPRAY, CYLINDER, 235
GG XHD235
XHD RAC TIP, SPRAY, CYLINDER, 235
Graco XHD235 XHD RAC SwitchTip, .235
With its Reverse-A-Clean (RAC) Tip, it’s easy to clear clogs. The Switch Tip design lets you change tip sizes in seconds – without removing the tip guard and housing.
Application: High-Pressure Airless Spray Tip for XTR and XHF Guns. Designed for spraying high-solids coatings at high pressures.- Saves time – no screwdriver required, change tip sizes in seconds
- For heavy-duty applications up to 7250 psi (500 bar)
- Recommended for use with Xtreme Sprayers and XTR Guns
- Model: XHD RAC
- Series: SwitchTip
- Compatible Material: Solvent borne Paints, Water-Based Paint
- For Use With: Xtreme Sprayers, XTR Airless Spray Guns
- Maximum Fan Width (cm): 15.2
- Maximum Fan Width (in): 6
- Maximum Fan Width (mm): 152
- Maximum Flow Rate (GPM): 1.31
- Maximum Flow Rate (L/min): 4.96
- Maximum Working Pressure (bar): 500
- Maximum Working Pressure (kPa): 50000
- Maximum Working Pressure (psi): 7250
- Minimum Fan Width (in): 4
- Minimum Fan Width (mm): 102
- Orifice Diameter (in): 0.035
XHD RAC TIP, SPRAY, CYLINDER, 239
GG XHD239
XHD RAC TIP, SPRAY, CYLINDER, 239
XHD RAC SwitchTip, .239With its Reverse-A-Clean (RAC) Tip, it’s easy to clear clogs. The Switch Tip design lets you change tip sizes in seconds – without removing the tip guard and housing.
High-Pressure Airless Spray Tip for XTR and XHF Guns. Designed for spraying high-solids coatings at high pressures. Saves time – no screwdriver required, change tip sizes in seconds For heavy-duty applications up to 7250 psi (500 bar) Recommended for use with Xtreme Sprayers and XTR Guns Heavy-duty carbide tip
XHD RAC TIP, SPRAY, CYLINDER, 307
GG XHD307
XHD RAC TIP, SPRAY, CYLINDER, 307
Graco XHD307 XHD RAC SwitchTip, .307
With its Reverse-A-Clean (RAC) Tip, it’s easy to clear clogs. The Switch Tip design lets you change tip sizes in seconds – without removing the tip guard and housing.
Application: High-Pressure Airless Spray Tip for XTR and XHF Guns. Designed for spraying high-solids coatings at high pressures.- Saves time – no screwdriver required, change tip sizes in seconds
- For heavy-duty applications up to 7250 psi (500 bar)
- Recommended for use with Xtreme Sprayers and XTR Guns
- Model: XHD RAC
- Series: SwitchTip
- Compatible Material: Solvent borne Paints, Water-Based Paint
- For Use With: Xtreme Sprayers, XTR Airless Spray Guns
- Maximum Fan Width (cm): 20.3
- Maximum Fan Width (in): 8
- Maximum Fan Width (mm): 203
- Maximum Flow Rate (GPM): 0.05
- Maximum Flow Rate (L/min): 0.19
- Maximum Working Pressure (bar): 500
- Maximum Working Pressure (kPa): 50000
- Maximum Working Pressure (psi): 7250
- Minimum Fan Width (in): 6
- Minimum Fan Width (mm): 152
- Orifice Diameter (in): 0.007
XHD RAC TIP, SPRAY, CYLINDER, 311
GG XHD311
XHD RAC TIP, SPRAY, CYLINDER, 311
Graco XHD311 XHD RAC SwitchTip, .311
With its Reverse-A-Clean (RAC) Tip, it’s easy to clear clogs. The Switch Tip design lets you change tip sizes in seconds – without removing the tip guard and housing.
Application: High-Pressure Airless Spray Tip for XTR and XHF Guns. Designed for spraying high-solids coatings at high pressures.- Saves time – no screwdriver required, change tip sizes in seconds
- For heavy-duty applications up to 7250 psi (500 bar)
- Recommended for use with Xtreme Sprayers and XTR Guns
- Model: XHD RAC
- Series: SwitchTip
- Compatible Material: Solvent borne Paints, Water-Based Paint
- For Use With: Xtreme Sprayers, XTR Airless Spray Guns
- Maximum Fan Width (cm): 20.3
- Maximum Fan Width (in): 8
- Maximum Fan Width (mm): 203
- Maximum Flow Rate (GPM): 0.12
- Maximum Flow Rate (L/min): 0.45
- Maximum Working Pressure (bar): 500
- Maximum Working Pressure (kPa): 50000
- Maximum Working Pressure (psi): 7250
- Minimum Fan Width (in): 6
- Minimum Fan Width (mm): 152
- Orifice Diameter (in): 0.011
XHD RAC TIP, SPRAY, CYLINDER, 331
GG XHD331
XHD RAC TIP, SPRAY, CYLINDER, 331
XHD RAC SwitchTip, .331With its Reverse-A-Clean (RAC) Tip, it’s easy to clear clogs. The Switch Tip design lets you change tip sizes in seconds – without removing the tip guard and housing.
High-Pressure Airless Spray Tip for XTR and XHF Guns. Designed for spraying high-solids coatings at high pressures. Saves time – no screwdriver required, change tip sizes in seconds For heavy-duty applications up to 7250 psi (500 bar) Recommended for use with Xtreme Sprayers and XTR Guns Heavy-duty carbide tip
