GG XHD867
XHD RAC TIP, SPRAY, CYLINDER, 867

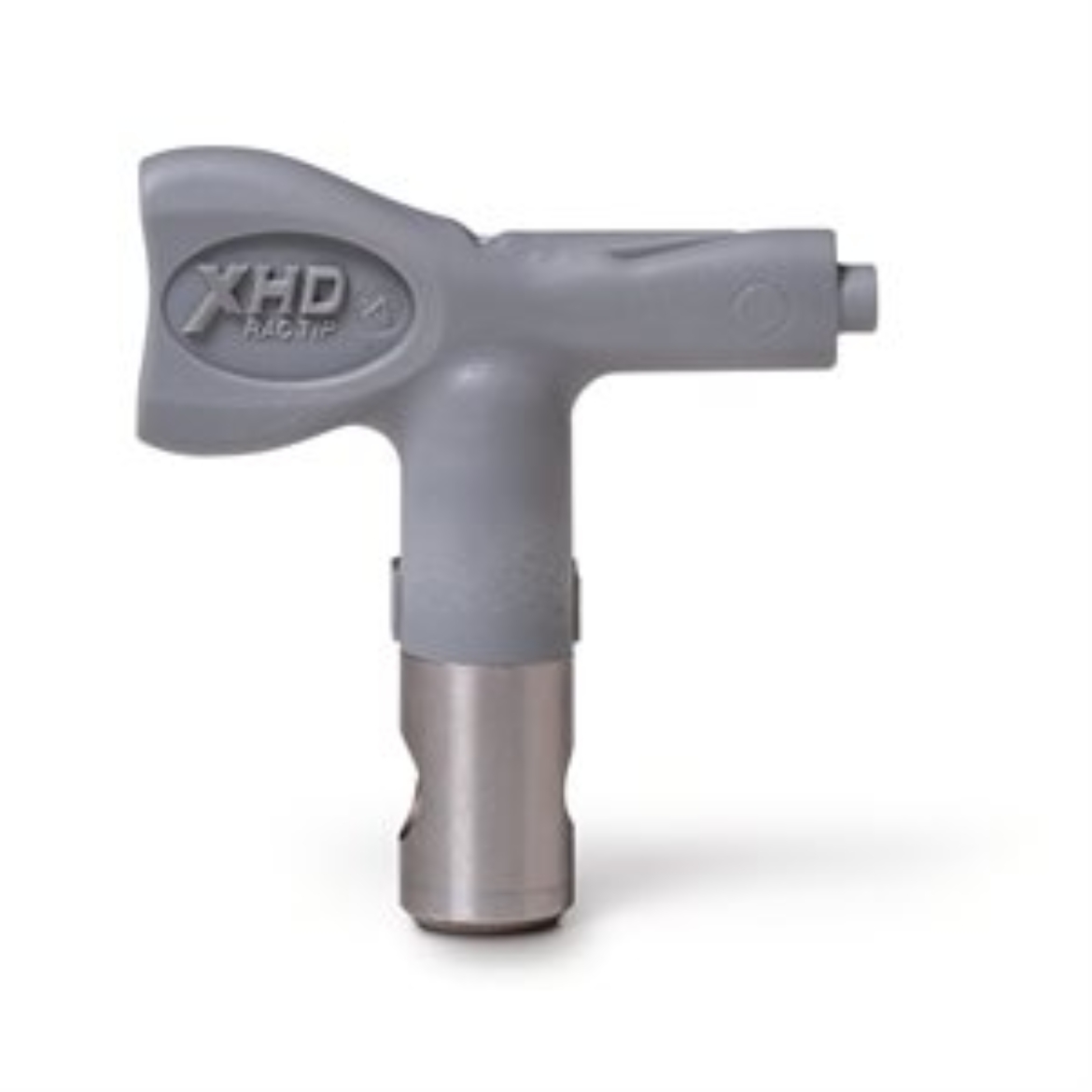

Graco XHD867 XHD RAC SwitchTip, .867
With its Reverse-A-Clean (RAC) Tip, it's easy to clear clogs. The Switch Tip design lets you change tip sizes in seconds - without removing the tip guard and housing.
Application: High-Pressure Airless Spray Tip for XTR and XHF Guns. Designed for spraying high-solids coatings at high pressures.
- Saves time - no screwdriver required, change tip sizes in seconds
- For heavy-duty applications up to 7250 psi (500 bar)
- Recommended for use with Xtreme Sprayers and XTR Guns
- Model: XHD RAC
- Series: SwitchTip
- Compatible Material: Solvent borne Paints, Water-Based Paint
- For Use With: Xtreme Sprayers, XTR Airless Spray Guns
- Maximum Fan Width (cm): 45.7
- Maximum Fan Width (in): 18
- Maximum Fan Width (mm): 457
- Maximum Flow Rate (GPM): 4.82
- Maximum Flow Rate (L/min): 18.25
- Maximum Working Pressure (bar): 500
- Maximum Working Pressure (kPa): 50000
- Maximum Working Pressure (psi): 7250
- Minimum Fan Width (in): 16
- Minimum Fan Width (mm): 406
- Orifice Diameter (in): 0.067
