RAC X WIDE RAC TIP, SPRAY, 1223

Manufacturer: GRACO INC. S10595

GG WR1223

RAC X WIDE RAC TIP, SPRAY, 1223

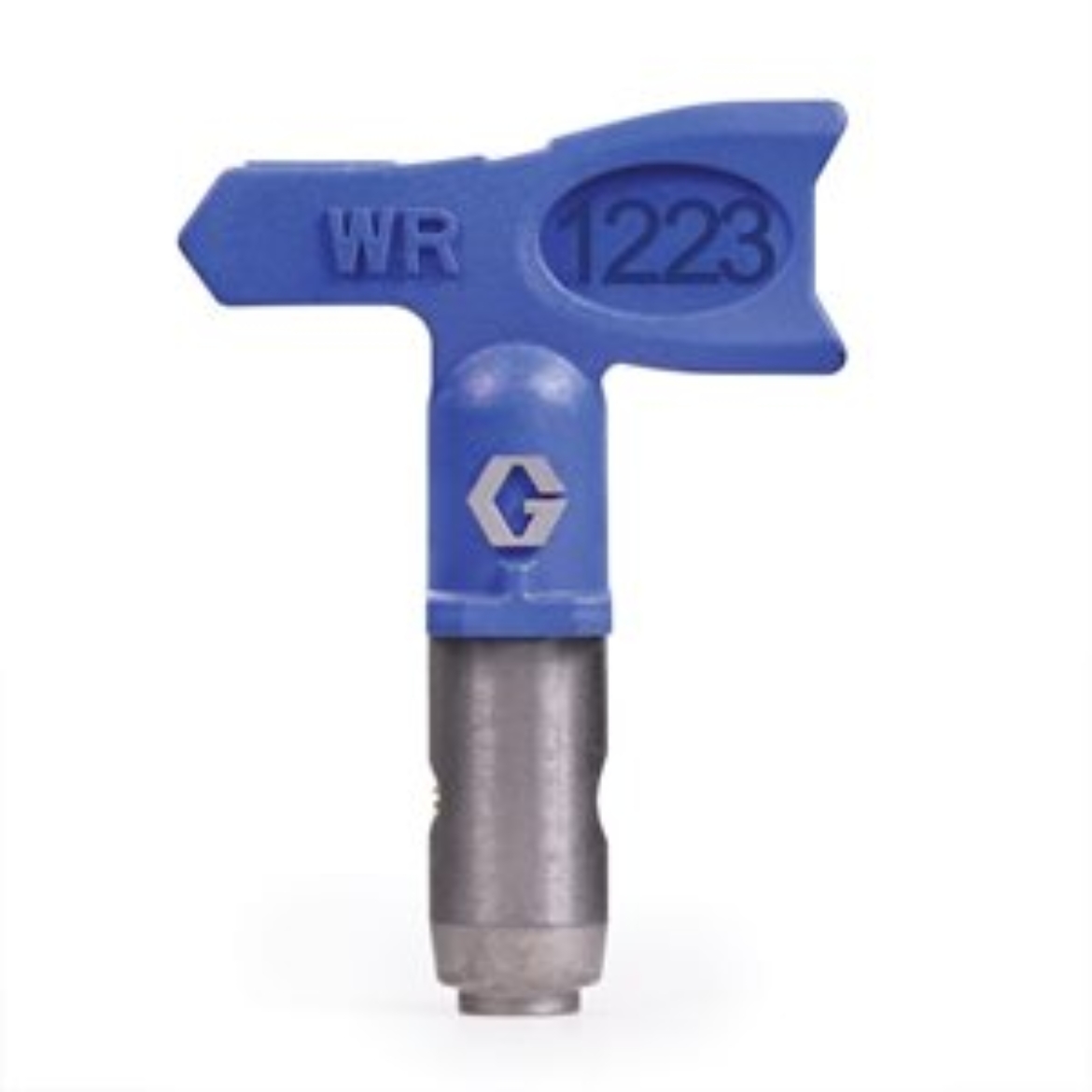

Graco WR1223 RAC X Wide RAC SwitchTip, 1223

The Reverse-A-Clean (RAC) 1223 RAC X Wide RAC SwitchTip produces a 24 inch fan and has a 0.023 inch orifice. Reverse the SwitchTip to easily clear clogs.

  • RAC X - Wide RAC

    The Wide RAC covers double the area in the same time - increased flow rate ensures the proper mil build

    Wide RAC tips are made for high production, new construction applications which may require larger airless sprayers

  • Superior Tip Design

    Locking tab ensures tip stays securely in guard

    &Prime, Snaps&Prime, tip in spray or reverse position

    OneSeal tip installs with no tools

    Solvent seal available when using extremely hot solvents

  • Easy to Identify Tip Size

    Large raised tip size numbers are always legible - even when covered with paint


  • Model: RAC X
  • Series: Wide RAC SwitchTip
  • For Use With: RAC X HandTite Tip Guard
  • Maximum Fan Width (cm): 61.0
  • Maximum Fan Width (in): 24
  • Maximum Fan Width (mm): 610
  • Maximum Flow Rate (GPM): 0.57
  • Maximum Flow Rate (L/min): 2.16
  • Maximum Working Pressure (bar): 280
  • Maximum Working Pressure (kPa): 28000
  • Maximum Working Pressure (psi): 4050
  • Minimum Fan Width (in): 24
  • Minimum Fan Width (mm): 610
  • Orifice Diameter (in): 0.023
  • Pattern Size (in): 24
  • Pattern Size (mm): 609.6
SKU: GG WR1223
Availability:
Price: $71.50
