Pump 12 :1 San PPC ST

GG 24F626

SANIFORCE PISTON PUMP, 12:1 PPC ST

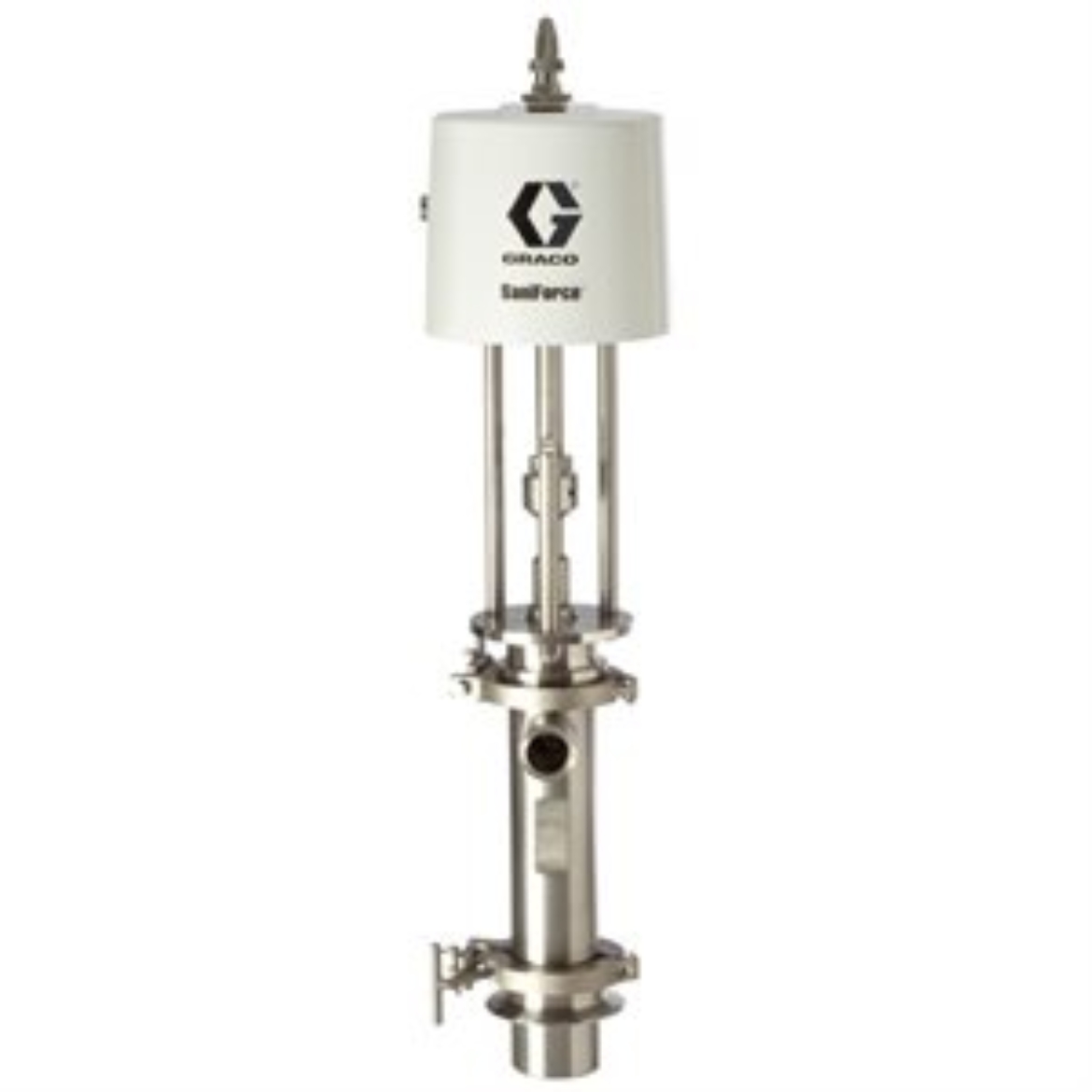

Graco 24F626 SaniForce 12:1 Stubby Piston Pump for Sticky Viscous Material

Gracos sanitary piston pumps are ideal for most food-related, cosmetic and personal care applications. The SaniForce 12:1 sanitary piston pump has flow rates up to 8.5 gpm (32 lpm) and maximum viscosity up to 1,000,000 cps when mounted on a drum or bin unloader.

• Quick knockdown lower
• Suitable to pump products such as: cosmetics, fruit juice concentrates, creamy candy fillings, ice cream variegates, jams and jellies
• Product highlights:

  Quick knockdown lowers are made with 300 series stainless steel for fast cleaning and long-lasting durability

  Easily removable FDA-compliant shroud to clean and access modular air valve - reducing downtime

  Most advanced air motor on the market




  • Model: SaniForce
  • Air Inlet Thread Gender: Female
  • Air Inlet Thread Type: NPSM
  • Application: Sanitary
  • Compatible Material: Food, Personal Care
  • Fluid Outlet Size (in): 2
  • Fluid Outlet Size (mm): 50.8
  • For Use With: Food, Personal Care, & Pharmaceutical
  • Material: Stainless Steel
  • Maximum Air Consumption (SCFM): 128
  • Maximum Air Inlet Pressure (bar): 6.9
  • Maximum Air Inlet Pressure (kPa): 690
  • Maximum Air Inlet Pressure (psi): 100
  • Maximum Continuous Cycle Rate (CPM): 60
  • Maximum Flow Rate (GPM): 8.5
  • Maximum Flow Rate (L/min): 32.18
  • Maximum Intermittent Cycle Rate (CPM): 60
  • Maximum Working Pressure (bar): 100
  • Maximum Working Pressure (kPa): 10000
  • Maximum Working Pressure (MPa): 10
  • Maximum Working Pressure (psi): 1450
  • Portable: Non-Portable
  • Pump Ratio: 12:1
