Sanitary
SANIFORCE AODD PUMP, 2150FG-PA01AS13SSPTPTPT21
GG FA3111
SANIFORCE AODD PUMP, 2150FG-PA01AS13SSPTPTPT21
SaniForce 2150, 2" FG SST Pneumatic Diaphragm Pump, AL Center, SS Seats, PT Balls, PT Diaphragms Graco's SaniForce 2150, 2-inch air-operated double diaphragm (AODD) pump provides a hygienic solution for customers needing to pump flow rates up to 160 gpm. It offers a quick knock-down design for easy cleaning and a low cost of ownership. Ideal for food processing and personal care markets. Common applications include high volume evacuation of liquid concentrates from holding vessels or repackaging of fluids from the original container to smaller receptacles. Suitable to pump products like flavorings, purees, sauces and other low to medium viscosity materials. 2 inch sanitary pump with flow rates up to 160 gpm (568 lpm) and pressures up to 120 psi (8 bar) Seal-less diaphragm pump design eliminates leaking and failures due to run-dry pump conditions Graco double diaphragm pumps stall under pressure preventing pump failures from clogged lines or closed valves Externally serviceable air valves deliver leading efficiency and reduce downtime. Equipped with inlet and outlet tri-clamp connections, offering a quick knockdown design for easy cleanability and a swift maintenance process 316 stainless steel wetted section All fluid contact materials are FDA-Compliant and meet the United States Code of Federal Regulations (CFR) Title 21 Pass solids up to 0.25 in. (6.3 mm)
SANIFORCE AODD PUMP, 1040FG-PS01AS13SSPTPTPT21
GG FD1111
SANIFORCE AODD PUMP, 1040FG-PS01AS13SSPTPTPT21
Graco FD1111 SaniForce 1040 S/S AODD Pump with Flange Connection, 316 S/S Seats, PTFE O-Rings, Balls & Diaphragms
Graco’s SaniForce 1040 air-operated double diaphragm sanitary pumps have one of the best, most durable, lube-free air valves in the industry. Ideal for applications requiring high flow rates and portability, Graco’s dependable diaphragm pumps offer a wide range of food-grade elastomers including Santoprene, PTFE and overmolded EPDM/PTFE.
- 1.5 in (38 mm) Tri-clamp connection
- All fluid contact materials are FDA-Compliant and meet the United States Code of Federal Regulations (CFR) Title 21
- Fluid pressure to 120 psi (8.4 bar, 0.84 MPa)
- High volume evacuation of liquid concentrates from holding vessels or repackaging of fluids from original container to smaller receptacles - up to 10,000 cps
- Suitable to pump such products as: concentrated fruit juices, sauces, pastes, starches, wine, food-grade oil, jams and jellies
- Model: SaniForce
- Series: 1040
- Air Exhaust Port Size (in): 3/4
- Air Exhaust Port Thread Gender: Female
- Air Exhaust Port Thread Type: NPT
- Air Inlet Size (in): 1/2
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPT
- Application: Sanitary
- Ball Material: PTFE
- Center Section Material: Stainless Steel
- Compatible Material: Edible Oil, Food and Personal Care
- Connection Type: Tri-Clamp
- Diaphragm Compatible Material: PTFE
- Diaphragm Material: PTFE
- Fluid Inlet Size (cm): 3.81
- Fluid Inlet Size (in): 1
- Fluid Inlet Size (mm): 38.1
- Fluid Outlet Size (cm): 3.81
- Fluid Outlet Size (in): 1
- Fluid Outlet Size (mm): 38.1
- Fluid Section Material: 316L Stainless Steel
- For Use With: Food and Personal Care
- Manifold Configuration: End Port
- Manifold O-Ring Material: PTFE
- Material: Stainless Steel
- Maximum Air Consumption (SCFM): 50
- Maximum Air Pressure (bar): 8
- Maximum Air Pressure (kPa): 800
- Maximum Air Pressure (MPa): 0.8
- Maximum Air Pressure (psi): 120
- Maximum Cycle Rate (CPM): 256
- Maximum Flow Rate (GPM): 41
- Maximum Flow Rate (L/min): 151
- Maximum Fluid Pressure (bar): 8
- Maximum Fluid Pressure (kPa): 800
- Maximum Fluid Pressure (MPa): 0.8
- Maximum Fluid Pressure (psi): 120
- Maximum Fluid Pressure (bar): 8
- Maximum Fluid Pressure (kPa): 800
- Maximum Fluid Pressure (MPa): 0.8
- Maximum Fluid Pressure (psi): 120
- Maximum Operating Temperature (°C): 104
- Maximum Operating Temperature (°F): 220
- Maximum Solid Size (cm): 0.3175
- Maximum Solid Size (in): 0.125
- Maximum Solid Size (mm): 3.175
- Overall Height (in): 16.1
- Power Source: Pneumatic
- Pump Ratio: 1:1
SANIFORCE AODD PUMP, 1040FG-PS01AS13SSSPSPEP21
GG FD1222
SANIFORCE AODD PUMP, 1040FG-PS01AS13SSSPSPEP21
Graco FD1222 SaniForce 1040 S/S AODD Pump with Flange Connection, 316 S/S Seats, EPDM O-Rings, Santoprene Balls & Diaphragms
Graco’s SaniForce 1040 air-operated double diaphragm sanitary pumps have one of the best, most durable, lube-free air valves in the industry. Ideal for applications requiring high flow rates and portability, Graco’s dependable diaphragm pumps offer a wide range of food-grade elastomers including Santoprene, PTFE and overmolded EPDM/PTFE.
- 1.5 in (38 mm) Tri-clamp connection
- All fluid contact materials are FDA-Compliant and meet the United States Code of Federal Regulations (CFR) Title 21
- Fluid pressure to 120 psi (8.4 bar, 0.84 MPa)
- High volume evacuation of liquid concentrates from holding vessels or repackaging of fluids from original container to smaller receptacles - up to 10,000 cps
- Suitable to pump such products as: concentrated fruit juices, sauces, pastes, starches, wine, food-grade oil, jams and jellies
- Model: SaniForce
- Series: 1040
- Air Exhaust Port Size (in): 3/4
- Air Exhaust Port Thread Gender: Female
- Air Exhaust Port Thread Type: NPT
- Air Inlet Size (in): 1/2
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPT
- Application: Sanitary
- Ball Material: Santoprene
- Center Section Material: Stainless Steel
- Compatible Material: Edible Oil, Food and Personal Care
- Connection Type: Tri-Clamp
- Diaphragm Compatible Material: Santoprene
- Diaphragm Material: Santoprene
- Fluid Inlet Size (cm): 3.81
- Fluid Inlet Size (in): 1
- Fluid Inlet Size (mm): 38.1
- Fluid Outlet Size (cm): 3.81
- Fluid Outlet Size (in): 1
- Fluid Outlet Size (mm): 38.1
- Fluid Section Material: 316L Stainless Steel
- For Use With: Food and Personal Care
- Manifold Configuration: End Port
- Manifold O-Ring Material: EPDM
- Material: Stainless Steel
- Maximum Air Consumption (SCFM): 50
- Maximum Air Pressure (bar): 8
- Maximum Air Pressure (kPa): 800
- Maximum Air Pressure (MPa): 0.8
- Maximum Air Pressure (psi): 120
- Maximum Cycle Rate (CPM): 256
- Maximum Flow Rate (GPM): 41
- Maximum Flow Rate (L/min): 151
- Maximum Fluid Pressure (bar): 8
- Maximum Fluid Pressure (kPa): 800
- Maximum Fluid Pressure (MPa): 0.8
- Maximum Fluid Pressure (psi): 120
- Maximum Fluid Pressure (bar): 8
- Maximum Fluid Pressure (kPa): 800
- Maximum Fluid Pressure (MPa): 0.8
- Maximum Fluid Pressure (psi): 120
- Maximum Solid Size (cm): 0.3175
- Maximum Solid Size (in): 0.125
- Maximum Solid Size (mm): 3.175
- Power Source: Pneumatic
- Pump Ratio: 1:1
SANIFORCE AODD PUMP, 1590FG-PS01AS13SSPTPTPT21
GG FD2111
SANIFORCE AODD PUMP, 1590FG-PS01AS13SSPTPTPT21
Graco FD2111 SaniForce 1590 S/S AODD Pump with Sanitary Clamp Connection, S/S Center Section & Seats, PTFE O-Rings, Balls & Diaphragms
Graco’s SaniForce 1590 air-operated double diaphragm sanitary pumps have one of the best, most durable, lube-free air valves in the industry. Ideal for applications requiring high flow rates and portability, Graco’s dependable diaphragm pumps offer a wide range of food-grade elastomers including Santoprene, PTFE and overmolded EPDM/PTFE.
Application: 1-1/2 inch (38 mm) air-operated double diaphragm sanitary pump with flow rates up to 90 gpm (341 lpm) - ideal for food-related applications- SaniForce 1590 Double Diaphragm Pump
- Patented, lube-free air valve
- PTFE/EPDM Overmolded Diaphragms
Available on the SaniForce 1040, 1590, 2150 and SaniForce HS 1590 and 3150
Improve wear and diaphragm life with no exposed diaphragm plate on the fluid side
Longer diaphragm life in abrasive applications that still require PTFE
- Model: SaniForce
- Series: 1590
- Air Exhaust Port Size (in): 3/4
- Air Exhaust Port Thread Gender: Female
- Air Exhaust Port Thread Type: NPT
- Air Inlet Size (in): 1/2
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPT
- Application: Sanitary
- Ball Material: PTFE
- Center Section Material: Stainless Steel
- Compatible Material: Edible Oil, Food and Personal Care
- Connection Type: Tri-Clamp
- Diaphragm Compatible Material: PTFE
- Diaphragm Material: PTFE
- Fluid Inlet Size (cm): 5.08
- Fluid Inlet Size (in): 1-1/2
- Fluid Inlet Size (mm): 50.8
- Fluid Outlet Size (cm): 5.08
- Fluid Outlet Size (in): 1-1/2
- Fluid Outlet Size (mm): 50.8
- Fluid Section Material: 316L Stainless Steel
- For Use With: Food and Personal Care
- Manifold Configuration: End Port
- Manifold O-Ring Material: PTFE
- Material: Stainless Steel
- Maximum Air Consumption (SCFM): 130
- Maximum Air Pressure (bar): 8
- Maximum Air Pressure (kPa): 800
- Maximum Air Pressure (MPa): 0.8
- Maximum Air Pressure (psi): 120
- Maximum Cycle Rate (CPM): 200
Three-way pilot valve for no-stick operation
316 series stainless steel rod design for long life and corrosion resistance
1040, 1590 and 2150 SaniForce pumps use common center sections
100% externally serviceable air valve
- PTFE/EPDM Overmolded Diaphragms
2 in (51 mm) tri-clamp connection
90 gpm (341 lpm) in a compact, portable size
Fluid pressure to 120 psi (8.4 bar, 0.84 MPa)
All fluid contact materials are FDA-Compliant and meet the United States Code of Federal Regulations (CFR) Title 21
High volume evacuation of liquid concentrates from holding vessels or repackaging of fluids from original container to smaller receptacles - up to 15,000 cps
Suitable to pump such products as: concentrated fruit juices, sauces, pastes, starches, wine, food-grade oil, jams and jellies
- Patented, lube-free air valve
SANIFORCE AODD PUMP, 1590FG-PS01AS13SSSPSPPT21
GG FD2122
SANIFORCE AODD PUMP, 1590FG-PS01AS13SSSPSPPT21
Graco FD2122 SaniForce 1590 AODD Pump with Sanitary Clamp Connection, S/S Seats, PTFE O-Rings, Santoprene Balls & Diaphragms
Graco’s SaniForce 1590 air-operated double diaphragm sanitary pumps have one of the best, most durable, lube-free air valves in the industry. Ideal for applications requiring high flow rates and portability, Graco’s dependable diaphragm pumps offer a wide range of food-grade elastomers including Santoprene, PTFE and overmolded EPDM/PTFE.
Application: 1-1/2 inch (38 mm) air-operated double diaphragm sanitary pump with flow rates up to 90 gpm (341 lpm) - ideal for food-related applications- SaniForce 1590 Double Diaphragm Pump
- Patented, lube-free air valve
- PTFE/EPDM Overmolded Diaphragms
Available on the SaniForce 1040, 1590, 2150 and SaniForce HS 1590 and 3150
Improve wear and diaphragm life with no exposed diaphragm plate on the fluid side
Longer diaphragm life in abrasive applications that still require PTFE
- Model: SaniForce
- Series: 1590
- Air Exhaust Port Size (in): 3/4
- Air Exhaust Port Thread Gender: Female
- Air Exhaust Port Thread Type: NPT
- Air Inlet Size (in): 1/2
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPT
- Application: Sanitary
- Ball Material: Santoprene
- Center Section Material: Stainless Steel
- Compatible Material: Edible Oil, Food and Personal Care
- Connection Type: Tri-Clamp
- Diaphragm Compatible Material: Santoprene
- Diaphragm Material: Santoprene
- Fluid Inlet Size (cm): 5.08
- Fluid Inlet Size (in): 1-1/2
- Fluid Inlet Size (mm): 50.8
- Fluid Outlet Size (cm): 5.08
- Fluid Outlet Size (in): 1-1/2
- Fluid Outlet Size (mm): 50.8
- Fluid Section Material: 316L Stainless Steel
- For Use With: Food and Personal Care
- Manifold Configuration: End Port
- Manifold O-Ring Material: PTFE
- Material: Stainless Steel
- Maximum Air Consumption (SCFM): 130
- Maximum Air Pressure (bar): 8
- Maximum Air Pressure (kPa): 800
- Maximum Air Pressure (MPa): 0.8
- Maximum Air Pressure (psi): 120
- Maximum Cycle Rate (CPM): 200
Three-way pilot valve for no-stick operation
316 series stainless steel rod design for long life and corrosion resistance
1040, 1590 and 2150 SaniForce pumps use common center sections
100% externally serviceable air valve
- PTFE/EPDM Overmolded Diaphragms
2 in (51 mm) tri-clamp connection
90 gpm (341 lpm) in a compact, portable size
Fluid pressure to 120 psi (8.4 bar, 0.84 MPa)
All fluid contact materials are FDA-Compliant and meet the United States Code of Federal Regulations (CFR) Title 21
High volume evacuation of liquid concentrates from holding vessels or repackaging of fluids from original container to smaller receptacles - up to 15,000 cps
Suitable to pump such products as: concentrated fruit juices, sauces, pastes, starches, wine, food-grade oil, jams and jellies
- Patented, lube-free air valve

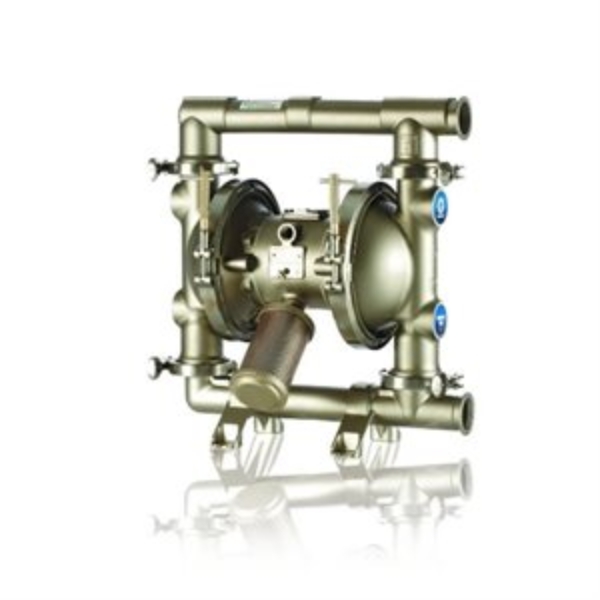

SANIFORCE AODD PUMP, 1590FG-PS01AS13SSCWPOPT21
GG FD2133
SANIFORCE AODD PUMP, 1590FG-PS01AS13SSCWPOPT21
Graco FD2133 SaniForce 1590 S/S AODD Pump with Sanitary Clamp Conn, S/S Center & Seats, PTFE O-Rings, Weighted CR Balls & Overmold PTFE Diaphragm
Graco’s SaniForce 1590 air-operated double diaphragm sanitary pumps have one of the best, most durable, lube-free air valves in the industry. Ideal for applications requiring high flow rates and portability, Graco’s dependable diaphragm pumps offer a wide range of food-grade elastomers including Santoprene, PTFE and overmolded EPDM/PTFE.
Application: 1-1/2 inch (38 mm) air-operated double diaphragm sanitary pump with flow rates up to 90 gpm (341 lpm) - ideal for food-related applications- SaniForce 1590 Double Diaphragm Pump
- Patented, lube-free air valve
- PTFE/EPDM Overmolded Diaphragms
Available on the SaniForce 1040, 1590, 2150 and SaniForce HS 1590 and 3150
Improve wear and diaphragm life with no exposed diaphragm plate on the fluid side
Longer diaphragm life in abrasive applications that still require PTFE
- Model: SaniForce
- Series: 1590
- Air Exhaust Port Size (in): 3/4
- Air Exhaust Port Thread Gender: Female
- Air Exhaust Port Thread Type: NPT
- Air Inlet Size (in): 1/2
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPT
- Application: Sanitary
- Ball Material: Polychloroprene Weighted
- Center Section Material: Stainless Steel
- Compatible Material: Edible Oil, Food and Personal Care
- Connection Type: Tri-Clamp
- Diaphragm Compatible Material: PTFE
- Diaphragm Material: PTFE Overmold
- Fluid Inlet Size (cm): 5.08
- Fluid Inlet Size (in): 1-1/2
- Fluid Inlet Size (mm): 50.8
- Fluid Outlet Size (cm): 5.08
- Fluid Outlet Size (in): 1-1/2
- Fluid Outlet Size (mm): 50.8
- Fluid Section Material: 316L Stainless Steel
- For Use With: Food and Personal Care
- Manifold Configuration: End Port
- Manifold O-Ring Material: PTFE
- Material: Stainless Steel
- Maximum Air Consumption (SCFM): 130
- Maximum Air Pressure (bar): 8
- Maximum Air Pressure (kPa): 800
- Maximum Air Pressure (MPa): 0.8
- Maximum Air Pressure (psi): 120
- Maximum Cycle Rate (CPM)
Three-way pilot valve for no-stick operation
316 series stainless steel rod design for long life and corrosion resistance
1040, 1590 and 2150 SaniForce pumps use common center sections
100% externally serviceable air valve
- PTFE/EPDM Overmolded Diaphragms
2 in (51 mm) tri-clamp connection
90 gpm (341 lpm) in a compact, portable size
Fluid pressure to 120 psi (8.4 bar, 0.84 MPa)
All fluid contact materials are FDA-Compliant and meet the United States Code of Federal Regulations (CFR) Title 21
High volume evacuation of liquid concentrates from holding vessels or repackaging of fluids from original container to smaller receptacles - up to 15,000 cps
Suitable to pump such products as: concentrated fruit juices, sauces, pastes, starches, wine, food-grade oil, jams and jellies
- Patented, lube-free air valve

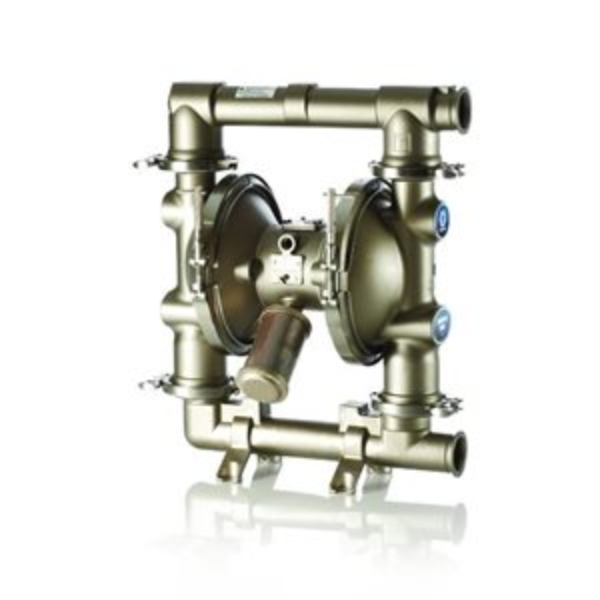

SANIFORCE AODD PUMP, 2150FG-PS01AS13SSPTPOPT21
GG FD3113
SANIFORCE AODD PUMP, 2150FG-PS01AS13SSPTPOPT21
Graco FD3113 SaniForce 2150 Diaphragm Pump for Barrel-to-Barrel Transfer and Pump-Over
Graco’s SaniForce 2150 air-operated double diaphragm sanitary pumps have one of the best, most durable, lube-free air valves in the industry. Ideal for applications requiring high flow rates and portability, Graco’s dependable diaphragm pumps offer a wide range of food-grade elastomers including Santoprene, PTFE and overmolded EPDM/PTFE.
- SaniForce 2150 Double Diaphragm Pump
- Patented, lube-free air valve
- PTFE/EPDM Overmolded Diaphragms
Overmolded diaphragm plate with PTFE on the fluid side and EPDM on the air side on Graco&prime, s PTFE/EPDM diaphragms so there&prime, s no place to harbor bacteria
Improve wear and diaphragm life with no exposed diaphragm plate on the fluid side
Longer diaphragm life in abrasive applications that still require PTFE
Available on the SaniForce 1040, 1590, 2150 and SaniForce HS 1590 and 3150
- Model: SaniForce
- Series: 2150
- Air Exhaust Port Size (in): 3/4
- Air Exhaust Port Thread Gender: Female
- Air Exhaust Port Thread Type: NPT
- Air Inlet Size (in): 1/2
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPT
- Application: Sanitary
- Ball Material: PTFE
- Center Section Material: Stainless Steel
- Compatible Material: Edible Oil, Food and Personal Care
- Connection Type: Tri-Clamp
- Diaphragm Compatible Material: PTFE
- Diaphragm Material: PTFE Overmold
- Fluid Inlet Size (cm): 6.35
- Fluid Inlet Size (in): 2
- Fluid Inlet Size (mm): 63.5
- Fluid Outlet Size (cm): 6.35
- Fluid Outlet Size (in): 2
- Fluid Outlet Size (mm): 63.5
- Fluid Section Material: 316L Stainless Steel
- For Use With: Food and Personal Care
- Manifold Configuration: End Port
- Manifold O-Ring Material: PTFE
- Material: Stainless Steel
- Maximum Air Consumption (SCFM): 175
- Maximum Air Pressure (bar): 8
- Maximum Air Pressure (kPa): 800
- Maximum Air Pressure (MPa): 0.8
- Maximum Air Pressure (psi): 120
- Maximum Cycle Rate (CPM): 165
- Maximum Flo
Three-way pilot valve for no-stick operation
Long-lasting 16 Series stainless steel rod design for long life and corrosion resistance
1040, 1590 and 2150 SaniForce pumps use common center sections
100% externally serviceable air valve
- PTFE/EPDM Overmolded Diaphragms
2-1/2 in (63.5 mm) Tri-clamp connection
Flow rates up to 150 gpm (567 lpm) (568 lpm)
Fluid pressure to 120 psi (8.4 bar, 0.84 MPa)
All fluid contact materials are FDA-Compliant and meet the United States Code of Federal Regulations (CFR) Title 21
High volume evacuation of liquid concentrates from holding vessels or repackaging of fluids from original container to smaller receptacles - up to 20,000 cps
Suitable to pump such products as: concentrated fruit juices, sauces, pastes, starches, wine, food-grade oil, jams and jellies
- Patented, lube-free air valve
SANIFORCE AODD PUMP, 2150FG-PS01AS13SSCWPOPT21
GG FD3133
SANIFORCE AODD PUMP, 2150FG-PS01AS13SSCWPOPT21
Graco FD3133 SaniForce 2150 S/S AODD Pump with Flange Conn, 316 S/S Seats, PTFE O-Rings, Polychloroprene with S/S Core & PTFE Overmold Diaphragm
Graco’s SaniForce 2150 air-operated double diaphragm sanitary pumps have one of the best, most durable, lube-free air valves in the industry. Ideal for applications requiring high flow rates and portability, Graco’s dependable diaphragm pumps offer a wide range of food-grade elastomers including Santoprene, PTFE and overmolded EPDM/PTFE.
- SaniForce 2150 Double Diaphragm Pump
- Patented, lube-free air valve
- PTFE/EPDM Overmolded Diaphragms
Overmolded diaphragm plate with PTFE on the fluid side and EPDM on the air side on Graco&prime, s PTFE/EPDM diaphragms so there&prime, s no place to harbor bacteria
Improve wear and diaphragm life with no exposed diaphragm plate on the fluid side
Longer diaphragm life in abrasive applications that still require PTFE
Available on the SaniForce 1040, 1590, 2150 and SaniForce HS 1590 and 3150
- Model: SaniForce
- Series: 2150
- Air Exhaust Port Size (in): 3/4
- Air Exhaust Port Thread Gender: Female
- Air Exhaust Port Thread Type: NPT
- Air Inlet Size (in): 1/2
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPT
- Application: Sanitary
- Ball Material: Polychloroprene Weighted
- Center Section Material: Stainless Steel
- Compatible Material: Edible Oil, Food and Personal Care
- Connection Type: Tri-Clamp
- Diaphragm Compatible Material: PTFE
- Diaphragm Material: PTFE Overmold
- Fluid Inlet Size (cm): 6.35
- Fluid Inlet Size (in): 2
- Fluid Inlet Size (mm): 63.5
- Fluid Outlet Size (cm): 6.35
- Fluid Outlet Size (in): 2
- Fluid Outlet Size (mm): 63.5
- Fluid Section Material: 316L Stainless Steel
- For Use With: Food and Personal Care
- Manifold Configuration: End Port
- Manifold O-Ring Material: PTFE
- Material: Stainless Steel
- Maximum Air Consumption (SCFM): 175
- Maximum Air Pressure (bar): 8
- Maximum Air Pressure (kPa): 800
- Maximum Air Pressure (MPa): 0.8
- Maximum Air Pressure (psi): 120
- M
Three-way pilot valve for no-stick operation
Long-lasting 16 Series stainless steel rod design for long life and corrosion resistance
1040, 1590 and 2150 SaniForce pumps use common center sections
100% externally serviceable air valve
- PTFE/EPDM Overmolded Diaphragms
2-1/2 in (63.5 mm) Tri-clamp connection
Flow rates up to 150 gpm (567 lpm) (568 lpm)
Fluid pressure to 120 psi (8.4 bar, 0.84 MPa)
All fluid contact materials are FDA-Compliant and meet the United States Code of Federal Regulations (CFR) Title 21
High volume evacuation of liquid concentrates from holding vessels or repackaging of fluids from original container to smaller receptacles - up to 20,000 cps
Suitable to pump such products as: concentrated fruit juices, sauces, pastes, starches, wine, food-grade oil, jams and jellies
- Patented, lube-free air valve

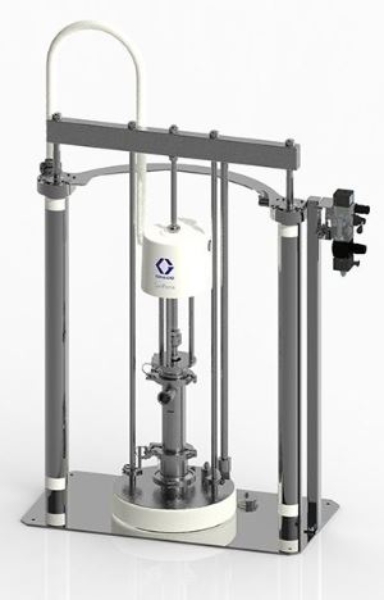

SANIFORCE DRUM UNLOADER SYSTEM, RAM, HYGIENIC
GG SDU.A05AAA1AA0C21
SANIFORCE DRUM UNLOADER SYSTEM, RAM, HYGIENIC
SaniForce Ram Unit, Stainless Steel Frame, 12:1 PP, Inflatable Seal, Exposed Controls SaniForce Drum Unloader systems are built to handle your thickest, toughest food, personal care, and pharmaceutical ingredient transfer. With up to 99% evacuation rates the SaniForce systems reduce product waste while providing a solution to transfer products up to 2,000,000 cps utilizing sanitary designed high pressure piston pumps. Ram systems increase food safety by creating a sealed system with the container and improve worker ergonomics by preventing injury due to manual scooping and dumping of containers and ingredients. The inflatable seal system it is flexible enough to accomodate multiple drum shapes and sizes. With multiple pump, control, plate, and frame options the systems are configurable to match requirements of most users applications. High-pressure sanitary/hygienic container unloading for ingredients or products up to 2,000,000 cps Reduce material waste with up to 99% material evacuation Improve worker ergonomics by eliminating hazards associated with scooping and dumping options Improve food safety by creating a sealed system with the container and inflatable seal design - eliminates food contamination from air borne or worker contaminates Self-priming and run dry pump capabilities ideal for container unloading applications Configurable systems to meet requirements of almost any ingredient unloading application

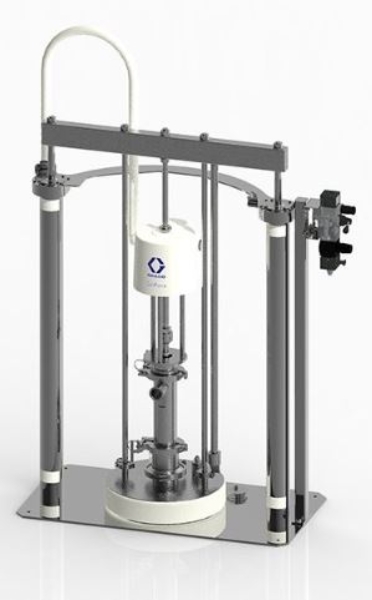

SANIFORCE DRUM UNLOADER SYSTEM, RAM, HYGIENIC
GG SDU.B05AAA6AA0C21
SANIFORCE DRUM UNLOADER SYSTEM, RAM, HYGIENIC
SaniForce Ram Unit, Carbon Steel Frame, 12:1 PP, Inflatable Seal, Exposed Controls SaniForce Drum Unloader systems are built to handle your thickest, toughest food, personal care, and pharmaceutical ingredient transfer. With up to 99% evacuation rates the SaniForce systems reduce product waste while providing a solution to transfer products up to 2,000,000 cps utilizing sanitary designed high pressure piston pumps. Ram systems increase food safety by creating a sealed system with the container and improve worker ergonomics by preventing injury due to manual scooping and dumping of containers and ingredients. The inflatable seal system it is flexible enough to accomodate multiple drum shapes and sizes. With multiple pump, control, plate, and frame options the systems are configurable to match requirements of most users applications. High-pressure sanitary/hygienic container unloading for ingredients or products up to 2,000,000 cps Reduce material waste with up to 99% material evacuation Improve worker ergonomics by eliminating hazards associated with scooping and dumping options Improve food safety by creating a sealed system with the container and inflatable seal design - eliminates food contamination from air borne or worker contaminates Self-priming and run dry pump capabilities ideal for container unloading applications Configurable systems to meet requirements of almost any ingredient unloading application
Hose, Assy, SS Brd, 3/8X120, SS Obsolete
GG 16D266
Hose, Assembly, SS Brd, 3/8X120, SS
SOLOTECH ST32 PUMP, I32-HAC-EP-SS-A1-A1-0
GG 19D021
SOLOTECH ST32 PUMP, I32-HAC-EP-SS-A1-A1-0

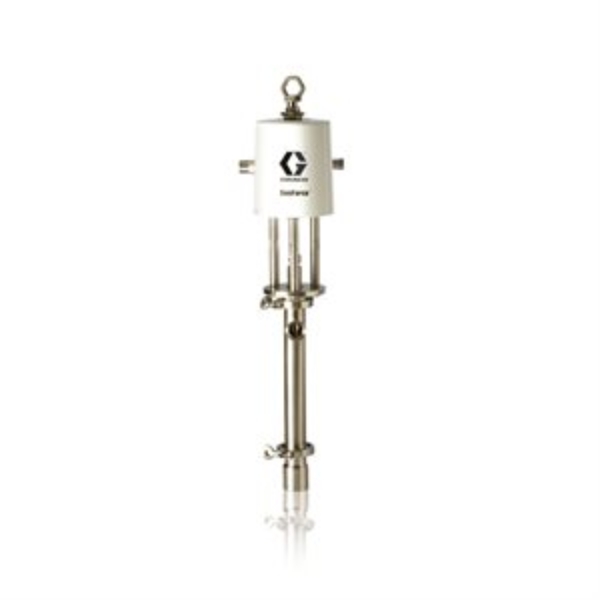

SANIFORCE PISTON PUMP, 6:1 DB ST
GG 24E837
SANIFORCE PISTON PUMP, 6:1 DB ST
6:1 Ratio SaniForce Stubby Double Ball Piston Pump with PTFE PackingsGraco's SaniForce 6:1 quick knockdown piston pumps are constructed of 300 series stainless steel. The air motor improves serviceability, increases efficiency and offers a lower cost of ownership. Our sanitary piston pumps are ideal for most food-related, cosmetic and personal care applications.
Quick Knockdown Sanitary Piston Pumps for Food and Personal Care Applications Most advanced air motor on the market Available in double-ball and priming piston designs Fluid transfer and supply of low to medium viscosity fluids Suitable to pump products such as: cosmetics, fruit juice concentrates, creamy candy fillings, ice cream variegates, jams and jelliesFDA-Compliant Shroud:
- Easily removable FDA-compliant shroud to clean and access modular air valve - reducing downtime
- Quick knockdown lowers are made with 300 series stainless steel for long-lasting durability

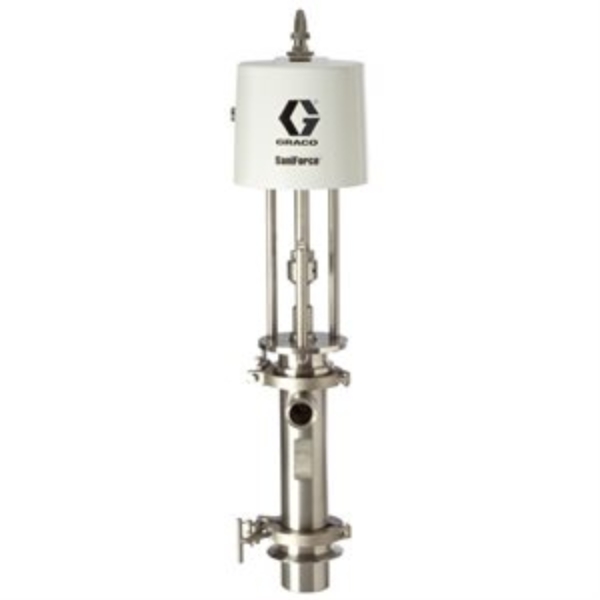

SANIFORCE PISTON PUMP, 12:1 PPC ST
GG 24F626
SANIFORCE PISTON PUMP, 12:1 PPC ST
Graco 24F626 SaniForce 12:1 Stubby Piston Pump for Sticky Viscous Material
Graco&prime, s sanitary piston pumps are ideal for most food-related, cosmetic and personal care applications. The SaniForce 12:1 sanitary piston pump has flow rates up to 8.5 gpm (32 lpm) and maximum viscosity up to 1,000,000 cps when mounted on a drum or bin unloader.
Application: Quick Knockdown Sanitary Piston Pumps for Food and Personal Care Applications- Quick knockdown lower
- Suitable to pump products such as: cosmetics, fruit juice concentrates, creamy candy fillings, ice cream variegates, jams and jellies
- Product highlights:
Quick knockdown lowers are made with 300 series stainless steel for fast cleaning and long-lasting durability
Easily removable FDA-compliant shroud to clean and access modular air valve - reducing downtime
Most advanced air motor on the market
- Model: SaniForce
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPSM
- Application: Sanitary
- Compatible Material: Food, Personal Care
- Fluid Outlet Size (in): 2
- Fluid Outlet Size (mm): 50.8
- For Use With: Food, Personal Care, & Pharmaceutical
- Material: Stainless Steel
- Maximum Air Consumption (SCFM): 128
- Maximum Air Inlet Pressure (bar): 6.9
- Maximum Air Inlet Pressure (kPa): 690
- Maximum Air Inlet Pressure (psi): 100
- Maximum Continuous Cycle Rate (CPM): 60
- Maximum Flow Rate (GPM): 8.5
- Maximum Flow Rate (L/min): 32.18
- Maximum Intermittent Cycle Rate (CPM): 60
- Maximum Working Pressure (bar): 100
- Maximum Working Pressure (kPa): 10000
- Maximum Working Pressure (MPa): 10
- Maximum Working Pressure (psi): 1450
- Portable: Non-Portable
- Pump Ratio: 12:1

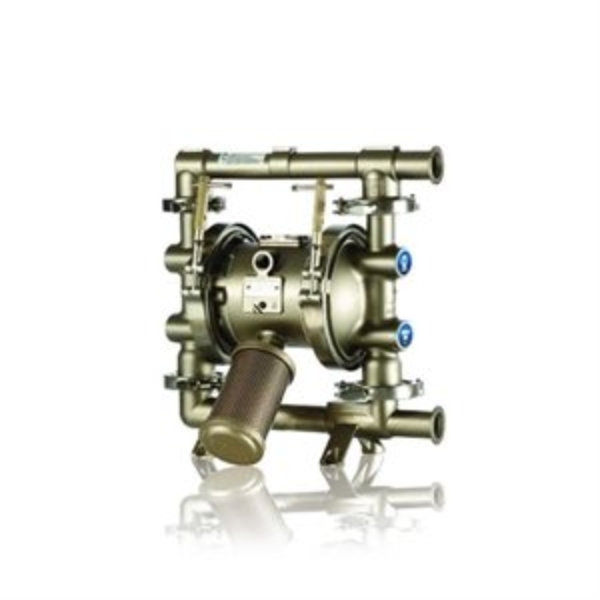

SANIFORCE AODD PUMP, 1040FG-PS01AS13SSPTPOEP21
GG FD1213
SANIFORCE AODD PUMP, 1040FG-PS01AS13SSPTPOEP21
SaniForce 1040, 1" FG SST Pneumatic Diaphragm Pump, SS Center, SS Seats, PT Balls, PO Diaphragms Graco's SaniForce 1040, 1-inch air-operated double diaphragm (AODD) pump provides a hygienic solution for customers needing to pump flow rates up to 41 gpm. It offers a quick knock-down design for easy cleaning and a low cost of ownership. Ideal for food processing and personal care markets. Common applications include high volume evacuation of liquid concentrates from holding vessels or repackaging of fluids from the original container to smaller receptacles. Suitable to pump products like flavorings, purees, sauces and other low to medium viscosity materials. 1 inch sanitary pump with flow rates up to 41 gpm (155 lpm) and pressures up to 120 psi (8 bar) Seal-less diaphragm pump design eliminates leaking and failures due to run-dry pump conditions Graco double diaphragm pumps stall under pressure preventing pump failures from clogged lines or closed valves Externally serviceable air valves deliver leading efficiency and reduce downtime. Equipped with inlet and outlet tri-clamp connections, offering a quick knockdown design for easy cleanability and a swift maintenance process PTFE/EPDM overmolded diaphragm design reduces areas that harbor bacteria while improving wear and diaphragm life with no exposed diaphragm plate on the fluid side 316 stainless steel wetted section All fluid contact materials are FDA-Compliant and meet the United States Code of Federal Regulations (CFR) Title 21 Pass solids up to 0.125 in. (3.2 mm)
SANIFORCE AODD PUMP, 2150FG-PS01AS14SSSPSPEP21
GG FD9222
SANIFORCE AODD PUMP, 2150FG-PS01AS14SSSPSPEP21
Graco FD9222 SaniForce 2150 Diaphragm Pump
Graco’s SaniForce 2150 air-operated double diaphragm sanitary pumps have one of the best, most durable, lube-free air valves in the industry. Ideal for applications requiring high flow rates and portability, Graco’s dependable diaphragm pumps offer a wide range of food-grade elastomers including Santoprene, PTFE and overmolded EPDM/PTFE.
- SaniForce 2150 Double Diaphragm Pump
- Patented, lube-free air valve
- PTFE/EPDM Overmolded Diaphragms
Overmolded diaphragm plate with PTFE on the fluid side and EPDM on the air side on Graco&prime, s PTFE/EPDM diaphragms so there&prime, s no place to harbor bacteria
Improve wear and diaphragm life with no exposed diaphragm plate on the fluid side
Longer diaphragm life in abrasive applications that still require PTFE
Available on the SaniForce 1040, 1590, 2150 and SaniForce HS 1590 and 3150
- Model: SaniForce
- Series: 2150
- Air Exhaust Port Size (in): 3/4
- Air Exhaust Port Thread Gender: Female
- Air Exhaust Port Thread Type: NPT
- Air Inlet Size (in): 1/2
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPT
- Application: Sanitary
- Ball Material: Santoprene
- Center Section Material: Stainless Steel
- Compatible Material: Edible Oil, Food and Personal Care
- Connection Type: DIN
- Diaphragm Compatible Material: Santoprene
- Diaphragm Material: Santoprene
- Fluid Inlet Size (cm): 6.35
- Fluid Inlet Size (in): 2
- Fluid Inlet Size (mm): 63.5
- Fluid Outlet Size (cm): 6.35
- Fluid Outlet Size (in): 2
- Fluid Outlet Size (mm): 63.5
- Fluid Section Material: 316L Stainless Steel
- For Use With: Food and Personal Care
- Manifold Configuration: End Port
- Manifold O-Ring Material: EPDM
- Material: Stainless Steel
- Maximum Air Consumption (SCFM): 175
- Maximum Air Pressure (bar): 8
- Maximum Air Pressure (kPa): 800
- Maximum Air Pressure (MPa): 0.8
- Maximum Air Pressure (psi): 120
- Maximum Cycle Rate (CPM): 165
- Maximum Flow Rate (GPM): 150
- Maximum
Three-way pilot valve for no-stick operation
Long-lasting 16 Series stainless steel rod design for long life and corrosion resistance
1040, 1590 and 2150 SaniForce pumps use common center sections
100% externally serviceable air valve
- PTFE/EPDM Overmolded Diaphragms
2-1/2 in (63.5 mm) Tri-clamp connection
Flow rates up to 150 gpm (567 lpm) (568 lpm)
Fluid pressure to 120 psi (8.4 bar, 0.84 MPa)
All fluid contact materials are FDA-Compliant and meet the United States Code of Federal Regulations (CFR) Title 21
High volume evacuation of liquid concentrates from holding vessels or repackaging of fluids from original container to smaller receptacles - up to 20,000 cps
Suitable to pump such products as: concentrated fruit juices, sauces, pastes, starches, wine, food-grade oil, jams and jellies
- Patented, lube-free air valve
