Parts

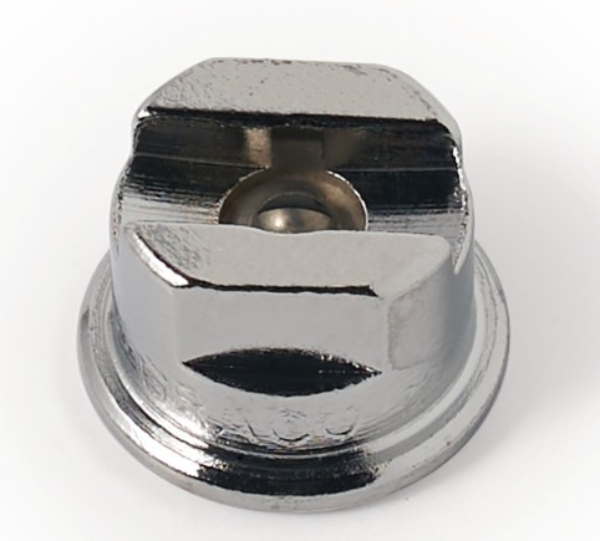

SILVER FLAT TIP, SPRAY TC
GG 163411
GG 163411
SILVER FLAT TIP, SPRAY TC
Silver Flat Tip, 411 Silver Flat Tips are precision spray tips that are held at the highest level of cut tolerance for specialty architectural and industrial applications. The 411 Silver Flat Tip has a 0.011 inch orifice and produces a 8 to 10 inch fan. Simply install the flat tip into the backside of the guard and thread onto the gun. Remove guard and flush spray tip to clear any clog.
$54.25
SILVER FLAT TIP, SPRAY
GG 163413
GG 163413
SILVER FLAT TIP, SPRAY
Graco 163413 Silver Flat Tip, 413
Silver Flat Tips are precision spray tips that are held at the highest level of cut tolerance for specialty architectural and industrial applications. The 413 Silver Flat Tip has a 0.013 inch orifice and produces a 8 to 10 inch fan.
Application: Simply install the flat tip into the backside of the guard and thread onto the gun. Remove guard and flush spray tip to clear any clog.- Model: Silver
- Series: Flat Tip
- Maximum Fan Width (cm): 20
- Maximum Fan Width (in): 8
- Maximum Fan Width (mm): 254
- Maximum Flow Rate (GPM): 0.18
- Maximum Flow Rate (L/min): 0.68
- Maximum Working Pressure (bar): 345
- Maximum Working Pressure (kPa): 34500
- Maximum Working Pressure (psi): 5000
- Minimum Fan Width (in): 8
- Minimum Fan Width (mm): 203
- Orifice Diameter (in): 0.013
- Pattern Size (in): 8 to 10
- Pattern Size (mm): 203.2 to 254
$54.25
SILVER FLAT TIP, SPRAY TC
GG 163415
GG 163415
SILVER FLAT TIP, SPRAY TC
Silver Flat Tip, 415 Silver Flat Tips are precision spray tips that are held at the highest level of cut tolerance for specialty architectural and industrial applications. The 415 Silver Flat Tip has a 0.015 inch orifice and produces a 8 to 10 inch fan. Simply install the flat tip into the backside of the guard and thread onto the gun. Remove guard and flush spray tip to clear any clog.
$54.25
FF FLAT TIP, SPRAY TC
GG 163516
GG 163516
FF FLAT TIP, SPRAY TC
Graco 163516 Fine Finish Flat Tip, 516
The 516 Fine Finish Flat Tip produces a 10 to 12 inch fan pattern and a 0.016 inch orifice.
- Model: Fine Finish
- Series: Flat Tip
- Compatible Material: Lacquer, Varnish, Urethane, Fine Finish Material
- For Use With: Silver Plus Airless Spray Gun
- Maximum Fan Width (cm): 30.5
- Maximum Fan Width (in): 10
- Maximum Fan Width (mm): 305
- Maximum Flow Rate (GPM): 0.27
- Maximum Flow Rate (L/min): 1.02
- Maximum Working Pressure (bar): 207
- Maximum Working Pressure (kPa): 20700
- Maximum Working Pressure (psi): 3000
- Minimum Fan Width (in): 10
- Minimum Fan Width (mm): 254
- Orifice Diameter (in): 0.016
- Pattern Size (in): 10 to 12
- Pattern Size (mm): 254 to 304.8
$66.00
SILVER FLAT TIP, SPRAY TC
GG 163609
GG 163609
SILVER FLAT TIP, SPRAY TC
Graco 163609 Silver Flat Tip, 609
Silver Flat Tips are precision spray tips that are held at the highest level of cut tolerance for specialty architectural and industrial applications. The 609 Silver Flat Tip has a 0.009 inch orifice and produces a 12 to 14 inch fan.
Application: Simply install the flat tip into the backside of the guard and thread onto the gun. Remove guard and flush spray tip to clear any clog.- Model: Silver
- Series: Flat Tip
- Maximum Fan Width (cm): 30
- Maximum Fan Width (in): 12
- Maximum Fan Width (mm): 356
- Maximum Flow Rate (GPM): 0.087
- Maximum Flow Rate (L/min): 0.33
- Maximum Working Pressure (bar): 345
- Maximum Working Pressure (kPa): 34500
- Maximum Working Pressure (psi): 5000
- Minimum Fan Width (in): 12
- Minimum Fan Width (mm): 305
- Orifice Diameter (in): 0.009
- Pattern Size (in): 12 to 14
- Pattern Size (mm): 304.8 to 355.6
$54.25
FF FLAT TIP, SPRAY TC
GG 163620
GG 163620
FF FLAT TIP, SPRAY TC
Fine Finish Flat Tip, 620 The 620 Fine Finish Flat Tip produces a 12 to 14 inch fan pattern and a 0.020 inch orifice.
$66.00
SILVER FLAT TIP, SPRAY TC
GG 163711
GG 163711
SILVER FLAT TIP, SPRAY TC
Silver Flat Tip, 711 Silver Flat Tips are precision spray tips that are held at the highest level of cut tolerance for specialty architectural and industrial applications. The 711 Silver Flat Tip has a 0.011 inch orifice and produces a 14 to 16 inch fan. Simply install the flat tip into the backside of the guard and thread onto the gun. Remove guard and flush spray tip to clear any clog.
$54.25
SILVER FLAT TIP, SPRAY TC
GG 163713
GG 163713
SILVER FLAT TIP, SPRAY TC
Silver Flat Tip, 713 Silver Flat Tips are precision spray tips that are held at the highest level of cut tolerance for specialty architectural and industrial applications. The 713 Silver Flat Tip has a 0.013 inch orifice and produces a 14 to 16 inch fan. Simply install the flat tip into the backside of the guard and thread onto the gun. Remove guard and flush spray tip to clear any clog.
$54.25
