Kits

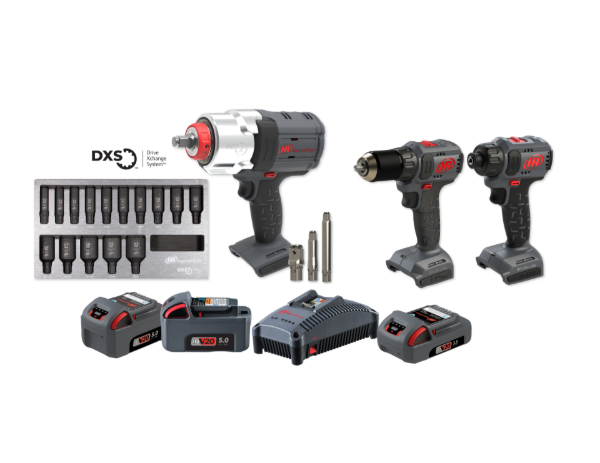

IR IQV20-3W7D3

IQV20 Cordless Power Tool 3 Kit

Features And Benefits

• W7153 DXS Cordless Impact Wrench combines robust versatility with exceptional value to deliver the power of pneumatic in a cordless tool that works smarter, not harder. Features the patented DXS® Drive Xchange System™ that uses a proprietary spline-type interface and fast-swap, interchangeable drives, so you can perform multiple jobs with one tool – without compromise. With 1,600ft-lbs. of breakaway torque and a lightweight, compact design, the W7153 offers best-in-class performance that eliminates the need for adapters and extensions. Ditch your adapters and experience the versatility of the industry’s most compact high torque cordless impact wrench.
• W7153 Impact Wrench Performance: 1600ft-lb. Torque, 2450 Blows per Minute, 1900 RPM, Variable Speed Throttle, 6.1 lb (w/o Battery), 8.3"L, Brushless Motor, IPX6-certified, UL Listed, Csa Certified, Impact and chemical-resistant composite housing and patented steel reinforced frame, 360⁰ shadowless task light with 4 dimmable settings. 5 yr. Limited Warranty.
• Never lose power from worn sockets and square drive anvils with Drive Xchange System Sockets and enjoy easier access into tight spaces with up to ¾” shorter tool length when use with Ingersoll Rand DXS™ impact wrenches. DXS™ direct drive sockets fit tighter and have more load bearing surface compared to traditional square drives to deliver up to 15% better torque transfer and 20% longer wear life. Maintain the torque power output by replacing your worn anvil in less than a minute. Sockets have high visibility laser etched markings to easily identify the size you need. Impact-grade toughness chrome-molybdenum (CR-MO) alloy steel with manganese phosphate finish to resist corrosion. Relieved 6 point Hex corners help reduce faster rounding. Ball nose retention pin for quick, tool-free installation and removal. Complies with ASME B107.110. Sockets are backed by a lifetime limited warranty for peace of mind with proven reliability.
• DXS2 A41H and AK43H Anvil Set includes: (1) 1/2" Drive Standard Anvil, (1) 1/2" Drive 2" Extended Anvil, (1) 1/2" Drive 4" Extended Anvil, (1) 3/4" Drive Standard Anvil)
• DXS2 DXSK2M15L Socket Set Includes: 15 deep sockets (12mm, 13mm, 14mm, 15mm, 16mm, 17mm, 18mm, 19mm, 21mm, 22mm, 24mm, 27mm, 30mm, 32mm, 33mm) and foam organizer shadowboard tray.
• 20V Battery Charger: Charge any of your IQV® 12 and IQV® 20 Series batteries on the same universal charger (20V). An LED Fuel Gauge and audible alarm will let you know when your batteries are fully charged and ready to get back to work. Can be mounted vertically or horizontally on a wall or work bench. The USB charge port means you don’t have to fight for an outlet with your tablet or smart phone.
• IQV20 BL2012 and BL2022 Batteries: The intelligent Battery Management System allows the battery to communicate with the tool and charger to offer triple battery protection. 4 light position Fuel Gauge. Quick charging feature in one hour or less.
• Batteries Included in Kit: (2) BL2022-IQV 20V 5 Ah Batteries, and (1) BL2012- IQV 20V 2.5Ah Battery.
• D3141 Drill/Driver Performance: 1/2" Keyless Chuck, 18-position Clutch, 450 in-lb Max Torque, 1800RPM, 2.7lbs. (w/ Battery), 7"L, Drill/Drive Mode, LED light, ETL, CB, CE, IPX6 rated, Impact and chemical-resistant composite housing, Brushless Motor, 3-yr. Warranty.
• D3411 Screwdriver Performance: 1/4" Quick Change Hex Chuck, 18-position Clutch, 450 in-lb Max Torque, 1800 RPM, 3lbs. (w/ Battery), 5"L, Dual Speed, LED light, ETL, CB, CE, IPX6 rated, Impact and chemical-resistant composite housing, Brushless Motor, 3-yr. Warranty.

Built-in Light: Yes
Chuck Type: Keyless Chuck
Clutch Settings: 18
Configuration/Handle Type: Pistol Grip
Drive Size (in): 1/2
Drive Size (in): 1/4
Handle Material: Overmolded Grip
Housing Material: Impact and ch

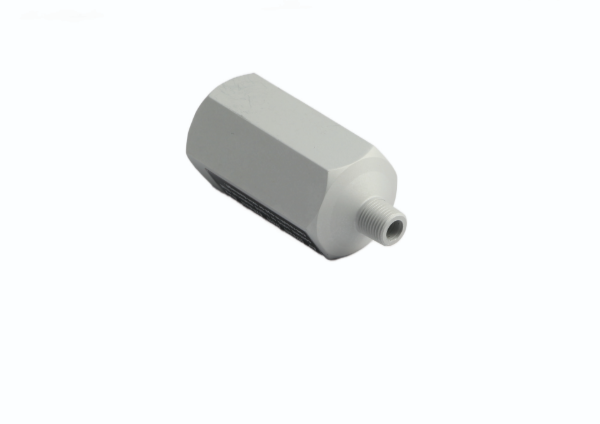

IR MRV003A-010-RP-A

Muffler Assembly for Ingersoll Rand SM1AMA-A/SM1AMAL-A AIngersoll Rand Motor

Product Application and Uses: For use with SM1AMA-A and SM1AMAL-A Air Motor

For Use With

• SM1AMA-A
• SM1AMAL-A

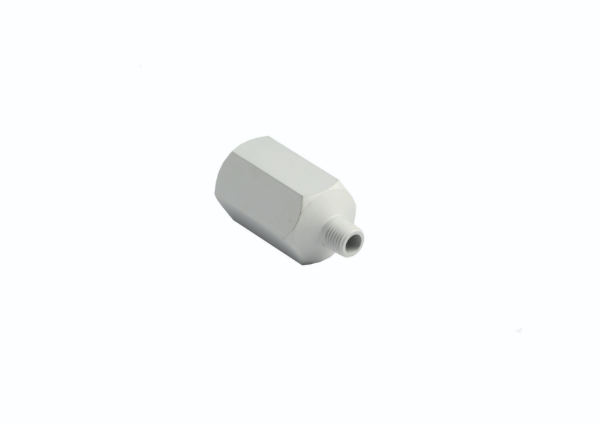

IR MRV015A-010-RP-A

Muffler Assembly for Ingersoll Rand SM2AMC-A/SM2AMAN-A AIngersoll Rand Motor

Product Application and Uses: For use with SM2AMAN-A and SM2AMC-A Air Motors

For Use With

• SM2AMAN-A
• SM2AMC-A

IR MRV015B-010-RP-A

Muffler Assembly for Ingersoll Rand SM4AMAN-A/SM4AMB-A AIngersoll Rand Motor

Product Application and Uses: For use with SM4AMAN-A and SM4AMB-A Air Motors

For Use With

• SM4AMAN-A
• SM4AMB-A

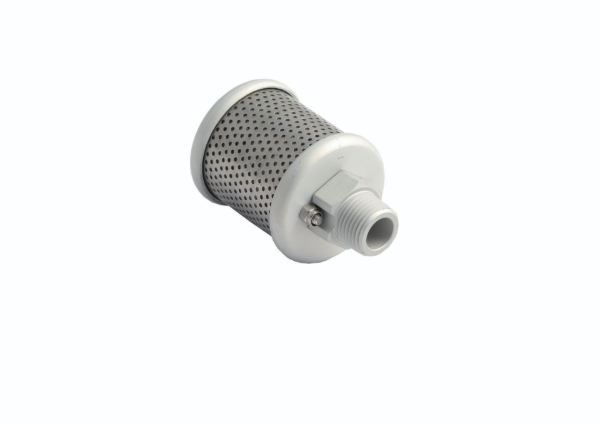

IR MRV040A-010-RP-A

Muffler Assembly for Ingersoll Rand SM6AMA-A/SM6AMAN-A AIngersoll Rand Motor

Product Application and Uses: For use with SM6AMA-A and SM6AMAN-A Air Motors

For Use With

• SM6AMA-A
• SM6AMAN-A

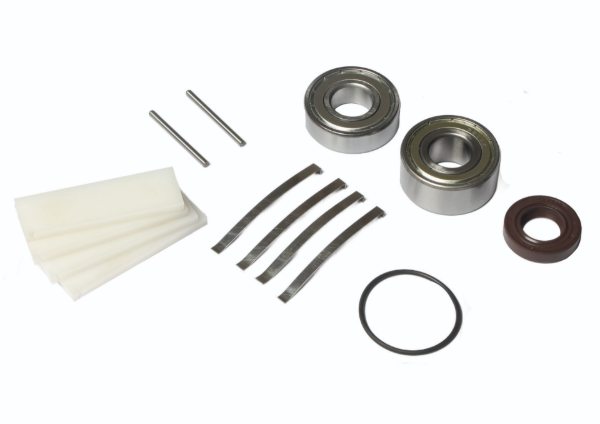

IR MRV040B5D80-TK1-A

Tune-Up Kit for IR SM6AMA-A SM6AMAN-A Air Motor

Includes: O-ring, (2) Ball Bearings, Oil Seal, (2) Shims, Rotor Blade Set
Product Application and Uses: For use with SM6AMA-A and SM6AMAN-A Air Motor

For Use With

• SM6AMA-A
• SM6AMAN-A

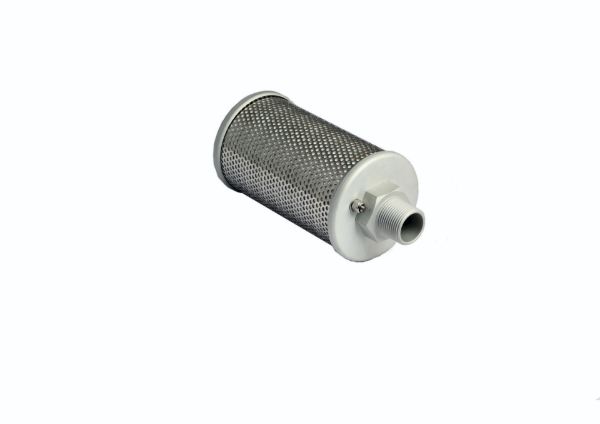

IR MRV050A-010-RP-A

Muffler Assembly for Ingersoll Rand SM SM8AMA-A/SM8AMAN-A AIngersoll Rand Motor

Product Application and Uses: For use with SM8AMA-A and SM8AMAN-A Air Motors

For Use With

• SM8AMA-A
• SM8AMAN-A

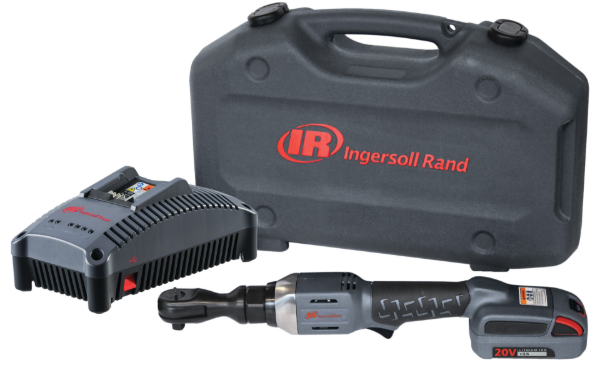

IR R3150-K12

1/2" 20V Cordless Ratchet Wrench 1 Battery Kit, 54 ft-lb Torque, 225 RPM

Ideal for a wide range of applications - from engine repair and under - car work to light industrial maintenance, repair & operations (MRO). Compatible with the IQV® 20 Series battery platform, the 1/2" R3150 cordless ratchet delivers the convenience of cordless with the power of air.

Features And Benefits

• Performance: With 54 ft-lbs of maximum torque and 225 rpm, the R3150 cordless ratchet delivers the same kind of power you expect from an air tool.
• Durability: Steel frame and tough composite housing is designed to be strong and durable, to protect the interior components of this cordless ratchet wrench.
• Versatility: Proven engineered head is the same durable ratchet head used in our air-powered ratchet, so it stands up to the toughest professional use.
• All-metal Gear Train: is robust, durable and optimized for maximum power and efficiency.
• Control: Variable-speed switch with electronic brake provides maximum control of this cordless ratchet wrench and increases safety-depress trigger, drive stops spinning.
• Access: Unique slim-line design provides easy access in tight spots; where you can get your arm, you can get your cordless ratchet wrench.
• Compatible with the IQV 20 Series battery platform.
• Warranty: 3-year warranty
• Ideal for a wide range of applications from engine repair and under car work to light industrial maintenance, repair & operations (MRO).
• Kit Includes: 1/2” Ratchet, Charger, (1) BL2012 2.5Ah Li-ion Battery & Case.

Includes: 1/2” Ratchet, 20V Battery Charger, (1) BL2012 2.5Ah Li-ion Battery & Case.
Product Application and Uses: These Cordless Ratchet Wrenches are designed to remove and install threaded fasteners. Ideal for general auto repair, collision repair and facilities maintenance.
Actuation/Throttle Type/Switch Type: Trigger
Color: Grey
Drive Size (in): 1/2
Drive Type: Square
Head Width (in): 1.57
Housing Material: Impact and chemical-resistant composite housing
Max Free Speed (rpm): 225
Max Torque (ft-lb): 54
Max Torque (in-lb): 646
Max Torque (nm): 73
Number of Batteries Required: 1
Power Source: Battery Powered
Product Length (in): 17.5
Product Height (in): 1.89
Product Weight (lb): 3.5
Recommended Forward Torque Range (ft-lb): 10-47
Recommended Forward Torque Range (in-lb): 124-566
Recommended Forward Torque Range (nm): 14-64
Sound Pressure/Power Db(A): 86 / 97
Speed Setting: Variable Speed
Vibration Level (m/s2): 2.5
Vibration Uncertainy K* (m/s2): .7
Voltage DC: 20
Warranty: 3-year tool, 2-year Battery, 3-year Charger

Similar IR

• R3130-K12

IR SM1AMA-005-A

Vane Kit for Ingersoll Rand SM1AMA-A AIngersoll Rand Motor

Includes: (4) Vanes
Product Application and Uses: For use with SM1AMA-A Air Motor

For Use With

• SM1AMA-A

IR SM1AM-AG587-A

Mounting Foot for Ingersoll Rand SM1AMA-A AIngersoll Rand Motor

Includes: Mounting foot, (3) screws, (3) washers, (3) lock washers
Product Application and Uses: For use with SM1AMA-A Air Motor
Housing Material: Carbon Steel

For Use With

• SM1AMA-A

IR SM1AMAL-005-A

Vane Kit for Ingersoll Rand SM1AMAL-A AIngersoll Rand Motor

Includes: (4) Rotor Blades
Product Application and Uses: For use with SM1AMAL-A Air Motor

For Use With

• SM1AMAL-A

IR SM1AMAL-AG587-A

Mounting Foot for Ingersoll Rand SM1AMAL-A AIngersoll Rand Motor

Includes: Mounting Foot Bracket, (3) Allen Bolts, (3) Spring Washers, (3) Plain Washers
Product Application and Uses: For use with SM1AMAL-A Air Motor
Housing Material: Carbon Steel

For Use With

• SM1AMAL-A

IR SM1AMAL-TK1-A

Tune-Up Kit for Ingersoll Rand SM1AMAL-A Ingersoll Rand Motor

Includes: O-ring, (2) ball bearings, Oil Seal, (2) Shims, Rotor Blade Set, (2) Ejection Rings
Product Application and Uses: For use with SM1AMAL-A Air Motor

For Use With

• SM1AMAL-A

IR SM2AM-AH636-A

Mounting Foot for Ingersoll Rand SM2AMC-A AIngersoll Rand Motor

Includes: Mounting foot, (3) screws, (3) washers, (3) lock washers
Product Application and Uses: For use with SM2AMC-A Air Motor
Housing Material: Carbon Steel

For Use With

• SM2AMC-A

IR SM2AMAN-005-A

Vane Kit for Ingersoll Rand SM2AMAN-A/SM2AMC-A AIngersoll Rand Motor

Includes: (4) Vanes
Product Application and Uses: For use with SM2AMAN-A and SM2AMC-A Air Motors

For Use With

• SM2AMAN-A
• SM2AMC-A

IR SM4AM-AH634-A

Mounting Foot for Ingersoll Rand SM4AMB-A AIngersoll Rand Motor

Includes: Mounting foot, (3) screws, (3) washers, (3) lock washers
Product Application and Uses: For use with SM4AMB-A Air Motor
Housing Material: Carbon Steel

For Use With

• SM4AMB-A

IR SM4AMAN-005-A

Vane Kit for Ingersoll Rand SM4AMAN-A/SM4AMB-A AIngersoll Rand Motor

Includes: (4) Vanes
Product Application and Uses: For use with SM4AMAN-A and SM4AMB-A Air Motors

For Use With

• SM4AMAN-A
• SM4AMB-A

IR SM4AMAN-TK1-A

Tune-Up Kit for Ingersoll Rand SM4AMAN-A AIngersoll Rand Motor

Includes: (4) Vanes, Rear Rotor Bearing, Front Rotor Bearing, Rotor Shaft Seal, (2) Gaskets, End Cap Gasket
Product Application and Uses: For use with SM4AMAN-A Air Motor

For Use With

• SM4AMAN-A

IR SM4AMB-TK1-A

Tune-Up Kit for Ingersoll Rand SM4AMB-A AIngersoll Rand Motor

Includes: (4) Vanes, Rear Rotor Bearing, Front Rotor Bearing, Rotor Shaft Seal, (2) Gaskets, End Cap Gasket
Product Application and Uses: For use with SM4AMB-A Air Motor

For Use With

• SM4AMB-A

IR SM6AMA-005-A

Vane Kit for Ingersoll Rand SM6AMA-A/SM6AMAN-A AIngersoll Rand Motor

Includes: (4) Vanes
Product Application and Uses: For use with SM6AMA-A and SM6AMAN-A Air Motors

For Use With

• SM6AMA-A
• SM6AMAN-A

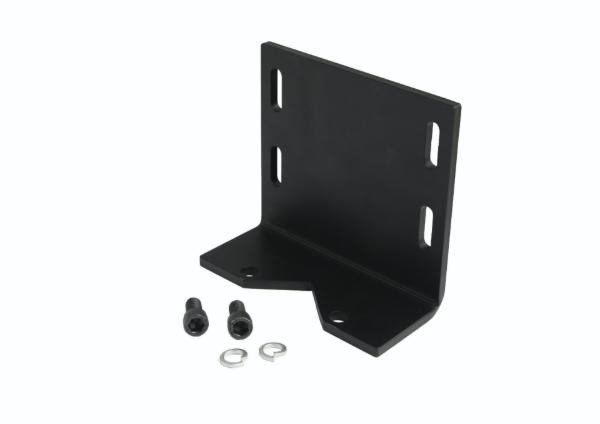

IR SM6AM-AH634-A

Mounting Foot for Ingersoll Rand SM6AMA-A AIngersoll Rand Motor

Includes: Mounting foot, (3) screws, (3) washers, (3) lock washers
Product Application and Uses: For use with SM6AMA-A Air Motor
Housing Material: Carbon Steel

For Use With

• SM6AMA-A

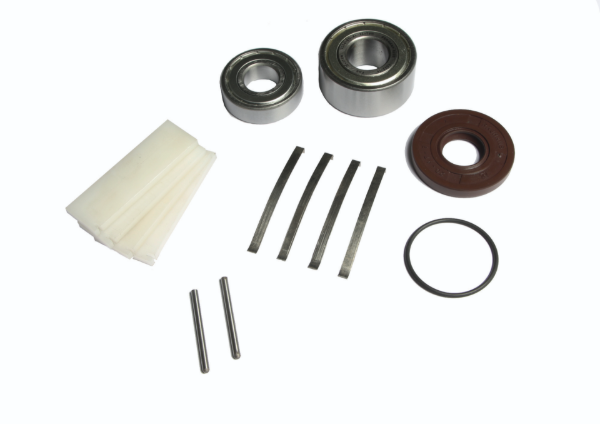

IR SM6AMA-TK1-A

Tune-Up Kit for Ingersoll Rand SM6AMA-A/SM6AMAN-A AIngersoll Rand Motor

Includes: (4) Vanes, Rear Rotor Bearing, Front Rotor Bearing, Rotor Shaft Seal, (2) Gaskets, End Cap Gasket
Product Application and Uses: For use with SM6AMA-A and SM6AMAN-A Air Motors

For Use With

• SM6AMA-A
• SM6AMAN-A

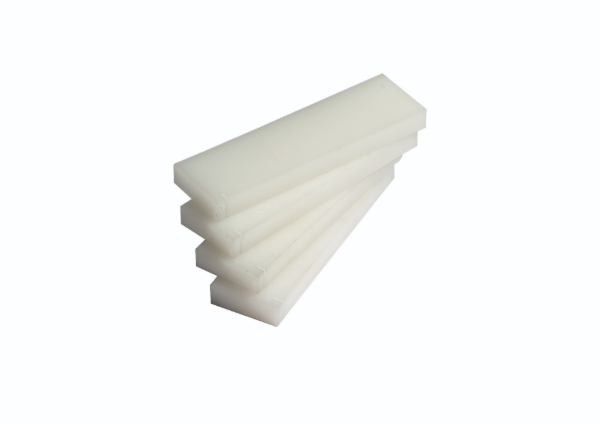

IR SM8AMA-005-A

Vane Kit for Ingersoll Rand SM8AMA-A/SM8AMAN-A AIngersoll Rand Motor

Includes: (4) Vanes
Product Application and Uses: For use with SM8AMA-A and SM8AMAN-A Air Motors

For Use With

• SM8AMA-A
• SM8AMAN-A

IR SM8AM-AH640-A

Mounting Foot for Ingersoll Rand SM8AMA-A AIngersoll Rand Motor

Includes: Mounting foot, (3) screws, (3) washers, (3) lock washers
Product Application and Uses: For use with SM8AMA-A Air Motor
Housing Material: Carbon Steel

For Use With

• SM8AMA-A

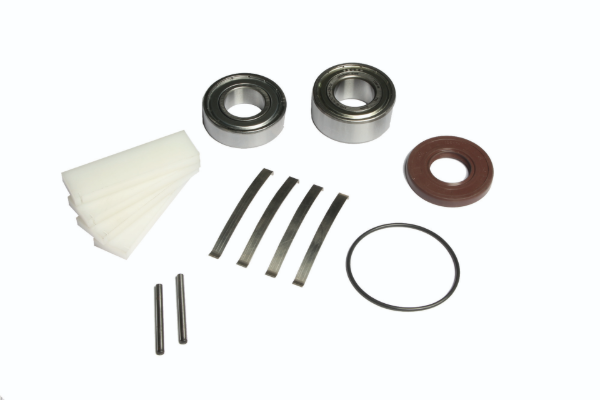

IR SM8AMA-TK1-A

Tune-Up Kit for Ingersoll Rand SM Series Air Motor

Includes: (4) Vanes, Rear Rotor Bearing, Front Rotor Bearing, Rotor Shaft Seal, (2) Gaskets, End Cap Gasket
Product Application and Uses: For use with SM8AMA-A and SM8AMAN-A Air Motors

For Use With

• SM8AMA-A
