INGERSOLL-RAND IR TOOL S12880

INGERSOLL-RAND IR TOOL S12880 branded products
View as Grid List
Sort by
Picture of HOUSING COVER

HOUSING COVER

IR 329-336

IR 329-336

HOUSING COVER
$31.00
Picture of BEARING (SET OF TWO), NON-RETURNABLE PART

BEARING (SET OF TWO), NON-RETURNABLE PART

IR 33235

IR 33235

BEARING (SET OF TWO), NON-RETURNABLE PART
$206.00

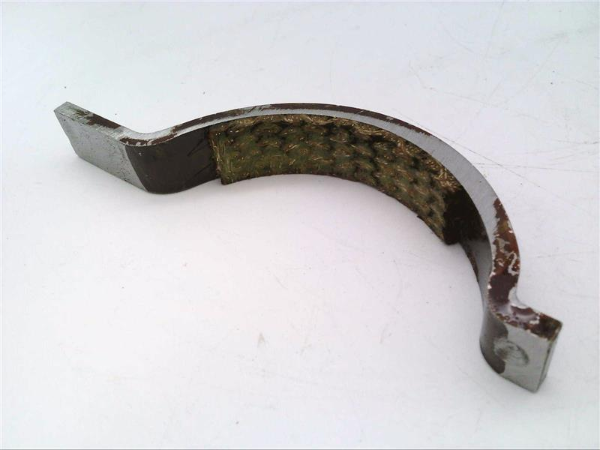

BRAKE SHOE ASSEMBLY LINK CHAIN HOIST

BRAKE SHOE ASSEMBLY LINK CHAIN HOIST

IR 33387-1

IR 33387-1

BRAKE SHOE ASSEMBLY LINK CHAIN HOIST
$107.00
GEAR ASSEMBLY

GEAR ASSEMBLY

IR 33440

IR 33440

GEAR ASSEMBLY
$103.00
Picture of SCREW

SCREW

IR 328B-840

IR 328B-840

SCREW
$15.00
Picture of FRONT END PLATE

FRONT END PLATE

IR 328B-11

IR 328B-11

FRONT END PLATE
$23.00
Picture of GEAR, RATCHET

GEAR, RATCHET

IR 3372370

IR 3372370

GEAR, RATCHET
$65.00
Tamper - 5 3/4in, MALLEAB

Tamper - 5 3/4in, MALLEAB

IR 341A2M

IR 341A2M

Pneumatic Backfill Tamper, 5.75" Round Malleable Butt, 4" Stroke, 1-5/8" Bore

With dual-action sand wipers, a built-in muffler and a side exhaust, this tool is built for heavy use. These tools are commonly used by municipal and utility crews for compacting around both utility line repairs and new installations such as street lights, fire hydrants, and telephone poles prior to pouring concrete. In addition, this proven tool is ideal for backfilling around foundations or other tight areas.

Features And Benefits
  • Durability: With a plated piston and front-end seal to protect your tool, this Backfill Tamper can be used in the toughest environments. The sand-wiper seal prevents dirt and grit from getting inside the tool.
  • Reliability: Thanks to a built-in lubricator, these tools are built to run smoothly and last, while extending overall operating life. Comes with a 1-year warranty.
  • Power: Thanks to its high-power output, you’ll be able to breeze through any job.
  • Access: This tool is as lightweight as it is powerful making compact spaces easy to reach


Includes: Malleable Butt
Product Application and Uses: These tools are commonly used by municipal and utility crews for compacting around both utility line repairs and new installations such as street lights, fire hydrants, and telephone poles prior to pouring concrete. In addition, this proven tool is ideal for backfilling around foundations or other tight areas.
Actuation/Throttle Type/Switch Type: Lever
Air Consumption @ Load (cfm): 29
Air Consumption @ Load (l/min): 821
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Blows per Min: 1550
Bore Diameter (in): 1-5/8
Butt Diameter (in): 5.75
Butt Material: Malleable/ Steel
Butt Shape: Round
Color: Beige
Configuration/Handle Type: Straight
Duty Rating: Super Duty
Exhaust Location: Side
Height Over Spindle (in): 6.7
Housing Material: Steel
Inline Oilers: Yes
Max Pressure (bar): 6.2
Min Hose Size (in): 1/2
Muffler: Built In
Power Source: Air Powered
Product Length (in): 52.75
Product Width (in): 7.56
Product Weight (lb): 15.8
Retainer Type: Latch
Shank Opening: 7/8" Tapered Rod
Side to Center Distance (in): 3.6
Side to Center Distance (mm): 91
Special Features: Time Tested Valve Design, Round Piston Rod, Built In Muffler, Optional Front End Butts Available.
Standards/Certifications: Standards
Steels: Yes
Stroke Length (in): 4
Warranty: 1-year

Similar IR
  • 130A1M
  • 241A1M
$1,362.30
CUTTER

CUTTER

IR 325A-350

IR 325A-350

Cutter for Ingersoll Rand 325 Series Air Nibbler

For Use With
  • 325B
$19.00
TIRE BUFFER

TIRE BUFFER

IR 327-A

IR 327-A

3/8" Air Tire Buffer, 23,000 RPM, 0.5HP

Ideal for use in any vehicle repair market, this tire buffer will make quick work of patchwork, recapping, tire scuffing, and cleaning tire moldings.

Features And Benefits
  • Rear Exhaust: With a rear exhaust, you can direct debris away from your workspace, giving you unrestricted access to your job.
  • Safety: Featuring a special lock-out lever technology, you never have to worry about accidental throttle operation.
  • Comfort: Easily fitting in your hand, this lightweight tool weighs less than 2 lbs. and will work hard so you don't have to.


Product Application and Uses: Ideal for use in any vehicle repair market, this tire buffer will make quick work of patchwork, recapping, tire scuffing, and cleaning tire moldings.
Actuation/Throttle Type/Switch Type: Safety Lever
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Average Air Consumption (cfm): 5
Average Air Consumption (l/min): 142
Chuck Capacity/Bit Capacity (in): 3/8
Chuck Type: Keyed Chuck
Color: Silver
Configuration/Handle Type: Straight
Exhaust Location: Rear
Housing Material: Aluminum
Max Free Speed (rpm): 23000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 7.76
Product Width (in): 1.6
Product Height (in): 2.7
Product Weight (lb): 1.8
Rated Power (hp): 0.5
Sound Pressure/Power Db(A): 92/103
Standards/Certifications: CE
Vibration Level (m/s2): 1.2
Warranty: 1-year

Supersedes
  • 327
$183.00

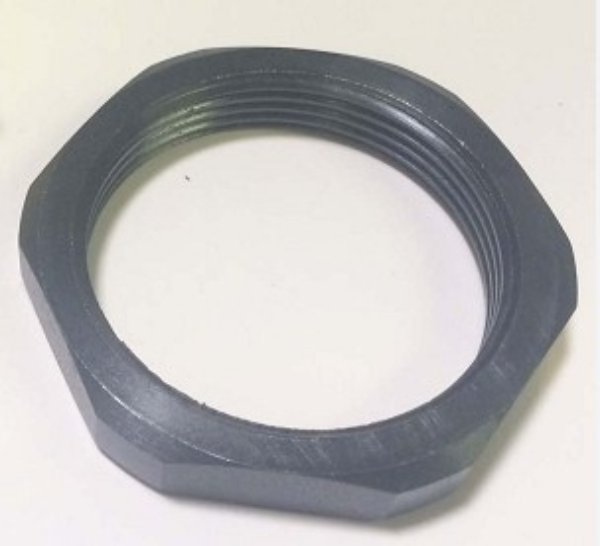

NUT

NUT

IR 341SR-17

IR 341SR-17

NUT
$35.00
SEAL

SEAL

IR 341SR-30

IR 341SR-30

Seal for Ingersoll Rand 341, 441 Series Air Tamper

$36.00
SEAL

SEAL

IR 341SR-31

IR 341SR-31

Seal for Ingersoll Rand 341, 441 Series Air Tamper

$79.00
SILENCER

SILENCER

IR 341SR-311

IR 341SR-311

Silencer for Ingersoll Rand 341 Series, 441 Series Air Percussive Tamper

$19.00
SEAL

SEAL

IR 341SR-312

IR 341SR-312

Seal for Ingersoll Rand 341, 441 Series Air Tamper

Product Application and Uses: For use with Ingersoll Rand 341 Series Air Tamper

For Use With
  • 341A2M
$15.00
Air Angle Grinder 4 1/2in Wheel

Air Angle Grinder 4 1/2in Wheel

IR 3445MAX

IR 3445MAX

Air Angle Grinder/Cut-off Tool, 4.5" Wheel, 12,000 RPM, 0.88 HP, 5/8"-11 Thread, Rear Exhaust

The MAX Series family of angle grinders has a tool to meet your needs, whether you’re looking for a 4.5 or 5-inch option. The built-in lubricating wick optimizes the life of your angle gear set, while the safety guard protects you from debris, sparks and abrasives while you work.

Features And Benefits
  • Max Power: The 4-1/2" wheel 3445MAX grinder delivers maximum power, productivity, comfort, and reliability to tackle the toughest material removal jobs in metalworking, construction, and more.
  • Work Faster, Safer: The .88 HP air motor with 12,000 RPM delivers the power you need and the internal governor maximizes speed under the load, increasing the rate of material removal.
  • Built-in lubrication: Its built-in lubricating wick optimizes the life of the angle gear set by improving lubrication to the bevel and pinion gear set.
  • Lightweight Comfort: The enhanced grip design increases operator comfort for extended use, and its lightweight construction, weighing less than 3.5 lbs., delivers the best power-to-weight ratio in its class.
  • Material Compatibility: Cut, grind, or polish a variety of materials, including metal and concrete, with confidence thanks to the superior comfort and power.


Includes: Wheel Guard, Flange, Nut and Wheel Nut Wrenches
Product Application and Uses: Rust And Material Removal
Actuation/Throttle Type/Switch Location: Bottom
Actuation/Throttle Type/Switch Type: Lever
Air Consumption @ Load (cfm): 41
Air Consumption @ Load (l/min): 1161
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 5/8"-11 Thread
Average Air Consumption (cfm): 10
Average Air Consumption (l/min): 292
Bearing Type: Ball Bearing
Color: Grey
Configuration/Handle Type: Right Angle
Duty Rating: Heavy Duty
Exhaust Location: Rear
Grinder Type: Angle Grinder
Height Over Spindle (in): 2.8
Housing Material: Composite
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 12000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 9.31
Product Width (in): 3.41
Product Height (in): 6.81
Product Weight (lb): 3.44
Rated Power (hp): 0.88
Right Angle Length (in): 1.9
Right Angle Length (mm): 48
Side to Center Distance (in): 1.3
Side to Center Distance (mm): 33
Sound Pressure/Power Db(A): 79.6 / 90.6
Standards/Certifications: Ansi/Cagi B 186.1-1984, Ansi B186.1-2006, Bs En 792-7-2001
Vibration Level (m/s2): 6.3
Vibration Uncertainy K* (m/s2): 2.2
Warranty: 1-year
Wheel Diameter (in): 4.5
Wheel Thickness (in): 1/4
Wheel Type: Type 27 (Grinding) Type 1, 27, 41, 42 (Cutting)

Similar IR
  • 345MAX
  • M2A120RP1045
  • G3A120RP1045
  • G5351
$356.25
AIR ANGLE GRINDER 115 MMWHEEL

AIR ANGLE GRINDER 115 MMWHEEL

IR 3445MAX-M

IR 3445MAX-M

Angle Air Grinder/Cut-off Tool, 4.5" Wheel, 12,000 RPM, 0.88 HP, M14 Arbor, Rear-Piped Away Exhaust

In keeping with the tradition of Ingersoll Rand MAX tools, the MAX series Angle Grinders deliver MAX Power, MAX Productivity, MAX Comfort and improved reliability needed to tackle the toughest material removal jobs. MAX Series Angle Grinders gives you MAX performance for the daily grinding.

Includes:

  • Tool, Spanner wrench, Large Wrench, Small Wrench, Allen Wrenches (2), Piped Away Exhaust
  • Product Application/Uses:

  • These air grinders are designed for material removal or cutting off using a rotated abrasive wheel in most major markets, from vehicle repair and body work to construction and metal fabrication.
  • Features and Benefits:

    • Comfort: With a lightweight composite housing and ergonomic design, the Max Series Angle Grinders are easier to work with for long periods of time.
    • Power: With an ideal power-to-weight ratio, the Max Series Angle Grinders are great for high-performance material removal.
    • Versatile: The Max Series Angle Grinders are a versatile set of tools you can use in most major markets, from vehicle repair and body work to construction and metal fabrication.
    • 1-year warranty.

    Configuration/Handle Type: Right Angle

    Max Free Speed (rpm): 12000

    $655.00
    Air Angle Grinder 5in Wheel

    Air Angle Grinder 5in Wheel

    IR 345MAX

    IR 345MAX

    Angle Air Grinder/Cut-off Tool, 5" Wheel, 12,000 RPM, 0.88 HP, 5/8"-11 Thread, Rear Exhaust

    In keeping with the tradition of Ingersoll Rand MAX tools, the MAX series Angle Grinders deliver MAX Power, MAX Productivity, MAX Comfort and improved reliability needed to tackle the toughest material removal jobs. MAX Series Angle Grinders gives you MAX performance for the daily grinding.

    Features And Benefits
    • Comfort: With a lightweight composite housing and ergonomic design, the Max Series Angle Grinders are easier to work with for long periods of time.
    • Power: With a .88 HP motor, 12,000 RPM and weighing less than 3.5 lbs., the 345MAX has an ideal power-to-weight ratio. The Max Series Angle Grinders are great for high-performance material removal.
    • Versatile: The Max Series Angle Grinders are a versatile set of tools you can use in most major markets, from vehicle repair and body work to construction and metal fabrication. Cut, grind, or polish a variety of materials, including metal and concrete, with confidence thanks to the superior comfort and power.
    • Built-in lubrication: Its built-in lubricating wick optimizes the life of the angle gear set by improving lubrication to the bevel and pinion gear set.


    Includes: Tool, Spanner wrench, Large Wrench, Small Wrench, Allen Wrenches (2), Piped Away Exhaust
    Product Application and Uses: These air grinders are designed for material removal or cutting off using a rotated abrasive wheel in most major markets, from vehicle repair and body work to construction and metal fabrication.
    Actuation/Throttle Type/Switch Location: Handle
    Actuation/Throttle Type/Switch Type: Safety Lever
    Air Consumption @ Free Speed (cfm): 10
    Air Consumption @ Free Speed (l/min): 283
    Air Consumption @ Load (cfm): 41
    Air Consumption @ Load (l/min): 1161
    Air Inlet: 1/4" NPT
    Air Pressure (psi): 90
    Arbor/Collet: 5/8"-11 Thread
    Average Air Consumption (cfm): 10
    Average Air Consumption (l/min): 292
    Bearing Type: Needle Bearing
    Bearing Type: Ball Bearing
    Color: Grey
    Configuration/Handle Type: Right Angle
    Duty Rating: Maintenance Duty
    Exhaust Location: Rear
    Grinder Type: Angle Grinder
    Guard Material: Steel
    Handle Material: Composite
    Height Over Spindle (in): 2.8
    Housing Material: Composite
    Lock Mechanism: Lever lock in off position
    Max Free Speed (rpm): 12000
    Max Pressure (bar): 6.2
    Min Hose Size (in): 3/8
    Power Source: Air Powered
    Product Length (in): 9.6
    Product Width (in): 5.2
    Product Height (in): 5
    Product Weight (lb): 3.37
    Rated Power (hp): 0.88
    Right Angle Length (in): 8.27
    Right Angle Length (mm): 210
    Side to Center Distance (in): 1.3
    Side to Center Distance (mm): 33
    Sound Pressure/Power Db(A): 79.6 / 90.6
    Standards/Certifications: Ansi/Cagi B 186.1-1984, Ansi B186.1-2006, Bs En 792-7-2001
    Vibration Level (m/s2): 7.9
    Vibration Uncertainy K* (m/s2): 2.5
    Warranty: 1-year
    Wheel Diameter (in): 5
    Wheel Thickness (in): 1/4
    Wheel Type: Type 27 (Grinding) Type 1, 27, 41, 42 (Cutting)

    Similar IR
    • 3445MAX
    • G5351
    $370.50
    AIR ANGLE GRINDER 127 MMWHEEL

    AIR ANGLE GRINDER 127 MMWHEEL

    IR 345MAX-M

    IR 345MAX-M

    Angle Air Grinder/Cut-off Tool, 5" Wheel, 12,000 RPM, 0.88 HP, M14 Arbor, Rear Exhaust

    In keeping with the tradition of Ingersoll Rand MAX tools, the MAX series Angle Grinders deliver MAX Power, MAX Productivity, MAX Comfort and improved reliability needed to tackle the toughest material removal jobs. MAX Series Angle Grinders gives you MAX performance for the daily grinding.

    Includes:

  • Tool, Spanner wrench, Large Wrench, Small Wrench, Allen Wrenches (2), Piped Away Exhaust
  • Product Application/Uses:

  • These air grinders are designed for material removal or cutting off using a rotated abrasive wheel in most major markets, from vehicle repair and body work to construction and metal fabrication.
  • Features and Benefits:

    • Comfort: With a lightweight composite housing and ergonomic design, the Max Series Angle Grinders are easier to work with for long periods of time.
    • Power: With an ideal power-to-weight ratio, the Max Series Angle Grinders are great for high-performance material removal.
    • Versatile: The Max Series Angle Grinders are a versatile set of tools you can use in most major markets, from vehicle repair and body work to construction and metal fabrication.
    • 1-year warranty.

    Configuration/Handle Type: Right Angle

    Max Free Speed (rpm): 12000

    $660.00
    MOTOR -- MULTI-VANE

    MOTOR -- MULTI-VANE

    IR 34RB029

    IR 34RB029

    Spur Gear Air Motor, 1-1/2" Keyed Shaft, 187 RPM, 4 HP, 507 NM, Reversible

    Air Consumption at Max HP (scfm): 180
    Air Inlet: 1/2" NPT
    Air Pressure (psi): 90
    Drive Size (in): 1-1/2
    Drive Type: Round Keyed
    Exhaust Location: Side
    Finish: Paint, Yellow
    Gear Reduction: Double
    Gear Train: Spur Gear
    Housing Material: Steel Motor, Aluminum Gear Housing
    Max Free Speed (rpm): 187
    Max Pressure (bar): 6.2
    Max Torque (ft-lb): 374
    Max Torque (in-lb): 4487
    Max Torque (nm): 507
    Motor: Rotary Vane
    Motor: Spur Gear
    Mounting Type: Foot and Face
    Power Source: Air Powered
    Product Weight (lb): 75
    Rated Power (hp): 4
    Rated Power (kW): 2.98
    Reversible: Reversible
    Speed at Max Power (rpm): 99
    Starting Torque (ft-lb): 224
    Starting Torque (nm): 304
    Warranty: 1-year
    $7,656.00
    STEEL BUTT FITS 7/8

    STEEL BUTT FITS 7/8

    IR 34SR-383

    IR 34SR-383

    3" Steel Butt 7/8" Rod Tamper for Ingersoll Rand 341A2M Tamper

    Product Application and Uses: For use with Ingersoll Rand 341A2M Backfill Tamper

    For Use With
    • 341A2M
    $320.00
    MOTOR -- MULTI-VANE

    MOTOR -- MULTI-VANE

    IR 34RB045

    IR 34RB045

    Spur Gear Air Motor, 1-1/2" Keyed Shaft, 121 RPM, 4 HP, 788 NM, Reversible

    Air Consumption at Max HP (scfm): 180
    Air Inlet: 1/2" NPT
    Air Pressure (psi): 90
    Drive Size (in): 1-1/2
    Drive Type: Round Keyed
    Exhaust Location: Side
    Finish: Paint, Yellow
    Gear Reduction: Double
    Gear Train: Spur Gear
    Housing Material: Steel Motor, Aluminum Gear Housing
    Max Free Speed (rpm): 121
    Max Pressure (bar): 6.2
    Max Torque (ft-lb): 581
    Max Torque (in-lb): 6974
    Max Torque (nm): 788
    Motor: Rotary Vane
    Motor: Spur Gear
    Mounting Type: Foot and Face
    Power Source: Air Powered
    Product Weight (lb): 75
    Rated Power (hp): 4
    Rated Power (kW): 2.98
    Reversible: Reversible
    Speed at Max Power (rpm): 63
    Starting Torque (ft-lb): 348
    Starting Torque (nm): 472
    Warranty: 1-year
    $7,895.25
    MOTOR -- MULTI-VANE

    MOTOR -- MULTI-VANE

    IR 34RB078

    IR 34RB078

    Spur Gear Air Motor, 1-1/2" Keyed Shaft, 69 RPM, 4 HP, 1370 NM, Reversible

    Air Consumption at Max HP (scfm): 180
    Air Inlet: 1/2" NPT
    Air Pressure (psi): 90
    Drive Size (in): 1-1/2
    Drive Type: Round Keyed
    Exhaust Location: Side
    Finish: Paint, Yellow
    Gear Reduction: Double
    Gear Train: Spur Gear
    Housing Material: Steel Motor, Aluminum Gear Housing
    Max Free Speed (rpm): 69
    Max Pressure (bar): 6.2
    Max Torque (ft-lb): 1010
    Max Torque (in-lb): 12126
    Max Torque (nm): 1370
    Motor: Rotary Vane
    Motor: Spur Gear
    Mounting Type: Foot and Face
    Power Source: Air Powered
    Product Weight (lb): 75
    Rated Power (hp): 4
    Rated Power (kW): 2.98
    Reversible: Reversible
    Speed at Max Power (rpm): 36
    Starting Torque (ft-lb): 606
    Starting Torque (nm): 822
    Warranty: 1-year
    $8,265.00
    SCREW

    SCREW

    IR 34SR-85

    IR 34SR-85

    Screw Replacement Part for Ingersoll Rand 341, 441 Tamper

    Product Application and Uses: For use with Ingersoll Rand 341 Series Air Tampers

    For Use With
    • 341A2M
    $36.00
    Picture of SCREW PACK

    SCREW PACK

    IR 34U-103-4

    IR 34U-103-4

    SCREW PACK
    $15.00
    WASHER PACK

    WASHER PACK

    IR 34U-58-10

    IR 34U-58-10

    Washer for Ingersoll Rand HLK Chain Hoist,, 10-Pack

    $15.00
    Bearing(182A83-603, 2950)

    Bearing(182A83-603, 2950)

    IR 34U-367

    IR 34U-367

    Bearing(182A83-603, 2950)
    $15.00
    Picture of GASKET, HAMMER CASE

    GASKET, HAMMER CASE

    IR 35-36

    IR 35-36

    GASKET, HAMMER CASE
    $15.00
    Picture of VANE PACK (SET OF 7)

    VANE PACK (SET OF 7)

    IR 35-42-7

    IR 35-42-7

    VANE PACK (SET OF 7)
    $15.00
    Picture of ROTOR ASSEMBLY

    ROTOR ASSEMBLY

    IR 35-A53

    IR 35-A53

    ROTOR ASSEMBLY
    $68.00
    Picture of HAMMER

    HAMMER

    IR 35-724

    IR 35-724

    HAMMER
    $42.00
    1/2" ANVIL ASSEMBLY

    1/2" ANVIL ASSEMBLY

    IR 35-A726

    IR 35-A726

    Anvil Assembly for Ingersoll Rand 35MAX and 36QMAX 1/2" Drive Impact Wrench

    For Use With
    • 36QMAX
    $27.00
    Picture of HAMMER CASE ASSEMBLY

    HAMMER CASE ASSEMBLY

    IR 35-D727

    IR 35-D727

    HAMMER CASE ASSEMBLY
    $30.00
    Picture of POWER REGULATOR KIT

    POWER REGULATOR KIT

    IR 35-K249

    IR 35-K249

    POWER REGULATOR KIT
    $57.00
    BELT SANDER (10X330)

    BELT SANDER (10X330)

    IR 360-313

    IR 360-313

    Air Belt Sander, 3/8"x13", 20,000 RPM, 4700 SFPM, 0.6 HP, Rear Exhaust

    The 360-313 Pneumatic Belt Sander is engineered to make quick work of material removal and deliver smooth finishes. Whether removing spot welds, rust, deposits, or burrs; or fine-tuning a finished surface, these tools get the job done fast with a 0.6HP motor - 20% more than the leading competitor. Increase your productivity with tool-free belt changes (3/8" x 13") that make switching from one abrasive to the next quick and convenient, as well as a tool-free articulating arm that ensures every nook and cranny is easily reached. 360-418 also available with a 1/2" x 18" belt.

    Features And Benefits
    • Strong and Reliable: .6HP motor delivers maximum removal rates to ensure you get the job done quickly and can do more jobs each day.
    • Adaptable: Tool-free articulating arm ensures hard to reach areas are never overlooked and quick adjustments for whatever task is at hand.
    • Adjustable: A handy power regulator ensures the right amount of power for every task.
    • Ergonomic: Narrow rubber grip provides comfort to last as long as you need.
    • Comfort: Built for all-day use, these lightweight sanders weigh less than 2.5 lbs. and tackle every job without sacrificing comfort and ergonomics.
    • Uses: Can accomplish a wealth of sanding and finishing tasks, from removing spot welds, rust, burrs and surface deposits to final finishing and much more.
    • Includes: 3/8x13" Belt Sander and (3) Norton sanding belts (60, 80 and 100 Grit)


    Includes: 3/8 x 13" Sander, hex wrench, (3) Norton sanding belts (60, 80 and 100 Grit), Safety manual, web card
    Product Application and Uses: For sanding on a variety of surfaces such as metal, plastic, fiberglass, wood and other materials; removing spot welds, rust, burrs and surface deposits to final surface finishing.
    Actuation/Throttle Type/Switch Type: Safety Lever
    Air Consumption (cfm): 28.8
    Air Inlet: 1/4" NPT
    Air Pressure (psi): 90
    Arm Rotation: 360 Degree
    Arm Type: Pivoting
    Average Air Consumption (cfm): 28.8
    Average Air Consumption (l/min): 815
    Belt Size (in): 3/8 x 13
    Belt Speed (sfpm): 4700
    Color: Black
    Configuration/Handle Type: Straight
    Duty Rating: Maintenance Duty
    Exhaust Location: Rear
    Housing Material: Metallic with rubber over mold
    Max Free Speed (rpm): 20000
    Max Pressure (bar): 6.2
    Min Hose Size (in): 3/8
    Power Source: Air Powered
    Product Length (in): 12.4
    Product Width (in): 3.5
    Product Height (in): 3.4
    Product Weight (lb): 2.29
    Rated Power (hp): 0.6
    Sound Pressure/Power Db(A): 90 / 101
    Special Features: Tool-free belt changes, Tool Free articulating arm
    Speed Setting: Variable Speed
    Tool Type: Full-size
    Vibration Level (m/s2): 1
    Warranty: 1-year

    Similar IR
    • 360-418
    $139.65
    SANDING BELT KIT 3/8" X 13" (10MMX330MM)

    SANDING BELT KIT 3/8" X 13" (10MMX330MM)

    IR 360-313-KIT-BELT

    IR 360-313-KIT-BELT

    Belt Kit, 3/8x13 for Ingersoll Rand 360-313 Sander

    Includes: (1) 100 3/8x13” Grit Norton Sanding Belt, (1) 80 Grit 3/8x13” Norton Sanding Belt, (1) 60 Grit 3/8x13” Norton Sanding Belt
    Product Application and Uses: For use with Ingersoll Rand 360-313 belt sanders

    For Use With
    • 360-313

    Supersedes
    • G1811-KIT-BELT
    $15.00
    BELT SANDER (13X457)

    BELT SANDER (13X457)

    IR 360-418

    IR 360-418

    Air Belt Sander, 1/2"x18", 20,000 RPM, 4700 SFPM, 0.6 HP, Rear Exhaust

    The 360-418 Pneumatic Belt Sander is engineered to make quick work of material removal and deliver smooth finishes. Whether removing spot welds, rust, deposits, or burrs; or fine-tuning a finished surface, these tools get the job done fast with a 0.6HP motor - 20% more than the leading competitor. Increase your productivity with tool-free belt changes (1/2" x 18") that make switching from one abrasive to the next quick and convenient, as well as a tool-free articulating arm that ensures every nook and cranny is easily reached. 360-313 also available with a 3/8" x 13" belt.

    Features And Benefits
    • Strong and Reliable: .6HP motor delivers maximum removal rates to ensure you get the job done quickly and can do more jobs each day.
    • Adaptable: Tool-free articulating arm ensures hard to reach areas are never overlooked and quick adjustments for whatever task is at hand.
    • Adjustable: A handy power regulator ensures the right amount of power for every task.
    • Ergonomic: Narrow rubber grip provides comfort to last as long as you need.
    • Comfort: Built for all-day use, these lightweight sanders weigh less than 2.5 lbs. and tackle every job without sacrificing comfort and ergonomics.
    • Uses: Can accomplish a wealth of sanding and finishing tasks, from removing spot welds, rust, burrs and surface deposits to final finishing and much more.
    • Includes: 1/2"x18" Belt Sander and (3) Norton sanding belts (60, 80 and 100 Grit)


    Includes: 1/2" x 18" belt sander, hex wrench, (3) Norton sanding belts (60, 80 and 100 Grit), Safety manual, web card
    Product Application and Uses: For sanding on a variety of surfaces such as metal, plastic, fiberglass, wood and other materials; removing spot welds, rust, burrs and surface deposits to final surface finishing.
    Actuation/Throttle Type/Switch Type: Safety Lever
    Air Consumption (cfm): 29.12
    Air Inlet: 1/4" NPT
    Air Pressure (psi): 90
    Arm Rotation: 360 Degree
    Arm Type: Pivoting
    Average Air Consumption (cfm): 29.12
    Average Air Consumption (l/min): 825
    Belt Size (in): 1/2 x 18
    Belt Speed (sfpm): 4700
    Color: Black
    Configuration/Handle Type: Straight
    Duty Rating: Maintenance Duty
    Exhaust Location: Rear
    Housing Material: Metallic with rubber over mold
    Max Free Speed (rpm): 20000
    Max Pressure (bar): 6.2
    Min Hose Size (in): 3/8
    Power Source: Air Powered
    Product Length (in): 14.96
    Product Width (in): 3.23
    Product Height (in): 3.54
    Product Weight (lb): 2.4
    Rated Power (hp): 0.6
    Sound Pressure/Power Db(A): 92 / 103
    Special Features: Tool-free belt changes, Tool Free articulating arm
    Speed Setting: Variable Speed
    Tool Type: Full-size
    Vibration Level (m/s2): 1
    Warranty: 1-year

    Similar IR
    • 360-313
    $171.00
    SANDING BELT KIT 1/2" X 18" (13MMX457MM)

    SANDING BELT KIT 1/2" X 18" (13MMX457MM)

    IR 360-418-KIT-BELT

    IR 360-418-KIT-BELT

    Belt Kit for Ingersoll Rand 360-418 Sander

    Includes: (1) 100 Grit 1/2X18 Norton Sanding Belt, (1) 80 Grit 1/2"X18" Norton Sanding Belt, (1) 60 Grit 1/2"X18" Norton Sanding Belt
    Product Application and Uses: For use with Ingersoll Rand 360-418 belt sanders

    For Use With
    • 360-418
    $15.00
    Air Pistol Grip Screw

    Air Pistol Grip Screw

    IR 371-A

    IR 371-A

    1/4" Air Screwdriver, 10 ft-lb Torque, 2000 RPM, Positive Jaw Clutch, Trigger

    The 371-A Pistol Grip Screwdriver is an excellent choice for soft-draw applications. This tool is well-suited for light industrial applications and delivers reliable performance for driving sheet metal, self-tapping, and wood screws.

    Features And Benefits
    • Performance: Positive action clutch for full torque throughout rundown.
    • Ergonomics: Designed to fit perfectly in your hand, this tool allows you to work long stretches at a time. Offers convenient one-handed operation, with reverse control at trigger.
    • Versatility: Variable speed throttle for easy starts.


    Includes: Bare Tool
    Product Application and Uses: The 371 Pistol Grip Screwdriver is an excellent choice for soft-draw applications. This tool is well suited for light industrial applications and delivers reliable performance for driving sheet metal, self-tapping, and wood screws.
    Actuation/Throttle Type/Switch Type: Trigger
    Adjustable Clutch: No
    Air Consumption (cfm): 3.2
    Air Consumption @ Load (cfm): 91.2
    Air Inlet: 1/4" NPT
    Air Pressure (psi): 90
    Bearing Type: Needle Bearing
    Bearing Type: Ball Bearing
    Clutch Type: Positive Jaw
    Configuration/Handle Type: Pistol Grip
    Drive Size (in): 1/4
    Exhaust Location: Handle-bottom
    Fastener Size: 1/4 Bolt
    Housing Material: Aluminum
    Inlet Location: Bottom of Handle
    Max Free Speed (rpm): 2000
    Max Pressure (bar): 6.2
    Min Hose Size (in): 3/8
    Power Source: Air Powered
    Product Length (in): 7.31
    Product Width (in): 1.65
    Product Height (in): 5.66
    Product Weight (lb): 2.6
    Recommended Forward Torque Range (ft-lb): 0.0-13
    Recommended Forward Torque Range (in-lb): 0.0-156
    Recommended Forward Torque Range (nm): 0 - 17.63
    Reversible: Reversible
    Screw Capacity: 1/4"
    Sound Pressure/Power Db(A): 96/107
    Speed Setting: Variable Speed
    Vibration Level (m/s2): 1.24
    Warranty: 1-year

    Supersedes
    • 371
    $171.00
    Picture of BRACKET

    BRACKET

    IR 37598

    IR 37598

    BRACKET
    $72.00
    Picture of Pendant

    Pendant

    IR 38559233

    IR 38559233

    Pendant
    $936.00
    VALVE, RELAY 1 1/2 RR152-F30

    VALVE, RELAY 1 1/2 RR152-F30

    IR 38600714

    IR 38600714

    VALVE, RELAY 1 1/2 RR152-F30
    $2,940.00
    Picture of SEAL, FLANGE 1 1/2

    SEAL, FLANGE 1 1/2

    IR 38752358

    IR 38752358

    SEAL, FLANGE 1 1/2
    $15.00
    Picture of Distributor Pneumatique 5/3 Centre Ferme

    Distributor Pneumatique 5/3 Centre Ferme

    IR 38776332

    IR 38776332

    Distributor Pneumatique 5/3 Centre Ferme
    Call for pricing
    Picture of SPRING

    SPRING

    IR 38966

    IR 38966

    SPRING
    $15.00
    Rotor

    Rotor

    IR 3934-53

    IR 3934-53

    Rotor
    $1,115.00
    Picture of MOTOR HOUSING ASSEMBLY

    MOTOR HOUSING ASSEMBLY

    IR 3934-A40

    IR 3934-A40

    MOTOR HOUSING ASSEMBLY
    $675.00
    Picture of Front End Plate

    Front End Plate

    IR 3940-11

    IR 3940-11

    Front End Plate
    $350.00
    Picture of Handle Gasket

    Handle Gasket

    IR 3940-283

    IR 3940-283

    Handle Gasket
    $19.00
    REVERSE VALVE

    REVERSE VALVE

    IR 3940-329

    IR 3940-329

    Reverse Valve Service Part for Ingersoll Rand Power Tools

    $30.00
    Picture of Hammer Case Gasket

    Hammer Case Gasket

    IR 3940-36

    IR 3940-36

    Hammer Case Gasket
    $15.00
    Picture of Forward Reverse Lever

    Forward Reverse Lever

    IR 3940-658A

    IR 3940-658A

    Forward Reverse Lever
    $30.00
    THROTTLE VALVE PLUNGER

    THROTTLE VALVE PLUNGER

    IR 3940A-302

    IR 3940A-302

    Throttle Valve Plunger Service Part for Ingersoll Rand Power Tools

    $91.00
    1" IMPACTOOL, ATEX

    1" IMPACTOOL, ATEX

    IR 3940B2TIEX

    IR 3940B2TIEX

    1" Air Impact Wrench, ATEX/Hazardous Duty, 2750 ft-lb Torque, Titanium Hammercase, D-Handle Inside Trigger

    Specifically designed to meet ATEX Zone 1 or Zone 2 requirements, with titanium hammer case, bronze end plates, and a corrosion preventative treatment up to 2750 ft-lbs, the 3900 Series are the premier industrial grade impact wrench in the industry. ATEX Marking ATEX 2014/34/EU Ex h IIA T6 Gb X and ISO 80079-36 Certified.

    Features And Benefits
    • Environmental, Health and Safety: ISO 80079-36 and ATEX 2014/34/EU, Ex h IIA T6 Gb X Certified to meet ATEX Zone 1 or Zone 2 requirements.
    • Power: High torque output of 2750 ft-lbs and 800 blows per minute. The reverse bias motor helps remove the most stubborn bolts and the twin hammer mechanism ensures consistent power and balance.
    • Bronze End Plates: Thanks to the bronze end-plate and a corrosion preventative treatment, this tool is corrosion and wear resistant, which makes it great for outdoor conditions.
    • Durability: With a titanium hammer case and metal housing, this tool can withstand even the harshest conditions.
    • Reverse bias motor to help remove the most stubborn bolts.
    • Balance: Twin hammer mechanism ensure consistent power and balance.
    • Pressure-fed mechanism lubrication ensures complete coverage throughout the tool
    • Integral muffler


    Product Application and Uses: Hazardous Zones, Vehicle Repair, General Industrial, Facility Maintenance
    Actuation/Throttle Type/Switch Type: Inside Trigger
    Air Inlet: 1/2" NPT
    Air Pressure (psi): 90
    Anvil Length: Standard
    Average Air Consumption (cfm): 64
    Average Air Consumption (l/min): 1812
    Blows per Min: 800
    Color: Grey
    Configuration/Handle Type: D-Handle
    Drive Size (in): 1
    Drive Type: Square
    Duty Rating: Atex/Hazardous Duty
    End Plates: Bronze
    Exhaust Location: Bottom
    Free Speed Sound Pressure/Power Db(A): 103.4 / 114.4
    Hammer Case: Titanium
    Housing Material: Aluminum
    Impact Mechanism: Twin Hammer
    Impacting Sound Pressure/Power Db(A): 100.6 / 111.6
    Max Bolt Diameter (in): 1-3/8
    Max Free Speed (rpm): 6000
    Max Pressure (bar): 6.2
    Max Torque (ft-lb): 2750
    Max Torque (in-lb): 33004
    Max Torque (nm): 3729
    Min Hose Size (in): 3/4
    Motor: Reverse Bias
    Number of Power Settings: Continuous
    Power Source: Air Powered
    Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 117.9
    Product Length (in): 13.5
    Product Weight (lb): 21.2
    Quiet Tool: No
    Recommended Forward Torque Range (ft-lb): 500-1800
    Recommended Forward Torque Range (in-lb): 6001-21596
    Recommended Forward Torque Range (nm): 678-2440
    Retainer Type: Thru-hole
    Special Features: ATEX Rated, Titanium hammercase
    Standards/Certifications: Atex 2014/34/Eu, Atex Ex H Iia T6 Gb X, Iso 80079-36
    Tool Type: Full-size
    Vanes: 7
    Vibration Level (m/s2): 13.1
    Vibration Uncertainy K* (m/s2): 1.6
    Warranty: 1-year

    Similar IR
    • 3942B2TIEX
    $6,727.50
    Picture of Reverse Valve Assembly

    Reverse Valve Assembly

    IR 3940P-A329

    IR 3940P-A329

    Reverse Valve Assembly
    $76.00
    Picture of HOUSING COVER GASKET

    HOUSING COVER GASKET

    IR 3940P-283

    IR 3940P-283

    HOUSING COVER GASKET
    $15.00
    Picture of 3940-TK1-Tune Up Kit

    3940-TK1-Tune Up Kit

    IR 3940-TK1

    IR 3940-TK1

    Tune-up Kit for Ingersoll Rand 3940 Series Air Impact Wrench

    Includes: (2) Seals, (1) Throttle Valve Spring, (1) Air Strainer Screen, (4) Gasket, (1) Rear Motor Bearing, (1) Front Motor Bearing, Vane pack, (3) Springs, (1) Ball, (1) Pin
    Product Application and Uses: For use with Ingersoll Rand 3940A1TI, 3940A2TI, 3940B1TI, 3940B2TI, 3940B2TIEX Impact wrenches

    For Use With
    • 3940B2TI
    • 3940B2TIEX
    • 3940P2TI
    $220.00
    IMPACTOOL

    IMPACTOOL

    IR 3942B1TI

    IR 3942B1TI

    No. 5 Spline Air Impact Wrench, Super Duty, 3250 ft-lb Torque, Titanium Hammercase, Thru-hole Retainer, D-Handle Inside Trigger

    With a titanium hammercase, bronze end plates and torque up to 3,250 ft-lbs, the 3900 Series are the premier industrial grade impacts in the industry.

    Features And Benefits
    • Power: The 3900 Series delivers a high torque output of 3250 ft-lbs and 850 blows per minute.
    • Bronze End Plates: Thanks to the bronze end-plate and a corrosion preventative treatment, this tool is corrosion and wear resistant, which makes it great for outdoor conditions.
    • Durability: With a titanium hammer case and metal housing, this tool can withstand even the harshest conditions.
    • Balance: Twin hammer mechanism ensure consistent power and balance.
    • Reverse bias motor to help remove the most stubborn bolts.
    • Pressure-fed mechanism lubrication ensures complete coverage throughout the tool
    • Integral muffler
    • Optimized for general industrial use, MRO, rail, heavy machinery, and shipbuilding


    Product Application and Uses: Heavy Industry, Oil&Gas, Foundry
    Actuation/Throttle Type/Switch Type: Inside Trigger
    Air Inlet: 1/2" NPT
    Air Pressure (psi): 90
    Anvil Length: Standard
    Average Air Consumption (cfm): 95
    Average Air Consumption (l/min): 2690
    Blows per Min: 850
    Color: Grey
    Configuration/Handle Type: D-Handle
    Drive Size (in): No. 5
    Drive Type: Spline
    Duty Rating: Super Duty
    End Plates: Bronze
    Exhaust Location: Bottom
    Free Speed Sound Pressure/Power Db(A): 102.7 / 113.7
    Hammer Case: Titanium
    Housing Material: Aluminum
    Impact Mechanism: Twin Hammer
    Impacting Sound Pressure/Power Db(A): 99.0 / 110.0
    Max Free Speed (rpm): 5000
    Max Pressure (bar): 6.2
    Max Torque (ft-lb): 3250
    Max Torque (in-lb): 39005
    Max Torque (nm): 4407
    Min Hose Size (in): 3/4
    Motor: Reverse Bias
    Number of Power Settings: Continuous
    Power Source: Air Powered
    Product Length (in): 14.3
    Product Weight (lb): 22.6
    Quiet Tool: No
    Recommended Forward Torque Range (ft-lb): 3000
    Recommended Forward Torque Range (in-lb): 36005
    Recommended Forward Torque Range (nm): 4068
    Retainer Type: Thru-hole
    Special Features: Titanium hammercase
    Tool Type: Full-size
    Vanes: 7
    Vibration Level (m/s2): 16.9
    Vibration Uncertainy K* (m/s2): 4.6
    Warranty: 1-year

    Similar IR
    • 3940A1TI
    • 3940B1TI
    • 3955B1TI
    $5,140.50
    1" IMPACTOOL, ATEX

    1" IMPACTOOL, ATEX

    IR 3942B2TIEX

    IR 3942B2TIEX

    1" Air Impact Wrench, ATEX/Hazardous Duty, 3250 ft-lb Torque, Titanium Hammercase, D-Handle Inside Trigger

    Specifically designed to meet ATEX Zone 1 or Zone 2 requirements, with titanium hammer case, bronze end plates, and a corrosion preventative treatment up to 3250 ft-lbs, the 3900 Series are the premier industrial grade impact wrench in the industry. ATEX Marking ATEX 2014/34/EU Ex h IIA T6 Gb X and ISO 80079-36 Certified.

    Features And Benefits
    • Environmental, Health and Safety: ISO 80079-36 and ATEX 2014/34/EU, Ex h IIA T6 Gb X Certified to meet ATEX Zone 1 or Zone 2 requirements.
    • Power: The 3900 Series delivers a high torque output of 3250 ft-lbs and 850 blows per minute.
    • Bronze End Plates: Thanks to the bronze end-plate and a corrosion preventative treatment, this tool is corrosion and wear resistant, which makes it great for outdoor conditions.
    • Durability: With a titanium hammer case and metal housing, this tool can withstand even the harshest conditions.
    • Reverse bias motor to help remove the most stubborn bolts.
    • Balance: Twin hammer mechanism ensure consistent power and balance.
    • Pressure-fed mechanism lubrication ensures complete coverage throughout the tool
    • Integral muffler


    Product Application and Uses: Hazardous Environment, Heavy Industry, Oil&Gas, Foundry
    Actuation/Throttle Type/Switch Type: Inside Trigger
    Air Inlet: 1/2" NPT
    Air Pressure (psi): 90
    Anvil Length: Standard
    Average Air Consumption (cfm): 95
    Average Air Consumption (l/min): 2690
    Blows per Min: 800
    Color: Grey
    Configuration/Handle Type: D-Handle
    Drive Size (in): 1
    Drive Type: Square
    Duty Rating: Atex/Hazardous Duty
    End Plates: Bronze
    Exhaust Location: Bottom
    Free Speed Sound Pressure/Power Db(A): 102.7 / 113.7
    Hammer Case: Titanium
    Housing Material: Aluminum
    Impact Mechanism: Twin Hammer
    Impacting Sound Pressure/Power Db(A): 99.0 / 110.0
    Max Bolt Diameter (in): 1-3/8
    Max Free Speed (rpm): 5000
    Max Pressure (bar): 6.2
    Max Torque (ft-lb): 3250
    Max Torque (in-lb): 39005
    Max Torque (nm): 4407
    Min Hose Size (in): 3/4
    Motor: Reverse Bias
    Number of Power Settings: Continuous
    Power Source: Air Powered
    Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 144
    Product Length (in): 14.3
    Product Weight (lb): 22.6
    Quiet Tool: No
    Recommended Forward Torque Range (ft-lb): 3000
    Recommended Forward Torque Range (in-lb): 36005
    Recommended Forward Torque Range (nm): 4068
    Retainer Type: Thru-hole
    Special Features: ATEX Rated, Titanium hammercase
    Standards/Certifications: Atex 2014/34/Eu, Atex Ex H Iia T6 Gb X, Iso 80079-36
    Tool Type: Full-size
    Vanes: 7
    Vibration Level (m/s2): 16.9
    Vibration Uncertainy K* (m/s2): 4.6
    Warranty: 1-year

    Similar IR
    • 3940B2TIEX
    $7,245.00
    1.5" IMPACTOOL 3955A2TI

    1.5" IMPACTOOL 3955A2TI

    IR 3955A2TI

    IR 3955A2TI

    1-1/2" Air Impact Wrench, Super Duty, 5000 ft-lb Torque, Titanium Hammercase, Thru-hole Retainer, D-Handle Outside Trigger

    With a titanium hammercase, bronze end plates and torque up to 5,000 ft-lbs of torque, the 3900 Series are the premier industrial grade impacts in the industry.

    Features And Benefits
    • Power: The 3900 Series delivers a high torque output of 5000 ft-lbs and 700 blows per minute.
    • Bronze End Plates: Thanks to the bronze end-plate and a corrosion preventative treatment, this tool is corrosion and wear resistant, which makes it great for outdoor conditions.
    • Durability: With a titanium hammer case and metal housing, this tool can withstand even the harshest conditions.
    • Balance: Twin hammer mechanism ensure consistent power and balance.
    • Reverse bias motor to help remove the most stubborn bolts.
    • Pressure-fed mechanism lubrication ensures complete coverage throughout the tool
    • Integral muffler
    • Optimized for general industrial use, MRO, rail, heavy machinery, and shipbuilding
    • Optimized for general industrial use, MRO, rail, heavy machinery, and shipbuilding.


    Product Application and Uses: Optimized for general industrial use, MRO, rail, heavy machinery, and shipbuilding.
    Actuation/Throttle Type/Switch Type: Outside Trigger
    Air Inlet: 1/2" NPT
    Air Pressure (psi): 90
    Anvil Length: Standard
    Average Air Consumption (cfm): 80
    Average Air Consumption (l/min): 2266
    Blows per Min: 700
    Color: Grey
    Configuration/Handle Type: D-Handle
    Drive Size (in): 1-1/2
    Drive Type: Square
    Duty Rating: Super Duty
    End Plates: Bronze
    Exhaust Location: Bottom
    Free Speed Sound Pressure/Power Db(A): 101.5 / 112.5
    Hammer Case: Titanium
    Housing Material: Aluminum
    Impact Mechanism: Twin Hammer
    Impacting Sound Pressure/Power Db(A): 101.2 / 112.2
    Max Free Speed (rpm): 2750
    Max Pressure (bar): 6.2
    Max Torque (ft-lb): 5000
    Max Torque (in-lb): 60000
    Max Torque (nm): 6779
    Min Hose Size (in): 3/4
    Motor: Reverse Bias
    Number of Power Settings: Continuous
    Power Source: Air Powered
    Product Length (in): 16.5
    Product Weight (lb): 34.6
    Quiet Tool: No
    Recommended Forward Torque Range (ft-lb): 3900
    Recommended Forward Torque Range (in-lb): 46803
    Recommended Forward Torque Range (nm): 5288
    Retainer Type: Thru-hole
    Special Features: Titanium hammercase
    Tool Type: High-torque
    Vibration Level (m/s2): 20.8
    Vibration Uncertainy K* (m/s2): 8.5
    Warranty: 1-year

    Similar IR
    • 3956A2TI


    Superseded To
    • 3956A2TI
    $6,279.00
    Cap Screw, Socket Head

    Cap Screw, Socket Head

    IR 3955-638

    IR 3955-638

    Socket Head Cap Screw Service Part for Ingersoll Rand Power Tools, Qty 4

    $15.00
    Picture of HANDLE GASKET

    HANDLE GASKET

    IR 3955-283

    IR 3955-283

    HANDLE GASKET
    $23.00
    1.5" IMPACTOOL

    1.5" IMPACTOOL

    IR 3955B2TI

    IR 3955B2TI

    1.5" IMPACTOOL
    $5,071.50
    Picture of INSIDE TRIGGER HANDLE ASSEMBLY

    INSIDE TRIGGER HANDLE ASSEMBLY

    IR 3955-A92

    IR 3955-A92

    INSIDE TRIGGER HANDLE ASSEMBLY
    $1,580.00
    1.5" IMPACTOOL, ATEX

    1.5" IMPACTOOL, ATEX

    IR 3955B2TIEX

    IR 3955B2TIEX

    1-1/2" Air Impact Wrench, ATEX Rated, 5000 ft-lb Torque, Titanium Hammercase, D-Handle Inside Trigger

    Specifically designed to meet ATEX Zone 1 or Zone 2 requirements, with a titanium hammer case, bronze end plates, and a corrosion preventative treatment up to 5000 ft-lbs, the 3900 Series are the premier industrial grade impact wrench in the industry.ATEX Markings: ATEX 2014/34/EU and Ex h IIA T6 Gb XISO 80079-36 Certified

    Features And Benefits
    • Environmental, Heath and Safety: ISO 80079-36 Certified and ATEX Zone 1 or Zone 2 requirements.
    • Power: The 3900 Series delivers a high torque output of 5000 ft-lbs and 700 blows per minute.
    • Bronze End Plates: Thanks to the bronze end-plate and a corrosion preventative treatment, this series is corrosion and wear resistant, which makes it great for outdoor conditions.
    • Durability: With a titanium hammer case and metal housing, this tool can withstand even the harshest conditions.
    • Balance: Twin hammer mechanism ensure consistent power and balance.
    • Reverse bias motor to help remove the most stubborn bolts.
    • Pressure-fed mechanism lubrication ensures complete coverage throughout the tool
    • Integral muffler


    Product Application and Uses: Hazardous Zones, Vehicle Repair, General Industrial, Facility Maintenance
    Actuation/Throttle Type/Switch Type: Inside Trigger
    Air Inlet: 1/2" NPT
    Air Pressure (psi): 90
    Anvil Length: Standard
    Average Air Consumption (cfm): 80
    Average Air Consumption (l/min): 2266
    Blows per Min: 700
    Color: Grey
    Configuration/Handle Type: D-Handle
    Drive Size (in): 1-1/2
    Drive Type: Square
    Duty Rating: Atex/Hazardous Duty
    End Plates: Bronze
    Exhaust Location: Bottom
    Free Speed Sound Pressure/Power Db(A): 101.5 / 112.5
    Hammer Case: Titanium
    Housing Material: Aluminum
    Impact Mechanism: Twin Hammer
    Impacting Sound Pressure/Power Db(A): 101.2 / 112.2
    Max Bolt Diameter (in): 1-1/2
    Max Free Speed (rpm): 2750
    Max Pressure (bar): 6.2
    Max Torque (ft-lb): 5000
    Max Torque (in-lb): 60000
    Max Torque (nm): 6779
    Min Hose Size (in): 3/4
    Motor: Reverse Bias
    Number of Power Settings: Continuous
    Power Source: Air Powered
    Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 144.5
    Product Length (in): 16.6
    Product Width (in): 8.2
    Product Height (in): 5.3
    Product Weight (lb): 34.6
    Quiet Tool: No
    Recommended Forward Torque Range (ft-lb): 4700
    Recommended Forward Torque Range (in-lb): 56397
    Recommended Forward Torque Range (nm): 6372
    Retainer Type: Thru-hole
    Side to Center Distance (in): 4.1
    Side to Center Distance (mm): 104
    Special Features: ATEX Rated, Titanium hammercase
    Standards/Certifications: Atex 2014/34/Eu, Atex Ex H Iia T6 Gb X, Iso 80079-36
    Tool Type: Full-size
    Vanes: 7
    Vibration Level (m/s2): 20.8
    Vibration Uncertainy K* (m/s2): 8.5
    Warranty: 1-year

    Similar IR
    • 3955B2TI


    Superseded To
    • 3956B2TIEX
    $7,141.50
    HAMMER CASE GASKET

    HAMMER CASE GASKET

    IR 3955-36

    IR 3955-36

    Hammer Case Gasket Service Part for Ingersoll Rand Power Tools

    $15.00
    ROTOR

    ROTOR

    IR 3955-53

    IR 3955-53

    ROTOR
    $1,220.00
    Picture of HAMMER CASE ASSEMBLY

    HAMMER CASE ASSEMBLY

    IR 3955-D727

    IR 3955-D727

    HAMMER CASE ASSEMBLY
    $2,070.00
    1.5 IMPACT WRENCH

    1.5 IMPACT WRENCH

    IR 3956B2TI

    IR 3956B2TI

    1-1/2" Air Impact Wrench, 5450 ft-lb Torque, Titanium Hammercase, Thru-hole Retainer, D-Handle Inside Trigger

    The 3956 Series Titanium Pneumatic Impacts has a 360° D-auxiliary handle ensures enhanced ergonomic performance, with greater access and less operator fatigue. An increased power rating provides the confidence you need to power through the toughest of jobs. Our brand name prominently and proudly emblazoned on the side lets you know it’s from the first name in impact tools: Ingersoll Rand®. Because when it comes to performance, durability and reliability, there is simply no substitute for the best.

    Features And Benefits
    • Performance: Best-in-class power-to-weight performance, delivering 5,450 ft-lbs (7,300 Nm) of breakaway torque.
    • Ergonomic: Ergonomically enhanced 360° D-auxiliary handle.
    • Reliability: Assembled in the USA and backed by our broad network of parts and service to ensure unsurpassed serviceability.
    • Durability: Optimized titanium hammercase, along with bronze endplates and corrosion-resistant parts.


    Includes: Hanger Bracket
    Actuation/Throttle Type/Switch Type: Inside Trigger
    Air Consumption @ Load (cfm): 105
    Air Consumption @ Load (l/min): 2971.5
    Air Inlet: 1/2" NPT
    Air Pressure (psi): 90
    Anvil Length: Standard
    Average Air Consumption (cfm): 145
    Average Air Consumption (l/min): 4103.5
    Blows per Min: 700
    Color: Grey
    Configuration/Handle Type: D-Handle
    Configuration/Handle Type: Auxiliary Handle
    Drive Size (in): 1-1/2
    Drive Type: Square
    Duty Rating: Industrial Duty
    End Plates: Bronze
    Exhaust Location: Bottom
    Free Speed Sound Pressure/Power Db(A): 98.8 / 109.8
    Hammer Case: Titanium
    Handle Material: Aluminum
    Housing Material: Aluminum
    Impact Mechanism: Twin Hammer
    Impacting Sound Pressure/Power Db(A): 97.9 / 108.9
    Max Bolt Diameter (in): 1-1/2
    Max Free Speed (rpm): 3600
    Max Pressure (bar): 6.2
    Max Torque (ft-lb): 5384
    Max Torque (in-lb): 64610
    Max Torque (nm): 7300
    Min Hose Size (in): 3/4
    Motor: Reverse Bias
    Number of Power Settings: Continuous
    Nut-busting/Breakaway Torque (ft-lb): 5384
    Nut-busting/Breakaway Torque (in-lb): 64610
    Nut-busting/Breakaway Torque (nm): 7300
    Power Source: Air Powered
    Product Length (in): 16.68
    Product Width (in): 5.26
    Product Height (in): 11.31
    Product Weight (lb): 34.3
    Quiet Tool: No
    Recommended Forward Torque Range (ft-lb): 5178
    Recommended Forward Torque Range (in-lb): 62132
    Recommended Forward Torque Range (nm): 7020
    Retainer Type: Thru-hole
    Side to Center Distance (in): 2.67
    Side to Center Distance (mm): 68
    Standard Bolt Capacity (in): 2
    Standards/Certifications: ISO11148-6 2012, CAGIB186.1-2009, ISO 28927-2, ISO 15744
    Tool Type: High-torque
    Vanes: 7
    Vibration Level (m/s2): 16.4
    Vibration Uncertainy K* (m/s2): 5.6
    Warranty: 1-year

    Similar IR
    • 3955B2TI

    Supersedes
    • 3955B2TI
    $5,382.00
    VALVE

    VALVE

    IR 39587

    IR 39587

    VALVE
    $11.20
    Picture of SPINDLE

    SPINDLE

    IR 39849

    IR 39849

    SPINDLE
    $315.00
    CHIPPER ROUND NOZZLEW/RETAINER

    CHIPPER ROUND NOZZLEW/RETAINER

    IR 3A2SA

    IR 3A2SA

    Air Chipping Hammer, 3" Stroke, 1725 BPM, Round Shank Oval Collar

    Whether you’re working in construction or demolition, the A Series chipping hammers are great for any job. With its incredible power-to-weight ratio, these hammers will increase productivity and make working easy.

    Features And Benefits
    • Durability: The A Series chipping hammers are equipped with a rubber buffer retainer and threaded barrels to extend the life of your product.
    • Reliability: The A Series hammers have lock spring retainers that make sure the steel stays in place.
    • Access: With a swan neck handle and long nozzle, you’ll be able to work in tight, hard to reach spaces with ease.


    Product Application and Uses: These Air Percussive Chipping Hammers are designed for chipping, cutting, chiseling and breaking of hardened materials through repetitive application of linear impacts of a tool steel that is retained and driven by the chipper.
    Actuation/Throttle Type/Switch Type: Outside Trigger
    Air Consumption @ Load (cfm): 29
    Air Consumption @ Load (l/min): 821
    Air Inlet: 3/8" NPT
    Air Pressure (psi): 90
    Blows per Min: 1725
    Bore Diameter (in): 1.125
    Collar Type: Oval
    Color: Beige
    Configuration/Handle Type: Swan Neck
    Duty Rating: Industrial Duty
    Height Over Spindle (in): 4
    Housing Material: Steel
    Max Pressure (bar): 6.2
    Min Hose Size (in): 1/2
    Muffler: No
    Power Source: Air Powered
    Product Length (in): 17.88
    Product Width (in): 9
    Product Weight (lb): 15.63
    Retainer Type: Lock-spring (Plain Arrow)
    Shank SIze (in): 0.68
    Shank Type: Round
    Standards/Certifications: Standards
    Steels: Yes
    Stroke Length (in): 3
    Warranty: 1-year

    Similar IR
    • 2A1SA
    • W2A2
    • W2A1
    $581.40
    Picture of O-Ring

    O-Ring

    IR 3DA-121

    IR 3DA-121

    O-Ring
    $15.00
    Picture of Spring

    Spring

    IR 3DA-51

    IR 3DA-51

    Spring
    $11.20
    Picture of Nut

    Nut

    IR 3DA-305

    IR 3DA-305

    Nut
    $15.00
    Picture of Bolt

    Bolt

    IR 3DA-549

    IR 3DA-549

    Bolt
    $15.00
    Picture of DEFLECTOR

    DEFLECTOR

    IR 3DA-85

    IR 3DA-85

    DEFLECTOR
    $91.00
    Picture of HANDLE ASSEMBLY

    HANDLE ASSEMBLY

    IR 3DA-A1

    IR 3DA-A1

    HANDLE ASSEMBLY
    $810.00
    Picture of THRUST BEARING RET

    THRUST BEARING RET

    IR 3RL2-705

    IR 3RL2-705

    THRUST BEARING RET
    $11.20
    Picture of MATCHED GEAR SET

    MATCHED GEAR SET

    IR 3RL2-A552

    IR 3RL2-A552

    MATCHED GEAR SET
    $383.00
    Vane Pack

    Vane Pack

    IR 3RL-42-5

    IR 3RL-42-5

    Vane Pack
    $49.00
    Picture of THR VALVE HSG CAPSCREW

    THR VALVE HSG CAPSCREW

    IR 3RL-511

    IR 3RL-511

    THR VALVE HSG CAPSCREW
    $11.20
    Picture of GEAR HEAD SPACER

    GEAR HEAD SPACER

    IR 3RL-80

    IR 3RL-80

    GEAR HEAD SPACER
    $11.20
    Picture of GEAR CASE ASY (3RLM-B37)

    GEAR CASE ASY (3RLM-B37)

    IR 3RLM-A37

    IR 3RLM-A37

    GEAR CASE ASY (3RLM-B37)
    $230.00
    Picture of HOUSING ASSEMBLY

    HOUSING ASSEMBLY

    IR TRP-A40-B

    IR TRP-A40-B

    HOUSING ASSEMBLY
    $501.00
    Picture of Wave Spring

    Wave Spring

    IR TRP-761

    IR TRP-761

    Wave Spring
    $12.00
    Picture of HOUSING ASSEMBLY

    HOUSING ASSEMBLY

    IR TRP-A40-P-B

    IR TRP-A40-P-B

    HOUSING ASSEMBLY
    $466.00

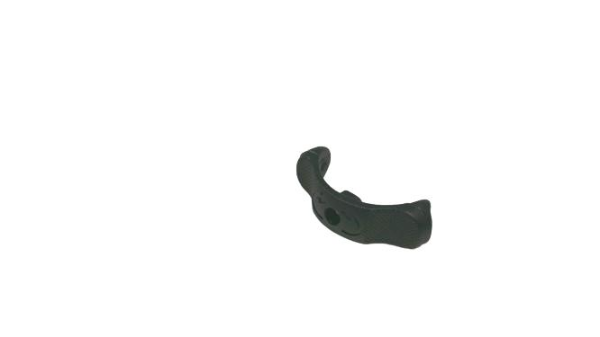

    LEVER

    LEVER

    IR TRP-273

    IR TRP-273

    LEVER
    $12.00
    Picture of BUTT PLATE

    BUTT PLATE

    IR TRP-40-B

    IR TRP-40-B

    BUTT PLATE
    $12.00
    Picture of VALVE SEAT

    VALVE SEAT

    IR TRP-303

    IR TRP-303

    VALVE SEAT
    $12.00
    Picture of VALVE ASSEMBLY

    VALVE ASSEMBLY

    IR TRP-A302

    IR TRP-A302

    VALVE ASSEMBLY
    $12.00
    Picture of TRIGGER ASSEMBLY

    TRIGGER ASSEMBLY

    IR TRP-A93

    IR TRP-A93

    TRIGGER ASSEMBLY
    $68.00
    Picture of COUPLING

    COUPLING

    IR UH-100-M

    IR UH-100-M

    COUPLING
    $27.00
    Picture of COUPLING

    COUPLING

    IR UF-50-M

    IR UF-50-M

    COUPLING
    $21.00
    Picture of ELEMENT

    ELEMENT

    IR TRP-311-1

    IR TRP-311-1

    ELEMENT
    $12.00
    Picture of HANDLE

    HANDLE

    IR TRP-40-1

    IR TRP-40-1

    HANDLE
    $75.00
    Picture of COUPLING

    COUPLING

    IR UH-75-M

    IR UH-75-M

    COUPLING
    $21.00
    Picture of CLUTCH HOUSING

    CLUTCH HOUSING

    IR TRP-580

    IR TRP-580

    CLUTCH HOUSING
    $88.00
    Picture of GEAR CASE

    GEAR CASE

    IR VDA-723

    IR VDA-723

    GEAR CASE
    $1,820.00
    SANDING PAD

    SANDING PAD

    IR VPAD-6

    IR VPAD-6

    6" Vacuum Ready Vinyl Pad for Ingersoll Rand Sander

    For Use With
    • 4151
    • 4151-2
    • 4152
    • R036C-C1
    • R036C-C2
    • R036C-C3
    • R036C-S1
    • R036C-S2
    • R036C-S3
    $28.00
