INGERSOLL-RAND IR TOOL S12880

IR 77E-304A

COUPLING

IR 77E-A40-G4

HOUSING

IR 77H-42-4

VANE PACK

IR 77H50B106

Air Wire Brush Tool, 5000 RPM, 1.5HP, 5/8" - 11 Thread, Side Exhaust

This Pro Series 77H wire brush tool has a patented motor controller, designed to increase productivity while enhancing operator safety.

Features And Benefits

• Durability: Featuring a solid steel motor, arbor housing, and a heavy duty, double-row ball bearing, this tool is built to have a long life.
• Automatic Lubrication: Built-in mist lubricator that automatically oils the motor whenever the throttle is activated for smooth operation.
• Lock-out Lever: A unique system is incorporated in this tool that prevents accidental throttle operation by resetting the spring-loaded latch each time the lever is released.

Actuation/Throttle Type/Switch Type: Safety Lever
Air Consumption @ Load (cfm): 9
Air Consumption @ Load (l/min): 255
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Bearing Type: Double Row Ball
Configuration/Handle Type: Straight
Exhaust Location: Side
Housing Material: Steel
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 5000
Max Pressure (bar): 6.2
Min Hose Size (in): 1/2
Mounting Type: Arbor
Power Source: Air Powered
Product Length (in): 17.69
Product Weight (lb): 7.3
Rated Power (hp): 1.5
Sound Pressure/Power Db(A): 94.4 / 107.4
Vibration Level (m/s2): 7.8
Vibration Uncertainy K* (m/s2): 2.7
Warranty: 1-year
Wheel Type: Wire Brush

Similar IR

• 77H30B106

IR 77H-53ARH

ROTOR

IR 77H-98

CYLINDER DOWEL

IR 7802A

3/8" Keyed Chuck Air Drill, 2000 RPM, 0.5 HP, 44in-lb Torque, Pistol

A classic pistol-shaped air drill, the ⅜” comes in multiple configurations and is great for honing, reaming or drilling holes.

Features And Benefits

• Reliable: With a sturdy aluminum housing and variable speed throttle, you can be sure you’ll be able to control your tool and trust that it’ll perform the way you want it to.
• Performance: Powerful .5 HP 2,000 RPM motor
• Lightweight: Lightweight at 2.4 lbs. and 6.4 inches long.

Includes: 3/8 Chuck
Product Application and Uses: Great For Honing, Reaming Or Drilling Holes.
Actuation/Throttle Type/Switch Type: Trigger
Air Consumption @ Load (cfm): 27
Air Consumption @ Load (l/min): 764
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 3/8"-24 Thread
Average Air Consumption (cfm): 4
Average Air Consumption (l/min): 113
Bearing Type: Ball & Roller
Chuck Capacity/Bit Capacity (in): 3/8
Chuck Type: Keyed Chuck
Color: Silver
Configuration/Handle Type: Pistol Grip
Duty Rating: General Duty
Exhaust Location: Handle
Gear Train: Planetary
Handle Material: Aluminum
Height Over Spindle (in): 5.2
Housing Material: Aluminum
Max Free Speed (rpm): 2000
Max Pressure (bar): 6.2
Max Torque (ft-lb): 3.7
Max Torque (in-lb): 44
Max Torque (nm): 4.97
Min Hose Size (in): 3/8
Nominal Drilling Capabilities (Alum 2024t4): 15/64
Nominal Drilling Capabilities (Steel 1213): 1/4
Nominal Drilling Capabilities (Stnls Steel Type 34): 1/8
Nominal Drilling Capabilities (Wood Med or Frp): 5/16"
Power Source: Air Powered
Product Length (in): 6.5
Product Width (in): 7.09
Product Height (in): 6
Product Weight (lb): 2.6
Rated Power (hp): 0.5
Reversible: Non-reversible
Side to Center Distance (in): 0.91
Side to Center Distance (mm): 23
Sound Pressure/Power Db(A): 83.0 / 94.0
Speed Setting: Variable Speed
Spindle Attachment: Drill Chuck
Vibration Level (m/s2): 2.8
Warranty: 1-year

Similar IR

• 7802RA
• 7802RAKCEX
• 7807R-A

IR 7802A-105

BEARING

IR 7802A-A10

PLANET GEAR SET

IR 7802A-A40

HOUSING ASSEMBLY

IR 7802A-A50

Inlet/Exhaust Assembly for Ingersoll Rand 7802, 7803 Series Air Drill

IR 7802A-A53

MOTOR ASSEBMLY

IR 7802A-A8

SPINDLE

IR 7802A-A93

Trigger Assembly for Ingersoll Rand 7802 Series Air Drill

IR 7802AKC

3/8" Keyless Chuck Air Drill, 2000 RPM, 0.5 HP, 2.65in-lb Torque, Pistol

A classic pistol-shaped 3/8" air drill with a keyless chuck and is great for honing, reaming or drilling holes.

Features And Benefits

• Reliable: With a sturdy aluminum housing and variable speed throttle, you can be sure you’ll be able to control your tool and trust that it’ll perform the way you want it to. Comes with a 1-year warranty.

Product Application and Uses: These drills are designed for drilling, valve guide reaming and cylinder honing operations.
Actuation/Throttle Type/Switch Type: Trigger
Air Consumption @ Load (cfm): 26
Air Consumption @ Load (l/min): 736
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 3/8"-24 Thread
Average Air Consumption (cfm): 4
Average Air Consumption (l/min): 113
Bearing Type: Double Row Ball
Chuck Capacity/Bit Capacity (in): 3/8
Chuck Type: Keyless Chuck
Color: Silver
Configuration/Handle Type: Pistol Grip
Duty Rating: Industrial Duty
Exhaust Location: Handle
Gear Train: Planetary
Handle Material: Aluminum
Height Over Spindle (in): 7.8
Housing Material: Aluminum
Max Free Speed (rpm): 2000
Max Pressure (bar): 6.2
Max Torque (ft-lb): 0.2
Max Torque (in-lb): 2.7
Max Torque (nm): 0.3
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 7.8
Product Weight (lb): 2.6
Rated Power (hp): 0.5
Reversible: Non-reversible
Side to Center Distance (in): 0.9
Side to Center Distance (mm): 23
Sound Pressure/Power Db(A): 83
Speed Setting: Variable Speed
Vibration Level (m/s2): 2.8
Warranty: 1-year

Similar IR

• 7802RAKC

IR 7802RA-A40

HOUSING ASSEMBLY

IR 7802RA-A93

Trigger Assembly for Ingersoll Rand 7802, 7803 Series Air Drill

IR 7802RAKC

3/8" Keyless Chuck Air Drill, 2000 RPM, 0.5 HP, 2.65in-lb Torque, Pistol

A classic reversible pistol-shaped 3/8" air drill with a keyed chuck and is great for honing, reaming or drilling holes.

Features And Benefits

• Reversible Motor: The quick reverse lever allows you to choose between forward and reverse on the .5 HP motor.
• Reliable: With a sturdy aluminum housing and variable speed throttle, you can be sure you’ll be able to control your tool and trust that it’ll perform the way you want it to.

Includes: 3/8 Chuck
Product Application and Uses: These drills are designed for drilling, valve guide reaming and cylinder honing operations.
Actuation/Throttle Type/Switch Type: Trigger
Air Consumption @ Load (cfm): 26
Air Consumption @ Load (l/min): 736
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 3/8"-24 Thread
Average Air Consumption (cfm): 4
Average Air Consumption (l/min): 113
Bearing Type: Double Row Ball
Chuck Capacity/Bit Capacity (in): 3/8
Chuck Type: Keyless Chuck
Color: Silver
Configuration/Handle Type: Pistol Grip
Duty Rating: Industrial Duty
Exhaust Location: Handle
Gear Train: Planetary
Handle Material: Aluminum
Height Over Spindle (in): 7.4
Housing Material: Aluminum
Max Free Speed (rpm): 2000
Max Pressure (bar): 6.2
Max Torque (ft-lb): 0.2
Max Torque (in-lb): 2.7
Max Torque (nm): 0.3
Min Hose Size (in): 3/8
Nominal Drilling Capabilities (Alum 2024t4): 15/64
Nominal Drilling Capabilities (Steel 1213): 1/4
Nominal Drilling Capabilities (Stnls Steel Type 34): 1/8
Nominal Drilling Capabilities (Wood Med or Frp): 5/16"
Power Source: Air Powered
Product Length (in): 7.4
Product Width (in): 7.09
Product Height (in): 6
Product Weight (lb): 2.9
Rated Power (hp): 0.5
Reversible: Reversible
Side to Center Distance (in): 0.9
Side to Center Distance (mm): 23
Sound Pressure/Power Db(A): 82
Speed Setting: Variable Speed
Spindle Attachment: Drill Chuck
Vibration Level (m/s2): 2.8
Warranty: 1-year

Similar IR

• 7802RAKCEX

IR 7802RA

3/8" Keyed Chuck Air Drill, 2000 RPM, 0.5 HP, 2.65 in-lb Torque, Pistol

A classic reversible pistol-shaped 3/8" air drill with a keyed chuck and is great for honing, reaming or drilling holes.

Features And Benefits

• Performance: 2.65 in-lb Torque, 0.5 HP and 2000 RPM.
• Reversible: Allows you to choose between forward and reverse
• Reliable: With a sturdy aluminum housing and variable speed throttle, you can be sure you’ll be able to control your tool and trust that it’ll perform the way you want it to. Comes with a 1-year warranty.

Includes: 3/8" Chuck
Product Application and Uses: General purpose drilling, honing, reaming, and hole-sawing.
Actuation/Throttle Type/Switch Type: Trigger
Air Consumption @ Load (cfm): 26
Air Consumption @ Load (l/min): 736
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 3/8"-24 Thread
Average Air Consumption (cfm): 4
Average Air Consumption (l/min): 113
Bearing Type: Double Row Ball
Chuck Capacity/Bit Capacity (in): 3/8
Chuck Type: Keyed Chuck
Color: Silver
Configuration/Handle Type: Pistol Grip
Duty Rating: Industrial Duty
Exhaust Location: Handle
Gear Train: Planetary
Handle Material: Aluminum
Height Over Spindle (in): 7.4
Housing Material: Aluminum
Max Free Speed (rpm): 2000
Max Pressure (bar): 6.2
Max Torque (ft-lb): 0.2
Max Torque (in-lb): 2.7
Max Torque (nm): 0.3
Min Hose Size (in): 3/8
Nominal Drilling Capabilities (Alum 2024t4): 15/64
Nominal Drilling Capabilities (Steel 1213): 1/4
Nominal Drilling Capabilities (Stnls Steel Type 34): 1/8
Nominal Drilling Capabilities (Wood Med or Frp): 5/16"
Power Source: Air Powered
Product Length (in): 7.8
Product Width (in): 7.24
Product Height (in): 6
Product Weight (lb): 2.9
Rated Power (hp): 0.5
Reversible: Reversible
Side to Center Distance (in): 0.9
Side to Center Distance (mm): 23
Sound Pressure/Power Db(A): 82
Speed Setting: Variable Speed
Spindle Attachment: Drill Chuck
Vibration Level (m/s2): 2.8
Warranty: 1-year

Similar IR

• 7802A

IR 7802S-6027

Spacer Bushing for Ingersoll Rand 7802 Series Air Drill, 2-Pack

IR 7802RAKCEX

3/8" Keyless Chuck Air Drill, 2000 RPM, 0.5 HP, 43in-lb Torque, Pistol

When it comes to getting the toughest jobs done, professionals around the world choose Ingersoll Rand for tools specifically designed to meet safety regulations for working in dangerous atmospheres. From petrochemical refineries to plastic manufacturers, Ingersoll Rand offers safe and productive solutions to meet the demands of our customers, because making tools that can’t work where our customers work is not an option. 7802RAKCEX is a classic pistol grip air drill, specifically designed to meet ATEX Zone 1 or Zone 2 requirements and is great for honing, reaming or drilling holes.

Features And Benefits

• Performance: 2,000 RPM, 0.5 HP, Keyless Chuck, 2.5 lbs, and 6.4” Long.
• Reversible: The 3/8” Air Drill allows you to choose between forward and reverse.
• Reliable: With a sturdy aluminum housing and variable speed throttle, you can be sure you’ll be able to control your tool and trust that it’ll perform the way you want it to.
• ATEX Markings: ATEX 2014/34/EU and Ex h IIA T6 Gb X
• ISO 80079-36 Certified

Includes: 3/8 Chuck
Product Application and Uses: Great For Honing, Reaming Or Drilling Holes.
Actuation/Throttle Type/Switch Type: Feather-touch Trigger
Air Consumption @ Load (cfm): 24.3
Air Consumption @ Load (l/min): 841
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 3/8"-24 Thread
Average Air Consumption (cfm): 29.7
Average Air Consumption (l/min): 841
Bearing Type: Ball & Roller
Chuck Capacity/Bit Capacity (in): 3/8
Chuck Type: Keyless Chuck
Color: Silver
Configuration/Handle Type: Pistol Grip
Duty Rating: Atex/Hazardous Duty
Exhaust Location: Handle
Gear Train: Planetary
Handle Material: Aluminum
Height Over Spindle (in): 5.05
Housing Material: Aluminum
Max Free Speed (rpm): 2000
Max Pressure (bar): 6.2
Max Torque (ft-lb): 3.6
Max Torque (in-lb): 43
Max Torque (nm): 4.86
Min Hose Size (in): 3/8
Nominal Drilling Capabilities (Alum 2024t4): 15/64
Nominal Drilling Capabilities (Steel 1213): 1/4
Nominal Drilling Capabilities (Stnls Steel Type 34): 1/8
Nominal Drilling Capabilities (Wood Med or Frp): 5/16"
Power Source: Air Powered
Product Length (in): 6.5
Product Width (in): 7.09
Product Height (in): 6
Product Weight (lb): 2.9
Rated Power (hp): 0.5
Reversible: Reversible
Side to Center Distance (in): 0.91
Side to Center Distance (mm): 23
Sound Pressure/Power Db(A): 83.0 / 94.0
Speed Setting: Variable Speed
Spindle Attachment: Drill Chuck
Standards/Certifications: Atex 2014/34/Eu, Atex Ex H Iia T6 Gb X, Iso 80079-36
Vibration Level (m/s2): 2.8
Warranty: 1-year

Similar IR

• 7802A
• 7802RAKC
• 7807R-A
• 6AMST6
• D3141-K22

IR 7802SA

Air Shears, 20 Gauge Capacity, 4200 Strokes per Minute

The versatile 7802SA air shears makes clean cuts in cold rolled steel up to 20 gauge without chips, making it the ideal tool for anyone in vehicle repair or machine shops.

Features And Benefits

• Performance: The trigger actuation allows for featherable speed up to 4,200 strokes per minute and more control over your tool.
• Reliability: With heavy duty cutting blades, this tool is designed to last and produce the high quality you expect from the Ingersoll Rand brand.
• Shears: Most types of plastics and all types of aluminum, tin and steel.
• Cuts: Makes clean clean cuts in cold rolled steel up to 20 gauge. Cuts squares, angles and circles.

Includes: Tool, 2 blades (Left and Right)
Product Application and Uses: Shears cut most types of plastics and all types of aluminum, tin, and steel. Used in vehicle repair or machine shops.
Actuation/Throttle Type/Switch Type: Trigger
Air Consumption @ Load (cfm): 21
Air Consumption @ Load (l/min): 595
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Average Air Consumption (cfm): 4
Average Air Consumption (l/min): 113
Color: Silver
Configuration/Handle Type: Pistol Grip
Duty Rating: General Duty
Exhaust Location: Handle
Housing Material: Aluminum
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Number of Power Settings: Continuous
Power Source: Air Powered
Product Length (in): 9.4
Product Height (in): 6.1
Product Weight (lb): 2.8
Rated Power (hp): 0.5
Sound Pressure/Power Db(A): 83 / 94
Steel Capacity (Gauge): 20
Strokes (per min): 4200
Vibration Level (m/s2): 3
Warranty: 1-year

Similar IR

• 429
• 529

IR 7802S-A6022

Blade Kit for Ingersoll Rand 7802SA Air Shears

For Use With

• 7802SA

IR 7803A

1/2" Keyed Chuck Air Drill, 500 RPM, 0.5 HP, 10.6in-lb Torque, Pistol

A classic pistol-shaped 1/2” air drill with a feather trigger for variable speed options and a keyed chuck. This drill is great for honing, reaming or drilling holes.

Features And Benefits

• Reliable: With the durability of its aluminum housing, you can count on this tool to be reliable and work well time after time. Comes with a 1-year warranty.

Product Application and Uses: These drills are designed for drilling, valve guide reaming and cylinder honing operations in the automotive industry.
Actuation/Throttle Type/Switch Type: Trigger
Air Consumption @ Load (cfm): 27
Air Consumption @ Load (l/min): 765
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Average Air Consumption (cfm): 4
Average Air Consumption (l/min): 113
Bearing Type: Double Row Ball
Chuck Capacity/Bit Capacity (in): 1/2
Chuck Type: Keyed Chuck
Color: Silver
Configuration/Handle Type: Pistol Grip
Duty Rating: Industrial Duty
Exhaust Location: Handle
Gear Train: Planetary
Handle Material: Aluminum
Height Over Spindle (in): 9
Housing Material: Aluminum
Max Free Speed (rpm): 500
Max Pressure (bar): 6.2
Max Torque (ft-lb): 0.9
Max Torque (in-lb): 11
Max Torque (nm): 1.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 9
Product Weight (lb): 3.2
Rated Power (hp): 0.5
Reversible: Non-reversible
Side to Center Distance (in): 0.9
Side to Center Distance (mm): 23
Sound Pressure/Power Db(A): 83
Speed Setting: Variable Speed
Vibration Level (m/s2): <2.5
Warranty: 1-year

Similar IR

• 7803RA

IR 7803A-A8

Spindle for Ingersoll Rand 7802A, 7803A, 7802RA, 7803RA Series Air Drill

IR 7803AKC

1/2" Keyless Chuck Air Drill, 500 RPM, 0.5 HP, 10.6in-lb Torque, Pistol

A classic pistol-shaped 1/2” air drill with a feather trigger for variable speed options and a keyless chuck. This drill is great for honing, reaming or drilling holes.

Features And Benefits

• Reliable: With the durability of its aluminum housing, you can count on this tool to be reliable and work well time after time. Comes with a 1-year warranty.

Includes: tool
Product Application and Uses: These drills are designed for drilling, valve guide reaming and cylinder honing operations.
Actuation/Throttle Type/Switch Type: Trigger
Air Consumption @ Load (cfm): 27
Air Consumption @ Load (l/min): 765
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Average Air Consumption (cfm): 4
Average Air Consumption (l/min): 113
Bearing Type: Double Row Ball
Chuck Capacity/Bit Capacity (in): 1/2
Chuck Type: Keyless Chuck
Color: Silver
Configuration/Handle Type: Pistol Grip
Duty Rating: Industrial Duty
Exhaust Location: Handle
Gear Train: Planetary
Handle Material: Aluminum
Height Over Spindle (in): 8.7
Housing Material: Aluminum
Max Free Speed (rpm): 500
Max Pressure (bar): 6.2
Max Torque (ft-lb): 0.9
Max Torque (in-lb): 11
Max Torque (nm): 1.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 8.7
Product Weight (lb): 3.3
Rated Power (hp): 0.5
Reversible: Non-reversible
Side to Center Distance (in): 0.9
Side to Center Distance (mm): 23
Sound Pressure/Power Db(A): 83
Speed Setting: Variable Speed
Vibration Level (m/s2): <2.5
Warranty: 1-year

Similar IR

• 7803RAKC

IR 7803RAKC

1/2" Keyless Chuck Air Drill, 500 RPM, 0.5 HP, 10.6in-lb Torque, Pistol

A classic pistol-shaped 1/2” reversible air drill with a keyless chuck great for honing, reaming or drilling holes.

Features And Benefits

• Reversible: Allows you to choose between forward and reverse
• Reliable: With the durability of its aluminum housing, you can count on this tool to be reliable and work well time after time. Comes with a 1-year warranty.

Includes: 1/2" Chuck, 7816-A48 Side Handle
Product Application and Uses: These drills are designed for drilling, valve guide reaming and cylinder honing operations.
Actuation/Throttle Type/Switch Type: Trigger
Air Consumption @ Load (cfm): 27
Air Consumption @ Load (l/min): 765
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 3/8"-24 Thread
Average Air Consumption (cfm): 4
Average Air Consumption (l/min): 113
Bearing Type: Double Row Ball
Chuck Capacity/Bit Capacity (in): 1/2
Chuck Type: Keyless Chuck
Color: Silver
Configuration/Handle Type: Pistol Grip
Duty Rating: Industrial Duty
Exhaust Location: Handle
Gear Train: Planetary
Handle Material: Aluminum
Height Over Spindle (in): 8.7
Housing Material: Aluminum
Max Free Speed (rpm): 500
Max Pressure (bar): 6.2
Max Torque (ft-lb): 0.9
Max Torque (in-lb): 11
Max Torque (nm): 1.2
Min Hose Size (in): 3/8
Nominal Drilling Capabilities (Alum 2024t4): 1/4
Nominal Drilling Capabilities (Steel 1213): 3/16
Nominal Drilling Capabilities (Stnls Steel Type 34): 3/32
Nominal Drilling Capabilities (Wood Med or Frp): 5/16"
Power Source: Air Powered
Product Length (in): 8.7
Product Width (in): 7.24
Product Height (in): 6
Product Weight (lb): 3.3
Rated Power (hp): 0.5
Reversible: Reversible
Side to Center Distance (in): 0.9
Side to Center Distance (mm): 23
Sound Pressure/Power Db(A): 83
Speed Setting: Variable Speed
Spindle Attachment: Drill Chuck
Vibration Level (m/s2): <2.5
Warranty: 1-year

Similar IR

• 7803RAKCEX

IR 7803RAKCEX

1/2" Keyless Chuck Air Drill, 500 RPM, 0.5 HP, 161in-lb Torque Pistol

When it comes to getting the toughest jobs done, professionals around the world choose Ingersoll Rand for tools specifically designed to meet safety regulations for working in dangerous atmospheres. From petrochemical refineries to plastic manufacturers, Ingersoll Rand offers safe and productive solutions to meet the demands of our customers, because making tools that can’t work where our customers work is not an option. 7803RAKCEX is a classic pistol grip air drill, specifically designed to meet ATEX Zone 1 or Zone 2 requirements and is great for honing, reaming or drilling holes.

Features And Benefits

• Performance: 2,000 RPM, 0.5HP, Keyless Chuck, 2.5 lbs, and 6.4” Long.
• Reversible: The 1/2” Air Drill allows you to choose between forward and reverse.
• Reliable: With a sturdy aluminum housing and variable speed throttle, you can be sure you’ll be able to control your tool and trust that it’ll perform the way you want it to.
• ATEX Markings: ATEX 2014/34/EU and Ex h IIA T6 Gb X
• ISO 80079-36 Certified

Includes: 1/2 Chuck, 7816-A48 Side Handle
Product Application and Uses: Great For Honing, Reaming Or Drilling Holes.
Actuation/Throttle Type/Switch Type: Feather-touch Trigger
Air Consumption @ Load (cfm): 26.1
Air Consumption @ Load (l/min): 891
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Average Air Consumption (cfm): 31.58
Average Air Consumption (l/min): 891
Bearing Type: Ball & Roller
Chuck Capacity/Bit Capacity (in): 1/2
Chuck Type: Keyless Chuck
Color: Silver
Configuration/Handle Type: Pistol Grip
Duty Rating: Atex/Hazardous Duty
Exhaust Location: Handle
Gear Train: Planetary
Handle Material: Aluminum
Height Over Spindle (in): 7.05
Housing Material: Aluminum
Max Free Speed (rpm): 500
Max Pressure (bar): 6.2
Max Torque (ft-lb): 13
Max Torque (in-lb): 161
Max Torque (nm): 18.19
Min Hose Size (in): 3/8
Nominal Drilling Capabilities (Alum 2024t4): 1/4
Nominal Drilling Capabilities (Steel 1213): 3/16
Nominal Drilling Capabilities (Stnls Steel Type 34): 3/32
Nominal Drilling Capabilities (Wood Med or Frp): 5/16"
Power Source: Air Powered
Product Length (in): 8.7
Product Width (in): 7.24
Product Height (in): 2
Product Weight (lb): 3.3
Rated Power (hp): 0.5
Reversible: Reversible
Side to Center Distance (in): 0.91
Side to Center Distance (mm): 23
Sound Pressure/Power Db(A): 83.0 / 94.0
Speed Setting: Variable Speed
Spindle Attachment: Drill Chuck
Standards/Certifications: Atex 2014/34/Eu, Ex H Iia T6 Gb X, Iso 80079-36
Vibration Level (m/s2): < 2.5
Warranty: 1-year

Similar IR

• 7803RA
• 7803RAKC
• 7803A

IR 7804KA

1/4" Keyed Chuck Air Drill, 1875 RPM, 0.25 HP, Pistol

This 1/4" reversible mini air drill/driver is an extremely compact and lightweight tool packed with power. It easily fits in the palm of the hand and is great for automotive services or working in tight spaces and for fine-detailing jobs. Featuring a keyed chuck for a secure connection and an adjustable speed setting to provide variability for a broad range of applications. 22-piece kit includes Drill bits, Phillips bits, Slotted bits, Hex bits, Torx bits, 3/8" Socket adaptor and a Magnetic bit extender.

Features And Benefits

• Performance: 1875 RPM, .25 HP, 16.2 CFM, Variable Speed Trigger
• Access: This compact air drill/driver measures 7.6" in length and is great for working in tight spaces.
• Comfort: With a composite housing that insulates from the cold air, you can use this tool for prolonged periods of time without getting fatigued or uncomfortable.
• 22 Piece Kit Includes: 7 Drill bits (1/16", 3/32", 1/8", 5/32", 3/16", 7/32", 1/4), 3 Phillips bits (#1,#2,#3), 3 Slotted bits (#6,#8,#10), 3 Hex bits (3/18", 5/32", 1/8"), 4 Torx bits (T23, T20, T15, T10), 3/8" Socket adaptor and a Magnetic bit extender.

Includes: 7804XPA Mini Air Drill/Driver; (7) Drill bits sizes 1/16", 3/32", 1/8", 5/32", 3/16", 7/32", 1/4"; (3) Phillips screw driver bits sizes #1, #2, #3; (3) Slotted screw driver bits sizes #6, #8, #10; (3) Hex screw driver bits sizes 3/18", 5/32", 1/8"; (4) Torx screw driver bits sizes T23, T20, T15, T10; 3/8" Socket adaptor and a Magnetic bit extender;
Product Application and Uses: Great for the automotive services or working in tight spaces and for fine-detailing jobs.
Actuation/Throttle Type/Switch Type: Trigger
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Average Air Consumption (cfm): 16.2
Average Air Consumption (l/min): 459
Chuck Capacity/Bit Capacity (in): 1/4
Chuck Type: Keyed Chuck
Color: Grey
Configuration/Handle Type: Pistol Grip
Exhaust Location: Handle
Handle Material: Composite
Housing Material: Composite
Max Free Speed (rpm): 1875
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Number of Power Settings: 2
Power Source: Air Powered
Product Length (in): 7.6
Product Width (in): 1.7
Product Height (in): 6.4
Product Weight (lb): 1.8
Rated Power (hp): 0.25
Reversible: Reversible
Sound Pressure/Power Db(A): 84.3 / 95.3
Speed Setting: Variable Speed
Vibration Level (m/s2): 2.9
Vibration Uncertainy K* (m/s2): .8
Warranty: 1-year

IR 7804XPA

1/4" Keyed Chuck Air Drill, 1875 RPM, 0.25 HP, Pistol

This 1/4" reversible mini air drill/driver is an extremely compact and lightweight tool packed with power. It easily fits in the palm of the hand and is great for automotive services or working in tight spaces and for fine-detailing jobs. Featuring a keyed chuck for a secure connection and an adjustable speed setting to provide variability for a broad range of applications.

Features And Benefits

• Performance: 1875 RPM, .25 HP, 16.2 CFM, Variable Speed Trigger
• Access: This compact air drill/driver measures 7.6" in length and is great for working in tight spaces.
• Comfort: With a composite housing that insulates from the cold air, you can use this tool for prolonged periods of time without getting fatigued or uncomfortable.
• Also available in the 7804KA 22-piece kit which includes Drill bits, Phillips bits, Slotted bits, Hex bits, Torx bits, 3/8" socket adaptor and a magnetic bit extender.

Product Application and Uses: Great for automotive services or working in tight spaces and for fine-detailing jobs.
Actuation/Throttle Type/Switch Type: Trigger
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Average Air Consumption (cfm): 16.2
Average Air Consumption (l/min): 459
Chuck Capacity/Bit Capacity (in): 1/4
Chuck Type: Keyed Chuck
Color: Grey
Configuration/Handle Type: Pistol Grip
Exhaust Location: Handle
Handle Material: Composite
Housing Material: Composite
Max Free Speed (rpm): 1875
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Number of Power Settings: 2
Power Source: Air Powered
Product Length (in): 7.6
Product Width (in): 7.24
Product Height (in): 6.4
Product Weight (lb): 1.8
Rated Power (hp): 0.25
Reversible: Reversible
Sound Pressure/Power Db(A): 84.3 / 95.3
Speed Setting: Variable Speed
Vibration Level (m/s2): 2.9
Vibration Uncertainy K* (m/s2): .8
Warranty: 1-year

IR 7807R-A

3/8" Keyed Chuck Angle Air Drill, 1800 RPM, 0.33 HP

The 3/8" Right Angle Air Drill is a durable, reliable tool that’s great for drilling in all types of materials, including sheet metal, wood and composites.

Features And Benefits

• Performance: .33HP and 1,800 RPM
• Precision: With an angle configuration that allows easier reach and access with an easy-to-control speed lever, you’ll be able to use this air drill with precision and get every job done right.
• Durability: With aluminum housing, this tool is sturdy and durable, and can withstand repeated drops and harsh environments with ease.
• Reliability: You can count on this drill to work time and time again.

Includes: 3/8 Chuck
Product Application and Uses: Great for drilling in all types of materials, including sheet metal, wood and composites.
Actuation/Throttle Type/Switch Type: Lever
Air Consumption @ Load (cfm): 26
Air Consumption @ Load (l/min): 736
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 3/8"-24 Thread
Average Air Consumption (cfm): 4
Average Air Consumption (l/min): 113
Bearing Type: Ball & Roller
Chuck Capacity/Bit Capacity (in): 3/8
Chuck Type: Keyed Chuck
Color: Silver
Configuration/Handle Type: Right Angle
Duty Rating: General Duty
Exhaust Location: Handle
Gear Train: Planetary
Handle Material: Aluminum
Housing Material: Aluminum
Max Free Speed (rpm): 1800
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 8.06
Product Width (in): 1.65
Product Height (in): 4.12
Product Weight (lb): 2.5
Rated Power (hp): 0.33
Rated Power (kW): 0.25
Reversible: Reversible
Sound Pressure/Power Db(A): 87 / 98
Speed Setting: Variable Speed
Vibration Level (m/s2): <2.5
Warranty: 1-year

Similar IR

• 7LM3A43
• 7AKST6
• 7802A
• 6AMST6
• D3141-K22
• 7802RAKCEX

Supersedes

• 7807R
• 7807R-EU

IR 7810-1B

Inline Multi-Vane Air Motor, 1/2" Keyed Spindle, 450 RPM, 0.7 HP, 39.8 NM, Reversible

Air Consumption at Max HP (scfm): 37.3
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Drive Size (in): 1/2
Drive Type: Round Keyed
Exhaust Location: Exterior Muffler
Finish: Black Oxide
Gear Reduction: Double
Gear Train: Planetary
Housing Material: Steel
Max Free Speed (rpm): 450
Max Pressure (bar): 6.2
Max Torque (ft-lb): 29
Max Torque (in-lb): 352
Max Torque (nm): 39.8
Motor: Rotary Vane
Motor: In line
Mounting Type: Face
Number of Mounting Holes: 4
Power Source: Air Powered
Product Weight (lb): 5.67
Rated Power (hp): 0.7
Rated Power (kW): 0.52
Reversible: Reversible
Sound Level dB(A): 85
Speed at Max Power (rpm): 240
Torque Output @ Max HP (ft-lb): 15
Torque Output @ Max HP (nm): 21
Warranty: 1-year

IR 7803RA

1/2" Keyed Chuck Air Drill, 500 RPM, 0.5 HP, 10.6in-lb Torque, Pistol

A classic pistol-shaped 1/2” reversible air drill with a feather trigger for variable speed options and a keyed chuck. this drill is as versatile as it is efficient.

Features And Benefits

• Reliable: With the durability of its aluminum housing, you can count on this tool to be reliable and work well time after time.
• Reversible Motor: The quick reverse lever allows you to choose between forward and reverse on the .5 HP motor.
• Balanced: Planetary gear reduction balances the load.

Includes: 1/2 Chuck Tool, 7816-A48 Side Handle
Product Application and Uses: Designed for drilling, hole-sawing, cylinder honing, and any other job that calls for a 1/2” size
Actuation/Throttle Type/Switch Type: Trigger
Air Consumption @ Load (cfm): 27
Air Consumption @ Load (l/min): 765
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/2"-24 Thread
Average Air Consumption (cfm): 4
Average Air Consumption (l/min): 113
Bearing Type: Double Row Ball
Chuck Capacity/Bit Capacity (in): 1/2
Chuck Type: Keyed Chuck
Color: Silver
Configuration/Handle Type: Pistol Grip
Duty Rating: Industrial Duty
Exhaust Location: Handle
Gear Train: Planetary
Handle Material: Aluminum
Height Over Spindle (in): 8.7
Housing Material: Aluminum
Max Free Speed (rpm): 500
Max Pressure (bar): 6.2
Max Torque (ft-lb): 0.9
Max Torque (in-lb): 11
Max Torque (nm): 1.2
Min Hose Size (in): 3/8
Nominal Drilling Capabilities (Alum 2024t4): 1/4
Nominal Drilling Capabilities (Steel 1213): 3/16
Nominal Drilling Capabilities (Stnls Steel Type 34): 3/32
Nominal Drilling Capabilities (Wood Med or Frp): 5/16"
Power Source: Air Powered
Product Length (in): 8.7
Product Width (in): 7.09
Product Height (in): 6
Product Weight (lb): 3.3
Rated Power (hp): 0.5
Reversible: Reversible
Side to Center Distance (in): 0.9
Side to Center Distance (mm): 23
Sound Pressure/Power Db(A): 83
Speed Setting: Variable Speed
Spindle Attachment: Drill Chuck
Vibration Level (m/s2): <2.5
Warranty: 1-year

Similar IR

• 7803A

IR 7811R-13

SPRING PIN

IR 7810-B

Inline Multi-Vane Air Motor, 1/2" Keyed Spindle, 450 RPM, 0.7 HP, 39.8 NM, Reversible

Air Consumption at Max HP (scfm): 37.3
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Drive Size (in): 1/2
Drive Type: Round Keyed
Exhaust Location: Exterior Muffler
Finish: Black Oxide
Gear Reduction: Double
Gear Train: Planetary
Housing Material: Steel
Max Free Speed (rpm): 450
Max Pressure (bar): 6.2
Max Torque (ft-lb): 29
Max Torque (in-lb): 352
Max Torque (nm): 39.8
Motor: Rotary Vane
Motor: In line
Mounting Type: Foot Mount Optional
Power Source: Air Powered
Product Weight (lb): 5.17
Rated Power (hp): 0.7
Rated Power (kW): 0.52
Reversible: Reversible
Sound Level dB(A): 85
Speed at Max Power (rpm): 240
Torque Output @ Max HP (ft-lb): 15
Torque Output @ Max HP (nm): 21
Warranty: 1-year

IR 7811R-254

Chuck Screw for Ingersoll Rand 7802A, 7803A, 7802RA, 7803RA Series Air Drill

IR 7L1A-593

BEARING

IR 7AJ-A10

SPINDLE PLANET GEAR ASSEMBLY

IR 7849-E

DRILL

IR 7RL-42-5

Vane Pack

IR 7RAQT4

TAPPER

IR 7S60-123

DIFFUSER

IR 7RL-A40

HOUSING

IR 7S60L

Air Sander and Polisher, 7" Pad, 6,000 RPM, 0.8 HP, 5/8"-11 Thread, Side Exhaust

Designed for large areas and heavy duty materials, the Pro Series 7P sander and polishers are ready to get any job done.

Features And Benefits

• Complete with solid steel motor and arbor housing, these tools can withstand repeated drops and harsh conditions.
• These tools have a built-in mist lubricator that automatically oils the motor whenever the throttle is activated for smooth operation.

Product Application and Uses: These Sanders and Polishers are designed for standard duty sanding and polishing operations.
Actuation/Throttle Type/Switch Type: Safety Lever
Air Consumption @ Load (cfm): 15.5
Air Consumption @ Load (l/min): 439
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Color: Silver
Configuration/Handle Type: Vertical
Duty Rating: Industrial Duty
Exhaust Location: Side
Max Free Speed (rpm): 6000
Max Pressure (bar): 6.2
Min Hose Size (in): 5/16
Mounting Type: Arbor
Pad Diameter or Size (in): 7
Power Source: Air Powered
Product Weight (lb): 3.25
Rated Power (hp): 0.8
Sound Pressure/Power Db(A): 79.0
Speed Setting: Variable Speed
Vacuum: None
Vibration Level (m/s2): <2.5
Warranty: 1-year
Wheel Diameter (in): 7

IR 7S60L-273

Lever

IR 7AN-80

GEAR HEAD SPACER

IR 8000-109

CAP

IR 8000-159A

VALVE FACE

IR 7RL-S/D-A/T-TK1

TUNE-UP KIT

IR 8000-157

CAP

IR 7S60-13

HOUSING (49841-132)

IR 7811R-42-6

Ingersoll Rand Vane Pack Replacement Part, Set of 6

Product Application and Uses: For use with Ingersoll Rand 7802SA Air Shear, 7802A, 7803A, 7802RA, 7803RA Series Air Drill

IR 80103674

SPRING WASHERS

IR 7S60-311

SILENCER

IR 80158942

CLUTCH ASSEMBLY

IR 7AH-81

BEARING HOUSING SPACER

IR 814TIN

Carbide Burr Kit, 8-Piece, 1/4" Shank, 1/2 & 3/8" Head Diameter with Hard Case

Ingersoll Rand carbide burrs are titanium nitride (TiN) coated to provide maximum edge retention and corrosion resistance. The TiN coating can improve the average lifetime of the burr by more than three times. Note: Burrs have a maximum operating speed of 40,000 rpm.

Finish: Titanium Nitride (TiN) Coated
Shank SIze (in): 1/4

For Use With

• 308B
• 308B-M
• 308BK

IR 834-24

Rear Rotor Bearing Service Part for Ingersoll Rand Power Tools

IR 7L-365

HANGER (216-365)

IR 7RAQT4-EU

TAPPER 7RAQT4-EU

IR 7S60-A37

GEAR CASE (348-A37)

IR 8206-A

Inline Multi-Vane Air Motor, 7/8" Keyed Shaft, 275 RPM, 1.9 HP, 142.3 NM, Reversible

Air Consumption at Max HP (scfm): 93.5
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Drive Size (in): 7/8
Drive Type: Round Keyed
Exhaust Location: Exterior Muffler
Finish: Black Oxide
Gear Ratio: 49:1
Gear Reduction: Double
Gear Train: Planetary
Housing Material: Steel
Max Free Speed (rpm): 275
Max Pressure (bar): 6.2
Max Torque (ft-lb): 105
Max Torque (in-lb): 1259
Max Torque (nm): 142.3
Motor: Rotary Vane
Motor: In line
Mounting Type: Face
Number of Mounting Holes: 4
Power Source: Air Powered
Product Weight (lb): 18.24
Rated Power (hp): 1.9
Rated Power (kW): 1.42
Reversible: Reversible
Sound Level dB(A): 95
Speed at Max Power (rpm): 150
Torque Output @ Max HP (ft-lb): 66
Torque Output @ Max HP (nm): 90.1
Warranty: 1-year

IR 7AL-A10

SPINDLE PLANET GEAR ASSEMBLY

IR 7816-99

Chuck 1/2" Cap for Ingersoll Rand 7803A, 7803RA Air Drill

Product Application and Uses: For use with Ingersoll Rand 7803A and 7803RA Air Drills.

For Use With

• 7803A
• 7803RA

IR 7AH-98

Cylinder Dowel

IR 7816R-254

Chuck Screw for Ingersoll Rand 7802RA, 7803RA Series Air Drill

IR 7AJ-500

BEARING (49460-86)

IR 7811R-52

SPRING

IR 834-638-4

SCREW PACK

IR 8000-50

THROTTLE VALVE ASSEMBLY

IR 80152762

O-RING

IR 8231-1B

Inline Multi-Vane Air Motor, 3/8" Keyed Shaft, 18000 RPM, 0.5 HP, 0.7 NM, Reversible

Air Consumption at Max HP (scfm): 41
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Drive Size (in): 3/8
Drive Type: Round Keyed
Exhaust Location: Exterior Muffler
Finish: Black Oxide
Gear Ratio: 1:1
Gear Reduction: Direct Drive
Gear Train: Planetary
Housing Material: Steel
Max Free Speed (rpm): 18000
Max Pressure (bar): 6.2
Max Torque (ft-lb): 0.5
Max Torque (in-lb): 6.2
Max Torque (nm): 0.7
Motor: Rotary Vane
Motor: In line
Mounting Type: Foot Mount Optional
Power Source: Air Powered
Product Weight (lb): 2.45
Rated Power (hp): 0.5
Rated Power (kW): 0.37
Reversible: Reversible
Sound Level dB(A): 80
Speed at Max Power (rpm): 9200
Torque Output @ Max HP (ft-lb): 0.3
Torque Output @ Max HP (nm): 0.4
Warranty: 1-year

IR 804-716

Pin (48951-166)

IR 834-61

Air Strainer Screen

Product Application and Uses: For use with Ingersoll Rand 99HG45H108, 99HG60H106 Grinders, 77V, 88V, 99V Series Grinders, 2161, 2171, 2925TI Impacts, A, W, D Series Chipping Hammers

For Use With

• 2161XP
• 2161XP-6
• 2171XP
• 2925B2TI
• 2925P1TI
• 2925P3TI
• 2925RB2TI
• 2925RBP1TI
• 2925RBP1TIEX
• 2925RBP3TI

IR 7AK-A10

GEAR ASSEMBLY (49450-98)

IR 85H-167

Valve Seal Replacement Part for Ingersoll Rand Air Drills, Impact Wrenches and Die Grinders

Product Application and Uses: For use with 7A, and 5 Series Air Drills; 280, 290, 3940, 3942, 293, and 3955 Series Impact Wrenches; G3 Series Air Die Grinders

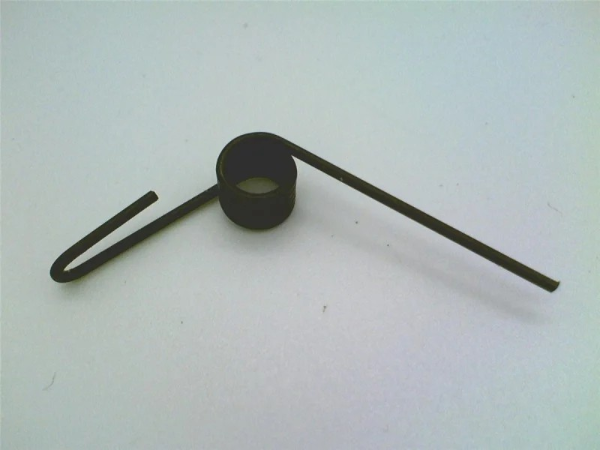

IR 88V60-405

SPRING (49845-122)

IR 88V60-A302

VALVE ASSEMBLY (49845-108)

IR 89938450

Spring Lock, Threaded or Grooved Barrel for Ingersoll Rand Rivet Busters

Product Application and Uses: For use with Ingersoll Rand 8001A, 9001A, 11001A rivet busters.
Housing Material: Steel

For Use With

• 11001A
• 8001A
• 9001A

IR 88V60-48

HANDLE

IR 88V60P107

Vertical Air Grinder, 7" Type 27/28 Wheel, 6000 RPM, 2.1 HP, 5/8 in-11 Thread, Side Exhaust

Ingersoll Rand Pro Series are tough, easy to handle, and ready to tackle any project you need them for. They are specially designed for heavy duty applications. With their superior power output, they are best suited for big tasks involving heavy material removal in foundries, welding shops, fabrication facilities, steel mills or shipyards.

Features And Benefits

• Safety: The 88 Pro Series’ lock-out lever, guard and side-handle safety is designed to increase comfort and block sparks and debris.
• Durability: You can count on the 88 Pro Series to withstand chemical spills, repeated drops, and other harsh environments.
• Reliability: The patented motor controller removes material faster, prevents over speeding and reduces operator fatigue.

Includes: Guard
Product Application and Uses: Heavy Stock Removal And Rough Grinding In Metal Fabrication Operations
Actuation/Throttle Type/Switch Location: Top
Actuation/Throttle Type/Switch Type: Safety Lever
Air Consumption @ Load (cfm): 61
Air Consumption @ Load (l/min): 1728
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Arbor/Collet: 5/8"-11 Thread
Bearing Type: Ball Bearing
Color: Black
Configuration/Handle Type: Vertical
Duty Rating: Heavy Duty
Exhaust Location: Side
Grinder Type: Vertical Type 27/28
Height Over Spindle (in): 6.1
Housing Material: Aluminum
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 6000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/4
Power Source: Air Powered
Product Length (in): 15.9
Product Width (in): 11.3
Product Height (in): 8.2
Product Weight (lb): 8.75
Rated Power (hp): 2.1
Side to Center Distance (in): 2.1
Side to Center Distance (mm): 53
Sound Pressure/Power Db(A): 86.2 / 97.2
Standards/Certifications: En Iso 28927-1, En Iso 15744, En Iso 11148-7
Vibration Level (m/s2): 3.1
Vibration Uncertainy K* (m/s2): 0.9
Warranty: 1-year
Wheel Diameter (in): 7
Wheel Thickness (in): 1/4
Wheel Type: Type 27, 28

Similar IR

• 99V60P107
• 88V60P109
• 99V60P109

IR 7L1A-603

BEARING

IR 88HL60-A198

OILER BODY ASSEMBLY

IR 89940555

VALVE BODY ASSEMBLY

IR 89940605

CAP HEAD SCREW 10PK

IR 88S60W107

Vertical Air Sander, 7" Pad, 6,000 RPM, 2 HP, 5/8"-11 Thread, Side Exhaust

These Pro Series sanders are made to tackle large areas and heavy duty materials.

Features And Benefits

• The 88S sander was made with a solid steel motor, arbor housing, and double-row ball bearings to assure long life and smooth operation.
• Featuring a built-in mist lubricator, this tool stays well-oiled every time the throttle is activated.
• Made to tackle large areas and heavy duty materials.

Product Application and Uses: These Air Sanders are designed for both light and heavy sanding jobs such as roughing body filler, removing rust, and smoothing welds.
Actuation/Throttle Type/Switch Type: Safety Lever
Air Inlet: 1/2" NPT
Air Pressure (psi): 90
Arbor/Collet: 5/8"-11 Thread
Bearing Type: Double Row Ball
Configuration/Handle Type: Vertical
Exhaust Location: Side
Max Free Speed (rpm): 6000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/4
Pad Diameter or Size (in): 7
Power Source: Air Powered
Product Weight (lb): 7.13
Rated Power (hp): 2
Sound Pressure/Power Db(A): 77.2
Vibration Level (m/s2): <2.5
Warranty: 1-year

IR 88V60-402

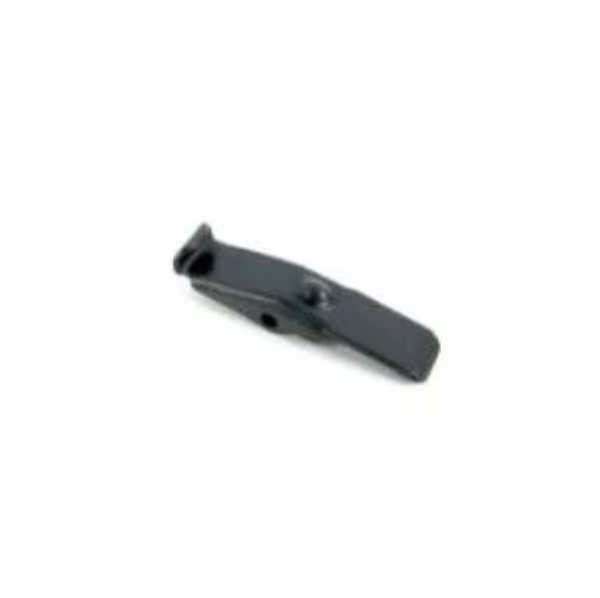

LEVER LOCK (49845-121)

IR 88V/88H-TK3

TUNE-UP KIT

IR 88V60-A400

LEVER ASSEMBLY (49845-120)

IR 89940654

O-RING 10/PK

IR 89940662

O-RING 10/PK

IR 89940852

CHISEL HOLDER ASY 2B 1/

IR 8U-58-10

Washer Pack (03801985)

IR 89940688

ANVIL 2B GUN

IR 9041.6034

CHAINING DEVICE 3.75MM

IR 89940639

PISTON 2B GUN

IR 8SQ53G2

ANGLE WRENCH

IR 8SL-305

Rear Retaning Ring

IR 8SL-159

Valve Seat Face

IR 8SL-A302

Throttle Valve Plunger
