INGERSOLL-RAND IR TOOL S12880

IR 301-448

Spacer Replacement Part for Ingersoll Rand Air Die Grinders

Product Application and Uses: For use with Ingersoll Rand 301, 307, 3101, 3107, 302, and 308 Series air die gringers
Finish: Black Oxide

IR 301-579

Pinion Key for Ingersoll Rand Air Die Grinders

Product Application and Uses: For use with 301, 302, 307, 308, 5102MAX, and 5108MAX Series die grinders.

IR 301-699

Collet Nut for Ingersoll Rand Air Die Grinder

Product Application and Uses: For use with Ingersoll Rand 301 Series, 307 Series, 5102 Series, 5108 Series, 3101 Series, 3107 Series, 302 Series, 308 Series die grinders

IR 301-69A

Small Wrench for Ingersoll Rand Air Die Grinders

Product Application and Uses: For use with 5102 Series, 5108 Series, 301 Series, 307 Series, 302 Series, 308 Series, and M2 Series die grinders

For Use With

• 307B
• 307B-M
• 307BK
• 308B
• 308B-M
• 308BK
• M2A090RP95
• M2A120RG4
• M2A120RP1045
• M2A120RP64
• M2A120RP945
• M2A120RP95
• M2A135RP64
• M2A180RG4
• M2E145RP64
• M2H200RG4
• M2L120RP1045
• M2X075RG4
• M2X180RG4
• M2X200RG4
• M2X250RG4

IR 301-69B

Large Wrench for Ingersoll Rand Air Die Grinder

Product Application and Uses: For use with the following Ingersoll Rand 301, 307, 5102, 5108, 302, 308 Series die grinders.

IR 301-700C

Collect Replacement Part for Ingersoll Rand 301 and 307 Die Grinder

IR 30195-048

HANGER KIT-ZRA2-STD-48.00

IR 301B

Angle Air Die Grinder, 21,000 RPM, 0.25 HP, 1/4" Collet, Front Exhaust

As part of an expanded line of long-lasting, economical, general purpose grinders, the 301B delivers a number of beneficial features in one compact package. Right-angle configuration provides easy access to tight spots, so you can grind, break sharp edges, de-burr, port, and polish virtually anywhere!

Features And Benefits

• Performance: Powerful motor with precision gearing offers .25 HP at 21,000 RPM.
• Durable: Ball-bearing construction offers improved balance, reduces vibration, and ensures a longer product life.
• Strong: Aluminum housing withstands tough operating conditions.
• Lightweight: Small and sturdy design weighs only 1.02 lbs and provides easy operation and the right angle configuration allows better access to tight spots.
• Front exhaust: Helps keep work surface clean.
• Safety: 1/4" collet and a integral self-locking throttle lever that prevents accidental start up.
• Usage: Use this air die grinder as a handheld power rotary tool die grinding, cutting, polishing and more.

Includes: Tool, 1/4" collet, (2) Wrenches and Manuals
Product Application and Uses: Use this air die grinder as a handheld power rotary tool for de-burring, polishing, porting, smoothing edges, weld grinding and more.
Actuation/Throttle Type/Switch Location: Bottom
Actuation/Throttle Type/Switch Type: Lever
Air Consumption @ Load (cfm): 24
Air Consumption @ Load (l/min): 680
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Average Air Consumption (cfm): 6
Average Air Consumption (l/min): 170
Bearing Type: Ball Bearing
Configuration/Handle Type: Right Angle
Duty Rating: Medium Duty
Exhaust Location: Front
Grinder Type: Die Grinder
Handle Material: Aluminum
Height Over Spindle (in): 3
Housing Material: Aluminum
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 21000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 5.27
Product Width (in): 3.5
Product Height (in): 2
Product Weight (lb): 1.02
Rated Power (hp): 0.25
Right Angle Length (in): 2
Right Angle Length (mm): 51
Side to Center Distance (in): 0.54
Side to Center Distance (mm): 14
Sound Pressure/Power Db(A): 91.8 / 104.8
Speed Setting: Variable Speed
Standards/Certifications: 2006/42/Ec, En Iso 28927-12, En Iso 15744
Vibration Level (m/s2): 5.9
Warranty: 1-year

Similar IR

• 302B
• 5102MAX
• 307B
• 308B

IR 301B2MK

Angle Air Die Grinder 2" Pad Kit, 21,000 RPM, 0.25 HP, 1/4" & 6mm Collets, Front Exhaust

As part of an expanded line of long-lasting, economical, general purpose grinders, the 301B delivers a number of beneficial features in one compact package. Right-angle configuration provides easy access to tight spots, so you can grind, break sharp edges, de-burr, port, and polish virtually anywhere! Kit includes (4) 2” coarse pads, (4) 2” medium pads, Blow-molded case.

Features And Benefits

• Performance: Powerful motor with precision gearing offers .25 HP at 21,000 RPM.
• Durable: Ball-bearing construction offers improved balance, reduces vibration, and ensures a longer product life.
• Strong: Aluminum housing withstands tough operating conditions.
• Lightweight: Small and sturdy design weighs only 1.02 lbs and provides easy operation and the right angle configuration allows better access to tight spots.
• Front exhaust: Helps keep work surface clean.
• Safety: 1/4" and 6mm collets and a intefral self-locking throttle lever that prevents accidental start up.
• Usage: Use this air die grinder as a handheld power rotary tool die grinding, cutting, polishing and more.
• Kit Includes: (4) 2” coarse pads, (4) 2” medium pads, Blow-molded case.

Includes: 301B Air Angle Die Grinder, (4) 2” coarse pads, (4) 2” medium pads, Blow-molded case, 1/4" and 6mm collets, (2) Wrenches and Manuals
Product Application and Uses: Use this air die grinder as a handheld power rotary tool for de-burring, polishing, porting, smoothing edges, weld grinding and more.
Actuation/Throttle Type/Switch Location: Bottom
Actuation/Throttle Type/Switch Type: Lever
Air Consumption @ Load (cfm): 24
Air Consumption @ Load (l/min): 680
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Arbor/Collet: 6mm
Average Air Consumption (cfm): 6
Average Air Consumption (l/min): 170
Bearing Type: Ball Bearing
Configuration/Handle Type: Right Angle
Duty Rating: Medium Duty
Exhaust Location: Front
Grinder Type: Die Grinder
Handle Material: Aluminum
Height Over Spindle (in): 3
Housing Material: Aluminum
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 21000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 5.27
Product Width (in): 3.5
Product Height (in): 2
Product Weight (lb): 1.02
Rated Power (hp): 0.25
Right Angle Length (in): 2
Right Angle Length (mm): 51
Side to Center Distance (in): 0.54
Side to Center Distance (mm): 14
Sound Pressure/Power Db(A): 91.8 / 104.8
Speed Setting: Variable Speed
Standards/Certifications: 2006/42/Ec, En Iso 28927-12, En Iso 15744
Vibration Level (m/s2): 5.9
Warranty: 1-year

Similar IR

• 302B
• 5102MAX
• 307B
• 308B

IR 301B32MK

Angle Air Die Grinder 2" & 3" Pad Kit, 21,000 RPM, 0.25 HP, 1/4" & 6mm Collets, Front Exhaust

As part of an expanded line of long-lasting, economical, general purpose grinders, the 301B delivers a number of beneficial features in one compact package. Right-angle configuration provides easy access to tight spots, so you can grind, break sharp edges, de-burr, port, and polish virtually anywhere! Kit Includes (2) 2” coarse pads, (2) 2” medium pads, (2) 3” coarse pads, (2) 3” medium pads, and a Blow-molded case.

Features And Benefits

• Performance: Powerful motor with precision gearing offers .25 HP at 21,000 RPM.
• Durable: Ball-bearing construction offers improved balance, reduces vibration, and ensures a longer product life.
• Strong: Aluminum housing withstands tough operating conditions.
• Lightweight: Small and sturdy design weighs only 1.02 lbs and provides easy operation and the right angle configuration allows better access to tight spots.
• Front exhaust: Helps keep work surface clean.
• Safety: 1/4" and 6mm collets and a intefral self-locking throttle lever that prevents accidental start up.
• Usage: Use this air die grinder as a handheld power rotary tool die grinding, cutting, polishing and more.
• Kit Includes: (2) 2” coarse pads, (2) 2” medium pads, (2) 3” coarse pads, (2) 3” medium pads, and a Blow-molded case.

Includes: 301B Air Angle Die Grinder, (2) 2” coarse pads, (2) 2” medium pads, (2) 3” coarse pads, (2) 3” medium pads, Blow-molded case, 1/4" and 6mm collets, (2) Wrenches and Manuals
Product Application and Uses: Use this air die grinder as a handheld power rotary tool for de-burring, polishing, porting, smoothing edges, weld grinding and more.
Actuation/Throttle Type/Switch Location: Bottom
Actuation/Throttle Type/Switch Type: Lever
Air Consumption @ Load (cfm): 24
Air Consumption @ Load (l/min): 680
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Arbor/Collet: 6mm
Average Air Consumption (cfm): 6
Average Air Consumption (l/min): 170
Bearing Type: Ball Bearing
Configuration/Handle Type: Right Angle
Duty Rating: Medium Duty
Exhaust Location: Front
Grinder Type: Die Grinder
Handle Material: Aluminum
Height Over Spindle (in): 3
Housing Material: Aluminum
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 21000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 5.27
Product Width (in): 3.5
Product Height (in): 2
Product Weight (lb): 1.02
Rated Power (hp): 0.25
Right Angle Length (in): 2
Right Angle Length (mm): 51
Side to Center Distance (in): 0.54
Side to Center Distance (mm): 14
Sound Pressure/Power Db(A): 91.8 / 104.8
Speed Setting: Variable Speed
Standards/Certifications: 2006/42/Ec, En Iso 28927-12, En Iso 15744
Vibration Level (m/s2): 5.9
Warranty: 1-year

Similar IR

• 302B
• 5102MAX
• 307B
• 308B

IR 301-700

Collet Replacement Part for Ingersoll Rand Air Die Grinders

Product Application and Uses: For use with Ingersoll Rand 301, 307, 3101, 3107, 302, 308, 5102, 5108, 409 Series die grinders

IR 301B3MK

Angle Air Die Grinder 3" Pad Kit, 21,000 RPM, 0.25 HP, 1/4" & 6mm Collets, Front Exhaust

As part of an expanded line of long-lasting, economical, general purpose grinders, the 301B delivers a number of beneficial features in one compact package. Right-angle configuration provides easy access to tight spots, so you can grind, break sharp edges, de-burr, port, and polish virtually anywhere! Kit includes (4) 3” coarse pads, (4) 3” medium pads, and a Blow-molded case.

Features And Benefits

• Performance: Powerful motor with precision gearing offers .25 HP at 21,000 RPM.
• Durable: Ball-bearing construction offers improved balance, reduces vibration, and ensures a longer product life.
• Strong: Aluminum housing withstands tough operating conditions.
• Lightweight: Small and sturdy design weighs only 1.02 lbs and provides easy operation and the right angle configuration allows better access to tight spots.
• Front exhaust: Helps keep work surface clean.
• Safety: 1/4" and 6mm collets and a intefral self-locking throttle lever that prevents accidental start up.
• Usage: Use this air die grinder as a handheld power rotary tool die grinding, cutting, polishing and more.
• Kit Includes: (4) 3” coarse pads, (4) 3” medium pads, Blow-molded case.

Includes: 301B Angle Die Grinder, (4) 3” coarse pads, (4) 3” medium pads, Blow-molded case, 1/4" and 6mm collets, (2) Wrenches and Manuals.
Product Application and Uses: Use this air die grinder as a handheld power rotary tool for de-burring, polishing, porting, smoothing edges, weld grinding and more.
Actuation/Throttle Type/Switch Location: Bottom
Actuation/Throttle Type/Switch Type: Lever
Air Consumption @ Load (cfm): 24
Air Consumption @ Load (l/min): 680
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Arbor/Collet: 6mm
Average Air Consumption (cfm): 6
Average Air Consumption (l/min): 170
Bearing Type: Ball Bearing
Configuration/Handle Type: Right Angle
Duty Rating: Medium Duty
Exhaust Location: Front
Grinder Type: Die Grinder
Handle Material: Aluminum
Height Over Spindle (in): 3
Housing Material: Aluminum
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 21000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 5.27
Product Width (in): 3.5
Product Height (in): 2
Product Weight (lb): 1.02
Rated Power (hp): 0.25
Right Angle Length (in): 2
Right Angle Length (mm): 51
Side to Center Distance (in): 0.54
Side to Center Distance (mm): 14
Sound Pressure/Power Db(A): 91.8 / 104.8
Speed Setting: Variable Speed
Standards/Certifications: 2006/42/Ec, En Iso 28927-12, En Iso 15744
Vibration Level (m/s2): 5.9
Warranty: 1-year

Similar IR

• 302B
• 5102MAX
• 307B
• 308B

IR 301BK

Angle Air Die Grinder Stone Kit, 21,000 RPM, 0.25 HP, 1/4" Collet, Front Exhaust

As part of an expanded line of long-lasting, economical, general purpose grinders, the 301B delivers a number of beneficial features in one compact package. Right-angle configuration provides easy access to tight spots, so you can grind, break sharp edges, de-burr, port, and polish virtually anywhere! Kit includes 10 mounted grinding tips and a Blow-molded case.

Features And Benefits

• Performance: Powerful motor with precision gearing offers .25 HP at 21,000 RPM.
• Durable: Ball-bearing construction offers improved balance, reduces vibration, and ensures a longer product life.
• Strong: Aluminum housing withstands tough operating conditions.
• Lightweight: Small and sturdy design weighs only 1.02 lbs and provides easy operation and the right angle configuration allows better access to tight spots.
• Front exhaust: Helps keep work surface clean.
• Safety: 1/4" and 6mm collets and a intefral self-locking throttle lever that prevents accidental start up.
• Usage: Use this air die grinder as a handheld power rotary tool die grinding, cutting, polishing and more.
• Kit Includes: 10 mounted grinding tips and a Blow-molded case.

Includes: 301B Angle Die Grinder, 10 mounted grinding tips, Blow-molded case, 1/4" collet, (2) Wrenches and Manuals.
Product Application and Uses: Use this air die grinder as a handheld power rotary tool for de-burring, polishing, porting, smoothing edges, weld grinding and more.
Actuation/Throttle Type/Switch Location: Bottom
Actuation/Throttle Type/Switch Type: Lever
Air Consumption @ Load (cfm): 24
Air Consumption @ Load (l/min): 680
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Average Air Consumption (cfm): 6
Average Air Consumption (l/min): 170
Bearing Type: Ball Bearing
Configuration/Handle Type: Right Angle
Duty Rating: Medium Duty
Exhaust Location: Front
Grinder Type: Die Grinder
Handle Material: Aluminum
Height Over Spindle (in): 3
Housing Material: Aluminum
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 21000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 5.27
Product Width (in): 3.5
Product Height (in): 2
Product Weight (lb): 1.02
Rated Power (hp): 0.25
Right Angle Length (in): 2
Right Angle Length (mm): 51
Side to Center Distance (in): 0.54
Side to Center Distance (mm): 14
Sound Pressure/Power Db(A): 91.8 / 104.8
Speed Setting: Variable Speed
Standards/Certifications: 2006/42/Ec, En Iso 28927-12, En Iso 15744
Vibration Level (m/s2): 5.9
Warranty: 1-year
Wheel Type: Burr

Similar IR

• 302B
• 5102MAX
• 307B
• 308B

IR 301-K591A

Arbor Kit for Ingersoll Rand Air Die Grinders

Product Application and Uses: For use with Ingersoll Rand 301, 307, 3101, 302, and 308 Series die grinders

For Use With

• 301B
• 301B-M
• 301B2MK
• 301B32MK
• 301B3MK
• 301BK
• 302B
• 302B-M
• 302BK

IR 308B

Air Die Grinder, 25,000 RPM, 0.33 HP, 1/4" Collet, Rear Exhaust

Lightweight and durable for ultimate performance, the 308B die grinder is the perfect choice. These powerful grinders feature a composite grip for superior ergonomics and comfort, and can be used in various applications including porting, weld breaking, de-burring, polishing and grinding. Also available in the 308BK kit which includes 4 burrs.

Features And Benefits

• Performance: Powerful vane motor delivers 0.33 HP and 25,000 RPM free speed.
• Durable: Ball-bearing construction improves balance, reduces vibration, and ensures a longer life. Built-in lubricating wick increases gear life.
• Lightweight: At only 1lb., the ergonomic composite housing protects this tool from cold air and offers greater operator comfort.
• Safety: Integral safety-lock throttle lever prevents accidental start up.
• Piped Away Exhaust Ready: These die grinders are compatible with “piped away” exhaust kits, so you can transfer exhaust away from you and your workspace.
• Rear exhaust directs air away from the operator.
• Also available in the 308BK kit which includes 4 burrs and a blow-molded carrying case.

Includes: 308B Pneumatic Straight Die Grinder, 1/4" Collet, (2) Wrenches.
Product Application and Uses: Designed for various applications including porting, weld breaking, de-burring, polishing and grinding.
Actuation/Throttle Type/Switch Location: Top;Bottom (straight tool)
Actuation/Throttle Type/Switch Type: Lever
Air Consumption @ Load (cfm): 28
Air Consumption @ Load (l/min): 793
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Average Air Consumption (cfm): 7
Average Air Consumption (l/min): 198
Bearing Type: Ball Bearing
Color: Grey
Configuration/Handle Type: Straight
Duty Rating: Medium Duty
Exhaust Location: Rear
Grinder Type: Die Grinder
Housing Material: Composite
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 25000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 6.85
Product Width (in): 4
Product Height (in): 2.5
Product Weight (lb): 1.02
Rated Power (hp): 0.33
Side to Center Distance (in): 0.71
Side to Center Distance (mm): 18
Sound Pressure/Power Db(A): 92.0 / 103.0
Speed Setting: Variable Speed
Standards/Certifications: 2006/42/Ec, En Iso 28927-12, En Iso 15744, En Iso 11148-9
Vibration Level (m/s2): 3.7
Warranty: 1-year

Similar IR

• 307B
• 409
• 5108MAX

IR 30289

HANGER KIT-BLOCK-PRL-ZRA1/T

IR 308A-K69

Wrench Kit Replace Part for Ingersoll Rand Die Grinder

IR 30735

ADJ. STOP ZRA2, S2, S3 BAR W/C

IR 30814-006

HANGER KIT-ZRS-STD-6.00

IR 308B-A40

HOUSING ASSEMBLY

IR 30519-375

AIR STANCHION ASSEMBLY-3/8 NPT

IR 30517-375

AIR BRACKET ASSEMBLY-3/8

IR 307A-214

COLLET BODY

IR 302B-A550

Angle Housing Replacement Part for Ingersoll Rand 302, 308 Series Die Grinder

IR 307BK

Air Die Grinder Stone Kit, 28,000 RPM, 0.25 HP, 1/4" Collet, Front Exhaust

Ingersoll Rand's 307B general purpose Air Die Grinder is durable, reliable, and cost-effective. Designed for porting, light weld grinding, smoothing sharp edges, de-burring, and polishing. Their compact design offers exceptional maneuverability, versatility, and accessibility for difficult-to-reach spots. Kit includes 10 mounted grinding tips and a blow-molded case.

Features And Benefits

• Performance: Powerful vane motor delivers .25 HP and 28,000 RPM.
• Durable: Ball-bearing construction improves balance, reduces vibration, and ensures a longer life. Built-in lubricating wick increases gear life.
• Reliable: Strong aluminum housing withstands tough operating conditions and powerful vane motor will make the 307B a trusted tool in your arsenal for years to come.
• Safety: Integral safety-lock throttle lever prevents accidental start up.
• Comfort: Weighing under 1 lb., this small and lightweight design provides easy operation, and greater access to tight spots.
• Front exhaust: Helps keep work surface clean.
• Kit includes 10 abrasive stones, and a blow-molded carrying case.

Includes: 307B Air Die Grinder, (10) Abrasive Stones, a Blow-molded Case, (2) Wrenches, 1/4" Collet.
Product Application and Uses: Designed for porting, light weld grinding, smoothing sharp edges, de-burring, and polishing.
Actuation/Throttle Type/Switch Location: Top;Bottom (straight tool)
Actuation/Throttle Type/Switch Type: Lever
Air Consumption @ Load (cfm): 24
Air Consumption @ Load (l/min): 680
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Average Air Consumption (cfm): 6
Average Air Consumption (l/min): 170
Bearing Type: Ball Bearing
Configuration/Handle Type: Straight
Duty Rating: Medium Duty
Exhaust Location: Front
Grinder Type: Die Grinder
Housing Material: Aluminum
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 28000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 5.19
Product Height (in): 2.1
Product Weight (lb): 0.73
Rated Power (hp): 0.25
Side to Center Distance (in): 0.65
Side to Center Distance (mm): 17
Sound Pressure/Power Db(A): 83.0 / 94.0
Speed Setting: Variable Speed
Standards/Certifications: 2006/42/Ec, En Iso 28927-12, En Iso 15744, En Iso 11148-9
Vibration Level (m/s2): 4.5
Vibration Uncertainy K* (m/s2): 1.1
Warranty: 1-year
Wheel Type: Burr

Similar IR

• 307B
• 308B
• 409

IR 307B-A400

Lever Assembly for Ingersoll Rand for 301B and 307B Grinder

IR 302BK

Angle Air Die Grinder 2" & 3" Pad Kit, 20,000 RPM, 0.33 HP, 1/4" Collet, Rear Exhaust

Lightweight and durable for ultimate performance, the 302B die grinder is the perfect choice. These powerful grinders feature .33 HP and 20,000 RPM, a composite grip for superior ergonomics and comfort, and can be used in various applications including porting, weld breaking, de-burring, polish-ing and grinding. Kit includes 2” and 3” Quick Change Backing Pads, a Variety of 2” and 3” Quick Change Sanding Disks, 2” and 3” Quick Change Coarse and Medium Polishing Disks, and a Blow-molded Carrying Case

Features And Benefits

• Power: Powerful motor with precision gearing offers .33 HP at 20,000 RPM.
• Durable: Ball-bearing construction offers improved balance, reduces vibration, and ensures a longer product life.
• Lightweight: Lightweight at only 1lb., the ergonomic composite housing protects tool from cold air and offers greater operator comfort.
• Piped Away Exhaust Ready: These die grinders are compatible with “piped away” exhaust kits, so you can transfer exhaust away from you and your workspace.
• Reliability: Integral safety-lock throttle lever prevents accidental start up.
• Built-In Lubrication: Built-in lubricating wick increases angle gear life.
• Rear exhaust directs air away from the operator.
• Kit Includes: 2” and 3” Quick Change Backing Pads, a Variety of 2” and 3” Quick Change Sanding Disks, 2” and 3” Quick Change Coarse and Medium Polishing Disks, and a Blow-molded Carrying Case

Includes: Right Angle 302B Die Grinder, 2” and 3” Quick Change Backing Pads, A Variety of 2” and 3” Quick Change Sanding Disks, 2” and 3” Quick Change Coarse and Medium Polishing Disks, Blow-molded Carrying Case, 1/4" Collet.
Product Application and Uses: Deburring, Grinding, Polishing, Porting, Weld Breaking
Actuation/Throttle Type/Switch Location: Bottom
Actuation/Throttle Type/Switch Type: Lever
Air Consumption @ Load (cfm): 23
Air Consumption @ Load (l/min): 651
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Average Air Consumption (cfm): 6
Average Air Consumption (l/min): 170
Bearing Type: Ball Bearing
Configuration/Handle Type: Right Angle
Duty Rating: Medium Duty
Exhaust Location: Rear
Grinder Type: Die Grinder
Handle Material: Composite
Height Over Spindle (in): 3
Housing Material: Aluminum
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 20000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Pad Diameter or Size (in): 2
Pad Diameter or Size (in): 3
Power Source: Air Powered
Product Length (in): 6.93
Product Width (in): 3.74
Product Height (in): 2.36
Product Weight (lb): 1.28
Rated Power (hp): 0.33
Right Angle Length (in): 2
Right Angle Length (mm): 51
Side to Center Distance (in): 0.53
Side to Center Distance (mm): 13
Sound Pressure/Power Db(A): 90.0 / 101.0
Speed Setting: Variable Speed
Standards/Certifications: 2006/42/Ec, En Iso 28927-12, En Iso 15744, En Iso 11148-9
Vibration Level (m/s2): 5.5
Vibration Uncertainy K* (m/s2): 1.5
Warranty: 1-year

Similar IR

• 301BK
• 301B2MK
• 301B32MK

IR 302B

Angle Air Die Grinder, 20,000 RPM, 0.33 HP, 1/4" Collet, Rear Exhaust

Lightweight and durable for ultimate performance, the 302B die grinder is the perfect choice. These powerful grinders feature .33 HP and 20,000 RPM, a composite grip for superior ergonomics and comfort, and can be used in various applications including porting, weld breaking, de-burring, polishing and grinding. 302BK Kit also available that includes 2” and 3” Quick Change Backing Pads, a Variety of 2” and 3” Quick Change Sanding Disks, 2” and 3” Quick Change Coarse and Medium Polishing Disks, and a Blow-molded Carrying Case.

Features And Benefits

• Power: Powerful motor with precision gearing offers .33 HP at 20,000 RPM.
• Durable: Ball-bearing construction offers improved balance, reduces vibration, and ensures a longer product life.
• Lightweight: Lightweight at only 1lb., the ergonomic composite housing protects tool from cold air and offers greater operator comfort.
• Piped Away Exhaust Ready: These die grinders are compatible with “piped away” exhaust kits, so you can transfer exhaust away from you and your workspace.
• Reliability: Integral safety-lock throttle lever prevents accidental start up.
• Built-In Lubrication: Built-in lubricating wick increases angle gear life.
• Rear exhaust directs air away from the operator.
• Also available in the 302BK Kit that includes 2” and 3” Quick Change Backing Pads, a Variety of 2” and 3” Quick Change Sanding Disks, 2” and 3” Quick Change Coarse and Medium Polishing Disks, and a Blow-molded Carrying Case.

Includes: Tool, (2) Wrenches, 1/4" Collet and Manuals
Product Application and Uses: Deburring, Grinding, Polishing, Porting, Weld Breaking
Actuation/Throttle Type/Switch Location: Bottom
Actuation/Throttle Type/Switch Type: Lever
Air Consumption @ Load (cfm): 23
Air Consumption @ Load (l/min): 651
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Average Air Consumption (cfm): 6
Average Air Consumption (l/min): 170
Bearing Type: Ball Bearing
Color: Grey
Configuration/Handle Type: Right Angle
Duty Rating: Medium Duty
Exhaust Location: Rear
Grinder Type: Die Grinder
Handle Material: Composite
Height Over Spindle (in): 3
Housing Material: Aluminum
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 20000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 6.93
Product Width (in): 3.74
Product Height (in): 2.36
Product Weight (lb): 1.28
Rated Power (hp): 0.33
Right Angle Length (in): 2
Right Angle Length (mm): 51
Side to Center Distance (in): 0.53
Side to Center Distance (mm): 13
Sound Pressure/Power Db(A): 90.0 / 101.0
Speed Setting: Variable Speed
Standards/Certifications: 2006/42/Ec, En Iso 28927-12, En Iso 15744, En Iso 11148-9
Vibration Level (m/s2): 5.5
Vibration Uncertainy K* (m/s2): 1.5
Warranty: 1-year

Similar IR

• 301B
• 5102MAX

IR 308A-A40

Housing Assembly for Ingersoll Rand for 302 and 308 Air Die Grinder

IR 308A-A53

Motor Assembly for Ingersoll Rand for 409 Air Die Grinder

IR 307B

Air Die Grinder, 28,000 RPM, 0.25 HP, 1/4" Collet, Front Exhaust

Ingersoll Rand's 307B general purpose Air Die Grinder is durable, reliable, and cost-effective. Designed for porting, light weld grinding, smoothing sharp edges, de-burring, and polishing. Their compact design offers exceptional maneuverability, versatility, and accessibility for difficult-to-reach spots. Also available in the 307BK kit which includes 10 mounted grinding tips and a blow-molded case.

Features And Benefits

• Performance: Powerful vane motor delivers .25 HP and 28,000 RPM.
• Durable: Ball-bearing construction improves balance, reduces vibration, and ensures a longer life. Built-in lubricating wick increases gear life.
• Reliable: Strong aluminum housing withstands tough operating conditions and powerful vane motor will make the 307B a trusted tool in your arsenal for years to come.
• Safety: Integral safety-lock throttle lever prevents accidental start up.
• Comfort: Weighing under 1 lb., this small and lightweight design provides easy operation, and greater access to tight spots.
• Front exhaust: Helps keep work surface clean.
• Also available in the 307BK kit which includes 10 abrasive stones, and a blow-molded carrying case.

Includes: 1/4" collet, (2) Wrenches and Manuals
Product Application and Uses: Designed for porting, light weld grinding, smoothing sharp edges, de-burring, and polishing.
Actuation/Throttle Type/Switch Location: Top;Bottom (straight tool)
Actuation/Throttle Type/Switch Type: Lever
Air Consumption @ Load (cfm): 24
Air Consumption @ Load (l/min): 680
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Average Air Consumption (cfm): 6
Average Air Consumption (l/min): 170
Bearing Type: Ball Bearing
Configuration/Handle Type: Straight
Duty Rating: Medium Duty
Exhaust Location: Front
Grinder Type: Die Grinder
Housing Material: Aluminum
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 28000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 5.19
Product Height (in): 2.1
Product Weight (lb): 0.73
Rated Power (hp): 0.25
Side to Center Distance (in): 0.65
Side to Center Distance (mm): 17
Sound Pressure/Power Db(A): 83.0 / 94.0
Speed Setting: Variable Speed
Standards/Certifications: 2006/42/Ec, En Iso 28927-12, En Iso 15744, En Iso 11148-9
Vibration Level (m/s2): 4.5
Vibration Uncertainy K* (m/s2): 1.1
Warranty: 1-year

Similar IR

• 308B
• 5108MAX
• 409

IR 308B-A400

Lever Assembly for Ingersoll Rand for 302 and 308 Air Die Grinder

IR 308B-A565

Inlet Bushing Assembly for Ingersoll Rand 302 and 308 Air Die Grinder

IR 308BK

Air Die Grinder Burr Kit, 25,000 RPM, 0.33 HP, 1/4" Collet, Rear Exhaust

Lightweight and durable for ultimate performance, the 308B die grinder is the perfect choice. These powerful grinders feature a composite grip for superior ergonomics and comfort, and can be used in various applications including porting, weld breaking, de-burring, polishing and grinding. Kit includes 4 burrs.

Features And Benefits

• Performance: Powerful vane motor delivers 0.33 HP and 25,000 RPM free speed.
• Durable: Ball-bearing construction improves balance, reduces vibration, and ensures a longer life. Built-in lubricating wick increases gear life.
• Lightweight: At only 1lb., the ergonomic composite housing protects this tool from cold air and offers greater operator comfort.
• Safety: Integral safety-lock throttle lever prevents accidental start up.
• Piped Away Exhaust Ready: These die grinders are compatible with “piped away” exhaust kits, so you can transfer exhaust away from you and your workspace.
• Rear exhaust directs air away from the operator
• Kit Includes: 4 burrs and a blow-molded carrying case.

Includes: 308B Straight Air Die Grinder, 4 Burrs (Cylindrical bit super cut burr, Cylindrical bit super cut burr, 3/8" ball shaped super cut burr, Tree shaped super cut burr), a Blow-molded Carrying Case, 1/4" Collet, (2) Wrenches.
Product Application and Uses: Designed for various applications including porting, weld breaking, de-burring, polishing and grinding.
Actuation/Throttle Type/Switch Location: Top;Bottom (straight tool)
Actuation/Throttle Type/Switch Type: Lever
Air Consumption @ Load (cfm): 28
Air Consumption @ Load (l/min): 793
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Average Air Consumption (cfm): 7
Average Air Consumption (l/min): 198
Bearing Type: Ball Bearing
Configuration/Handle Type: Straight
Duty Rating: Medium Duty
Exhaust Location: Rear
Grinder Type: Die Grinder
Housing Material: Composite
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 25000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 6.85
Product Width (in): 4
Product Height (in): 2.5
Product Weight (lb): 1.02
Rated Power (hp): 0.33
Side to Center Distance (in): 0.71
Side to Center Distance (mm): 18
Sound Pressure/Power Db(A): 92.0 / 103.0
Speed Setting: Variable Speed
Standards/Certifications: 2006/42/Ec, En Iso 28927-12, En Iso 15744, En Iso 11148-9
Vibration Level (m/s2): 3.7
Warranty: 1-year
Wheel Type: Burr

Similar IR

• 307BK
• 5108MAX

IR 30906

HOIST TROLLEY-DL-ZRA2 2000# A

IR 3101G-36

Gasket for Ingersoll Rand 3101G, 3107G, 302B, 308B, 5102MAX, 5108MAX Grinder

IR 3101G-504

Spring Pin Replacement Part for Ingersoll Rand Grinders

Product Application and Uses: For use with Ingersoll Rand 3101G, 302B, 308B, 5102MAX, 5108MAX Series grinders

IR 3102-12

REAR END PLATE

IR 3102-283

Gasket Replacement Part for Ingersoll Rand 302, 308, 3101, 3102, 3108 Series Grinder

IR 3102-3

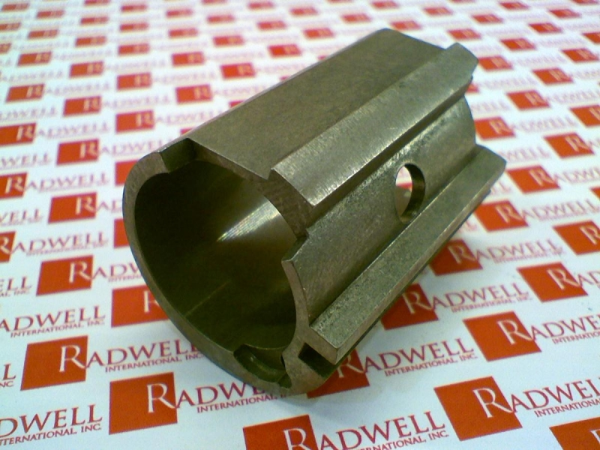

CYLINDER

IR 3102-42-4

Vane Pack Set of 4 for Ingersoll Rand 302B, 308B Die Grinder

For Use With

• 302B
• 302B-M
• 302BK
• 308B
• 308B-M
• 308BK

IR 3103KA

Mini Surface Prep Air Sander 2" & 3" 14-Piece Pad Kit, 15,000 RPM, 0.2 HP, Handle Exhaust

This mini surface prep sander is the ideal tool for the removal of rust, surface deposits, and welds in hard-to-reach places. With smooth power delivery and durable casing, this tool is ready to work.

Features And Benefits

• Variety: With a 2-speed gearbox and variable speed options, you can adjust your tool for your application as needed.
• Comfort: This lightweight, pistol grip design is engineered for balance and one-handed precision.
• Access: Thanks to its ergonomic design and compact size, this tool can be used in even the tightest spaces.
• Durable: Ball-bearing construction enhances durability and smooth power delivery.
• Includes: 14-piece 2” (50mm) and 3” (75mm) sanding discs and pads.

Includes: 3103XPA sander, 14-piece 2” (50mm) and 3” (75mm) sanding discs and pads.
Product Application and Uses: This mini surface prep sander is the ideal tool for the removal of rust, surface deposits, and welds in hard-to-reach places.
Actuation/Throttle Type/Switch Type: Trigger
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Average Air Consumption (l/min): 538
Bearing Type: Ball Bearing
Color: Black
Configuration/Handle Type: Pistol Grip
Exhaust Location: Handle
Handle Material: Composite
Housing Material: Composite
Max Free Speed (rpm): 15000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Pad Diameter or Size (in): 2 and 3
Pad Face: Roloc
Power Source: Air Powered
Product Length (in): 5.3
Product Width (in): 1.7
Product Height (in): 5.7
Product Weight (lb): 1.1
Rated Power (hp): 0.2
Sound Pressure/Power Db(A): 79.8 / 90.8
Special Features: Compact
Speed Setting: Dual speed
Vibration Level (m/s2): 1.3
Warranty: 1-year

Similar IR

• 3103XPA

IR 3103XPA

Mini Surface Prep Air Sander, 15000 RPM, 0.2HP, 2" & 3" Pad, Handle Exhaust

This mini surface prep sander is the ideal tool for the removal of rust, surface deposits, and welds in hard-to-reach places. With smooth power delivery and durable casing, this tool is ready to work.

Features And Benefits

• Variety: With a 2-speed gearbox and variable speed options, you can adjust your tool for your application as needed.
• Comfort: This lightweight, pistol grip design is engineered for balance and one-handed precision.
• Access: Thanks to its ergonomic design and compact size, this tool can be used in even the tightest spaces.
• Durable: Ball-bearing construction enhances durability and smooth power delivery.

Product Application and Uses: This mini surface prep sander is the ideal tool for the removal of rust, surface deposits, and welds in hard-to-reach places.
Actuation/Throttle Type/Switch Type: Trigger
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Average Air Consumption (l/min): 538
Bearing Type: Ball Bearing
Color: Black
Configuration/Handle Type: Pistol Grip
Duty Rating: Standard Duty
Exhaust Location: Handle
Handle Material: Composite
Housing Material: Composite
Max Free Speed (rpm): 15000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Mounting Type: Arbor
Pad Diameter or Size (in): 2 and 3
Pad Face: Roloc
Power Source: Air Powered
Product Length (in): 5.3
Product Width (in): 1.7
Product Height (in): 5.7
Product Weight (lb): 1.1
Rated Power (hp): 0.2
Sound Pressure/Power Db(A): 79.8 / 90.8
Special Features: Compact
Speed Setting: Dual speed
Vacuum: None
Vibration Level (m/s2): 1.3
Warranty: 1-year
Wheel Diameter (in): 2

IR 311-25

SEAL

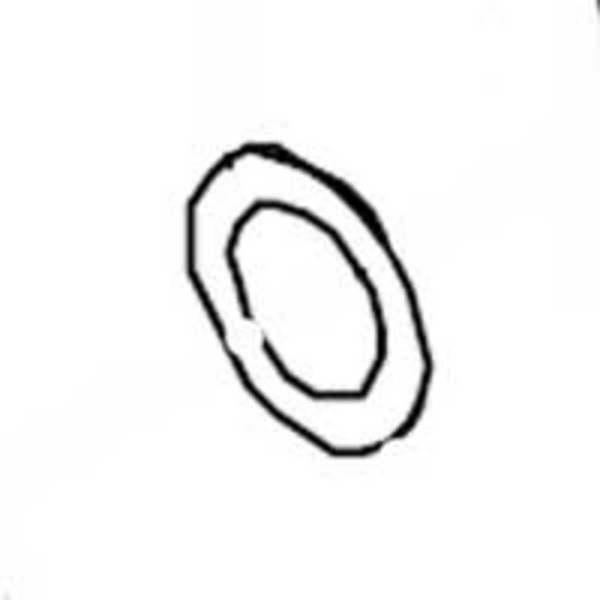

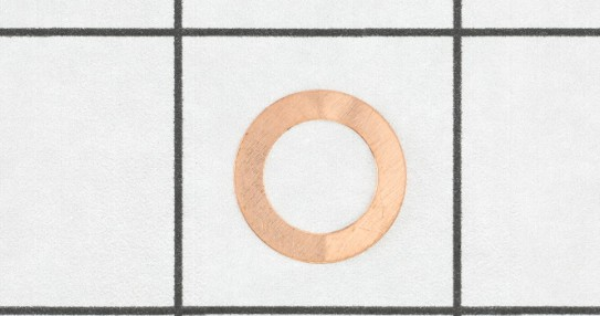

IR 311-448

SHIM

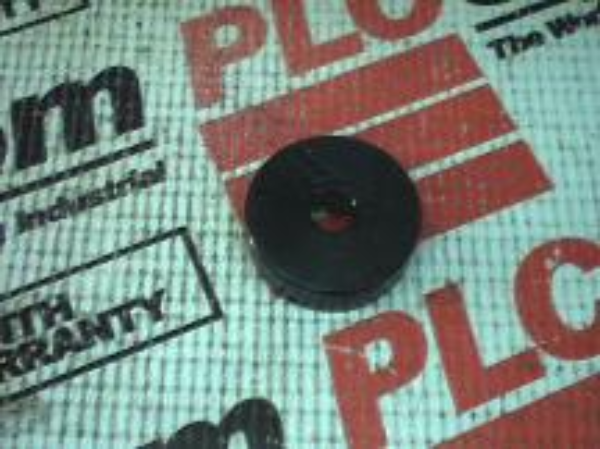

IR 31158

Endplate

IR 311A-42-5

Vane Pack for Ingersoll Rand 311A and 311G Sander, 4-Pack

IR 311A-25

Shim for Ingersoll Rand 311A and 311G Sander

IR 311A-54

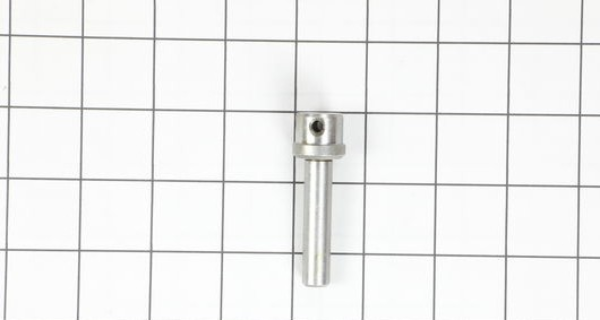

SPINDLE

IR 311A-825-6

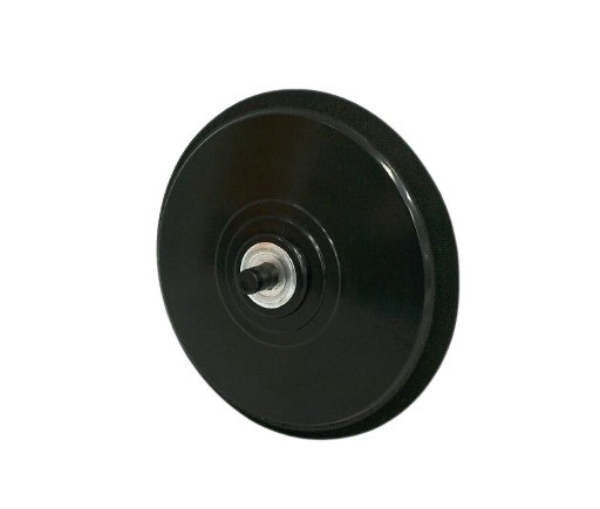

6" Dual Action Backing Pad, Standard Duty, Vinyl for Ingersoll Rand 311 Series Air Sander

Product Application and Uses: For use with Ingersoll Rand 311A and 311G air sander
Arbor/Collet: 5/16"-24 Thread
Max Free Speed (rpm): 10000
Number of Vacuum Holes: 0
Pad Diameter or Size (in): 6
Pad Face: Adhesive

For Use With

• 311A
• 311G

IR 311A-A109

Motor Cover Assembly for Ingersoll Rand 311A Angle Sander

IR 311A

Dual Action Angle Air Sander, 6" Adhesive Pad, 12,000 RPM, 0.25 HP, Side Exhaust

This quality air sander features a 6-inch pad that’s great for feather edging, metal preparation, and finish work on body filler. Its dual-action pad motion produces swirl-free finishes.

Features And Benefits

• The Dual Action Quiet Air Sander comes with a built-in silencer.
• A built-in, adjustable regulator allows for positive speed control, while its compact size lets you access tight, hard-to-reach spaces.
• Durable ball bearing construction improves balance, reduces vibration, and ensures a longer life.
• Motor delivers 0.25 HP and 12,000 RPM and is great for feather edging, metal preparation, and finish work on body filler. Its dual-action pad motion produces swirl-free finishes.

Includes: Bare Tool
Product Application and Uses: Feather Edging, Metal Preparation, Finish Work On Body Filler
Actuation/Throttle Type/Switch Type: Lever
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 5/16"-24 Thread
Average Air Consumption (cfm): 4
Average Air Consumption (l/min): 113
Color: Black
Configuration/Handle Type: Palm
Dust Collection Port Size: No sleeve
Dust Collection Type: None
Duty Rating: Maintenance Duty
Exhaust Location: Side
Housing Material: Aluminum+Bushing
Max Free Speed (rpm): 12000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Motor: Air Gear Motor
Number of Vacuum Holes: 0
Orbit Diameter (in): 3/16
Pad Diameter or Size (in): 6
Pad Face: Adhesive
Power Source: Air Powered
Product Length (in): 9.76
Product Width (in): 12
Product Height (in): 5
Product Weight (lb): 4.2
Rated Power (hp): 0.25
Shroud Style: No
Sound Pressure/Power Db(A): 84.3 / 95.3
Special Features: Quiet, Low vibration
Speed Setting: Variable Speed
Standards/Certifications: Ce
Vacuum: None
Vibration Level (m/s2): 32.3
Warranty: 1-year

Similar IR

• 4151
• 4152
• 311G

IR 311A-A165

Regulator Assembly for Ingersoll Rand 311A Angle Sander

IR 311A-A161

Valve Stem for Ingersoll Rand 311A Angle Sander

For Use With

• 311A

IR 311A-A236

BALANCE BODY ASSEMBLY

IR 311A-A800

Drive Plate Assembly for Ingersoll Rand 311A Angle Sander

IR 3128KA

Mini Air Random Orbital Sander 71-Piece Kit, 3" Hook & Loop Pad, 15,000 RPM, 0.2HP, Pistol

The mini random orbital sander is the ideal sander for feather edging, removing rust, preparing metal surfaces, or smoothing welds, all without leaving a swirled finish. 71-piece kit includes 3" hook and loop backing pad and 180, 220, 320 and 800 grits aluminum oxide pads.

Features And Benefits

• Maximum Control: With a 2-speed gearbox and variable speed, this sander is easy to control and can be adjusted to your exact preferences.
• Comfort: At only 1 lb., this sander is extremely lightweight, reducing user fatigue.
• Access: This ergonomic sander is able to fit in the tightest of spaces.
• Usage: Ideal for feather edging, removing rust, preparing metal surfaces, or smoothing welds, all without leaving a swirled finish.
• 71-piece Kit Includes: 3" hook & loop backing pad and 180, 220, 320 and 800 grits aluminum oxide pads.

Includes: 3128XPA Mini RO Sander, 3" Hook & Loop backing Pad and 180, 220, 320 and 800 grits aluminum oxide pads.
Product Application and Uses: Ideal for feather edging, removing rust, preparing metal surfaces, or smoothing welds, all without leaving a swirled finish.
Actuation/Throttle Type/Switch Type: Trigger
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 5/16"-24 Thread
Color: Grey
Configuration/Handle Type: Pistol Grip
Dust Collection Port Size: No sleeve
Dust Collection Type: None
Duty Rating: Standard Duty
Exhaust Location: Handle
Housing Material: Composite
Max Free Speed (rpm): 15000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Motor: Air Gear Motor
Number of Power Settings: 2
Number of Vacuum Holes: 0
Pad Diameter or Size (in): 3
Pad Face: Hook & Loop
Power Source: Air Powered
Product Length (in): 5.7
Product Width (in): 1.7
Product Height (in): 5.7
Product Weight (lb): 1.3
Rated Power (hp): 0.2
RPM Setting 1: 12000
Sound Pressure/Power Db(A): 79.6 / 90.6
Speed Setting: Variable Speed
Vacuum: None
Vibration Level (m/s2): 3.3
Vibration Uncertainy K* (m/s2): .8
Warranty: 1-year

IR 3128XPA

Mini Air Random Orbital Sander, 3" Hook & Loop Pad, 15,000 RPM, 0.2HP, Pistol

The mini random orbital sander is the ideal sander for feather edging, removing rust, preparing metal surfaces, or smoothing welds, all without leaving a swirled finish.

Features And Benefits

• Maximum Control: With a 2-speed gearbox and variable speed, this sander is easy to control and can be adjusted to your exact preferences.
• Comfort: At only 1 lb., this sander is extremely lightweight, reducing user fatigue.
• Access: This ergonomic sander is able to fit in the tightest of spaces.
• Usage: Ideal for feather edging, removing rust, preparing metal surfaces, or smoothing welds, all without leaving a swirled finish.
• Also available in the 3128KA 71-piece Kit which includes a 3" hook & loop backing pad and 180, 220, 320 and 800 grits aluminum oxide pads.

Product Application and Uses: Ideal for feather edging, removing rust, preparing metal surfaces, or smoothing welds, all without leaving a swirled finish.
Actuation/Throttle Type/Switch Type: Trigger
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 5/16"-24 Thread
Color: Grey
Configuration/Handle Type: Pistol Grip
Dust Collection Port Size: No sleeve
Dust Collection Type: None
Duty Rating: Standard Duty
Exhaust Location: Handle
Housing Material: Composite
Max Free Speed (rpm): 15000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Motor: Air Gear Motor
Number of Power Settings: 2
Number of Vacuum Holes: 0
Pad Diameter or Size (in): 3
Pad Face: Hook & Loop
Power Source: Air Powered
Product Length (in): 5.7
Product Width (in): 1.7
Product Height (in): 5.7
Product Weight (lb): 1.3
Rated Power (hp): 0.2
RPM Setting 1: 12000
Sound Pressure/Power Db(A): 79.6 / 90.6
Speed Setting: Variable Speed
Vacuum: None
Vibration Level (m/s2): 3.3
Vibration Uncertainy K* (m/s2): .8
Warranty: 1-year

IR 3129KA

Mini Air Polisher and Buffer 4-Piece Kit, 6,000 RPM, 0.3 HP, 3" Hook & Loop Pad, Pistol

This mini polisher excels in buffing and polishing paint, metal, and plastic surfaces to a high-gloss finish. Performing at a speed of 6,000 RPM, this tool delivers as well as ones twice its size. Kit includes a 3" Hook and Loop Backing Pad and (3) Foams.

Features And Benefits

• Maximum Control: With a 2-speed gearbox and variable speed, this sander is easy to control and can be adjusted to your exact preferences.
• Comfort: This tool’s composite housing and ergonomic textured grip provides user comfort, and its lightweight pistol grip design is engineered for balance and one-handed operation.
• Access: Small and lightweight, this tool can fit into tough spaces with ease.
• Usage: This mini polisher excels in buffing and polishing paint, metal, and plastic surfaces to a high-gloss finish.
• Kit Includes: 3129XPA Mini Polisher/Buffer, 3" Hook and Loop Backing Pad and (3) Foams

Includes: 3129XPA Mini Polisher/Buffer, 3" Hook and Loop Backing Pad and (3) Foams
Product Application and Uses: Buffing and polishing paint, metal, and plastic surfaces to a high-gloss finish.
Actuation/Throttle Type/Switch Type: Trigger
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Color: Grey
Configuration/Handle Type: Pistol Grip
Duty Rating: Standard Duty
Exhaust Location: Handle
Housing Material: Composite
Max Free Speed (rpm): 6000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Number of Power Settings: 2
Pad Diameter or Size (in): 3
Pad Face: Hook & Loop
Power Source: Air Powered
Product Length (in): 6.1
Product Width (in): 1.7
Product Height (in): 5.7
Product Weight (lb): 1.4
Rated Power (hp): 0.3
Sound Pressure/Power Db(A): 83.5 / 94.5
Speed Setting: Variable Speed
Vibration Level (m/s2): 3.5
Vibration Uncertainy K* (m/s2): 1.3
Warranty: 1-year

IR 3129XPA

Mini Air Polisher and Buffer, 3" Hook & Loop Pad, 6,000 RPM, 0.3 HP, Pistol

This mini polisher excels in buffing and polishing paint, metal, and plastic surfaces to a high-gloss finish. Performing at a speed of 6,000 RPM, this tool delivers as well as ones twice its size.

Features And Benefits

• Maximum Control: With a 2-speed gearbox and variable speed, this sander is easy to control and can be adjusted to your exact preferences.
• Comfort: This tool’s composite housing and ergonomic textured grip provides user comfort, and its lightweight pistol grip design is engineered for balance and one-handed operation.
• Access: Small and lightweight, this tool can fit into tough spaces with ease.
• Usage: This mini polisher excels in buffing and polishing paint, metal, and plastic surfaces to a high-gloss finish.
• Also available in the 3129KA 4-piece kit which includes a 3" Hook and Loop Backing Pad and (3) Foams.

Product Application and Uses: Buffing and polishing paint, metal, and plastic surfaces to a high-gloss finish.
Actuation/Throttle Type/Switch Type: Trigger
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Color: Grey
Configuration/Handle Type: Pistol Grip
Duty Rating: Standard Duty
Exhaust Location: Handle
Housing Material: Composite
Max Free Speed (rpm): 6000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Pad Diameter or Size (in): 3
Pad Face: Hook & Loop
Power Source: Air Powered
Product Length (in): 6.1
Product Width (in): 1.7
Product Height (in): 5.7
Product Weight (lb): 1.4
Rated Power (hp): 0.3
Sound Pressure/Power Db(A): 83.5 / 94.5
Speed Setting: Variable Speed
Vibration Level (m/s2): 3.5
Vibration Uncertainy K* (m/s2): 1.3
Warranty: 1-year

IR 312A

Random Orbital Air Sander, 3.67 X 6.75" Paper Clamp Pad, 8,000 RPM, 0.3 HP

This orbital air sander can handle virtually any project, whether you’re smoothing fiberglass or sanding paint jobs.

Features And Benefits

• Durable: This sander can withstand harsh environments, so no matter where you decide to work, you’ll never have to worry about your tools functioning.
• Comfort: The compact, contoured palm-grip on this sander allows for one-handed use.
• Performance: With variable speed and a finely tuned motor, you can be sure this sander will perform quickly and efficiently every time.

Includes: Bare Tool
Product Application and Uses: Smoothing Fiberglass, Wood, And Body Filler
Actuation/Throttle Type/Switch Type: Automatic release throttle lever with positive stop action
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Average Air Consumption (cfm): 9
Average Air Consumption (l/min): 255
Color: Black
Configuration/Handle Type: Palm
Duty Rating: Maintenance Duty
Exhaust Location: Rear
Housing Material: Aluminum
Max Free Speed (rpm): 8000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Pad Diameter or Size (in): 3.67 x 6.75
Pad Face: Paper Clamp
Power Source: Air Powered
Product Length (in): 8.5
Product Width (in): 5.5
Product Height (in): 4.33
Product Weight (lb): 4.6
Rated Power (hp): 0.3
Shroud Style: No
Sound Pressure/Power Db(A): 86.0 / 87.0
Special Features: Automatic release throttle lever with positive stop action
Speed Setting: Variable Speed
Standards/Certifications: Ce
Vacuum: None
Vibration Level (m/s2): 7.7
Vibration Uncertainy K* (m/s2): 1.9
Warranty: 1-year

Similar IR

• 315

IR 312A-22

SANDING PAD SHOE BEARING

IR 312A-565

INLET BUSHING

IR 312A-A140

BASE PLATE ASSEMBLY

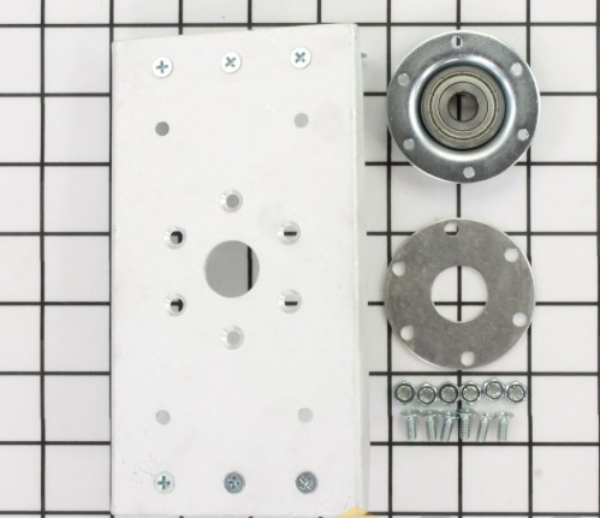

IR 312A-A226

SANDING PAD SHOE ASSEM

IR 312A-A825

Pad Assembly for Ingersoll Rand 312A Orbital Sander

For Use With

• 312A

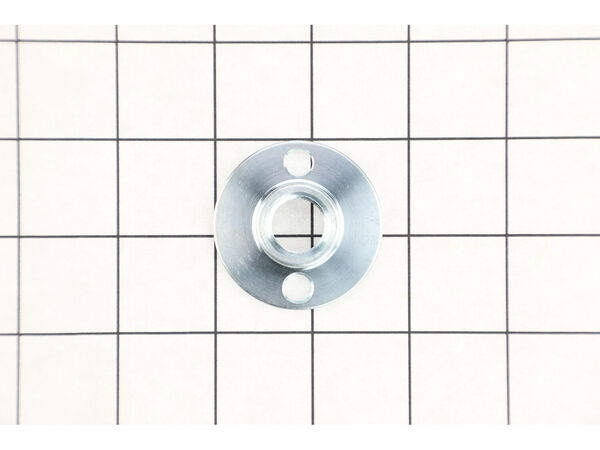

IR 313A-226

Pad Nut Part for Ingersoll Rand 313A, 314A Sander

Product Application and Uses: For use with Ingersoll Rand 313A and 314A Sander Polisher

For Use With

• 313A
• 314A

IR 313A-42-4

VANE PACK

IR 313A-48

DEAD HANDLE

IR 313A-A11

FRONT END PLATE ASSEMBLY

IR 313A-A12

Rear End Plate Assembly for Ingersoll Rand 313A Angle Sander and 314A Angle Polisher and Buffer

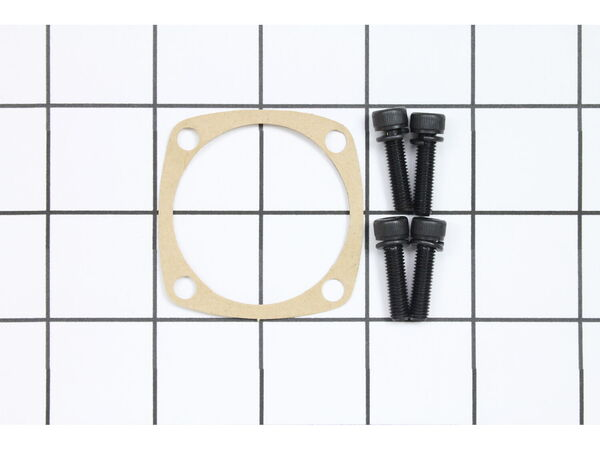

IR 313A-A283

KIT, GASKET

IR 313A-A302

Throttle Assembly for Ingersoll Rand 313A Angle Sander and 314A Angle Polisher and Buffer

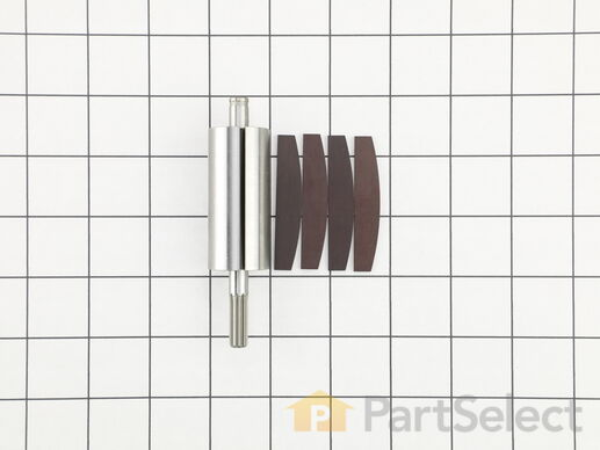

IR 313A-A53

ROTOR ASSEMBLY

IR 313A-A552

GEAR ASSEMBLY

IR 313A-825-7

7" Backing Pad for Ingersoll Rand 313A Angle Sander and 314A Angle Polisher and Buffer

Arbor/Collet: 5/16"-24 Thread
Max Free Speed (rpm): 10000
Number of Vacuum Holes: 0
Pad Diameter or Size (in): 7
Pad Face: Adhesive

For Use With

• 313-B

IR 313A-A591

ARBOR ASSEMBLY

IR 313A-A555

BEARING HOUSING ASSEMBLY

IR 313-B-A11

FRONT END PLATE ASSEMBLY

IR 313-B-A273

LEVER ASSEMBLY

IR 317A-226

Flange Nut for Ingersoll Rand 317A and 317G Air Sander

IR 313-B-A3

CYLINDER ASSEMBLY

IR 317A-42-4

Vane Pack Set of 4 for Ingersoll Rand 317A and 317G Air Sander

IR 317A-825

Backing Pad for Ingersoll Rand 317A and 317G Air Sander

For Use With

• 317A

IR 315

Straight Line Air Sander, 2.75" x 17.5" Pad, 3000 SPM

Great for tough sanding jobs, this straight-line air sander provides smooth finishes and runs up to 3,000 reciprocating strokes per minute.

Features And Benefits

• Performance: This sander's top handle provides an easy grip that allows you to exercise full control over the tool for perfect performance every time.
• Variable Speed: With variable speed, you can adjust your tool to your specifications whenever you need.
• Paper Size: Paper size should be 17.5" long to accommodate wrap around clamps.

Product Application and Uses: This sander is designed for smoothing down body filler or shaping and leveling large flat surfaces.
Actuation/Throttle Type/Switch Type: Lever
Air Consumption @ Load (cfm): 9
Air Consumption @ Load (l/min): 255
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Average Air Consumption (cfm): 8
Average Air Consumption (l/min): 226
Color: Red
Configuration/Handle Type: Straight
Duty Rating: Maintenance Duty
Exhaust Location: Rear
Max Free Speed (rpm): 3000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Pad Diameter or Size (in): 2.75 x 17.5
Pad Face: Paper Clamp
Product Length (in): 17.5
Product Width (in): 2.8
Product Height (in): 6
Product Weight (lb): 6.1
Sound Pressure/Power Db(A): 93.3 / 106.3
Speed Setting: Variable Speed
Stroke Length (in): 1
Strokes (per min): 3000
Vacuum: None
Vibration Level (m/s2): 20.5
Vibration Uncertainy K* (m/s2): 1.6
Warranty: 1-year

IR 313-B-A591

ARBOR ASSEMBLY

IR 7756E-2C10-C6U

7756E-2C10-C6U Air Hoist, 1100 Lb Capacity, 10ft Lift, Pendant Control, Hook Mount, Fabric Chain Container

7700 Series chain hoists have been designed specifically for heavy-duty industrial applications. Simple, rugged and reliable, these hoists are constructed with few moving parts for easy repairs and less down time. These hoists come complete with 10 feet of standard lift and either 6 feet of pendant control or 6 feet of pull chain control.

Includes:

Fabric chain container

Product Application/Uses:

Ideal for high duty cycles and when operating loads are near maximum capacity. Designed specifically for heavy-duty industrial applications and for environments that require clean air. Exhaust can be piped away and a two-stage filtration system removes foreign matter from air supplies so motors can operate at peak performance with longer operating live.

Features and Benefits:

• Meets ASME B30.16 specifications.
• Exceptional slow-speed control provides superior spotting characteristics and ability to confidently "inch" loads into position.
• Ideal for high duty cycles and when operating loads are near maximum capacity.
• Powerful, self-cooling rotary motors keep hoists at peak performance at high temperatures.
• Brake control easily adjusts to meet specific load ranges.
• Motor and gearing provides faster lift speeds with low air consumption.
• Compared to roller chain, link chain lasts longer, handles heavier loads and is better for high duty cycles.
• Pendant or pull chain control responds immediately to operator's commands

Capacity (lb): 1100

Lift (ft): 10

IR 7770E-2C10-C6S

7770E-2C10-C6S Air Hoist, 275 Lb Capacity, 10ft Lift, Pendant Control, Hook Mount, Steel chain container

7700 Series chain hoists have been designed specifically for heavy-duty industrial applications. Simple, rugged and reliable, these hoists are constructed with few moving parts for easy repairs and less down time. These hoists come complete with 10 feet of standard lift and either 6 feet of pendant control or 6 feet of pull chain control.

Includes:

Steel chain container

Product Application/Uses:

Ideal for high duty cycles and when operating loads are near maximum capacity. Designed specifically for heavy-duty industrial applications and for environments that require clean air. Exhaust can be piped away and a two-stage filtration system removes foreign matter from air supplies so motors can operate at peak performance with longer operating live.

Features and Benefits:

• Meets ASME B30.16 specifications.
• Exceptional slow-speed control provides superior spotting characteristics and ability to confidently "inch" loads into position.
• Ideal for high duty cycles and when operating loads are near maximum capacity.
• Powerful, self-cooling rotary motors keep hoists at peak performance at high temperatures.
• Brake control easily adjusts to meet specific load ranges.
• Motor and gearing provides faster lift speeds with low air consumption.
• Compared to roller chain, link chain lasts longer, handles heavier loads and is better for high duty cycles.
• Pendant or pull chain control responds immediately to operator's commands

Capacity (lb): 275

Lift (ft): 10

IR 7770E-1C10-C6S

7770E-1C10-C6S Air Hoist, 275 Lb Capacity, 10ft Lift, Pull Chain Control, Hook Mount, Steel chain container

7700 Series chain hoists have been designed specifically for heavy-duty industrial applications. Simple, rugged and reliable, these hoists are constructed with few moving parts for easy repairs and less down time. These hoists come complete with 10 feet of standard lift and either 6 feet of pendant control or 6 feet of pull chain control.

Includes:

Steel chain container

Product Application/Uses:

Ideal for high duty cycles and when operating loads are near maximum capacity. Designed specifically for heavy-duty industrial applications and for environments that require clean air. Exhaust can be piped away and a two-stage filtration system removes foreign matter from air supplies so motors can operate at peak performance with longer operating live.

Features and Benefits:

• Meets ASME B30.16 specifications.
• Exceptional slow-speed control provides superior spotting characteristics and ability to confidently "inch" loads into position.
• Ideal for high duty cycles and when operating loads are near maximum capacity.
• Powerful, self-cooling rotary motors keep hoists at peak performance at high temperatures.
• Brake control easily adjusts to meet specific load ranges.
• Motor and gearing provides faster lift speeds with low air consumption.
• Compared to roller chain, link chain lasts longer, handles heavier loads and is better for high duty cycles.
• Pendant or pull chain control responds immediately to operator's commands

Capacity (lb): 275

Lift (ft): 10

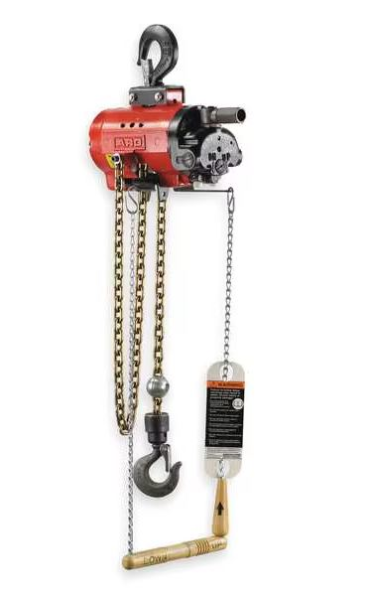

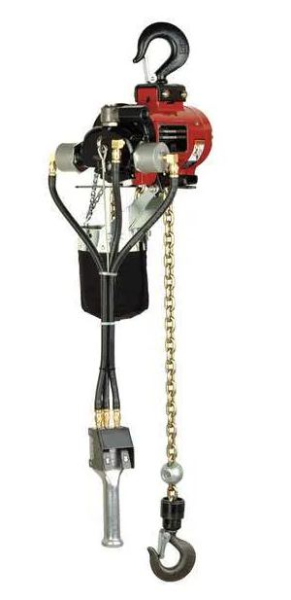

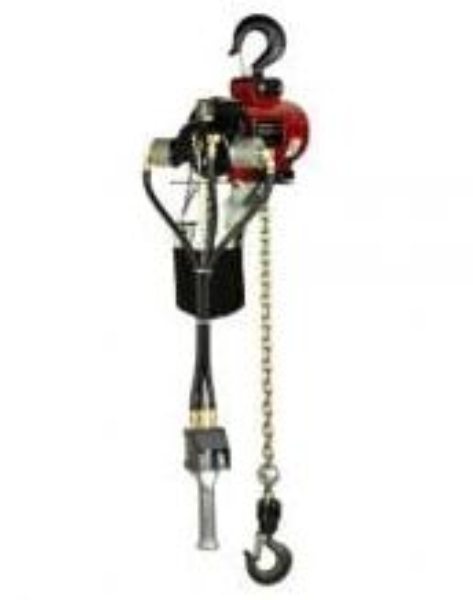

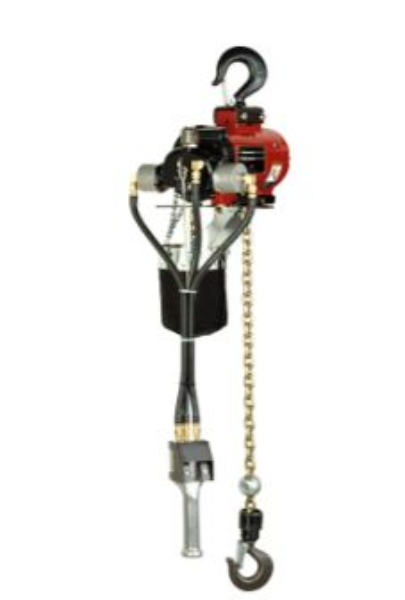

IR 7770E-2C10-C6U

HOIST, AIR, 1/8 TON, ARO SERIES, STEEL HOOKS, 10' LIFT, 6 DROP

IR 7776E-1C10-C6S

7776E-1C10-C6S Air Hoist, 2200 Lb Capacity, 10ft Lift, Pull Chain Control, Hook Mount, Steel chain container

7700 Series chain hoists have been designed specifically for heavy-duty industrial applications. Simple, rugged and reliable, these hoists are constructed with few moving parts for easy repairs and less down time. These hoists come complete with 10 feet of standard lift and either 6 feet of pendant control or 6 feet of pull chain control.

Includes:

Steel chain container

Product Application/Uses:

Ideal for high duty cycles and when operating loads are near maximum capacity. Designed specifically for heavy-duty industrial applications and for environments that require clean air. Exhaust can be piped away and a two-stage filtration system removes foreign matter from air supplies so motors can operate at peak performance with longer operating live.

Features and Benefits:

• Meets ASME B30.16 specifications.
• Exceptional slow-speed control provides superior spotting characteristics and ability to confidently "inch" loads into position.
• Ideal for high duty cycles and when operating loads are near maximum capacity.
• Powerful, self-cooling rotary motors keep hoists at peak performance at high temperatures.
• Brake control easily adjusts to meet specific load ranges.
• Motor and gearing provides faster lift speeds with low air consumption.
• Compared to roller chain, link chain lasts longer, handles heavier loads and is better for high duty cycles.
• Pendant or pull chain control responds immediately to operator's commands

Capacity (lb): 2200

Lift (ft): 10

IR 7776E-2C10-C6

7776E-2C10-C6 Air Hoist, 2200 Lb Capacity, 10ft Lift, Pendant Control, Hook Mount

7700 Series chain hoists have been designed specifically for heavy-duty industrial applications. Simple, rugged and reliable, these hoists are constructed with few moving parts for easy repairs and less down time. These hoists come complete with 10 feet of standard lift and either 6 feet of pendant control or 6 feet of pull chain control.

Product Application/Uses:

Ideal for high duty cycles and when operating loads are near maximum capacity. Designed specifically for heavy-duty industrial applications and for environments that require clean air. Exhaust can be piped away and a two-stage filtration system removes foreign matter from air supplies so motors can operate at peak performance with longer operating live.

Features and Benefits:

• Meets ASME B30.16 specifications.
• Exceptional slow-speed control provides superior spotting characteristics and ability to confidently "inch" loads into position.
• Ideal for high duty cycles and when operating loads are near maximum capacity.
• Powerful, self-cooling rotary motors keep hoists at peak performance at high temperatures.
• Brake control easily adjusts to meet specific load ranges.
• Motor and gearing provides faster lift speeds with low air consumption.
• Compared to roller chain, link chain lasts longer, handles heavier loads and is better for high duty cycles.
• Pendant or pull chain control responds immediately to operator's commands

Capacity (lb): 2200

Lift (ft): 10

IR 7776E-2C10-C6U

7776E-2C10-C6U Air Hoist, 2200 Lb Capacity, 10ft Lift, Pendant Control, Hook Mount, Fabric Chain Container

7700 Series chain hoists have been designed specifically for heavy-duty industrial applications. Simple, rugged and reliable, these hoists are constructed with few moving parts for easy repairs and less down time. These hoists come complete with 10 feet of standard lift and either 6 feet of pendant control or 6 feet of pull chain control.

Includes:

Fabric chain container

Product Application/Uses:

Ideal for high duty cycles and when operating loads are near maximum capacity. Designed specifically for heavy-duty industrial applications and for environments that require clean air. Exhaust can be piped away and a two-stage filtration system removes foreign matter from air supplies so motors can operate at peak performance with longer operating live.

Features and Benefits:

• Meets ASME B30.16 specifications.
• Exceptional slow-speed control provides superior spotting characteristics and ability to confidently "inch" loads into position.
• Ideal for high duty cycles and when operating loads are near maximum capacity.
• Powerful, self-cooling rotary motors keep hoists at peak performance at high temperatures.
• Brake control easily adjusts to meet specific load ranges.
• Motor and gearing provides faster lift speeds with low air consumption.
• Compared to roller chain, link chain lasts longer, handles heavier loads and is better for high duty cycles.
• Pendant or pull chain control responds immediately to operator's commands

Capacity (lb): 2200

Lift (ft): 10

IR 7776E-2C10-C6S

7776E-2C10-C6S Air Hoist, 2200 Lb Capacity, 10ft Lift, Pendant Control, Hook Mount, Steel chain container

7700 Series chain hoists have been designed specifically for heavy-duty industrial applications. Simple, rugged and reliable, these hoists are constructed with few moving parts for easy repairs and less down time. These hoists come complete with 10 feet of standard lift and either 6 feet of pendant control or 6 feet of pull chain control.

Includes:

Steel chain container

Product Application/Uses:

Ideal for high duty cycles and when operating loads are near maximum capacity. Designed specifically for heavy-duty industrial applications and for environments that require clean air. Exhaust can be piped away and a two-stage filtration system removes foreign matter from air supplies so motors can operate at peak performance with longer operating live.

Features and Benefits:

• Meets ASME B30.16 specifications.
• Exceptional slow-speed control provides superior spotting characteristics and ability to confidently "inch" loads into position.
• Ideal for high duty cycles and when operating loads are near maximum capacity.
• Powerful, self-cooling rotary motors keep hoists at peak performance at high temperatures.
• Brake control easily adjusts to meet specific load ranges.
• Motor and gearing provides faster lift speeds with low air consumption.
• Compared to roller chain, link chain lasts longer, handles heavier loads and is better for high duty cycles.
• Pendant or pull chain control responds immediately to operator's commands

Capacity (lb): 2200

Lift (ft): 10

IR 77A-35B

FELT WIPER CUP

IR 77A25F107

Extended Angle Air Sander, 7" Polishing Bonnet Pad, 2,500 RPM, 1.5 HP, 5/8"- 11 Thread

This Pro Series 77A extended angle sander is designed for large areas and heavy duty materials. Your tool works hard so you don’t have to.

Features And Benefits

• Increased Safety: With a unique spring-loaded latch that resets each time the lever is released, you’ll never have to worry about your safety while working with this sander.
• Durability: With double-row ball bearings, a solid steel motor, and arbor housing, this tool will last.
• Reach: Thanks to an ergonomic design, the 77A extended angle sander can reach tough and tight spaces.
• Automatic Lubrication: Built-in mist lubricator automatically oils motor when throttle is activated.

Product Application and Uses: These air sanders are designed for both light and heavy sanding jobs such as roughing body filler, removing rust and smoothing welds.
Actuation/Throttle Type/Switch Location: Handle
Actuation/Throttle Type/Switch Type: Safety Lever
Air Consumption @ Load (cfm): 19.8
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 5/8"-11 Thread
Bearing Type: Double Row Ball
Configuration/Handle Type: Right Angle
Configuration/Handle Type: Auxiliary Handle
Exhaust Location: Side
Max Free Speed (rpm): 2500
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Mounting Type: Arbor
Pad Diameter or Size (in): 7
Power Source: Air Powered
Product Length (in): 17.56
Product Weight (lb): 8.38
Rated Power (hp): 1.5
Rated Power (kW): 1.12
Sound Pressure/Power Db(A): 85.9 / 98.9
Standards/Certifications: CE
Vibration Level (m/s2): <2.5
Warranty: 1-year
Wheel Diameter (in): 7

IR 77A-4-B10

ARBOR

IR 77A-578

NUT

IR 77A60P109

Air Angle Grinder, 9" Type 27/28 Wheel, 6000 RPM, 1.5 HP, 5/8"- 11 Thread, Side Exhaust

Air Pressure (psi): 90
Configuration/Handle Type: Right Angle
Max Pressure (bar): 6.2
Power Source: Air Powered
Warranty: 1-year

IR 77A75P107

Air Angle Grinder, 7" Type 27/28 Wheel, 7500 RPM 1.5 HP, 5/8"-11 Thread, Side Exhaust

From shipbuilding to general construction, the 77 Pro Series Angle Grinders are equipped to handle even the toughest of jobs.

Features And Benefits

• Reliability: With a built-in mist lubricator and motor controller to extend tool life and regulate performance, you can count on these grinders to work the way you want them to any time you pull the trigger.
• Power: These grinders feature high-powered motors that allow you to remove material quickly and easily.
• Durability: Built to last, these metal housed grinders can withstand repeated drops and harsh environments.

Actuation/Throttle Type/Switch Type: Lever
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 5/8"-11 Thread
Configuration/Handle Type: Right Angle
Exhaust Location: Rear
Max Free Speed (rpm): 7500
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Rated Power (hp): 1.5
Sound Pressure/Power Db(A): 88.7
Vibration Level (m/s2): 2.6
Warranty: 1-year
Wheel Diameter (in): 7
Wheel Thickness (in): 1/4
Wheel Type: Type 27, 28
