Hydraullic Units

EP ZA4220MX

Two Speed, Air Hydraulic Pump, 3/2 Manual Valve, 5.0 gallon Usable Oil, For use with Single-Acting Cylinders

These 2 stage pumps are based on our Z-Class hydraulic pump platform - widely recognized as the market leader in industrial hydraulic pump technology. ZA Series air driven pumps are built to power medium to large-sized single-acting cylinders and other hydraulic tools.

Choose a ZA Series air over hydraulic pump for high power intermittent use at locations where electricity is not allowed or readily available.

A selection of valve and control options allow you to configure a pump for a wide range of demanding applications. Reservoir capacities of 1.2, 1.8, or 5.2 gallons are available, including a sight gauge for easy oil level monitoring.

• Type: Hydraulic Pump
• Max PSI: 10000

• Product Group: Pumps
• Product Line: Industrial Tools
• Series: ZA
• SubTypes: Air Pump - High Flow

• Features Z-Class high efficiency pump design, higher oil for high flow and bypass pressure.
• Two-speed operation and high by-pass pressure reduces cycle time for improved productivity.
• Intermittent duty power allows users to run the motor between 20-60 minutes at a time, depending on reservoir capacity and sound levels.
• Internal relief valves. One is factory set for overload protection while the second is user adjustable for pre-setting maximum system pressure.
• Sight gauge on 1.2 and 1.8-gallon and level gauge on 2.6, 5.2 and 10.3-gallon reservoirs allow quick and easy oil level monitoring.
• Optional heat exchanger warms exhaust air to prevent freezing and cools the oil.
• ATEX Certified

EP ZE3420SB

Electric Hydraulic Pump, 4/3 Solenoid Valve, Electric Box and LCD, 5.0 gallon Usable Oil, 40 in3/min Oil Flow at 10,000 psi, 115V

Enerpac ZE3 electric hydraulic pumps are based on our Z Pump platform - our most efficient and market proven design. Z-Class high-efficiency pumps offer higher oil flow and by-pass pressure, cooler running and 18% less current draw than comparable pumps.

The ZE3 pump utilizes the same robust valves, reservoir, and pump components as larger pumps in the ZE family. Combined with the efficient, easy to service pumping element, the ZE3 is suited to continuous use in manufacturing and workshop environments.

The 1.0 hp (0.75 kW) induction motor in the ZE3 enables productive flow rates, cooler running temperatures, quieter operation, and less power consumption than pumps with standard universal motors.

Multiple valve and control options allow you to match the pump to a wide range of pressing, punching, and many other operations.

• Type: Hydraulic Pump
• Max PSI: 10000

• Product Group: Pumps
• Product Line: Industrial Tools
• Series: ZE
• SubTypes: Electric Pump - High Flow

• 1.0 hp (0.75 kW) induction motor for long life and quiet operation.
• Features Z-Class high-efficiency pump design; higher oil flow and by-pass pressure, cooler running and requires up to 18% less current draw than comparable pumps.
• Totally enclosed, fan-cooled industrial electric motors for an extended life and to stand up to harsh industrial environments.
• 75 dBA sound level.
• Low-voltage pendant, on certain models, provides additional safety for the operator.
• Multiple valve and reservoir configurations provide application specific models to match the most demanding industrial applications.
• Models available to suit single-acting or double-acting cylinders.
• High-strength, molded electrical enclosure protects electronics, power supplies and LCD readout from harsh industrial environments.
• LCD readout on electric valve models provides diagnostic and readout capabilities.
• IP54 Rating for superior dust and water protection.
• Wide range of optional factory installed accessories; including return line filter, pressure gauge, heat exchanger, skid bar, roll cage, foot switch, and more.

• Accessories: ZPF, SBZ4, ZRC20, ZPTU4, ZLSU4, ZCF2, ZHEE10

EP ZE4340SG-FRT

PUMP ZE4 VE33 3LLCD230 40L FLTR RBAR P-TR

• Type: Hydraulic Pump

EP ZE4308SB

Electric Hydraulic Pump, 3/3 Solenoid Valve, Electric Box and LCD, 2.0 gallon Usable Oil, 60 in3/min Oil Flow at 10,000 psi, 115V

Enerpac ZE4 electric hydraulic pumps are based on our Z Pump platform - our most efficient and market proven design. Z-Class high-efficiency pumps offer higher oil flow and by-pass pressure, cooler running and 18% less current draw than comparable pumps.

The ZE4 pump utilizes many of the same robust valves, reservoir, and pump components as other pumps in the ZE family. Combined with the efficient, easy to service pumping element, the ZE4 is suited to continuous use in manufacturing and workshop environments.

The 1.5 hp (1.12 kW) induction motor in the ZE4 enables productive flow rates, cooler running temperatures, quieter operation, and less power consumption than pumps with standard universal motors.

Multiple valve and control options allow you to match the pump to a wide range of pressing, punching, and many other operations.

• Type: Hydraulic Pump
• Max PSI: 10000

• Product Group: Pumps
• Product Line: Industrial Tools
• Series: ZE
• SubTypes: Electric Pump - High Flow

• 1.5 hp (1.12 kW) induction motor for long life and quiet operation.
• Features Z-Class high-efficiency pump design; higher oil flow and by-pass pressure, cooler running and requires up to 18% less current draw than comparable pumps.
• Totally enclosed, fan-cooled industrial electric motors for an extended life and to stand up to harsh industrial environments.
• 75 dBA sound level.
• Low-voltage pendant, on certain models, provides additional safety for the operator.
• Multiple valve and reservoir configurations provide application specific models to match the most demanding industrial applications.
• Models available to suit single-acting or double-acting cylinders.
• High-strength, molded electrical enclosure protects electronics, power supplies and LCD readout from harsh industrial environments.
• LCD readout on electric valve models provides diagnostic and readout capabilities.
• IP54 Rating for superior dust and water protection.
• Wide range of optional factory installed accessories; including return line filter, pressure gauge, heat exchanger, skid bar, roll cage, foot switch, and more.

• Accessories: ZPF, SBZ4, ZRC04, ZPTU4, ZLSU4, ZCF2, ZHEE04

EP ZE4420SW

Electric Hydraulic Pump, 4/3 Solenoid Valve, Electric Box and LCD, 20,0 litres Usable Oil, 0,82 l/min Oil Flow at 700 bar, 380-415V

• Type: Hydraulic Pump
• Max Bar: 700

• Product Group: Pumps
• Product Line: Industrial Tools
• Series: ZE
• SubTypes: Electric Pump - High Flow

• High-efficiency pump design - higher oil flow and by-pass pressure
• High-strength, moulded electrical box protects electronics, power supplies and LCD readout and stands up to harsh industrial environments
• IP54 protection and isolation class
• Back-lit LCD provides self test, diagnostic and read-out capabilities never before offered on an industrial pump (included on pump with electric valves, optional on other models)
• Totally enclosed, fan-cooled industrial electric motors for extended life
• User adjustable relief valve built-in on manual and solenoid valves. Oil ports on valves are 3/8" NPTF
• Steel fan guard on all electric motors
• Full sight oil level glass
• 40 micron filter breather with splash guard
• Durable steel reservoirs

• Accessories: ZPF, ZHEE10, ZLSU4, ZPTU4, ZPSE3, ZRB20, ZCF2, ZCP3

EP ZU4420JB

Electric Hydraulic Pump, Standard, 4/3 Manual Valve with Pendant, 115V, 5.0 gallon Usable Oil

Enerpac ZU Series Electric Hydraulic Pumps provide a high power to weight ratio in a portable and durable format. They feature our Z-Class technology pump platform - widely recognized as the market leader in industrial hydraulic pump technology. The high-flow rates and valve and accessory options allow you to handle a huge number of projects, including long-stroke and multiple cylinder applications.

• Type: Hydraulic Pump
• Max PSI: 10000

• Product Group: Pumps
• Product Line: Industrial Tools
• Series: ZU
• SubTypes: Electric Pump - Portable

• Patented Z-Class pump technology provides high by-pass pressures for increased productivity - important in applications using long hose runs and high pressure-drop circuits, like heavy lifting or certain double-acting tools. Enerpac ZU4 Hydraulic Pumps are built to power small to large-sized cylinders or hydraulic tools, or wherever highspeed, intermittent duty, remote hydraulic power is needed.
• Features Z-Class high-efficiency pump design; higher oil flow and bypass pressure, cooler running and requires 18% less current draw than comparable pumps
• Powerful 1.7 hp universal electric motor provides high power-to-weight ratio and excellent low-voltage operating characteristics
• High-strength, molded composite shroud protects motor and electronics, while providing an ergonomic, non-conductive handle for easy transport
• Low-voltage pendant provides additional safety for the operator (remote control units)
• Standard Electrical:
  • For applications that do not require digital display

• Accessories: ZPF, ZHEU115, ZRB20, SBZ4, SBZ4L, SBZ4

EP ZU4420MB-R

PUMP ZU4 VM43 STD 115 20L RBAR
ZU4-Series

• Type: Hydraulic Pump

• Product Group: Pumps
• Series: ZU

EP ZU4420PB

Electric Hydraulic Pump, Classic, 4/3 Manual Valve with Pendant, 115V, 5.0 gallon Usable Oil

Enerpac ZU Series Electric Hydraulic Pumps provide a high power to weight ratio in a portable and durable format. They feature our Z-Class technology pump platform - widely recognized as the market leader in industrial hydraulic pump technology. The high-flow rates and valve and accessory options allow you to handle a huge number of projects, including long-stroke and multiple cylinder applications.

• Type: Hydraulic Pump
• Max PSI: 10000

• Product Group: Pumps
• Product Line: Industrial Tools
• Series: ZU
• SubTypes: Electric Pump - Portable

• Patented Z-Class pump technology provides high by-pass pressures for increased productivity - important in applications using long hose runs and high pressure-drop circuits, like heavy lifting or certain double-acting tools. Enerpac ZU4 Hydraulic Pumps are built to power small to large-sized cylinders or hydraulic tools, or wherever highspeed, intermittent duty, remote hydraulic power is needed.
• Features Z-Class high-efficiency pump design; higher oil flow and bypass pressure, cooler running and requires 18% less current draw than comparable pumps
• Powerful 1.7 hp universal electric motor provides high power-to-weight ratio and excellent low-voltage operating characteristics
• High-strength, molded composite shroud protects motor and electronics, while providing an ergonomic, non-conductive handle for easy transport
• Low-voltage pendant provides additional safety for the operator (remote control units)
• Classic Electric Pump:
  • The Classic has traditional electro-mechanical components (transformers, relays and switches) in place of solid-state electronics. The Classic delivers durable, safe and efficient hydraulic power.

• Accessories: ZPF, ZHEU115, ZRB20, SBZ4, SBZ4L, SBZ4

EP ZU4420SB

Electric Hydraulic Pump, Pro, 4/3 Solenoid Valve with Pendant, LCD Display, 115V, 5.0 gallon Usable Oil

Enerpac ZU Series Electric Hydraulic Pumps provide a high power to weight ratio in a portable and durable format. They feature our Z-Class technology pump platform - widely recognized as the market leader in industrial hydraulic pump technology. The high-flow rates and valve and accessory options allow you to handle a huge number of projects, including long-stroke and multiple cylinder applications.

• Type: Hydraulic Pump
• Max PSI: 10000

• Product Group: Pumps
• Product Line: Industrial Tools
• Series: ZU
• SubTypes: Electric Pump - Portable

• Patented Z-Class pump technology provides high by-pass pressures for increased productivity - important in applications using long hose runs and high pressure-drop circuits, like heavy lifting or certain double-acting tools. Enerpac ZU4 Hydraulic Pumps are built to power small to large-sized cylinders or hydraulic tools, or wherever highspeed, intermittent duty, remote hydraulic power is needed.
• Features Z-Class high-efficiency pump design; higher oil flow and bypass pressure, cooler running and requires 18% less current draw than comparable pumps
• Powerful 1.7 hp universal electric motor provides high power-to-weight ratio and excellent low-voltage operating characteristics
• High-strength, molded composite shroud protects motor and electronics, while providing an ergonomic, non-conductive handle for easy transport
• Low-voltage pendant provides additional safety for the operator (remote control units)
• Pro Electric:
  • LCD readout provides pressure and a number of diagnostic and readout capabilities never before offered on a portable electric pump
  • pump usuage information, hour and cycle counts
  • self-test, diagnostic and read-out capabilities
  • pressure readout and auto-mode pressure settings
  • Accessories: ZPF, ZHEU115, ZRB20, SBZ4, SBZ4L, SBZ4, ZPTU4, ZLSU4, ZCF2

EP ZW3010HB-FHT12

PUMP ZW3 VP MFOLD 1LCD115 10L FLTR HX P-TR
ZE/ZW-Series

• Type: Hydraulic Pump

• Product Group: Pumps
• Series: ZW

EP A1018037

GASKET
Low Pressure Hand Pumps

• Type: Service Kit

• SubTypes: Gasket

EP CATS200

Tilt Saddle for 150 Ton RAC Series Cylinders, and 200 Ton HCG and HCR Series Cylinders
The use of a tilt saddle can extend the life of an Enerpac cylinder. Hydraulic cylinders are built to ensure efficient and safe use time after time, but even the toughest cylinders can be damaged by an excessive side load. Side loading can occur even when the load is vertically placed on top of the cylinder, when cylinders are extended too far - (especially long stroke cylinders), or when the saddle on the end of the plunger fails to make sufficient contact with the load. Greater contact can be achieved using Enerpac Tilt Saddles.

• Type: Cylinder Accessories

• Product Group: Cylinders and Jacks
• Product Line: Industrial Tools
• Series: CATS
• SubTypes: Tilt Saddle

• With safety and convenience in mind the new tilt saddles are designed to allow bolting to the cylinder - which means they can be used safely in any orientation without the risk of the saddle dropping off.
• CATS-Tilt Saddles use a nitrocarburization surface treatment for improved corrosion protection, helping to maintain a professional look through their usage life.

EP CH-604

HOSE HALF (MALE) OF C-604

EP HC-9210

10' Hose, W/ CH-604, 3/8 NPTF .25 ID

EP C-604

3/8 HIGH FLOW COUPLER

EP P-80

Pump, Hand, 2-Speed

EP HC-9206

6 HOSE, W/ CH-604, 3/8 NP

EP PATG1102N

Turbo II Air Hydraulic Pump, Hand/Foot Operated 3/3 Treadle Valve, 127 in3 Usable Oil, For use with Single-Acting Cylinders

Enerpac Turbo II Air Over Hydraulic Pumps generate the hydraulic pressure you need using the air pressure you have available. The Air Saver Piston reduces air consumption, and the pump can start at low pressures from 50-125 psi.

Turbo II Air-Hydraulic Pumps suit medium or lower cycle applications. They provide all the power and speed needed for simple clamping circuits and single acting tools. At only 75 dBA, the Turbo II Series helps to keep the noise level to a minimum.

Choose from a range with maximum working pressure of either 5,000 or 10,000psi, and various reservoir capacities from 116 - 462 in3 (2100 - 7500 cm3).

Each PATG pump variant includes a 3-way, 3-position valve for Advance / Hold / Retract functions.

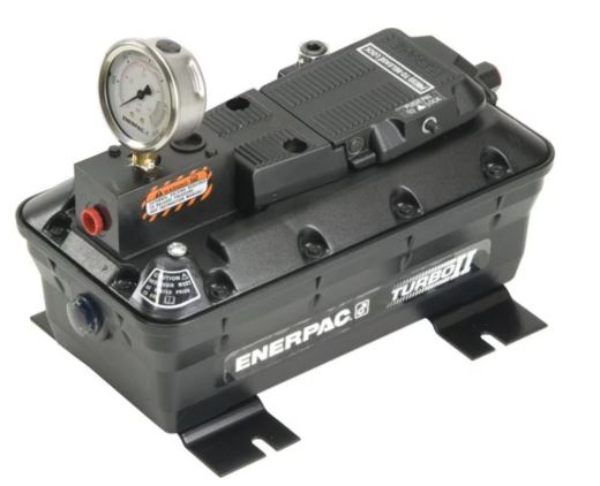

Turbo II Air Over Hydraulic Pump Series :

• PATG - Treadle for foot or hand operation
• PARG - Pendant Operation
• PAMG - Manual lever operated. For double-acting applications
• PACG - For remote valve mount. For work holding, 5000 psi (350 bar).
• PASG - Includes mount for a single DO3 Valve.

• Type: Hydraulic Pump
• Max Bar: 700
• Max PSI: 10000

• Product Group: Pumps
• Product Line: Industrial Tools
• Series: PATG
• SubTypes: Air Pump

• High efficiency cast aluminum air motor for increased life and reduced air consumption
• Reinforced heavy-duty reservoir for applications in tough environments
• New generation air saver piston with rugged one-piece design reduces air consumption and operating costs
• Return-to-tank port for use in remote valve applications
• Quiet - only 76dBA with low air consumption of 12 scfm
• Operating air pressure: 40-125 psi, enables pump to start at extremely low pressure
• Internal pressure relief valve provides overload protection

EP P-84

PUMP HAND TWO SPD 10000 PSI

EP RC-55

5 Ton Cylinder S/A

EP C604

High Flow Hydraulic Coupler, Complete Set

The C-Series High Flow Hydraulic Coupler is the standard used on most Enerpac pumps and cylinders up to 10,000 psi (700 bar). These 3/8" high flow couplers provide a quick and secure connections, allowing a flow up to 2100 in3/min (35 liters) per minute.

They can be purchased as a complete set or individually as male and female halves. Included is a " 2-in-1" dust cap for use with both on male and female components.

• Type: Coupler
• Max Bar: 700
• Max PSI: 10000

• Product Group: Couplers
• Product Line: Industrial Tools, Work Holding Tools
• Series: C
• SubTypes: High Flow Coupler

• 3/8" High Flow Couplers
• Standard equipment on most Enerpac cylinders
• Reccomended for use on all Enerpac pumps and cylinders where space and porting permits
• Include " 2-in-1" dust cap for use on male and female coupler halves
• Dimension A is total length when male and female halves are connected.

EP DA5999900SR

RELIEF VALVE ASM
PE 8000-9000 Series

• Type: Service Kit

• SubTypes: Valve Assembly

EP RCH-123

12 TON HOLL-O-CYLINDER, S/A

EP CH604

High Flow Hydraulic Coupler, Male Half

The C-Series High Flow Hydraulic Coupler is the standard used on most Enerpac pumps and cylinders up to 10,000 psi (700 bar). These 3/8" high flow couplers provide a quick and secure connections, allowing a flow up to 2100 in3/min (35 liters) per minute.

They can be purchased as a complete set or individually as male and female halves. Included is a "2-in-1" dust cap for use with both on male and female components.

• Type: Coupler
• Max Bar: 700
• Max PSI: 10000

• Product Group: Couplers
• Product Line: Industrial Tools, Work Holding Tools
• Series: C
• SubTypes: High Flow Coupler

• 3/8" High Flow Couplers
• Standard equipment on most Enerpac cylinders
• Recommended for use on all Enerpac pumps and cylinders where space and porting permits
• Include " 2-in-1" dust cap for use on male and female coupler halves
• Dimension A is total length when male and female halves are connected.

EP GA45GC

45 Degree Angled Gauge Adaptor Assembly

• Type: Gauge
• Max Bar: 700
• Max PSI: 10000

• Product Group: Gauges, Pumps
• Product Line: Industrial Tools
• Series: GA45GC
• SubTypes: Pressure Gauge

• 45° angled gauge improves visibility
• Slim and narrow design
• Easy to fit in a broad range of systems
• Maximize controlled load movement
• Glycerine dampened gauge with dual scale
• Enerpac High Flow female coupler
