Hose and Tubing

NY 61460

NY 63443

NY 73100

RR 9704-16

RR A11252-01

GG 246056

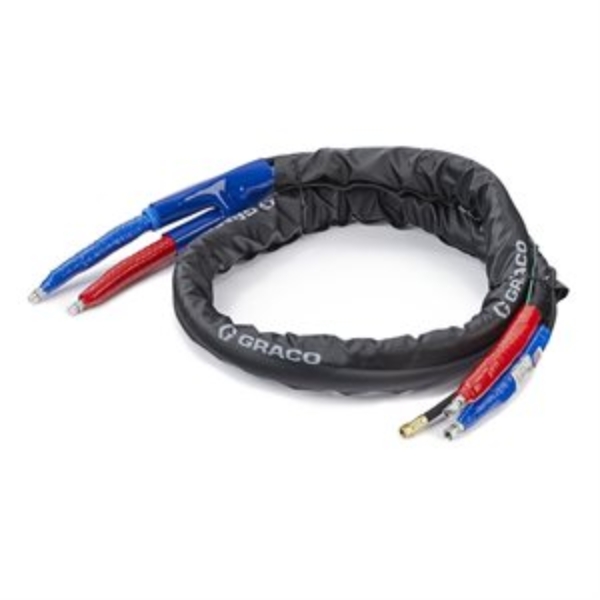

REACTOR HEATED HOSE, 10', 3/8, 3500 PSI

Graco 246056 10 ft x 3/8 in Whip Hose, 3500 psi, Without Cable, Mesh Scuff, Reactor 1 & 2

Graco’s heated hoses are designed specifically for use with Reactor Equipment. Hoses are a key component to the total system, making it important to achieve accurate and uniform heating for the best application possible.

• New multi-strand copper heating element has greatly increased hose quality:

  Provides 10-times* the flex life compared to previous flat copper heating element

  Long-term, even heating without hot spots

  Backwards compatible with existing Reactor heated hoses

  • Copper-heated hoses are designed specifically for use with Graco proportioners
  • Covered with proprietary butyl cover for protection against moisture sensitive isocyanate
  • Different fitting sizes on the isocyanate and resin hoses prevent accidentally connecting the wrong hoses together
  • Hoses use custom designed splice kit to electrically connect hoses without having to run copper under the fittings
  • Helix-design whip hose uses braided copper wires for added flexibility and longer life




  • Model: Reactor 1
  • Series: Mesh Scuff
  • Compatible Sprayer: Reactor 1 & 2
  • For Use With: Plural Component Proportioners
  • Hose Heating Type: External Heated
  • Hose Length (ft): 10
  • Hose Length (m): 3
  • Inside Diameter (in): 3/8
  • Maximum Working Pressure (bar): 241
  • Maximum Working Pressure (kPa): 24100
  • Maximum Working Pressure (MPa): 24.1
  • Maximum Working Pressure (psi): 3500
