Hose and Tubing

NY 60232

NY 60237

NY 61550

NY 62663

NY 63251

NY 63442

NY 63447

NY 63460

NY 63661

NY 64550-FT

NY 73061

NY 73081

NY 76061-FT

NY 76103

ATF TS304W-08035-20

CRP 1010AV50FXF

EP HC9210

H900-Series Hydraulic Hoses are designed to comply with the Material Handling Institute IJ100 hose specification. They provide the durability needed for repeated heavy-duty high-pressure applications and offer the optimum combination of flexibility and low ‘memory’ needed for long hose runs.

Each hose contains two layers of steel wire braids covered by a rubber sleeve to ensure a long life in tough working environments.

Internal diameters available are 0.25 and 0.38” (6.4 and 9.7mm).

A variety of lengths are available up to 50 ft (15 m), and the vinyl strain relief guard on both ends of hose helps improve durability and hose life.

• Type: Hose
• Max PSI: 10000

• Product Group: Hoses, Pumps
• Product Line: Industrial Tools
• Series: H900
• SubTypes: Heavy-duty Rubber Hose

• Crimped-on rubber strain relief for improved life and durability
• Maximum working pressure of 10,000 psi
• Rubber coated with two layers of steel wire braids
• Designed to comply with Material Handling Institute IJ-100 hose specification

GG 16C524

GG 223771

HOSE, CPLD, 1/4" X 100'

Graco 223771 BlueMax II Airless Hose, 1/4 in x 100 ft (30.5 m)

To maximize performance, choose BlueMax II high performance airless hose. With superior flexibility and durability, BlueMax II is designed to ensure you get the best results from your airless sprayer.

• Lighter Weight

  Over 10% lighter weight and increased hose flexibility improves under pressure

• Highest Safety Standards

  Conductive core meets the highest worldwide safety standards unlike competitive ground wire hose designs

• Minimal Hose Coil Memory

  BlueMax II Hose has superior flexibility and reduced coil memory providing ease of use during coiling and uncoiling

• Model: BlueMax II
• Series: Hose

• Connection Type: FBE

• Hose Diameter (in): 1/4
• Hose Length (cm): 3048
• Hose Length (ft): 100
• Hose Length (in): 1200
• Hose Length (m): 30.5
• Hose Length (mm): 30400

• Inside Diameter (cm): 0.635
• Inside Diameter (in): 1/4
• Inside Diameter (mm): 6.35

• Material: Nylon

• Maximum Working Pressure (bar): 231
• Maximum Working Pressure (kPa): 2310
• Maximum Working Pressure (psi): 3300

GG 236135

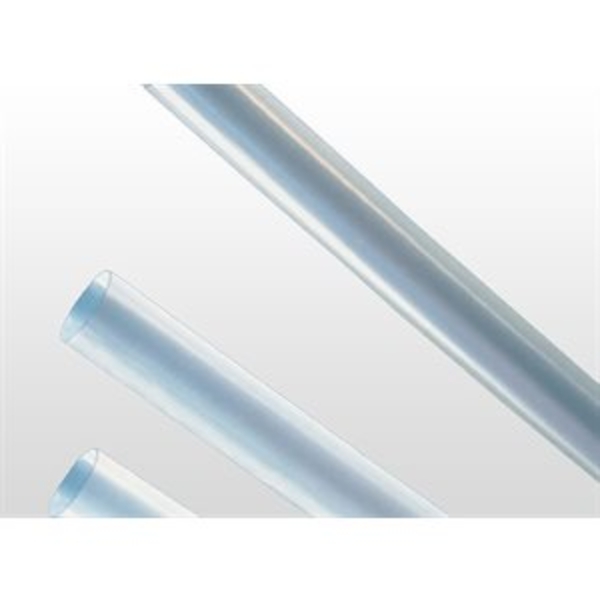

HO FEP-0504

HO NHA-532G

HO NHA-6X4

NY 61233

NY 61442
