Hose and Tubing

NY 76061

SPX RV21278

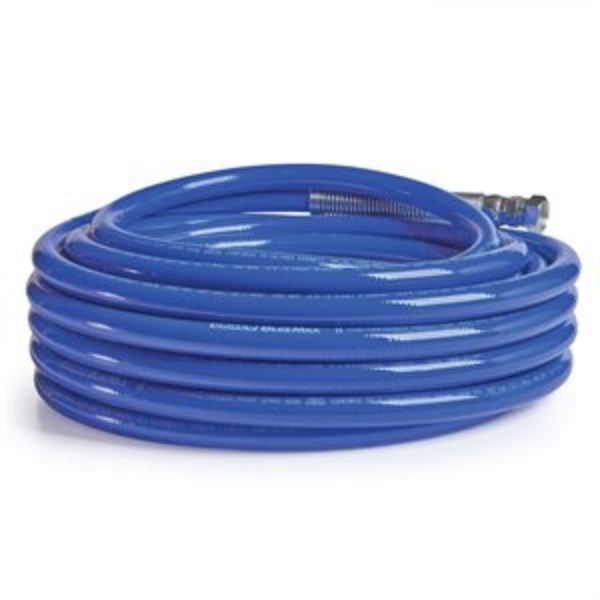

GG 240797

HOSE, COUPLED, 3/8 X 50'

Graco 240797 BlueMax II Airless Hose, 3/8 in x 50 ft

To maximize performance, choose BlueMax II high performance airless hose. With superior flexibility and durability, BlueMax II is designed to ensure you get the best results from your airless sprayer.

• Lighter Weight

  Over 10% lighter weight and increased hose flexibility improves under pressure

• Highest Safety Standards

  Conductive core meets the highest worldwide safety standards unlike competitive ground wire hose designs

• Minimal Hose Coil Memory

  BlueMax II Hose has superior flexibility and reduced coil memory providing ease of use during coiling and uncoiling

• Model: BlueMax II
• Series: Hose

• Hose Diameter (in): 3/8
• Hose Length (cm): 1524
• Hose Length (ft): 50
• Hose Length (in): 600
• Hose Length (m): 15
• Hose Length (mm): 15200

• Inside Diameter (cm): 0.9525
• Inside Diameter (in): 3/8
• Inside Diameter (mm): 9.525

• Maximum Working Pressure (bar): 227
• Maximum Working Pressure (kg/cm²): 232
• Maximum Working Pressure (kPa): 22700
• Maximum Working Pressure (MPa): 22.7
• Maximum Working Pressure (psi): 3300

NY 64551

BB 71-230

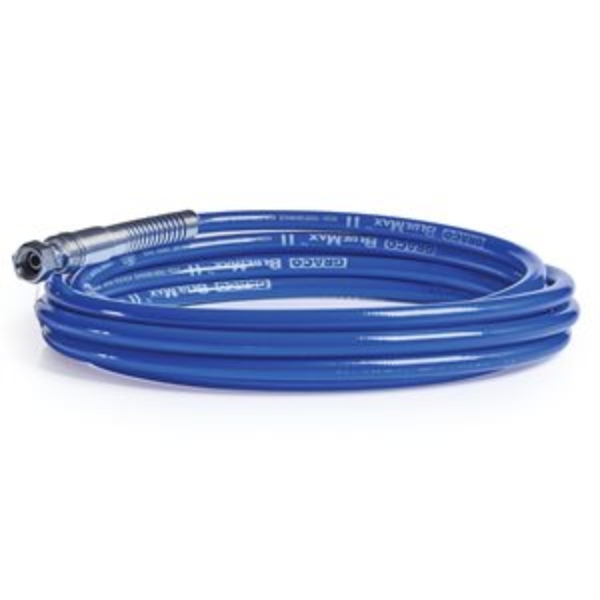

GG 214981

HOSE, COUPLED, 3/16" X 15'

Graco 214981 BlueMax II Airless Hose, 3/16 in x 15 ft

To maximize performance, choose BlueMax II high performance airless hose. With superior flexibility and durability, BlueMax II is designed to ensure you get the best results from your airless sprayer.

• Lighter Weight

  Over 10% lighter weight and increased hose flexibility improves usability while spraying under pressure

• Highest Safety Standards

  Conductive core meets the highest worldwide safety standards unlike competitive ground wire hose designs

• Minimal Hose Coil Memory

  BlueMax II Hose has superior flexibility and reduced coil memory providing ease of use during coiling and uncoiling

• Model: BlueMax II
• Series: Hose

• Hose Diameter (in): 3/16
• Hose Length (cm): 457
• Hose Length (ft): 15
• Hose Length (in): 180
• Hose Length (m): 4.6
• Hose Length (mm): 4560

• Inside Diameter (cm): 0.4763
• Inside Diameter (in): 3/16
• Inside Diameter (mm): 4.7625

• Material: Nylon

• Maximum Working Pressure (bar): 207
• Maximum Working Pressure (kPa): 20700
• Maximum Working Pressure (MPa): 20.7
• Maximum Working Pressure (psi): 3300

HO FEP-0403

NY 61234

NY 64550

NY 65221

NY 71040

NY 71121

NY 73030

NY 73130

NY 76083

EF TC14-16FFSS

GG 19M422

THERM-O-FLOW HOSE, HEATED, 15-FT, #20, 3000 PSI

Graco 19M422 15 ft. (4.6 M) Insulated Stainless Steel Braided PTFE Hot Melt Heated Hose, No. 20 (1.13 in. / 28.6 mm ID)

Graco heated hoses are designed to give accurate and uniform temperature conditioning for your Sealant and Adhesive applications. Use these hoses to keep your material at the ideal temperature for the best possible dispense quality.

• For use with Graco temperature control systems for warm melt and hot melt sealants and adhesives.

• Hose Heating Type: Heated
• Hose Length (ft): 15
• Hose Length (m): 4.6

• Inside Diameter (in): 1.13
• Inside Diameter (mm): 28.6

• Material: PTFE Lined Stainless Steel Braid

• Maximum Temperature (°C): 204
• Maximum Temperature (°F): 400

• Maximum Working Pressure (bar): 207
• Maximum Working Pressure (MPa): 20.7
• Maximum Working Pressure (psi): 3000

GG 244964

HOSE, CPLD, COND, AIR, 15 FT

Graco 244964 AirFlex Flexible Grounded Air Hose (Grey)- 0.315 in. (8 mm) ID, 1/4 npsm(f) x 1/4 npsm(f) left-hand thread, 15 ft (4.6 m) length

• Color: Grey

NY 63662

NY 71063

BB 71-229

EP H-9308

GG 244432

HOSE, COUPLED, SUCTION

• Compatible Material: Solventborne

GG 246056

REACTOR HEATED HOSE, 10', 3/8, 3500 PSI

Graco 246056 10 ft x 3/8 in Whip Hose, 3500 psi, Without Cable, Mesh Scuff, Reactor 1 & 2

Graco's heated hoses are designed specifically for use with Reactor Equipment. Hoses are a key component to the total system, making it important to achieve accurate and uniform heating for the best application possible.

• New multi-strand copper heating element has greatly increased hose quality:

  Provides 10-times* the flex life compared to previous flat copper heating element

  Long-term, even heating without hot spots

  Backwards compatible with existing Reactor heated hoses

  • Copper-heated hoses are designed specifically for use with Graco proportioners
  • Covered with proprietary butyl cover for protection against moisture sensitive isocyanate
  • Different fitting sizes on the isocyanate and resin hoses prevent accidentally connecting the wrong hoses together
  • Hoses use custom designed splice kit to electrically connect hoses without having to run copper under the fittings
  • Helix-design whip hose uses braided copper wires for added flexibility and longer life




  • Model: Reactor 1
  • Series: Mesh Scuff
  • Compatible Sprayer: Reactor 1 & 2
  • For Use With: Plural Component Proportioners
  • Hose Heating Type: External Heated
  • Hose Length (ft): 10
  • Hose Length (m): 3
  • Inside Diameter (in): 3/8
  • Maximum Working Pressure (bar): 241
  • Maximum Working Pressure (kPa): 24100
  • Maximum Working Pressure (MPa): 24.1
  • Maximum Working Pressure (psi): 3500

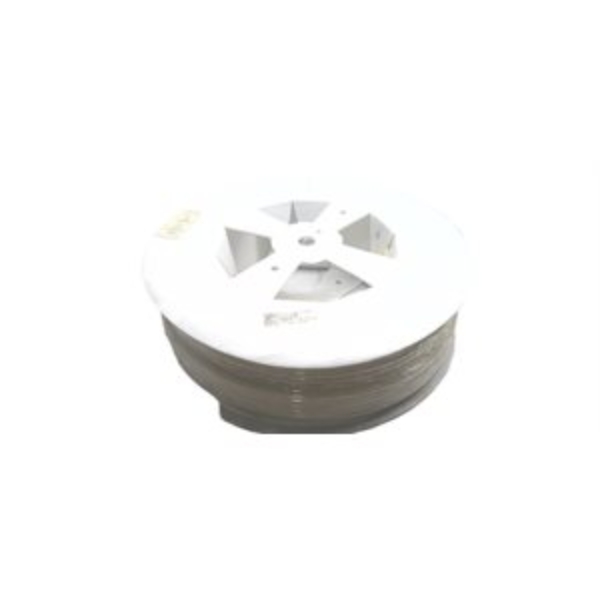

HO NHA-10X7
