GRACO INC. S10595
GRACO INC. S10595 branded products
Fusion AP Gun, Ar2232
GG 253888
GG 253888
FUSION AP GUN, AR2232
Graco 253888 Round Fusion Air-Purge Gun with 01 Mix Chamber and 0.042 in (1.6 mm) Orifice Size
With long-life mix chamber and durable side seals, Fusion guns are designed to reduce maintenance and downtime, and provide a better mix.
Application: For high output spray polyurethane foam and polyurea applications.- Easy air-blast tip cleaning reduces build-up and tip clogging.
- Long-lasting side seals means less downtime for maintenance
- Quick-release fluid housing - lets you easily change the mix chambers without tools
- Ergonomic handle
- Model: Fusion AP
- Series: Specialty
- Air Inlet Size (cm): 0.635
- Air Inlet Size (in): 1/4
- Air Inlet Size (mm): 6.35
- Compatible Material: Adhesives, Polyurethane, Polyurea, Polyurethane Coating, Spray Polyurethane Foam
- Fluid Orifice Size (cm): 0.081
- Fluid Orifice Size (in): 0.032
- Fluid Orifice Size (mm): 0.81
- Gun Type: Air Purge Gun
- Gun Weight (g): 1130
- Gun Weight (kg): 1.1
- Gun Weight (lb): 2.5
- Gun Weight (oz): 40
- Maximum Air Inlet Pressure (bar): 9
- Maximum Air Inlet Pressure (kPa): 900
- Maximum Air Inlet Pressure (MPa): 0.9
- Maximum Air Inlet Pressure (psi): 130
- Maximum Air Pressure (bar): 9
- Maximum Air Pressure (kPa): 900
- Maximum Air Pressure (MPa): 0.9
- Maximum Air Pressure (psi): 130
- Maximum Flow Rate @ PSI (lb/min): 50
- Maximum Fluid Pressure (bar): 241
- Maximum Fluid Pressure (kPa): 24100
- Maximum Fluid Pressure (MPa): 24.1
- Maximum Fluid Pressure (psi): 3500
- Maximum Fluid Temperature (°C): 93
- Maximum Fluid Temperature (°F): 200
- Maximum Fluid Pressure (bar): 241
- Maximum Fluid Pressure (kPa): 24100
- Maximum Fluid Pressure (MPa): 24.1
- Maximum Fluid Pressure (psi): 3500
- Maximum Fluid Temperature (°C): 93
- Maximum Fluid Temperature (°F): 200
- Minimum Air Inlet Pressure (bar): 5.5
- Minimum Air Inlet Pressure (kPa): 550
- Minimum Air Inlet Pressure (MPa): 0.55
- Minimum Air Inlet Pressure (psi): 80
- Mix Chamber: 01 (.042)
- Overall Height (cm): 20.6
- Overall Height (in): 8.1
- Overall Height (mm): 206
- Overall Length (cm): 19.1
- Overall Length (in): 7.5
- Overall Length (mm): 191
- Overall Width (cm): 8.4
- Overall Width (in): 3.3
- Overall Width (mm): 84
$3,680.00
2 Ball Transfer Pump, Displacement, Recip, Sst
GG 254999
GG 254999
2 Ball Transfer Pump, Displacement, Recip, Sst $4,940.00
REACTOR HEATED HOSE, 2000, W/SCUFF, 1/4X3/8
GG 255089
GG 255089
REACTOR HEATED HOSE, 2000, W/SCUFF, 1/4X3/8
50 ft x 1/4 and 3/8 in Heated Hose, 2000 psi, Thermocouple, Mesh Scuff, Reactor 1Graco’s heated hoses are designed specifically for use with Reactor Equipment. Hoses are a key component to the total system, making it important to achieve accurate and uniform heating for the best application possible.
For Reactor proportioners.New multi-strand copper heating element has greatly increased hose quality:
- Provides 10-times* the flex life compared to previous flat copper heating element
- Long-term, even heating without hot spots
- Backwards compatible with existing Reactor heated hoses
$3,320.00
Md2 Valve, Disp., Hard Seats Jnt/Cold
GG 255183
GG 255183
Md2 Valve, Disp., Hard Seats Jnt/Cold $7,650.00
Fusion AP Gun, Rnd 01, Polycarb
GG 255201
GG 255201
FUSION AP GUN, RND 01, POLYCARB
Graco 255201 Fusion Air-Purge Gun with Polycarballoy Side Seal and 01 Mix Chamber
With long-life mix chamber and durable side seals, Fusion guns are designed to reduce maintenance and downtime, and provide a better mix.
Application: For high output spray polyurethane foam and polyurea applications.- Easy air-blast tip cleaning reduces build-up and tip clogging.
- Long-lasting side seals means less downtime for maintenance
- Quick-release fluid housing - lets you easily change the mix chambers without tools
- Ergonomic handle
- Model: Fusion AP
- Series: Round
- Air Inlet Size (cm): 0.635
- Air Inlet Size (in): 1/4
- Air Inlet Size (mm): 6.35
- Compatible Material: Adhesives, Polyurethane, Polyurea, Polyurethane Coating, Spray Polyurethane Foam
- Fluid Orifice Size (cm): 0.107
- Fluid Orifice Size (in): 0.042
- Fluid Orifice Size (mm): 1.07
- Gun Type: Air Purge Gun
- Gun Weight (g): 1130
- Gun Weight (kg): 1.1
- Gun Weight (lb): 2.5
- Gun Weight (oz): 40
- Impingement Port Size (in): 0.042
- Impingement Port Size (mm): 1.00
- Maximum Air Inlet Pressure (bar): 9
- Maximum Air Inlet Pressure (kPa): 900
- Maximum Air Inlet Pressure (MPa): 0.9
- Maximum Air Inlet Pressure (psi): 130
- Maximum Air Pressure (bar): 9
- Maximum Air Pressure (kPa): 900
- Maximum Air Pressure (MPa): 0.9
- Maximum Air Pressure (psi): 130
- Maximum Flow Rate @ PSI (lb/min): 50
- Maximum Fluid Pressure (bar): 241
- Maximum Fluid Pressure (kPa): 24100
- Maximum Fluid Pressure (MPa): 24.1
- Maximum Fluid Pressure (psi): 3500
- Maximum Fluid Temperature (°C): 93
- Maximum Fluid Temperature (°F): 200
- Maximum Fluid Pressure (bar): 241
- Maximum Fluid Pressure (kPa): 24100
- Maximum Fluid Pressure (MPa): 24.1
- Maximum Fluid Pressure (psi): 3500
- Maximum Fluid Temperature (°C): 93
- Maximum Fluid Temperature (°F): 200
- Minimum Air Inlet Pressure (bar): 5.5
- Minimum Air Inlet Pressure (kPa): 550
- Minimum Air Inlet Pressure (MPa): 0.55
- Minimum Air Inlet Pressure (psi): 80
- Mix Chamber: 01 (.042)
- Overall Height (cm): 20.6
- Overall Height (in): 8.1
- Overall Height (mm): 206
- Overall Length (cm): 19.1
- Overall Length (in): 7.5
- Overall Length (mm): 191
- Overall Width (cm): 8.4
- Overall Width (in): 3.3
- Overall Width (mm): 84
- Pattern Size (in): 11 in @ 24 in from target
$3,680.00
Fusion AP Gun, Rnd 02, Polycarb
GG 255202
GG 255202
FUSION AP GUN, RND 02, POLYCARB
Graco 255202 Fusion Air-Purge Gun with Polycarballoy Side Seal and 02 Mix Chamber
With long-life mix chamber and durable side seals, Fusion guns are designed to reduce maintenance and downtime, and provide a better mix.
Application: For high output spray polyurethane foam and polyurea applications.- Easy air-blast tip cleaning reduces build-up and tip clogging.
- Long-lasting side seals means less downtime for maintenance
- Quick-release fluid housing - lets you easily change the mix chambers without tools
- Ergonomic handle
- Model: Fusion AP
- Series: Round
- Air Inlet Size (cm): 0.635
- Air Inlet Size (in): 1/4
- Air Inlet Size (mm): 6.35
- Compatible Material: Adhesives, Polyurethane, Polyurea, Polyurethane Coating, Spray Polyurethane Foam
- Fluid Orifice Size (cm): 0.132
- Fluid Orifice Size (in): 0.052
- Fluid Orifice Size (mm): 1.32
- Gun Type: Air Purge Gun
- Gun Weight (g): 1130
- Gun Weight (kg): 1.1
- Gun Weight (lb): 2.5
- Gun Weight (oz): 40
- Impingement Port Size (in): 0.052
- Impingement Port Size (mm): 1.30
- Maximum Air Inlet Pressure (bar): 9
- Maximum Air Inlet Pressure (kPa): 900
- Maximum Air Inlet Pressure (MPa): 0.9
- Maximum Air Inlet Pressure (psi): 130
- Maximum Air Pressure (bar): 9
- Maximum Air Pressure (kPa): 900
- Maximum Air Pressure (MPa): 0.9
- Maximum Air Pressure (psi): 130
- Maximum Flow Rate @ PSI (lb/min): 50
- Maximum Fluid Pressure (bar): 241
- Maximum Fluid Pressure (kPa): 24100
- Maximum Fluid Pressure (MPa): 24.1
- Maximum Fluid Pressure (psi): 3500
- Maximum Fluid Temperature (°C): 93
- Maximum Fluid Temperature (°F): 200
- Maximum Fluid Pressure (bar): 241
- Maximum Fluid Pressure (kPa): 24100
- Maximum Fluid Pressure (MPa): 24.1
- Maximum Fluid Pressure (psi): 3500
- Maximum Fluid Temperature (°C): 93
- Maximum Fluid Temperature (°F): 200
- Minimum Air Inlet Pressure (bar): 5.5
- Minimum Air Inlet Pressure (kPa): 550
- Minimum Air Inlet Pressure (MPa): 0.55
- Minimum Air Inlet Pressure (psi): 80
- Mix Chamber: 02 (.052)
- Overall Height (cm): 20.6
- Overall Height (in): 8.1
- Overall Height (mm): 206
- Overall Length (cm): 19.1
- Overall Length (in): 7.5
- Overall Length (mm): 191
- Overall Width (cm): 8.4
- Overall Width (in): 3.3
- Overall Width (mm): 84
- Pattern Size (in): 12 in @ 24 in from target
$3,680.00
Extension, Mini, 6in, Uni, Asm, Anglehead
GG 255258
GG 255258
Extension, Mini, 6In, Uni, Asm, Anglehead $93.50
Extension, Mini, 12in, Uni, Asm, Anglehead
GG 255259
GG 255259
Extension, Mini, 12In, Uni, Asm, Anglehead $91.50
Extension, Mini, 24in, Uni, Asm, Anglehead
GG 255261
GG 255261
Extension, Mini, 24In, Uni, Asm, Anglehead $94.50
Extension, Mini, 18in, Uni, Asm, Anglehead
GG 255260
GG 255260
Extension, Mini, 18In, Uni, Asm, Anglehead $93.25

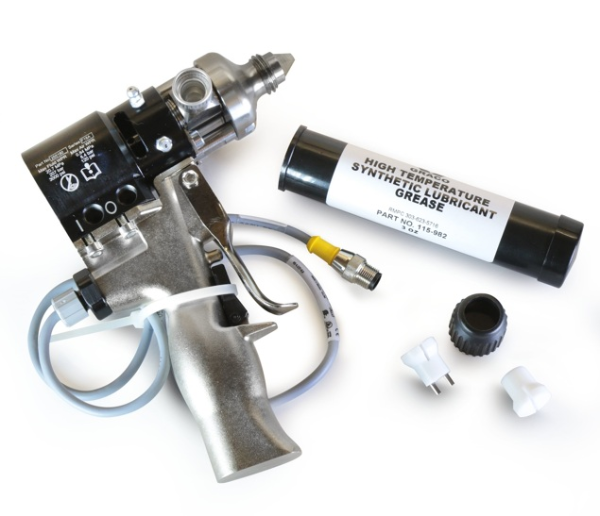

MD2 VALVE, ASSY, 1:1, HS, GUN, ELEC
GG 255443
GG 255443
MD2 VALVE, ASSY, 1:1, HS, GUN, ELEC
1:1 Ratio, Hard Seat, Electric Actuated, Non-adjustable Snuff-back, Manual Handle Manual gun option for mixing dispense (MD) valve for 2 component materials supports minimizing maintenance while maximizing production. Static valve reliably dispenses and mixes a wide range of 2 component sealants and adhesives. 1:1 ratio nose handles a wide range of material. Carbide hard seats and hardened needles are good for abrasive material and stall against pressure applications. Hand held valve with electric switch signals the controller to open and close the ports on the MD2 valve. The process uses a remote four-way air control (not included; must be ordered separately). Non-adjustable snuff-back control keeps shut-off performance consistent for a clean bead dispense. Maximum flow rate is 25 to 30 cc/s, depending on material viscosity. Snuff-back control prevents dripping as it brings material back into the valve until next dispense. Hand held electric handle eases manual dispense. $7,220.00
