MD2 VALVE, ASSY, 1:1, HS, GUN, ELEC

GG 255443

MD2 VALVE, ASSY, 1:1, HS, GUN, ELEC

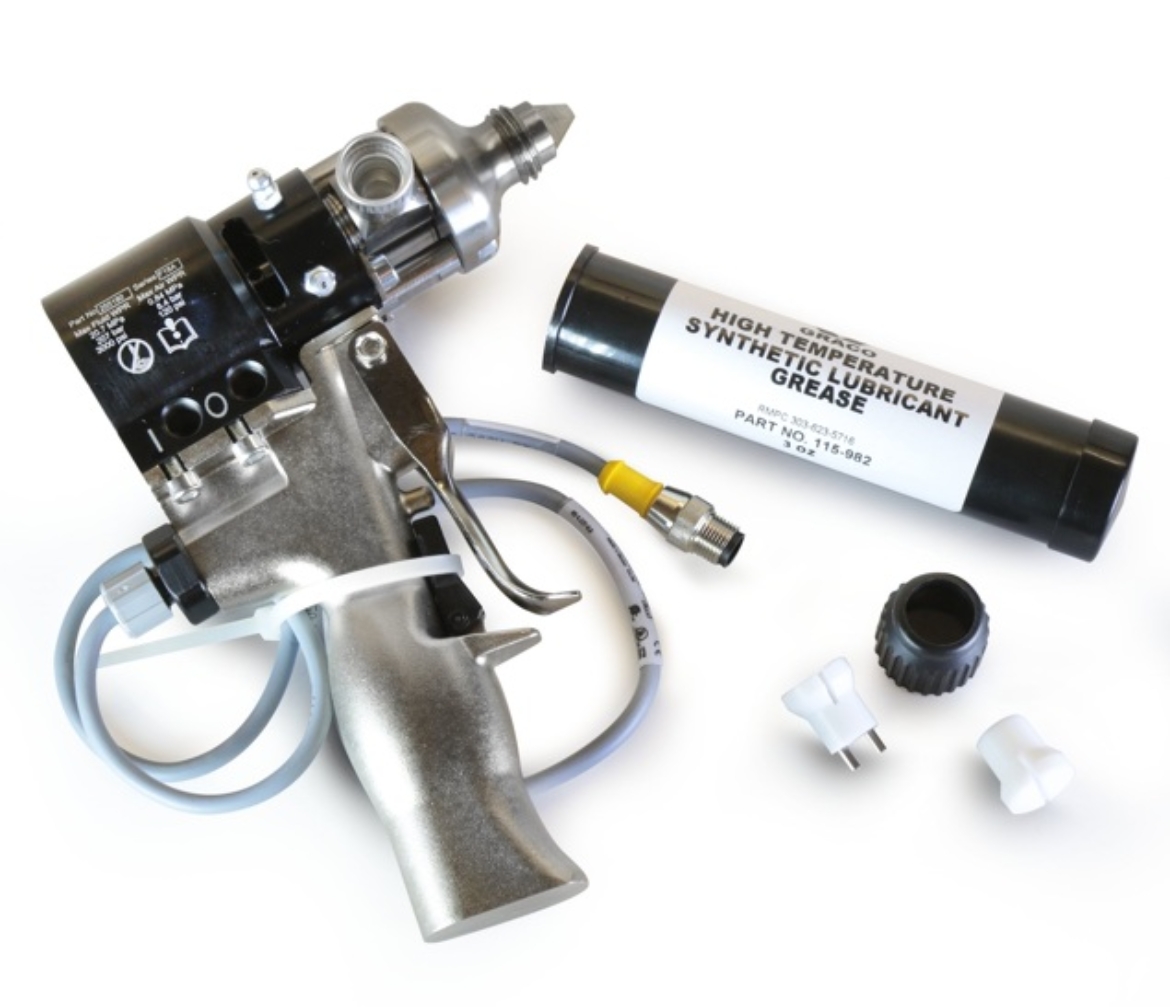

1:1 Ratio, Hard Seat, Electric Actuated, Non-adjustable Snuff-back, Manual Handle Manual gun option for mixing dispense (MD) valve for 2 component materials supports minimizing maintenance while maximizing production. Static valve reliably dispenses and mixes a wide range of 2 component sealants and adhesives. 1:1 ratio nose handles a wide range of material. Carbide hard seats and hardened needles are good for abrasive material and stall against pressure applications. Hand held valve with electric switch signals the controller to open and close the ports on the MD2 valve. The process uses a remote four-way air control (not included; must be ordered separately). Non-adjustable snuff-back control keeps shut-off performance consistent for a clean bead dispense. Maximum flow rate is 25 to 30 cc/s, depending on material viscosity. Snuff-back control prevents dripping as it brings material back into the valve until next dispense. Hand held electric handle eases manual dispense.
