GRACO INC. S10595
Cart, Drain, Rolling
GG 235346
CART, DRAIN, ROLLING
Graco 235346 Narrow Rolling Used-Oil Receiver for Car and Truck Fast Lube Facilities
Specially designed for car and truck fast-lube facilities where speed and mobility are important.
- Color: Black
- Compatible Fluid: Oil
- Fluid Outlet Size (cm): 3.8100
- Fluid Outlet Size (in): 1.5
- Fluid Outlet Size (mm): 38.1000
- Fluid Outlet Thread Type: Camlock
- Includes: Steel Tank, Fittings
- Overall Height (cm): 27.9400
- Overall Height (in): 11
- Overall Height (mm): 279.4000
- Overall Length (cm): 75
- Overall Length (in): 29.6
- Overall Length (mm): 751.84
- Overall Width (cm): 60.9600
- Overall Width (in): 24
- Overall Width (mm): 609.6000

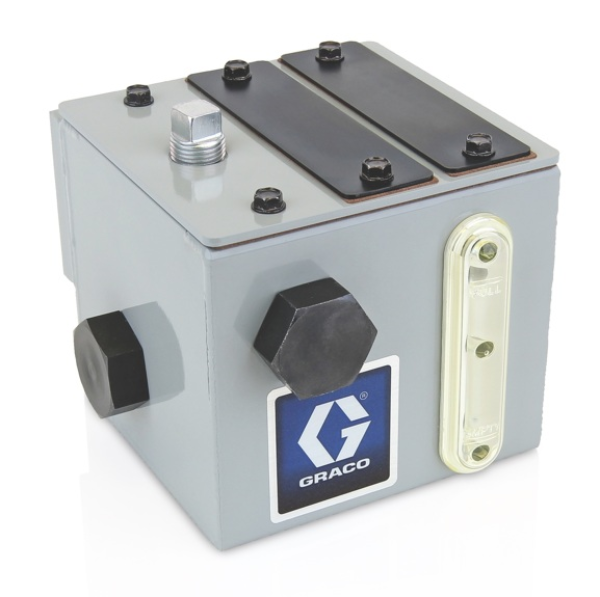

MBL LUBRICATOR, 2PT, 60:1
GG 24V068
MBL LUBRICATOR, 2PT, 60:1
Manzel® MB Series Lubricator - 2 Pint (0.95 Liter) Reservoir (2 Pump Stations Max), No Pumps Installed, 60:1Graco Manzel box lubricators – when quality and delivery matter! Made with Graco quality for long life and durability, the Manzel MB60 is perfect for bolt-on gas compressor box lubrication solutions.
Provide a proven, cost-effective way to assemble customized oil systems that meet specific requirements by using standard modular components Increase opportunities to standardize lube system components and reduce lube maintenance and service costs

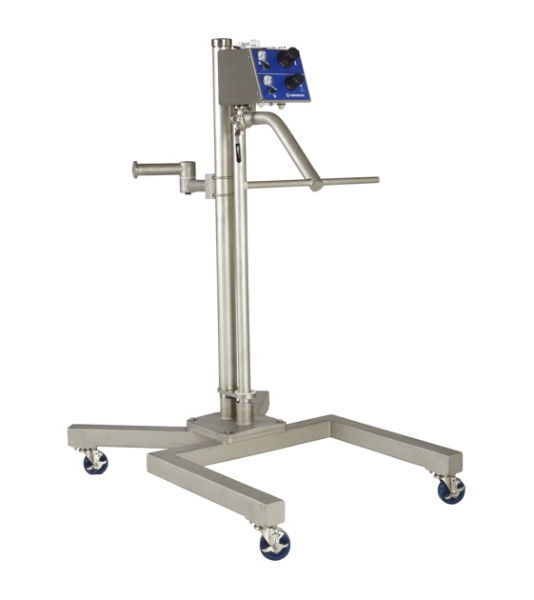

Elevator, Sanitary, Mobile, 2:1
GG 24V310
ELEVATOR, SANITARY, MOBILE, 2:1
Graco 24V310 2:1 Ratio SaniForce Elevator with Cart & Handle
Still using hoists and chains to unload your drums or bins? Graco's SaniForce Elevator is ideal for small to medium size food and personal care companies who currently unload less than 2 containers per hour. Use with Graco's SaniForce 2:1, 5:1 or 6:1 Piston Pumps to transfer small batches of low to medium viscosity fluids.
Application: Ideal for small to medium size companies who currently unload containers by scooping or using chains/hoists- FDA-compliant
- Use in sanitary applications to transfer low to medium viscosity fluids
- Designed to lower pumps into and lift pumps out of drums, bins and totes
- Mobile and stationary options available
- Model: SaniForce
- Air Inlet Size (in): 3/8
- Air Inlet Size (mm): 9.525
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPT
- Application: Sanitary
- Compatible Material: Food, Personal Care
- Includes: Cart and Handle
- Material: Stainless Steel
- Maximum Air Inlet Pressure (bar): 6.9
- Maximum Air Inlet Pressure (kPa): 690
- Maximum Air Inlet Pressure (psi): 100
- Maximum Intermittent Cycle Rate (CPM): 60
- Maximum Working Pressure (bar): 17
- Maximum Working Pressure (kPa): 1700
- Maximum Working Pressure (MPa): 1.7
- Maximum Working Pressure (psi): 250
- Portable: Portable
- Pump Ratio: 2.5:1

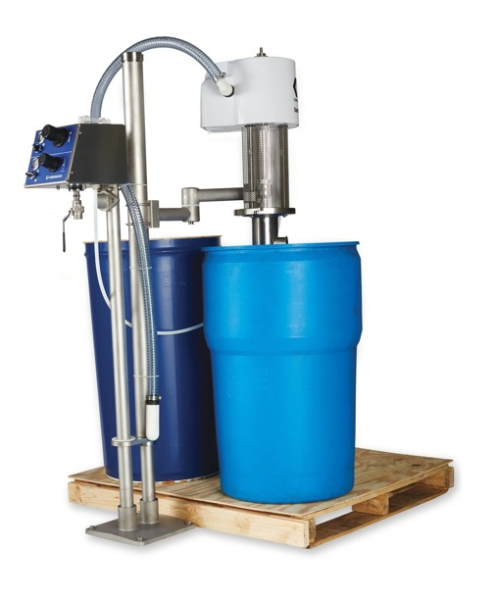

Elevator, Sanitary, Static, 5:1
GG 24V315
ELEVATOR, SANITARY, STATIC, 5:1
Graco 24V315 5:1 Ratio SaniForce Elevator with Stationary Base
Still using hoists and chains to unload your drums or bins? Graco's SaniForce Elevator is ideal for small to medium size food and personal care companies who currently unload less than 2 containers per hour. Use with Graco's SaniForce 2:1, 5:1 or 6:1 Piston Pumps to transfer small batches of low to medium viscosity fluids.
Application: Ideal for small to medium size companies who currently unload containers by scooping or using chains/hoists- FDA-compliant
- Use in sanitary applications to transfer low to medium viscosity fluids
- Designed to lower pumps into and lift pumps out of drums, bins and totes
- Mobile and stationary options available
- Model: SaniForce
- Air Inlet Size (in): 0.5
- Air Inlet Size (mm): 12.7
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPT
- Application: Sanitary
- Compatible Material: Food, Personal Care
- For Use With: Food, Personal Care, Pharmaceutical
- Includes: Stationary Base
- Material: Stainless Steel
- Maximum Air Inlet Pressure (bar): 6.9
- Maximum Air Inlet Pressure (kPa): 690
- Maximum Air Inlet Pressure (psi): 100
- Maximum Continuous Cycle Rate (CPM): 60
- Maximum Intermittent Cycle Rate (CPM): 60
- Maximum Working Pressure (bar): 28
- Maximum Working Pressure (kPa): 2800
- Maximum Working Pressure (MPa): 2.8
- Maximum Working Pressure (psi): 400
- Portable: Non-Portable
- Pump Ratio: 5:1

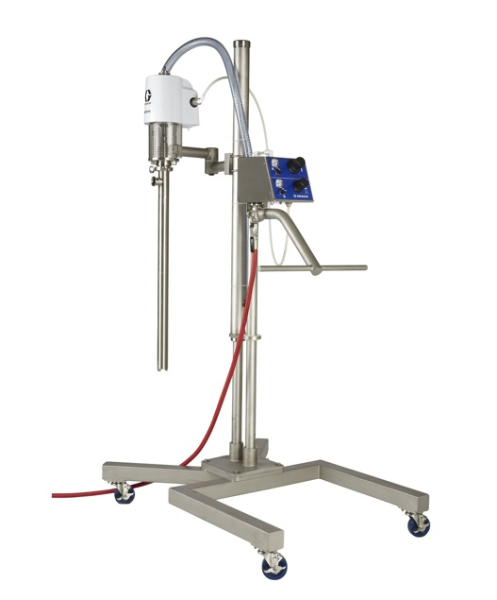

Elevator, Mobile, Package, Sani 6:1
GG 24V320
ELEVATOR, MOBILE, PACKAGE, SANI 6:1
Graco 24V320 SaniForce 6:1 Ratio Piston Pump with Buna-N Packings for Sanitary Applications to Transfer Low to Medium Viscosity Fluids
Still using hoists and chains to unload your drums or bins? Graco's SaniForce Elevator is ideal for small to medium size food and personal care companies who currently unload less than 2 containers per hour. Use with Graco's SaniForce 2:1, 5:1 or 6:1 Piston Pumps to transfer small batches of low to medium viscosity fluids.
Application: Ideal for small to medium size companies who currently unload containers by scooping or using chains/hoists- FDA-compliant
- Use in sanitary applications to transfer low to medium viscosity fluids
- Designed to lower pumps into and lift pumps out of drums, bins and totes
- Mobile and stationary options available
- Model: SaniForce
- Air Inlet Size (in): 0.5
- Air Inlet Size (mm): 12.7
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPT
- Application: Sanitary
- Compatible Material: Food, Personal Care
- Fluid Outlet Size (in): 1-1/2
- Fluid Outlet Size (mm): 38.1
- For Use With: Food, Personal Care, Pharmaceutical
- Includes: Cart and Handle, Buna-N Packings
- Material: Stainless Steel
- Maximum Air Inlet Pressure (bar): 6.9
- Maximum Air Inlet Pressure (kPa): 690
- Maximum Air Inlet Pressure (psi): 100
- Maximum Continuous Cycle Rate (CPM): 60
- Maximum Flow Rate (GPM): 4
- Maximum Flow Rate (L/min): 15.14
- Maximum Intermittent Cycle Rate (CPM): 60
- Maximum Working Pressure (bar): 41
- Maximum Working Pressure (kPa): 4100
- Maximum Working Pressure (MPa): 4.1
- Maximum Working Pressure (psi): 600
- Portable: Portable
- Pump Ratio: 6:1

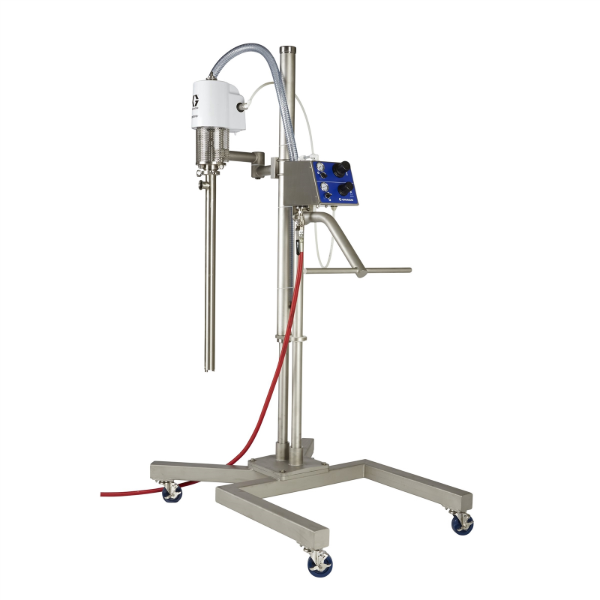

ELEVATOR, MOBILE, PACKAGE, SANI 6:1
GG 24V321
ELEVATOR, MOBILE, PACKAGE, SANI 6:1
SaniForce 6:1 Ratio Piston Pump with PTFE Packings for Sanitary Applications to Transfer Low to Medium Viscosity FluidsStill using hoists and chains to unload your drums or bins? Graco's SaniForce Elevator is ideal for small to medium size food and personal care companies who currently unload less than 2 containers per hour. Use with Graco's SaniForce 2:1, 5:1 or 6:1 Piston Pumps to transfer small batches of low to medium viscosity fluids.
Ideal for small to medium size companies who currently unload containers by scooping or using chains/hoists FDA-compliant Use in sanitary applications to transfer low to medium viscosity fluids Designed to lower pumps into and lift pumps out of drums, bins and totes Articulating arm allows for multiple containers to be unloaded from the same location Mobile and stationary options available ELEVATOR, STATIC, PACKAGE, SANI 6:1
GG 24V323
ELEVATOR, STATIC, PACKAGE, SANI 6:1
SaniForce 6:1 Ratio Elevator with Stationary Base & PTFE PackingsStill using hoists and chains to unload your drums or bins? Graco's SaniForce Elevator is ideal for small to medium size food and personal care companies who currently unload less than 2 containers per hour. Use with Graco's SaniForce 2:1, 5:1 or 6:1 Piston Pumps to transfer small batches of low to medium viscosity fluids.
Ideal for small to medium size companies who currently unload containers by scooping or using chains/hoists FDA-compliant Use in sanitary applications to transfer low to medium viscosity fluids Designed to lower pumps into and lift pumps out of drums, bins and totes Articulating arm allows for multiple containers to be unloaded from the same location Mobile and stationary options available Elevator, Mobile, Package, Sani 5:1
GG 24V324
ELEVATOR, MOBILE, PACKAGE, SANI 5:1
Graco 24V324 SaniForce 5:1 Ratio Piston Pump for Sanitary Applications to Transfer Low to Medium Viscosity Fluids
Still using hoists and chains to unload your drums or bins? Graco's SaniForce Elevator is ideal for small to medium size food and personal care companies who currently unload less than 2 containers per hour. Use with Graco's SaniForce 2:1, 5:1 or 6:1 Piston Pumps to transfer small batches of low to medium viscosity fluids.
Application: Ideal for small to medium size companies who currently unload containers by scooping or using chains/hoists- FDA-compliant
- Use in sanitary applications to transfer low to medium viscosity fluids
- Designed to lower pumps into and lift pumps out of drums, bins and totes
- Mobile and stationary options available
- Model: SaniForce
- Air Inlet Size (in): 0.5
- Air Inlet Size (mm): 12.7
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPT
- Application: Sanitary
- Compatible Material: Food, Personal Care
- Fluid Outlet Size (in): 2
- Fluid Outlet Size (mm): 50.8
- For Use With: Food, Personal Care, Pharmaceutical
- Includes: Cart and Handle, Varied Packings
- Material: Stainless Steel
- Maximum Air Inlet Pressure (bar): 6.9
- Maximum Air Inlet Pressure (kPa): 690
- Maximum Air Inlet Pressure (psi): 100
- Maximum Continuous Cycle Rate (CPM): 60
- Maximum Flow Rate (GPM): 14
- Maximum Flow Rate (L/min): 53
- Maximum Intermittent Cycle Rate (CPM): 60
- Maximum Working Pressure (bar): 28
- Maximum Working Pressure (kPa): 2800
- Maximum Working Pressure (MPa): 2.8
- Maximum Working Pressure (psi): 400
- Portable: Portable
- Pump Ratio: 5:1
Elevator, Static, Package, Sani 5:1
GG 24V325
ELEVATOR, STATIC, PACKAGE, SANI 5:1
Graco 24V325 SaniForce 5:1 Ratio Elevator with Stationary Base
Still using hoists and chains to unload your drums or bins? Graco's SaniForce Elevator is ideal for small to medium size food and personal care companies who currently unload less than 2 containers per hour. Use with Graco's SaniForce 2:1, 5:1 or 6:1 Piston Pumps to transfer small batches of low to medium viscosity fluids.
Application: Ideal for small to medium size companies who currently unload containers by scooping or using chains/hoists- FDA-compliant
- Use in sanitary applications to transfer low to medium viscosity fluids
- Designed to lower pumps into and lift pumps out of drums, bins and totes
- Mobile and stationary options available
- Model: SaniForce
- Air Inlet Size (in): 0.5
- Air Inlet Size (mm): 12.7
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPT
- Application: Sanitary
- Compatible Material: Food, Personal Care
- Fluid Outlet Size (in): 2
- Fluid Outlet Size (mm): 50.8
- For Use With: Food, Personal Care, Pharmaceutical
- Includes: Stationary Base, Varied Packings
- Material: Stainless Steel
- Maximum Air Inlet Pressure (bar): 6.9
- Maximum Air Inlet Pressure (kPa): 690
- Maximum Air Inlet Pressure (psi): 100
- Maximum Continuous Cycle Rate (CPM): 60
- Maximum Flow Rate (GPM): 14
- Maximum Flow Rate (L/min): 53
- Maximum Intermittent Cycle Rate (CPM): 60
- Maximum Working Pressure (bar): 28
- Maximum Working Pressure (kPa): 2800
- Maximum Working Pressure (MPa): 2.8
- Maximum Working Pressure (psi): 400
- Portable: Non-Portable
- Pump Ratio: 5:1

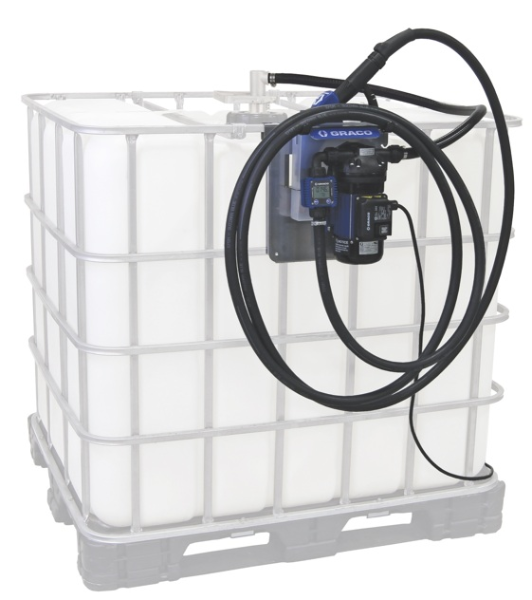

LD SYSTEM, DEFTOT, AC, MTR & AUTO
GG 24V641
LD SYSTEM, DEFTOT, AC, MTR & AUTO
LD Blue Electric Pump Package - 5 ft (1.5 m) Suction Hose Length - Automatic Nozzle - SST Clamp FittingsGraco's LD Series DEF solutions offer long-lasting efficiency in a compact, high-performance electric pump package capable of pumping up to 9 gpm (34 lpm). Whether a small garage, large dealership, or heavy equipment maintenance facility, Graco has a complete line of Diesel Exhaust Fluid (DEF) products for every application. Our electric, pneumatic, or manual products are engineered specifically for the advanced needs of DEF fluid and are designed to minimize downtime and dispense materials quickly without compromising chemical integrity.
Typical applications include automotive and heavy-duty dealerships, agriculture, service and fast lube centers, and fleet service facilities. Reduces maintenance featuring a self-priming membrane pump Stays running longer, reducing downtime and getting more work done with the LD Blue Systems- up to twice the life of competitive pumps. Built-in safety and reliability with an automatic shut off timer (6.5min) incorporated into 120V pumps. Preventing the pump from running past the duty cycle and maximizing the life of the pump 2 Year Warranty. See manufacturers website for details.
