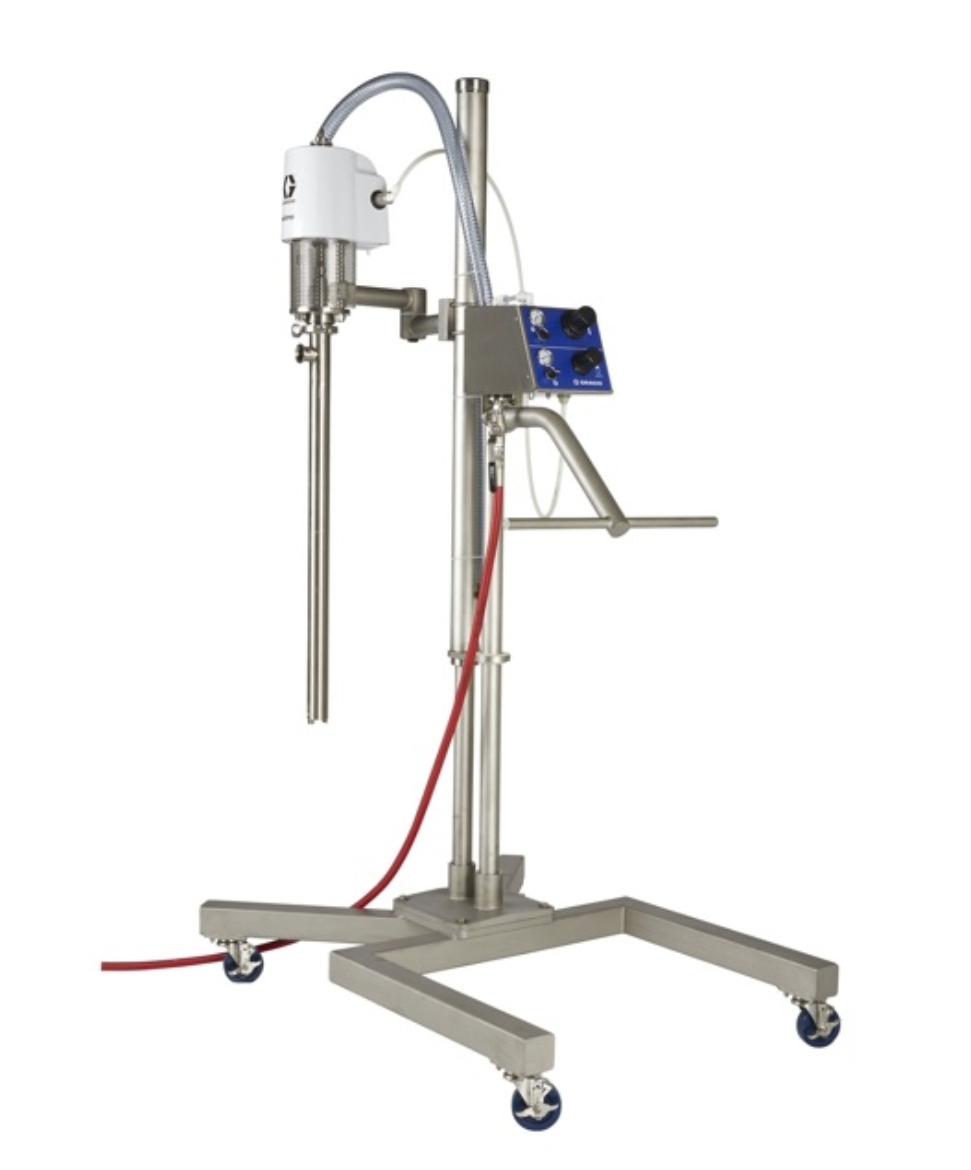

GG 24V320
ELEVATOR, MOBILE, PACKAGE, SANI 6:1
Graco 24V320 SaniForce 6:1 Ratio Piston Pump with Buna-N Packings for Sanitary Applications to Transfer Low to Medium Viscosity Fluids
Still using hoists and chains to unload your drums or bins? Graco's SaniForce Elevator is ideal for small to medium size food and personal care companies who currently unload less than 2 containers per hour. Use with Graco's SaniForce 2:1, 5:1 or 6:1 Piston Pumps to transfer small batches of low to medium viscosity fluids.
Application: Ideal for small to medium size companies who currently unload containers by scooping or using chains/hoists
- FDA-compliant
- Use in sanitary applications to transfer low to medium viscosity fluids
- Designed to lower pumps into and lift pumps out of drums, bins and totes
- Mobile and stationary options available
- Air Inlet Size (in): 0.5
- Air Inlet Size (mm): 12.7
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPT
- Compatible Material: Food, Personal Care
- Fluid Outlet Size (in): 1-1/2
- Fluid Outlet Size (mm): 38.1
- For Use With: Food, Personal Care, Pharmaceutical
- Includes: Cart and Handle, Buna-N Packings
- Material: Stainless Steel
- Maximum Air Inlet Pressure (bar): 6.9
- Maximum Air Inlet Pressure (kPa): 690
- Maximum Air Inlet Pressure (psi): 100
- Maximum Continuous Cycle Rate (CPM): 60
- Maximum Flow Rate (GPM): 4
- Maximum Flow Rate (L/min): 15.14
- Maximum Intermittent Cycle Rate (CPM): 60
- Maximum Working Pressure (bar): 41
- Maximum Working Pressure (kPa): 4100
- Maximum Working Pressure (MPa): 4.1
- Maximum Working Pressure (psi): 600
