GRACO INC. S10595

GG 246731

GG 15B588

GG 244953

GG 249592

GG 246352

GG 218549

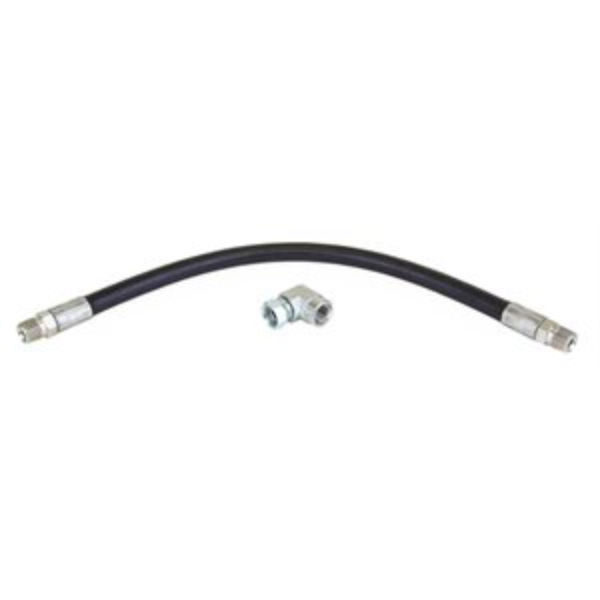

KIT, ACCESSORY, 1/2" ID X 24"

Graco 218549 SD 10 Oil Reel Package Hose Inlet Kit

Inlet hose kit for SD 10 oil reels.

• Application: Oil

• Hose Length (cm): 61
• Hose Length (ft): 2
• Hose Length (in): 24
• Hose Length (m): 0.6
• Hose Length (mm): 610

• Includes: Hose, Swivel Union

• Maximum Working Pressure (bar): 138
• Maximum Working Pressure (kPa): 13800
• Maximum Working Pressure (MPa): 13.8
• Maximum Working Pressure (psi): 2000

GG GC2056

GG 24N644

KIT, RETAINING RING

Graco 24N644 Ring for Standad Pro Xp Auto Waterborne AA Gun Models Rear Manifold

GG 24N616

KIT, NOZZLE, 1.50 MM

Graco 24N616 Fluid Nozzle for Standard Materials, 1.5 mm Orifice Size

• Coating Type: Standard, Specialty

• Compatible Paint Type: Automotive, Base Coat, Clear Coat, Enamels, High Solids, Metallics, Plural Component Materials, Primers, Solventborne, Urethanes

GG 17B922

GG 206995

FLUID, TSL, 1 QT.

Graco 206995 TSL Throat Seal Liquid, 1 qt (0.95 l)

Throat Seal Liquid (TSL) prevents paint and coatings from drying onto the displacement rod and packings, extending the life of the pump.

• Model: TSL
• Series: Throat Seal Liquid

• For Use With: All Contractor Grade Sprayers

GG 222651

KIT, REPAIR

Graco 222651 Fluid Pressure Regulator Repair Kit for Models 214895, 214706, 214971, and 214980

GG 188603

GG 104644

GG 110460

GG 112181

GG 15U933

KIT, SEAL,DOSE VALVE

Graco 15U933 Seal Kit for High Pressure Dispense Valves 15X303 and 26A355

GG 24N477

KIT, AIR CAP

Graco 24N477 Air Cap, Black, 15-17 in (381-432 mm) length, light to medium viscosity, round end

GG 24N651

KIT, NEEDLE, ELECTRODE

Graco 24N651 Standard Electrode Needle Kit

• Electrode assembly with a flexible snap-back wire
• The standard wire is resistant to abrasive fluid wear and also resistant to handling damage

• Coating Type: Standard, Specialty

• Compatible Paint Type: Automotive, Base Coat, Clear Coat, Enamels, High Solids, Metallics, Plural Component Materials, Primers, Solventborne, Urethanes

GG 061132

HOSE, NYLON, .250 ID, WPR 225

Graco 061132 Nylon Fluid Hose, compatible with catalyst and waterborne materials, 1/4 in ID, 225 psi (16 bar)

• Nylon Fluid Hose

  Nylon tube

  Compatible with catalyst and waterborne materials

  Order 500 ft (152 m) increments

  • 2-piece Reusable Hose Fittings

    Compatible with catalyst and waterborne materials

    Easily create custom fluid hoses




    • Color: Natural
    • Inside Diameter (cm): 0.635
    • Inside Diameter (in): 1/4
    • Inside Diameter (mm): 6.35
    • Material: Nylon
    • Maximum Working Pressure (bar): 16
    • Maximum Working Pressure (kPa): 1600
    • Maximum Working Pressure (MPa): 1.6
    • Maximum Working Pressure (psi): 225

GG 2007608

GG 654507

HUSKY PUMP, 15120P, P2, PP/SP/SP/PT

Graco 654507 Husky 15120 PP Pump, End Flange, PP Center Section, PP Seats, SP Balls & SP Diaphragm

The Husky 15120 air-operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.The one-piece center section eliminates leaks and reduces maintenance on Husky pumps when compared to other diaphragm pumps.

• Overall improved efficiency (up to 40% more efficient)
• Highest fluid flow rate in its class
• Up to 5 times longer diaphragm life compared to other air operated diaphragm pumps
• 1-1/2 in (38.1 mm) ANSI center and end-porting options available
• High flow - 120 gpm (454 lpm) in a compact, portable size
• Fluid pressure to 125 psi (8.6 bar, 0.86 MPa)
• Lube-free operation
• Available in polypropylene and PVDF

• Model: Husky
• Series: 15120

• Air Exhaust Port Size (in): 1
• Air Exhaust Port Thread Gender: Female
• Air Exhaust Port Thread Type: NPT
• Air Inlet Size (in): 1/2
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Industrial

• Ball Material: Santoprene

• Center Section Material: Polypropylene

• Compatible Material: Antifreeze, Detergents, Windshield Washer Fluid, Diesel Exhaust Fluid, Cutting Oil, Water, Water, Water - Wastewater Transfer

• Connection Type: End Flange ANSI/DIN

• Diaphragm Compatible Material: Santoprene
• Diaphragm Material: Santoprene

• Fluid Inlet Size (cm): 3.81
• Fluid Inlet Size (in): 1-1/2
• Fluid Inlet Size (mm): 38.1
• Fluid Inlet Thread Gender: Female

• Fluid Outlet Size (cm): 3.81
• Fluid Outlet Size (in): 1-1/2
• Fluid Outlet Size (mm): 38.1
• Fluid Outlet Thread Gender: Female
• Fluid Section Material: Polypropylene

• Manifold Configuration: End Port
• Manifold O-Ring Material: PTFE
• Material: Polypropylene

• Maximum Air Consumption (SCFM): 85
• Maximum Air Pressure (bar): 8.6

• Maximum Air Pressure (kPa): 860
• Maximum Air Pressure (MPa): 0.86
• Maximum Air Pressure (psi): 125

• Maximum Cycle Rate (CPM): 183

• Maximum Flow Rate (GPM): 120
• Maximum Flow Rate (L/min): 454

• Maximum Fluid Pressure (bar): 8.6
• Maximum Fluid Pressure (kPa): 860
• Maximum Fluid Pressure (MPa): 0.86
• Maximum Fluid Pressure (psi): 125

• Maximum Fluid Pressure (bar): 8.6
• Maximum Fluid Pressure (kPa): 860
• Maximum Fluid Pressure (MPa): 0.86
• Maximum Fluid Pressure (psi): 125

• Maximum Operating Temperature ( degree C): 66
• Maximum Operating Temperature ( degree F): 150

• Maximum Solid Size (cm): 0.635
• Maximum Solid Size (in): 0.25
• Maximum Solid Size (mm): 6.35

• Minimum Operating Temperature ( degree C): 0
• Minimum Operating Temperature ( degree F): 32

• Minimum Storage Temperature ( degree C): 0
• Minimum Storage Temperature ( degree F): 32

• Power Source: Air

GG 02/0952-11/25

GG 02/0952-02/25

GG 100264

GG 100718

GG 105399

GG 108458

GG 109265

GG 109499

GG 112005

GG 112871

GG 112873

GG 112875

GG 113629

GG 114141

GG 113915

GG 114765

GG 117233

GG 117346

GG 117575

GG 117607

GG 118144

GG 24B884

AIRPRO GUN, EFX, HITE, .028, RND

Graco 24B884 AirPro EFX Auto Air Spray Gun, Direct Connect, HiTEch, 0.028 inch (0.7 mm) Nozzle, SST Tip, Ultra Precision Fluid Adjust Knob

The AirPro EFX air spray automatic guns are among the lightest and most compact guns in their class. With no internal air shutoff mechanism, the AirPro EFX delivers increased reliability and precision fluid flow. The modest size and weight of this gun make it an excellent choice for fixed, reciprocating and robotic applications.

• Aircaps and nozzles deliver superior, precision spray performance
• Precision fluid adjustment with a micrometer-telescoping knob
• High wear components designed for abrasive materials

• Model: AirPro
• Series: EFX

• Applicator Type: Automatic

• Bleed Type: Bleeder
• Body Material: Stainless Steel

• Compatible Material: Ceramics, Enamel, Fast-Set, High Solids, Solventborne, Waterborne

• Component Type: Single Component

• Feed Type: Pressure Feed

• Fluid Adjustment Knob: Ultra Precision
• Fluid Orifice Size (cm): 0.07
• Fluid Orifice Size (in): 0.028
• Fluid Orifice Size (mm): 0.7

• Gun Activation: Automatic
• Gun Type: HiTech
• Gun Weight (kg): 0.27
• Gun Weight (lb): 0.6

• Includes: Air Cap with Pin, Needle/Nozzle Kit, Fluid Adjustment Knob

• Maximum Air Inlet Pressure (bar): 7
• Maximum Air Inlet Pressure (kPa): 700
• Maximum Air Inlet Pressure (MPa): 0.7
• Maximum Air Inlet Pressure (psi): 100
• Maximum Air Pressure (bar): 7

• Maximum Air Pressure (kPa): 700
• Maximum Air Pressure (MPa): 0.7
• Maximum Air Pressure (psi): 100

• Maximum Flow Rate @ PSI (oz/min): 3.4

• Maximum Fluid Pressure (bar): 7
• Maximum Fluid Pressure (kPa): 700
• Maximum Fluid Pressure (MPa): 0.7
• Maximum Fluid Pressure (psi): 100
• Maximum Fluid Temperature ( degree C): 49
• Maximum Fluid Temperature ( degree F): 120

• Maximum Fluid Pressure (bar): 7
• Maximum Fluid Pressure (kPa): 700
• Maximum Fluid Pressure (MPa): 0.7
• Maximum Fluid Pressure (psi): 100
• Maximum Fluid Temperature ( degree C): 49
• Maximum Fluid Temperature ( degree F): 120

• Minimum Flow Rate @ PSI (oz/min): 0.3

• Needle Tip Material: Stainless Steel

• Overall Height (cm): 2.2
• Overall Height (in): 1
• Overall Height (mm): 25
• Overall Length (cm): 12
• Overall Length (in): 4.9
• Overall Length (mm): 124
• Overall Width (cm): 3.5
• Overall Width (in): 1
• Overall Width (mm): 25

• Purge Method: Air

GG TE80-1305

QUANTM PUMP, QTD-PPFE7SPSPSPPTP200

Graco TE80-1305 QUANTM i80, 1.5" Flange, Polypropylene Electric Diaphragm Pump, 380 - 480 VAC 3Ph, FEP AL Center, SP Seat, SP Ball, SP Diaphragm

QUANTM isn't just another electric pump: it's a game-changer. QUANTM features a revolutionary electric motor design that will reduce operational costs and delivers the reliability to keep your production lines running. With multiple fluid path options containing different materials of construction, QUANTM is ideal for most fluid applications as a highly reliable drop-in replacement for your current less-efficient pneumatic pumps or a perfect fit for greenfield construction. The unique self-priming, seal-less design delivers smooth and steady flow and is the only electric diaphragm pump on the market that stalls under pressure to reduce downtime caused by pump failures from clogged lines or closed valves. QUANTM is engineered to be quieter, more efficient and ultra-dependable while delivering energy savings that will go a long way to reinforcing your sustainability reputation. It's time to rethink your pump strategy and elevate your bottom line by converting to a QUANTM electric pump.

• Revolutionary Design
  • Replace existing air operated pumps with electric pump technology that stalls under pressure and includes AutoPrime feature
  • Compact and efficient electric drive removes the gearbox providing a comparable footprint to a pneumatic diaphragm pump
  • Up to 80% reduction in energy consumption compared to pneumatic pumps, reducing operating costs and providing a quick investment payback
  • Quiet operation reduces plant noise and improves employee safety and health
  • Smart pump control provides more accurate flow set points and built-in I/O
• Efficient Electric Motor
  • FEP Coated Aluminum electric drive
  • 380-480 VAC 3Ph motor with 15 ft flying leads
  • Non-hazardous
• Materials of Construction
  • Polypropylene fluid section with Flange End Flange
  • Internal components include Santoprene seats, Santoprene balls, and Santoprene diaphragms

• Model: QUANTM
• Series: i80

• Application: Chemical Processing, Paints and Coatings, Waste Water, General Fluid Transfer

• Ball Material: Santoprene

• Center Section Material: FEP Coated Aluminum

• Connection Type: Flange

• Cord Length (ft): 15
• Cord Length (m): 4.57

• Diaphragm Material: Santoprene

• Fluid Inlet Size (in): 1.5
• Fluid Inlet Size (mm): 38.1
• Fluid Inlet Thread Gender: Flange
• Fluid Inlet Thread Type: Flange

• Fluid Outlet Size (in): 1.5
• Fluid Outlet Size (mm): 38.1
• Fluid Outlet Thread Gender: Flange
• Fluid Outlet Thread Type: Flange
• Fluid Section: Polypropylene, End Flange
• Fluid Section Material: Polypropylene

• Hazardous Location Approval: None

• Manifold Configuration: End Flange
• Manifold O-Ring Material: PTFE

• Maximum Am

GG 255246

GG 01/0064-1/88

GG 01/0085/99N

GG 01/0092/89

GG 01/0518-1/88

GG 01/0673/98

GG 01/0993/87

GG 01/1451/98

GG 01/1455/98

GG 01/2805-1/11

GG 01/2806/98

GG 01/2825-2/87

GG 01/2963/98

GG 01/2960/98

GG 01/2970/98

GG 0134-008

GG 0135-218

GG 02/0706-02/50

GG 02/0707-02/50

GG 02/0715-02/50

GG 02/0956-03/25

GG 02/0956-11/25

GG 02/0956-04/25

GG 02/0957-11/25

GG 02/0957-12/25

GG 02/0967-11/25

GG 101936

GG 102386

GG 104472

GG 109469

GG 110859

GG 110914

GG 110932

GG 110937

GG 110940

GG 112973

GG 113030

GG 120060

GG 120089

GG 120250

GG 120262

GG 120432

GG 120909

GG 121013

GG 121018

GG 121111

GG 121141

GG 121158

GG 121179

GG 121180

GG 121198

GG 121235

GG 121273

GG 121684

GG 121806
