GRACO INC. S10595

GG L40T16

PRO XP GUN, ES, 40KV, HC

Graco L40T16 Pro Xp40 Air Spray Manual Electrostatic High Conductivity Gun, 40 kV, 0.055 in (1.5 mm) precision high wear nozzle, standard display

This 40 kV electrostatic air spray gun comes in a compact, lightweight package. The longer fluid tube on the high conductivity gun lets you spray lower resistivity material.

• Metal tip precision high-wear nozzle, high-wear electrode, and more durable fluid tube improve longevity when spraying low resistivity materials, such as abrasives and metallic coatings.
• Removable black fluid tube cover allows operator to see fluid movement.
• Made in the USA
• Rugged, dependable design supported by a three year warranty
• Every gun is tested and delivered with a certificate indicating the spray pattern, mechanical performance and electrical performance meets Gracos requirements

• Model: Pro Xp
• Series: 40

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Gender: Male
• Air Inlet Thread Type: NPSM

• Application: Electrostatic, High Conductivity, High Wear
• Applicator Type: Manual

• Coating Type: Abrasive, Metallic, High Conductivity, High Wear

• Compatible Paint Type: Automotive, Base Coat, Clear Coat, Enamels, High Solids, Metallics, Plural Component Materials, Primers, Solvent borne, Urethanes

• Display Type: Standard

• Fluid Inlet Size (in): 3/8
• Fluid Inlet Thread Gender: Male
• Fluid Inlet Thread Type: NPSM

• Gun Activation: Manual
• Gun Type: Electrostatic
• Gun Weight (g): 560
• Gun Weight (kg): 0.56
• Gun Weight (lb): 1.23
• Gun Weight (oz): 19.75

• Includes: Air Cap, Nozzle, Tool Kit, Gun Cover, Exhaust Tube

• Maximum Fluid Pressure (bar): 7.0
• Maximum Fluid Pressure (kg/cm 2): 7.14
• Maximum Fluid Pressure (kPa): 700
• Maximum Fluid Pressure (MPa): 0.7
• Maximum Fluid Pressure (psi): 100
• Maximum Fluid Temperature ( degree C): 48
• Maximum Fluid Temperature ( degree F): 120

• Maximum Fluid Pressure (bar): 7.0
• Maximum Fluid Pressure (kg/cm 2): 7.14
• Maximum Fluid Pressure (kPa): 700
• Maximum Fluid Pressure (MPa): 0.7
• Maximum Fluid Pressure (psi): 100
• Maximum Fluid Temperature ( degree C): 48
• Maximum Fluid Temperature ( degree F): 120

• Maximum Paint Resistivity (megohm/cm): 25

• Minimum Paint Resistivity (megohm/cm): 1

• Nozzle Size (cm): 0.15
• Nozzle Size (in): 0.055
• Nozzle Size (mm): 1.5

• Overall Length (cm): 22.1
• Overall Length (in): 8.7
• Overall Length (mm): 221

GG LCE800

GG LCF080

GG LCC120

GG LTX515

RAC X LTX TIP, SPRAY, 515

Graco LTX515 RAC X SwitchTip, 515

The Reverse-A-Clean (RAC) 515 RAC X SwitchTip produces a 10 to 12 inch fan and has a 0.015 inch orifice. Reverse the SwitchTip to easily clear clogs.

• Best Tip on the Market

  Longest lasting fan pattern

  Highest quality finish with a consistent spray pattern

• Easy to Identify Tip Size

  Large raised tip size numbers are always legible - even when covered with paint

• Superior Tip Design

  Locking tab ensures tip stays securely in guard

  Snaps tip in spray or reverse position

  OneSeal tip gasket installs with no tools

  Solvent seal available when using extremely hot solvents

• Model: RAC X
• Series: LTX SwitchTip

• Compatible Material: Latex Paint, Latex Stain, Oil-Based Paint, Oil-Based Stain

• For Use With: RAC X HandTite Tip Guard

• Material: Tungsten Carbide

• Maximum Fan Width (cm): 25
• Maximum Fan Width (in): 10
• Maximum Fan Width (mm): 305

• Maximum Working Pressure (bar): 280
• Maximum Working Pressure (kPa): 28000
• Maximum Working Pressure (psi): 4050

• Minimum Fan Width (in): 10
• Minimum Fan Width (mm): 254

• Orifice Diameter (in): 0.015

• Pattern Size (in): 10 to 12
• Pattern Size (mm): 254 to 304.8

GG LTX517

RAC X LTX TIP, SPRAY, 517

Graco LTX517 RAC X SwitchTip, 517

The Reverse-A-Clean (RAC) 517 RAC X SwitchTip produces a 10 to 12 inch fan and has a 0.017 inch orifice. Reverse the SwitchTip to easily clear clogs.

• Best Tip on the Market

  Longest lasting fan pattern

  Highest quality finish with a consistent spray pattern

• Easy to Identify Tip Size

  Large raised tip size numbers are always legible - even when covered with paint

• Superior Tip Design

  Locking tab ensures tip stays securely in guard

  Snaps tip in spray or reverse position

  OneSeal tip gasket installs with no tools

  Solvent seal available when using extremely hot solvents

• Model: RAC X
• Series: LTX SwitchTip

• Compatible Material: Latex Paint, Latex Stain, Oil-Based Paint, Oil-Based Stain

• For Use With: RAC X HandTite Tip Guard

• Material: Tungsten Carbide

• Maximum Fan Width (cm): 25
• Maximum Fan Width (in): 10
• Maximum Fan Width (mm): 305

• Maximum Working Pressure (bar): 280
• Maximum Working Pressure (kPa): 28000
• Maximum Working Pressure (psi): 4050

• Minimum Fan Width (in): 10
• Minimum Fan Width (mm): 254

• Orifice Diameter (in): 0.017

• Pattern Size (in): 10 to 12
• Pattern Size (mm): 254 to 304.8

GG 25C208

GG 24W161

GG LCC600

GG 192710

GG 109262

GG C32204

GG 16F811

GG 16N961

GG 2LV042

GG 222115

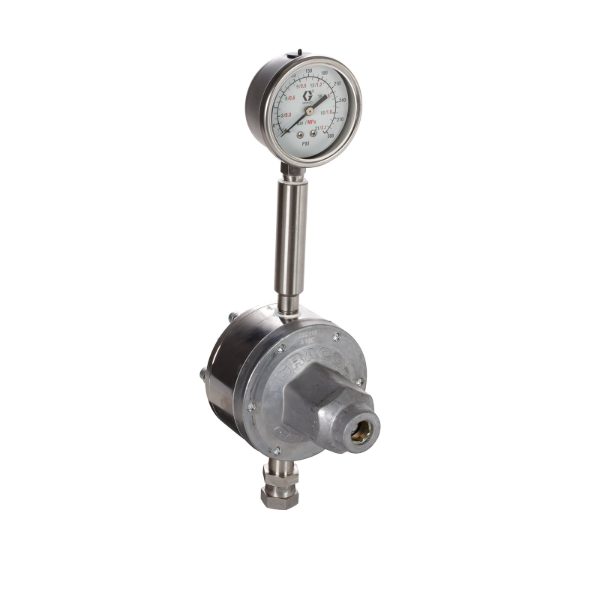

REGULATOR, PRESSURE, FLUID

Graco 222115 Low Pressure Fluid Regulator, 300 Max psi, 20-160 psi Range, 3.0 GPM, SST, Spring Type, 3/8 (f) x 3/8 (m), 1/4 (f) Port

Fluid regulators keep your system functioning more productively.

• Available with mechanical control or pneumatic control
• Suitable for fluids with low and high viscosities
• Models available with wetted parts made of stainless steel

• Actuation Type: Spring

• Gauge Port Size (cm): 0.635
• Gauge Port Size (in): 1/4
• Gauge Port Size (mm): 6.35

• Gauge Port Type: NPT

• Includes: Gauge
• Inlet Size (cm): 0.9525
• Inlet Size (in): 3/8
• Inlet Size (mm): 9.525

• Inlet Thread Type: NPT

• Maximum Flow Rate (GPM): 3
• Maximum Flow Rate (L/min): 11.36

• Maximum Regulated Pressure (bar): 11
• Maximum Regulated Pressure (kPa): 110
• Maximum Regulated Pressure (MPa): 1.1
• Maximum Regulated Pressure (psi): 160

• Maximum Viscosity (cP): 300

• Maximum Working Pressure (bar): 18
• Maximum Working Pressure (kPa): 1800
• Maximum Working Pressure (MPa): 1.8
• Maximum Working Pressure (psi): 250

• Minimum Regulated Pressure (bar): 1.5
• Minimum Regulated Pressure (kPa): 150
• Minimum Regulated Pressure (MPa): 0.15
• Minimum Regulated Pressure (psi): 20

• Outlet Size (cm): 0.9525
• Outlet Size (in): 3/8
• Outlet Size (mm): 9.525

GG 183549

GG AAP815

GG 25U205

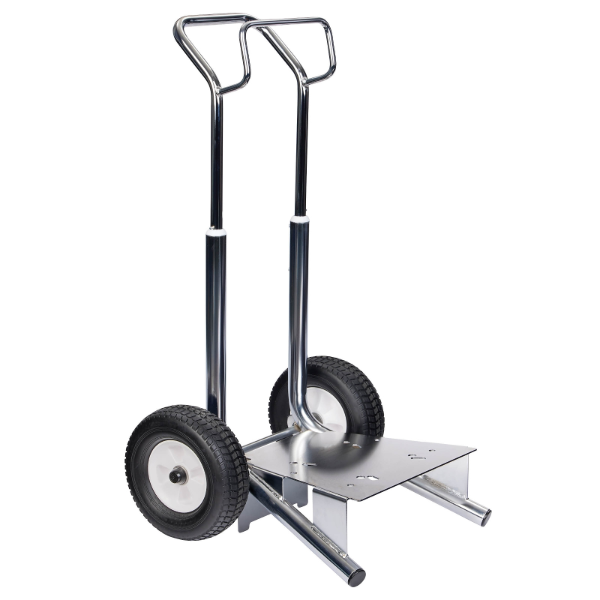

CART, PUMP

Graco 25U205 2-wheel Cart for QUANTM i30, i80 and i120 pumps

Mount your QUANTM i-Series pump for safe and easy transport to enable transfer in different locations around the worksite.

• Overall Height (cm): 100
• Overall Height (in): 39.5
• Overall Length (cm): 52
• Overall Length (in): 20.5
• Overall Width (cm): 52
• Overall Width (in): 20.5

GG 687057

GG 109495

GG 111116

GG 116514

GG 121212

GG 15C161

KIT, GUN CLEANING, ULTIMATE

Graco 15C161 Ultimate Gun Cleaning Kit

High quality spray gun cleaning kit to give you better spray gun operation

• Spray gun cleaning kits include all the tools you need to maintain your spray guns and keep them lasting longer

GG 15K661

GG 15K422

BEARING

GG 15D371

GG 15K688

NUT, MIXER,7/8-9

GG 15W621

KIT, REBUILD,LP VALVE

Graco 15W621 Seal Kit- For Low Pressure Dispense Valve

GG 15T748

GG 102656

GG 17K526

KIT,INLET, CHECK

Graco 17K526 Inlet Check Kit, Stainless Steel Seat, for 4-Ball Lowers

GG 238563

GG 184042

SEAT, PISTON (4.5 CM)

GG 187876

GAUGE, PRESSURE, FLUID

Graco 187876 Stainless Steel Low Pressure Fluid Gauge, 0-300 psi (0-21 bar) pressure range

• Stainless Steel Low Pressure Fluid Gauges

  Corrosion Resistant

  5 in (63 mm) diameter dial

  1/4 in NPT(M) connection

  Bottom mount

  Shatterproof glass




  • Dial Diameter (cm): 6
  • Dial Diameter (in): 2.5
  • Dial Diameter (mm): 64
  • Inlet Size (cm): 0.635
  • Inlet Size (in): 1/4
  • Inlet Size (mm): 6.35
  • Inlet Thread Gender: Male
  • Inlet Thread Type: NPT
  • Maximum Working Pressure (bar): 21
  • Maximum Working Pressure (kPa): 2100
  • Maximum Working Pressure (MPa): 2.1
  • Maximum Working Pressure (psi): 300

GG 187879

GG 245145

GG 245065

KIT, REPAIR, 085 DIAPHRAGM

Graco 245065 PTFE Diaphragm Repair Kit for Triton 308

GG 245066

KIT, REPAIR, TRITON AIR VALVE

Graco 245066 Triton 3D 150 Air Valve Repair Kit

GG 190128

GG 19Y300

KIT, CARTRIDGE, FUSION PC, 1 PK

Graco 19Y300 Fusion ProConnect Cartridge - 1 Pack

Combined with a Fusion PC gun or Fusion AP gun outfitted with the ProConnect Retrofit Kit, the Fusion PC cartridge delivers you a perfect rebuild in seconds. This all-in-one cartridge head replaces multiple individual parts of the fluid section with a single component. Simply replacing the cartridge completely eliminates the need for a time-consuming traditional rebuild, keeping you spraying and minimizing costly downtime.

• Sprays exactly like a Fusion AP
• Integrated check valves for cross-over containment
• 13 parts are replaced by a single ProConnect cartridge
• Spare ProConnect cartridges can replace your back-up guns

• Model: Fusion PC

GG 249135

VALVE, FAN,ASSY

Graco 249135 G15/ G40 AA Series Spray Gun Fan Valve

GG 206728

KIT, REPAIR, MOTOR

Graco 206728 Monark Air Motor Repair Kit

GG 205529

GG 207948

SWIVEL, ZEE

Graco 207948 High Pressure Zee Swivel, Series B, 1/2 npt (f) x 1/2 npt(m), 6000 psi (41 Mpa, 414 bar) Maximum Working Pressure

• Provides free movement of hose sections and guns without kinking.

• Swivels maintain a high pressure seal while providing fully rotational movement between hoses, guns, siphon tubes and other equipment.

GG 24B621

GG 24N664

KIT, TURBINE

Graco 24N664 Turbine Assembly Kit

GG 24N696

GG 24N698

GG 24N653

KIT,PACKING,ROD ASSY,40KV

Graco 24N653 40 kV Packing Rod Assembly

GG 222774

KIT, REPAIR, THROAT, POLY (4.5

KIT INCLUDES: GLAND, PACKING FEMALE [QTY. 1], GLAND, PACKING MALE [QTY. 1], PACKING, VEE [QTY. 3], PACKING, VEE, PTFE [QTY. 2]

GG 24N792

GG 233466

TRITON SPRAYER, DIA PUMP, PAIL MOUNT

Graco 233466 Triton Aluminum Pump Package, pail mount with suction hose. Does not include applicator.

Air-operated diaphragm spray package designed for the finishing market. It is a more effective alternative to traditional pressure pots and standard diaphragm pumps.

• Superior finish quality for conventional, HVLP and compliant or electrostatic applications
• Supplies up to 35% extra air flow to gun for superior atomization
• Saves material and time during flushing, priming and color changes
• Rugged, stainless steel or aluminum construction pump handles a wide variety of fluids

• Model: Triton
• Series: 308

• Compatible Material: CARC, Enamel, Epoxies, High Solids, Latex, Lacquer, Metallics, Stains, Single Components, Solvent borne Paints, Solvent borne, Varnish Primers

• Feed Type: Suction Hose

• Fluid Inlet Size (cm): 1.905
• Fluid Inlet Size (in): 3/4
• Fluid Inlet Size (mm): 19.05
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (cm): 0.9525
• Fluid Outlet Size (in): 3/8
• Fluid Outlet Size (mm): 9.525
• Fluid Outlet Thread Type: NPT

• Gun Included: 0
• Gun Model: No Applicator
• Gun Technology: Bare Package
• Gun Type: No Applicator

• Includes: Suction Hose

• Maximum Air Inlet Pressure (bar): 7
• Maximum Air Inlet Pressure (kPa): 700
• Maximum Air Inlet Pressure (psi): 100

• Maximum Flow Rate (GPM): 8.5
• Maximum Flow Rate (L/min): 32

• Maximum Working Pressure (bar): 7
• Maximum Working Pressure (kPa): 700
• Maximum Working Pressure (psi): 100

• Mount Location: Pail Mount
• Mount Type: Pail Mount

• Power Source: Air

• Pressure Type: Low Pressure
• Product Type: Bare Package

• Pump Ratio: 1:1
• Pump Type: Pneumatic Diaphragm Pump

GG 255507

KIT,COMPLETE SEAL, L100CS

Graco 255507 Complete Seal Kit

KIT INCLUDES: PACKING, O-RING [QTY. 1], PACKING, O-RING, PTFE [QTY. 2], PACKING, VEE [QTY. 3], PACKING, VEE, PTFE [QTY. 2], GLAND, PACKING FEMALE [QTY. 1], GLAND, PACKING MALE [QTY. 1], PACKING, O-RING, PTFE [QTY. 1], PACKING, UHMWPE, CM450 [QTY. 2], GLAND, MALE CM450 FOOT VALVE [QTY. 1], GLAND, FEMALE CM450 FOOT VALVE [QTY. 1], BEARING, PISTON GUIDE CM100 [QTY. 1], PACKING, PFTE 100 [QTY. 2], SEAL, PISTON (4.5 CM) [QTY. 1], SEAL, VALVE [QTY. 1], SEAL, [QTY. 1]

GG 256200

T1 PUMP

Graco 256200 T1 Supply Pump (Stainless Steel): 2:1 Fluid to Air Ratio

Gracos family of transfer pumps maintain performance in any environment. Transfer pumps are required to feed chemical to your Reactor spray machine or any other equipment requiring fluid transfer. Consider your material viscosities, desired output rate, interior ceiling height of your rig, and available air pressure when choosing your ideal transfer pump.

• Provide consistent feed pressures and flow rates for dependable results
• Lower pressure drops with higher viscosity materials at any ambient temperature
• Designed and manufactured by the worldwide leader in pump technology
• Quick-release bung adapter for easy drum removal without interference from hose connections
• Stainless steel wetted parts for corrosion-resistance
• PTFE seals for improved performance and less maintenance

• Model: T1

• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Industrial

• Compatible Material: Polyurethane Foam, Polyurea

• Cycles Per Gallon: 40

• Fluid Outlet Size (in): 1/2
• Fluid Outlet Size (mm): 12.7
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT

• Material: Stainless Steel

• Maximum Air Inlet Pressure (bar): 12.5
• Maximum Air Inlet Pressure (kPa): 1250
• Maximum Air Inlet Pressure (MPa): 1.2
• Maximum Air Inlet Pressure (psi): 180

• Maximum Continuous Cycle Rate (CPM): 100

• Maximum Flow Rate (GPM): 2.5
• Maximum Flow Rate (L/min): 9.5

• Maximum Operating Temperature ( degree C): 82
• Maximum Operating Temperature ( degree F): 180

• Maximum Working Pressure (bar): 25
• Maximum Working Pressure (kPa): 2500
• Maximum Working Pressure (MPa): 2.5
• Maximum Working Pressure (psi): 360

• Package Options: Bare

• Pump Ratio: 2:1

GG 257727

KIT,20L SINGLE WIPER NITRILE

KIT INCLUDES: PLATE, 20L, SINGLE WIPER, NITRILE [QTY. 1], KIT INCLUDES: PLATE, 20L, SINGLE WIPER, POLYUE [QTY. 1],

GG 262699

KIT,AIR CAP,VERTICAL

Graco 262699 Vertical Air Cap Kit

KIT INCLUDES: AIR CAP, ASM, VERT, EXTERNAL MIX [QTY. 1], KIT INCLUDES: AIR CAP, ASM, HORIZ, EXTERNAL MIX [QTY. 1],

GG 26A264

GG 246355

GG L060S1

LOWER, CHEMICAL, 60, SST, UCUP

Graco L060S1 Z-Pump, 60 cc, Severe Duty, S1

Z-Pumps are positive displacement pump components for use with the Graco meter, mix, and dispense systems and are ideal for two-component sealant and adhesives requiring precision ratio, flow, and volume controls.

• Severe Duty coatings and 1 inch (2.54 cm) checks easily manage material wear from silicones, sealants, epoxies, foam, and structural adhesives.
• Precision control eliminates pressure spikes and guarantees on ratio dispense.
• Pump seals are the only wear parts, which reduces maintenance downtime and repair costs.

• Model: Z-Pump
• Series: S1

• Ambient/Warm Melt/Hot Melt: Ambient
• Application: Industrial

• Ball Check Size (in): 1
• Ball Material: Silicon Nitride

• Coating Type: Severe Duty

• Feed Type: Pressure Feed

• Fluid Inlet Size (cm): 1.905
• Fluid Inlet Size (in): 3/4
• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: SAE

• For Use With: HFR

• Maximum Flow Rate (GPM): 0.95

• Maximum Operating Temperature ( degree F): 180
• Maximum Output (cm cu ): 60

• Maximum Pump Speed (CPM): 60

• Maximum Viscosity (cP): 3000000

GG LC0093

KIT,REBUILD,VALVE,CHECK,PR70S

KIT INCLUDES: BALL, (.5000) [QTY. 1], SPRING, [QTY. 1], BUSHING, BALL GUIDE [QTY. 1], SEAT, LAPPED [QTY. 1]

GG LCC240

GG GG4617

GG C19661

GG 25F215

GUN, AUTO, HVLP .055, MANIFOLD, ADJ

Graco 25F215 Stellair Automatic Air Spray Gun, HVLP, 0.055 in (1.4 mm) Nozzle for General Applications with fluid control knob, with side inlet manifold (imperial)

High volume low pressure (HVLP) air spray gun produces stellar results on an automated paint line or in a robotic spray booth.

• High volume low pressure (HVLP) air spray produces a controlled, low velocity spray pattern that reduces bounce back and overspray, while meeting environmental regulations.
• General industry air caps and nozzles produce a uniform, high quality spray pattern with low atomizing pressure.
• Precise fluid flow control click knob with true zero set point ensures accurate paint thickness.
• Patented spray pattern alignment and pathing tool ensures accurate and repeatable spray angle. It is easily attached and detached from the gun to keep production moving.
• One piece fluid cartridge can be removed and replaced so quickly that it nearly eliminates maintenance related downtime.

• Application: General
• Applicator Type: Automatic

• Body Material: Metal

• Compatible Material: Adhesives, Ceramics, Fast-Set, High Solids, Sealants, Solvent borne Paints, Stains, UV Coating, Waterborne

• Fluid Adjustment Knob: Clicking
• Fluid Orifice Size (in): 0.055
• Fluid Orifice Size (mm): 1.4

• Gun Model: Stellair
• Gun Series: Automatic
• Gun Type: HVLP Gun
• Gun Weight (g): 430
• Gun Weight (lb): 1

• Manifold Type: Side Inlet

• Maximum Air Pressure (bar): 7

• Maximum Air Pressure (MPa): 0.7
• Maximum Air Pressure (psi): 100

• Maximum Flow Rate (oz/min): 18

• Maximum Fluid Temperature ( degree C): 49
• Maximum Fluid Temperature ( degree F): 120

• Maximum Fluid Temperature ( degree C): 49
• Maximum Fluid Temperature ( degree F): 120

• Maximum Fluid Working Pressure (bar): 21
• Maximum Fluid Working Pressure (MPa): 2.1
• Maximum Fluid Working Pressure (psi): 300

• Minimum Air Inlet Pressure (bar): 3.4
• Minimum Air Inlet Pressure (MPa): 0.34
• Minimum Air Inlet Pressure (psi): 50

• Needle Tip Material: PEEK
• Nozzle Size (in): 0.055
• Nozzle Size (mm): 1.4

• Overall Height (in): 2.95
• Overall Height (mm): 75
• Overall Length (in): 5.9
• Overall Length (mm): 150
• Overall Width (in): 3.55
• Overall Width (mm): 90.2

GG 24N622

KIT, NOZZLE, HIGH WEAR, 1.20 M

Graco 24N622 High Wear Fluid Nozzle for Abrasive Materials, 1.2 mm (.047 inch) Orifice Size, Blue

GG 111457

PACKING,O-RING

Graco 111457 O-Ring Packing, PTFE

GG 117825

GLOVE, COND.,LARGE,BOX OF 12PR

Graco 117825 Conductive Gloves, box of 12, size large

• Bleed Type: Non-Bleeder

• Compatible Material: CARC, Enamel, Epoxies, Fast-Set, High Solids, Latex, Plural Component Materials, Sealants, Solventborne, Urethane, Waterborne

GG 121829

GG 120892

GG 15T632

KIT, ACCESS, AIR FLOW SWITCH

Graco 15T632 Air Flow Switch Kit for ProMix 2KS and ProMix 2KE Electronic Proportioners

GG 238748

KIT, REPAIR, CARTRIDGE

Graco 238748 Cartridge Repair Kit for Air-Operated Ambient Fluid Pressure Regulators

KIT INCLUDES: CARTRIDGE, ASSEMBLY [QTY. 1], KIT INCLUDES: NEEDLE, 3/16 BALL [QTY. 1], SEAT, 3/16 BALL [QTY. 1], GASKET, COPPER [QTY. 1]

GG 237908

KIT, REPAIR, BLEED VALVE

GG 244930

GG 244967

HOSE, CPLD, COND, AIR, 50 FT

Graco 244967 AirFlex Flexible Grounded Air Hose (Grey)- 0.315 in. (8 mm) ID, 1/4 npsm(f) x 1/4 npsm(f) left-hand thread, 50 ft (15 m) length

GG 197624

GG 2004152

STELLAIR GUN, HVLP (.055)

Graco 2004152 Stellair Air Spray Gun, HVLP, 0.055 in (1.4 mm), General Industry, PEEK Tip

Pressure feed air spray gun delivers the all-star ergonomics, performance, and serviceability industrial painters need to produce stellar results.

• High volume low pressure (HVLP) air spray produces a controlled, low velocity spray pattern that reduces bounce back and overspray, while meeting environmental regulations.
• General industry air cap produces a uniform, high quality spray pattern with low atomizing pressure that reduces air cap build-up.
• Polyetheretherketone (PEEK) needle tip withstands active use, increasing uptime between service intervals.
• Swivel and hose move with you at any angle, preventing tripping and injury

GG 24A366

KIT, MOTOR,PILOT VALVE

GG 24A256

KIT, REPAIR,VEE, 150CC

Graco 24A256 Standard Seal Repair Kit for Merkur LW150A

GG 202965

GG 24N634

KIT, VALVE, FAN AIR

Graco 24N634 Standard Fan Air Adjustment Valve Kit

GG 214698

HOSE, CPLD, 3/16" X 25'

Graco 214698 BlueMax II Airless Hose, 3/16 in x 25 ft (7.6 m)

To maximize performance, choose BlueMax II high performance airless hose. With superior flexibility and durability, BlueMax II is designed to ensure you get the best results from your airless sprayer.

• Lighter Weight

  Over 10% lighter weight and increased hose flexibility improves under pressure

• Highest Safety Standards

  Conductive core meets the highest worldwide safety standards unlike competitive ground wire hose designs

• Minimal Hose Coil Memory

  BlueMax II Hose has superior flexibility and reduced coil memory providing ease of use during coiling and uncoiling

• Model: BlueMax II
• Series: Hose

• Hose Diameter (in): 3/16
• Hose Length (cm): 762
• Hose Length (ft): 25
• Hose Length (in): 300
• Hose Length (m): 7.6
• Hose Length (mm): 7600

• Maximum Working Pressure (bar): 231
• Maximum Working Pressure (kPa): 2310
• Maximum Working Pressure (psi): 3300

GG 214584

KIT, REPAIR AIR MOTOR

Graco 214584 Repair Kit for Fast-Flo Air Motor

• Compatible Material: Waterborne, Solventborne, High Solids, Xirallic, CARC, Metallics, Topcoats, Stains, Varnish

GG 217374

GG 236770

REGULATOR, BACK PRESSURE

Graco 236770 Back Pressure Regulator, Low Pressure Mini, 180 Max psi, SST, Manual, 3/8 (m) x 3/8 (f), with Gauge

Back pressure regulators use closed loop control to maintain the pressure of the system regardless of flow demand

• Stainless steel wetted materials are compatible with catalyst and waterborne materials
• Tungsten and carbide materials ensure low wear and long life
• Compact and lightweight design saves space and reduces payload for small circulation systems
• Air operated model available for automated control, Conversion kit (237448)

• Compatible Material: Catalyst, Waterborne

• Gauge Port Size (cm): 0.635
• Gauge Port Size (in): 1/4
• Gauge Port Size (mm): 6.35

• Gauge Port Type: NPT

• Inlet Size (cm): 0.9525
• Inlet Size (in): 3/8
• Inlet Size (mm): 9.525

• Inlet Thread Type: NPSM

• Maximum Flow Rate (GPM): 4.3
• Maximum Flow Rate (L/min): 16.28

• Maximum Regulated Pressure (bar): 12.4
• Maximum Regulated Pressure (kPa): 1240
• Maximum Regulated Pressure (psi): 180

• Maximum Viscosity (cP): 1000

• Maximum Working Pressure (bar): 21
• Maximum Working Pressure (kPa): 2100
• Maximum Working Pressure (psi): 300

• Minimum Regulated Pressure (bar): 0.3
• Minimum Regulated Pressure (kPa): 30
• Minimum Regulated Pressure (MPa): 0.03
• Minimum Regulated Pressure (psi): 5

• Outlet Size (cm): 0.9525
• Outlet Size (in): 3/8
• Outlet Size (mm): 9.525
• Outlet Thread Type: NPSM

GG 237149

KIT, O-RING-B1 PT-8

Graco 237149 3/8-inch PTFE Seal Kit

GG 255653

KIT, SEAL, EPDM, 55 GL

Graco 255653 55 Gallon EPDM Drum Wiper Seal

KIT INCLUDES: SEAL, DRUM WIPER 55 GALLON [QTY. 2], KIT INCLUDES: WIPER, SEAL [QTY. 2],

GG 255217

KIT, SEAL,CYLINDER,AIR,VALVE

KIT INCLUDES: PACKING, O-RING [QTY. 3], PACKING, O-RING [QTY. 2], PACKING, O-RING, BUNA-N [QTY. 2], BEARING, SLEEVE 1/4, 3/8, 1/4NYL [QTY. 2], LUBRICANT, GREASE [QTY. 1]

GG 255220

KIT, SEAL,NOSE,UL2K

KIT INCLUDES: O-RING, [QTY. 2], GASKET, SEAT [QTY. 2], SEAT, VALVE [QTY. 2], INSERT, SUFF-BACK, 2K2 [QTY. 2], NEEDLE, 2K2 SST HARDENED [QTY. 2]

GG 255244

GG 25F109

KIT, ACCESSORY, LEAK SENSE HAZ

Graco 25F109 Hazardous Location Leak Sensor Accessory Kit

• Includes:


  1 level switch sensor

  2 elbow swivels (1/4 in. NPT, 3/8 in. hose port)

  1 tee union

  1 hose (30 in. long, 3/8 in. outer diameter)

  1 elbow swivel (1/4 in. NPT, 1/4 in hose port)

  1 elbow swivel (1/8 in. NPT)

  1 hose (20 in. long, 1/4 in. outer diameter)

  1 pipe bushing

GG 830352

GG 915587

HOUSING, DIAPHRAGM

GG 512135

GG 289041

KIT,AIR CAP,GEN METAL,HVLP

Graco 289041 General Metal Spray Gun Aircap Kit

• Bleed Type: Non-Bleeder
• Body Material: Metal

• Compatible Material: Epoxies, High Solids, Latex, Plural Component Materials, Sealants, Solventborne, Urethane, Waterborne

GG 289773

KIT,AIR CAP,CONVENTIONAL

Graco 289773 Air Cap Kit for AirPro Conventional Guns with 0.020-0.070 in (0.5-1.8 mm) Nozzle

GG D51311

HUSKY PUMP, 515AC-PP01AAC3SSPTPTPT0

Graco D51311 Husky 515 AC 1/2 in NPT Standard Pump, PP Center Section, SS Seats, PTFE Balls & PTFE Diaphragm

The Husky 515 air-operated double diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.

The bolt through fluid cover design eliminates leaks and makes the Husky safer with higher reliability.

• Center and end porting options.
• No mechanical seals to cause fluid leaks or failures
• Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
• Operates on as little as 20 psi (1.4 bar, 0.14 MPa)
• Split manifold option to pump multiple fluids without mixing
• Delivery up to 15 gpm (56.7 lpm)
• Easy-to-service air valve and ball checks
• Reliable air valve for years of dependable performance

• Model: Husky
• Series: 515

• Air Exhaust Port Size (in): 3/8
• Air Exhaust Port Thread Gender: Female
• Air Exhaust Port Thread Type: NPT
• Air Inlet Size (in): 1/4
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Industrial

• Ball Material: PTFE

• Center Section Material: Polypropylene

• Compatible Material: Antifreeze, Detergents, Resin, Polymers, Motor Oil, Grease & Oil, Hydraulic Fluid, Transmission Fluid, Cutting Oil, Water - Wastewater Treatment, Ink

• Connection Type: Threaded

• Diaphragm Compatible Material: PTFE
• Diaphragm Material: PTFE/EPDM 2-Piece

• Fluid Inlet Size (cm): 1.27
• Fluid Inlet Size (in): 1/2
• Fluid Inlet Size (mm): 12.7
• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (cm): 1.27
• Fluid Outlet Size (in): 1/2
• Fluid Outlet Size (mm): 12.7
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT
• Fluid Section Material: Acetal

• Manifold Configuration: Center Port
• Manifold O-Ring Material: PTFE
• Material: Acetal

• Maximum Air Consumption (SCFM): 28
• Maximum Air Pressure (bar): 7

• Maximum Air Pressure (kPa): 700
• Maximum Air Pressure (MPa): 0.7
• Maximum Air Pressure (psi): 100

• Maximum Cycle Rate (CPM): 400

• Maximum Flow Rate (GPM): 15
• Maximum Flow Rate (L/min): 56.8

• Maximum Fluid Pressure (bar): 7
• Maximum Fluid Pressure (kPa): 700
• Maximum Fluid Pressure (MPa): 0.7
• Maximum Fluid Pressure (psi): 100

• Maximum Fluid Pressure (bar): 7
• Maximum Fluid Pressure (kPa): 700
• Maximum Fluid Pressure (MPa): 0.7
• Maximum Fluid Pressure (psi): 100

• Maximum Operating Temperature ( degree C): 82
• Maximum Operating Temperature ( degree F): 180

• Maximum Solid Size (cm): 0.2383
• Maximum Solid Size (in): 0.09375
• Maximum Solid Size (mm): 2.4

• Minimum Operating Temperature ( degree C): 4
• Minimum Operating Temperature ( degree F): 40

• Overall Height (in): 10.63

• Power Source: Air

GG L010S1

LOWER, CHEMICAL, 10, SST, UCUP

Graco L010S1 Z-Pump, 10 cc, Severe Duty, S1

Z-Pumps are positive displacement pump components for use with the Graco meter, mix, and dispense systems and are ideal for two-component sealant and adhesives requiring precision ratio, flow, and volume controls.

• Severe Duty coatings and 1 inch (2.54 cm) checks easily manage material wear from silicones, sealants, epoxies, foam, and structural adhesives.
• Precision control eliminates pressure spikes and guarantees on ratio dispense.
• Pump seals are the only wear parts, which reduces maintenance downtime and repair costs.

• Model: Z-Pump
• Series: S1

• Ambient/Warm Melt/Hot Melt: Ambient
• Application: Industrial

• Ball Check Size (in): 1
• Ball Material: Silicon Nitride

• Coating Type: Severe Duty

• Feed Type: Pressure Feed

• Fluid Inlet Size (cm): 1.905
• Fluid Inlet Size (in): 3/4
• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: SAE

• For Use With: HFR

• Maximum Flow Rate (GPM): 0.16

• Maximum Operating Temperature ( degree F): 180
• Maximum Output (cm cu ): 10

• Maximum Pump Speed (CPM): 60

• Maximum Viscosity (cP): 3000000

GG 16U363
