D/S Regulator,3/8in,SS,20-160 psi

GG 222115

REGULATOR, PRESSURE, FLUID

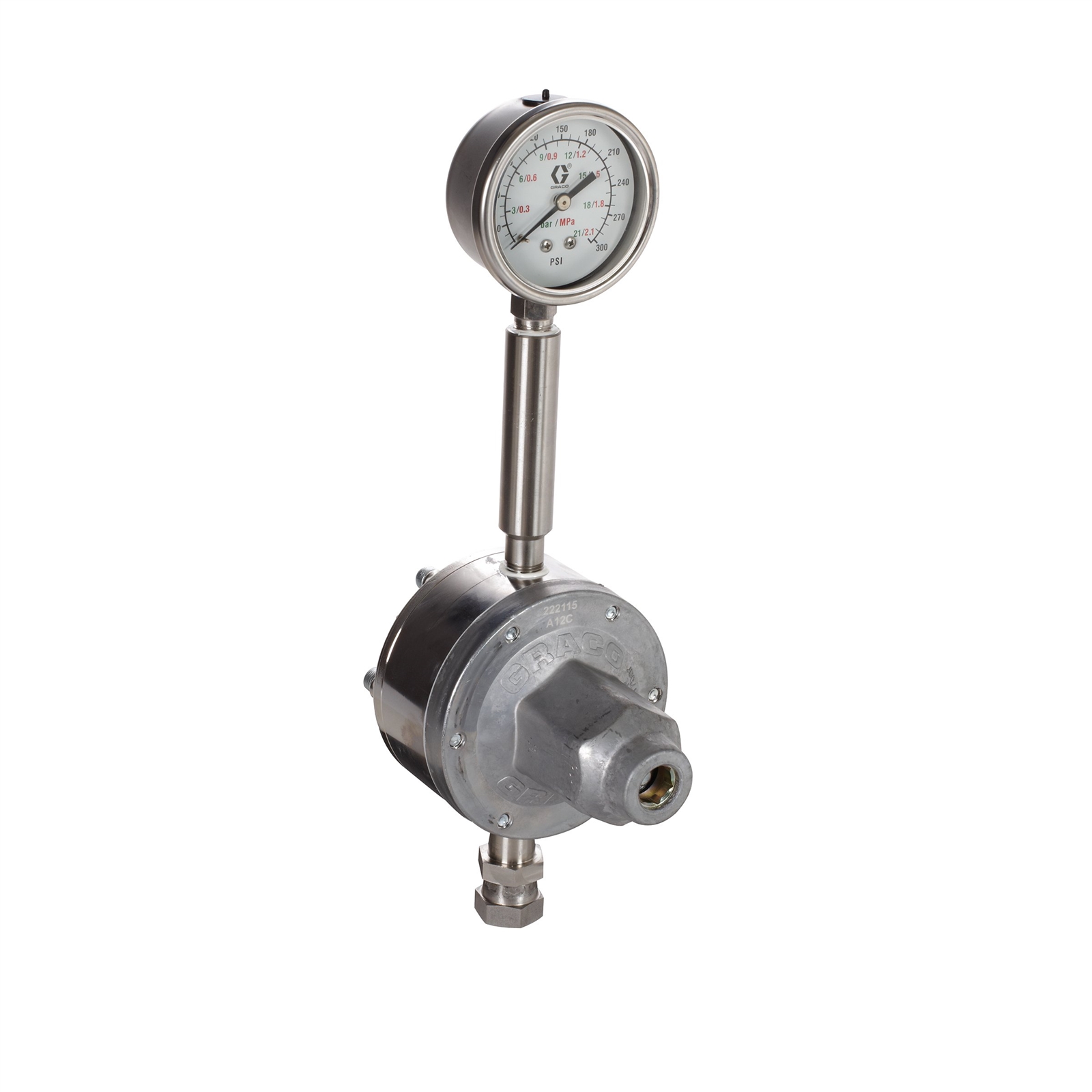

Graco 222115 Low Pressure Fluid Regulator, 300 Max psi, 20-160 psi Range, 3.0 GPM, SST, Spring Type, 3/8 (f) x 3/8 (m), 1/4 (f) Port

Fluid regulators keep your system functioning more productively.

• Available with mechanical control or pneumatic control
• Suitable for fluids with low and high viscosities
• Models available with wetted parts made of stainless steel

• Actuation Type: Spring

• Gauge Port Size (cm): 0.635
• Gauge Port Size (in): 1/4
• Gauge Port Size (mm): 6.35

• Gauge Port Type: NPT

• Includes: Gauge
• Inlet Size (cm): 0.9525
• Inlet Size (in): 3/8
• Inlet Size (mm): 9.525

• Inlet Thread Type: NPT

• Maximum Flow Rate (GPM): 3
• Maximum Flow Rate (L/min): 11.36

• Maximum Regulated Pressure (bar): 11
• Maximum Regulated Pressure (kPa): 110
• Maximum Regulated Pressure (MPa): 1.1
• Maximum Regulated Pressure (psi): 160

• Maximum Viscosity (cP): 300

• Maximum Working Pressure (bar): 18
• Maximum Working Pressure (kPa): 1800
• Maximum Working Pressure (MPa): 1.8
• Maximum Working Pressure (psi): 250

• Minimum Regulated Pressure (bar): 1.5
• Minimum Regulated Pressure (kPa): 150
• Minimum Regulated Pressure (MPa): 0.15
• Minimum Regulated Pressure (psi): 20

• Outlet Size (cm): 0.9525
• Outlet Size (in): 3/8
• Outlet Size (mm): 9.525
