FILTER, LIQUID LP, 150

GG 213060

FILTER, LIQUID LP, 150

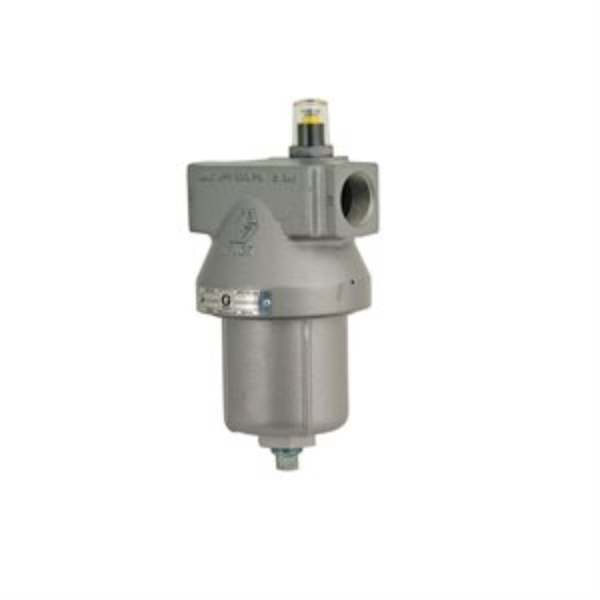

Graco 213060 Low Pressure Red Alert Filter, 6 gpm (22.7 lpm), 150 mesh (95 micron) element, 3/4 npt

Filtering is your best defense against premature pump wear, gun wear, surface defects, reworks and tip plugging. The unique red pop-up indicator reveals when fluid filter element requires replacement. Built-in bypass valving directs continuous flow through separate passage when filter clogs, preventing downtime.

Application: Large flow capacity is ideal for large circulation and supply systems.

Red Alert indicator signals filter element replacement to ensure efficient filtration
Bottom port for installing quick flush ball valve

Filter Area (in²): 36

Inlet Size (cm): 1.905
Inlet Size (in): 3/4
Inlet Size (mm): 19.05
Inlet Thread Type: NPT
Material: Aluminum
Maximum Flow Rate (GPM): 6
Maximum Flow Rate (L/min): 22.7
Maximum Working Pressure (bar): 21
Maximum Working Pressure (kPa): 2100
Maximum Working Pressure (MPa): 2.1
Maximum Working Pressure (psi): 300
Outlet Size (cm): 1.905
Outlet Size (in): 3/4
Outlet Size (mm): 19.05
Outlet Thread Type: NPT
Overall Depth (cm): 9.5
Overall Depth (in): 3.75
Overall Depth (mm): 95
Overall Height (cm): 22
Overall Height (in): 8.75
Overall Height (mm): 220
Overall Width (cm): 10
Overall Width (in): 4
Overall Width (mm): 100

$1,145.00

FILTER, 60 MESH, 190 ES

GG 243080

FILTER, 60 MESH, 190 ES

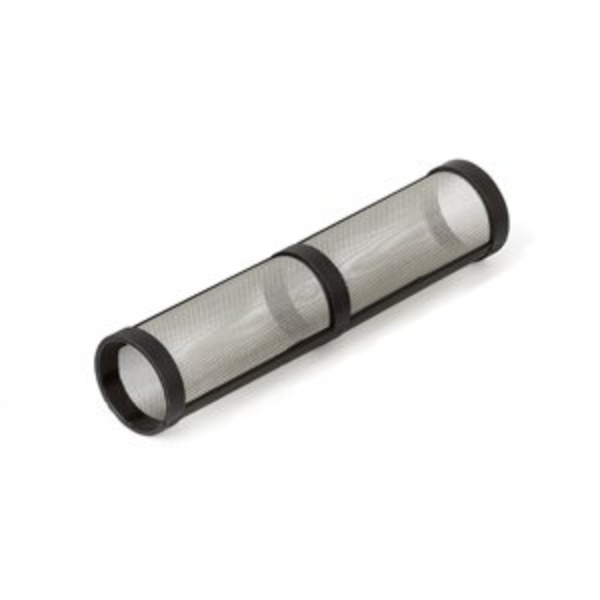

Graco 243080 Easy Out Pump Manifold Filter, 60 mesh

This ES/GS 60-Mesh Manifold Filter helps you get the best performance from your sprayer. For a smooth finish and no clogs, it filters out paint debris from your pump. This will extend the life of your sprayer and help you paint faster. This filter is compatible with all Graco GS and ES model paint sprayers.

Application: This ES/GS 60-Mesh Manifold Filter helps you get the best performance from your sprayer. For a smooth finish and no clogs, it filters out paint debris from your pump. This will extend the life of your sprayer and help you paint faster. This filter is compatible with all Graco GS and ES model paint sprayers.

Full-flow filter is designed to use the entire mesh surface for maximum filtration
Captures dirt and debris inside the filter preventing the filter from getting clogged
Vertical design allows for easy replacement on the job
Ideal for filtering heavier materials such as interior and exterior latex paint
Flushes quickly with minimal water for easy cleaning and is removed with the cap for less mess
For use with all Graco ES and GS model paint sprayers

Model: Easy Out
Series: Manifold Filter

For Use With: ST PRO Airless Sprayers, Pro190ES Stand, Pro210ES Stand, Pro270ES Stand, Pro190ES Cart, Pro210ES Cart, Magnum A100 ProPlus
Mesh Size: 60
Number of Pieces: 1
Overall Depth (cm): 2.54
Overall Depth (in): 1
Overall Depth (mm): 25.4
Overall Height (cm): 10.795
Overall Height (in): 4.25
Overall Height (mm): 107.95
Overall Width (cm): 2.54
Overall Width (in): 1
Overall Width (mm): 25.4

$17.90

FILTER, 200 MESH, ULTRA

GG 244069

FILTER, 200 MESH, ULTRA

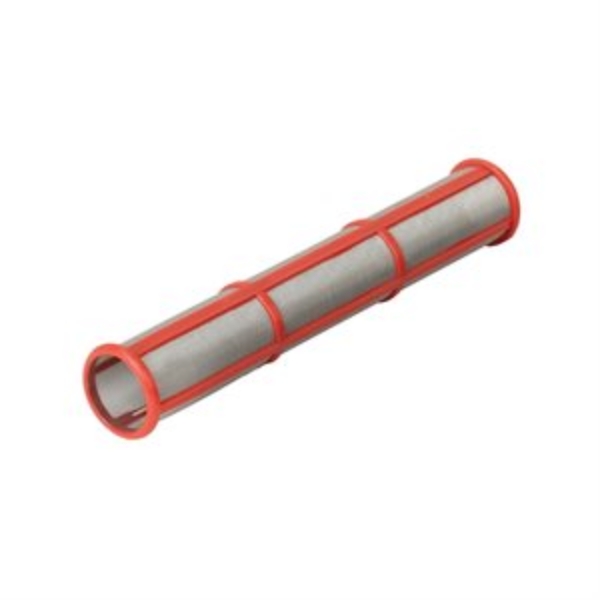

Easy Out Pump Manifold Filter, Long, 200 mesh

Using an Easy Out Pump Manifold Filter is the easiest way to maximize spray performance while also saving time and money by extending the life of your equipment and reducing down time. Use 200 mesh for thinner materials such as stains, varnishes, and solvent-based paints.

$22.50
