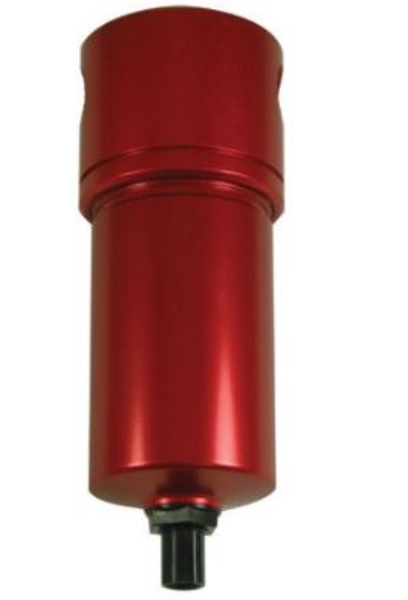

HEAVY DUTY FILTER 1" NPT

EI F1000HDMP

HEAVY DUTY FILTER 1" NPT

$316.30

FILTER, LIQUID HP

High Pressure Red Alert Filter, 200 mesh (74 micron) element

Filtering is your best defense against premature pump wear, gun wear, surface defects, reworks and tip plugging. The unique red pop-up indicator reveals when fluid filter element requires replacement. Built-in bypass valving directs continuous flow through separate passage when filter clogs, preventing downtime.

Large flow capacity is ideal for large circulation and supply systems. Red Alert indicator signals filter element replacement to ensure efficient filtration Integrated mounting holes make installation to frame and equipment easy Bottom port for installing quick flush ball valve

$2,380.00

FILTER, LIQUID HP

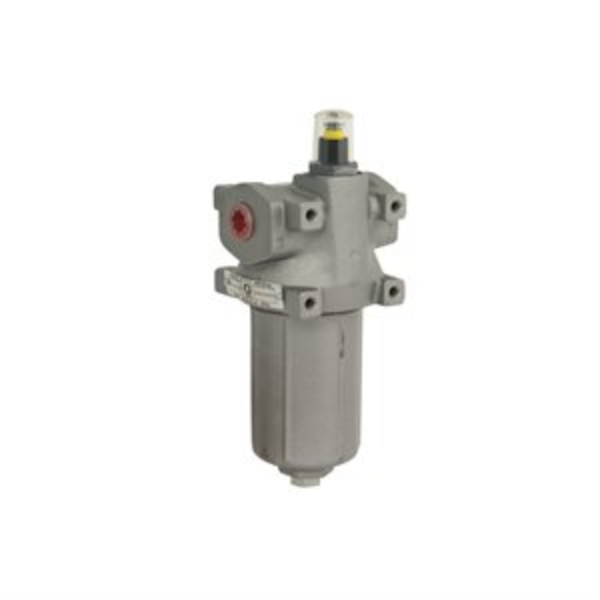

GG 208000

FILTER, LIQUID HP

Graco 208000 High Pressure Red Alert Filter, 0.050 in (1.3 mm) stab point element mesh (590 micron) element

Application: Large flow capacity is ideal for large circulation and supply systems.

Red Alert indicator signals filter element replacement to ensure efficient filtration
Integrated mounting holes make installation to frame and equipment easy
Bottom port for installing quick flush ball valve

Filter Area (in²): 66

Inlet Size (cm): 3.18
Inlet Size (in): 1-1/4
Inlet Size (mm): 31.75
Inlet Thread Type: NPT
Material: Carbon Steel
Maximum Flow Rate (GPM): 6
Maximum Flow Rate (L/min): 22.7
Maximum Working Pressure (bar): 210
Maximum Working Pressure (kPa): 21000
Maximum Working Pressure (MPa): 21
Maximum Working Pressure (psi): 3000
Outlet Size (cm): 3.18
Outlet Size (in): 1-1/4
Outlet Size (mm): 31.75
Outlet Thread Type: NPT
Overall Depth (cm): 17
Overall Depth (in): 6.56
Overall Depth (mm): 167
Overall Height (cm): 33
Overall Height (in): 13.08
Overall Height (mm): 335
Overall Width (cm): 17
Overall Width (in): 6.56
Overall Width (mm): 167

$2,420.00

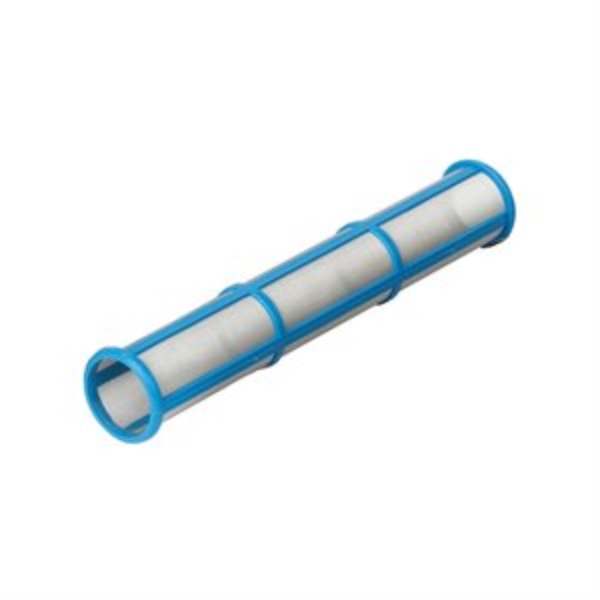

FILTER, 100 MESH, ULTRA

GG 244068

FILTER, 100 MESH, ULTRA

Easy Out Pump Manifold Filter, Long, 100 mesh Using an Easy Out Pump Manifold Filter is the easiest way to maximize spray performance while also saving time and money by extending the life of your equipment and reducing down time. Use 100 mesh for materials such as lacquers and solvent-based enamels and paints.

$20.00
