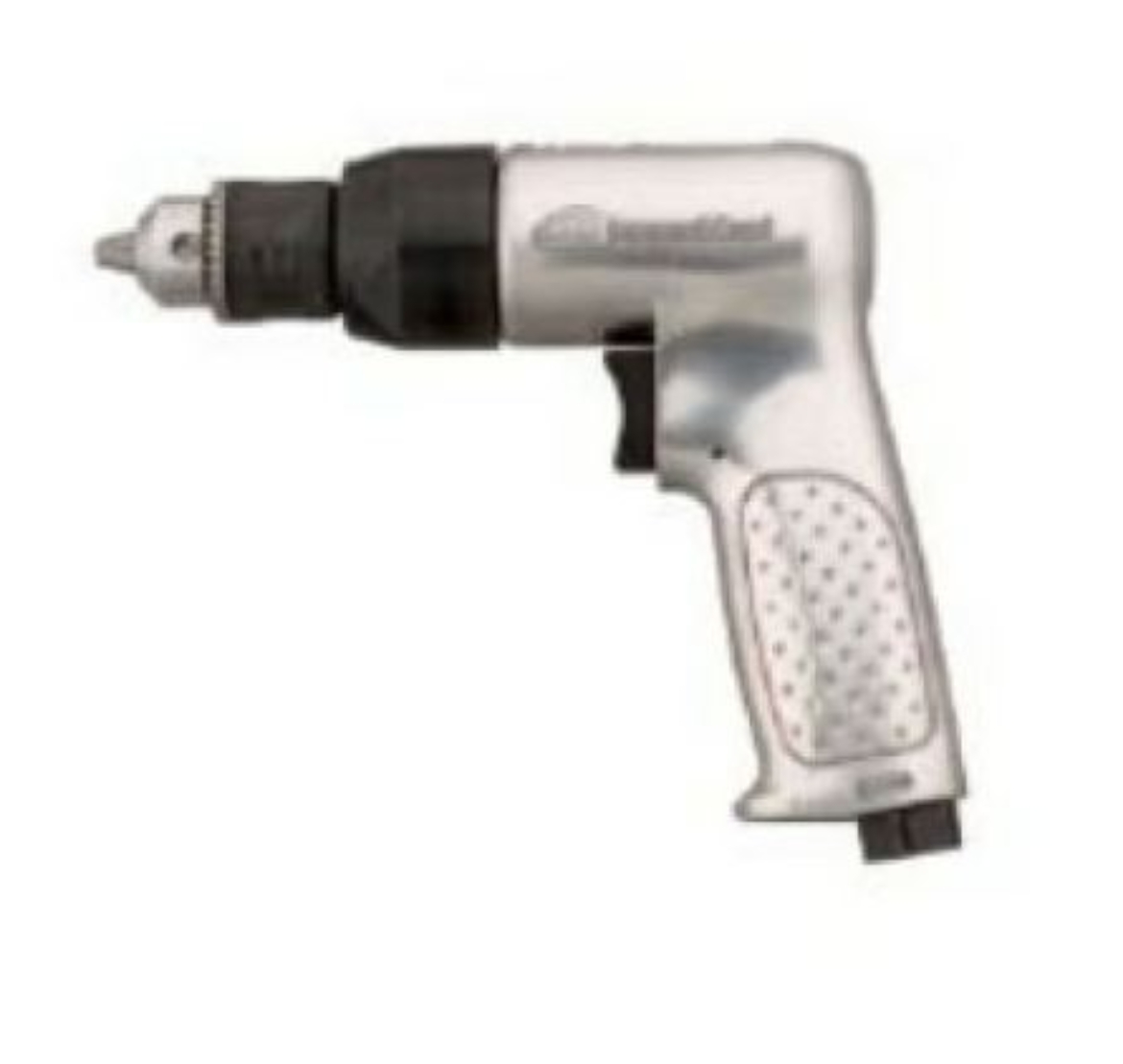

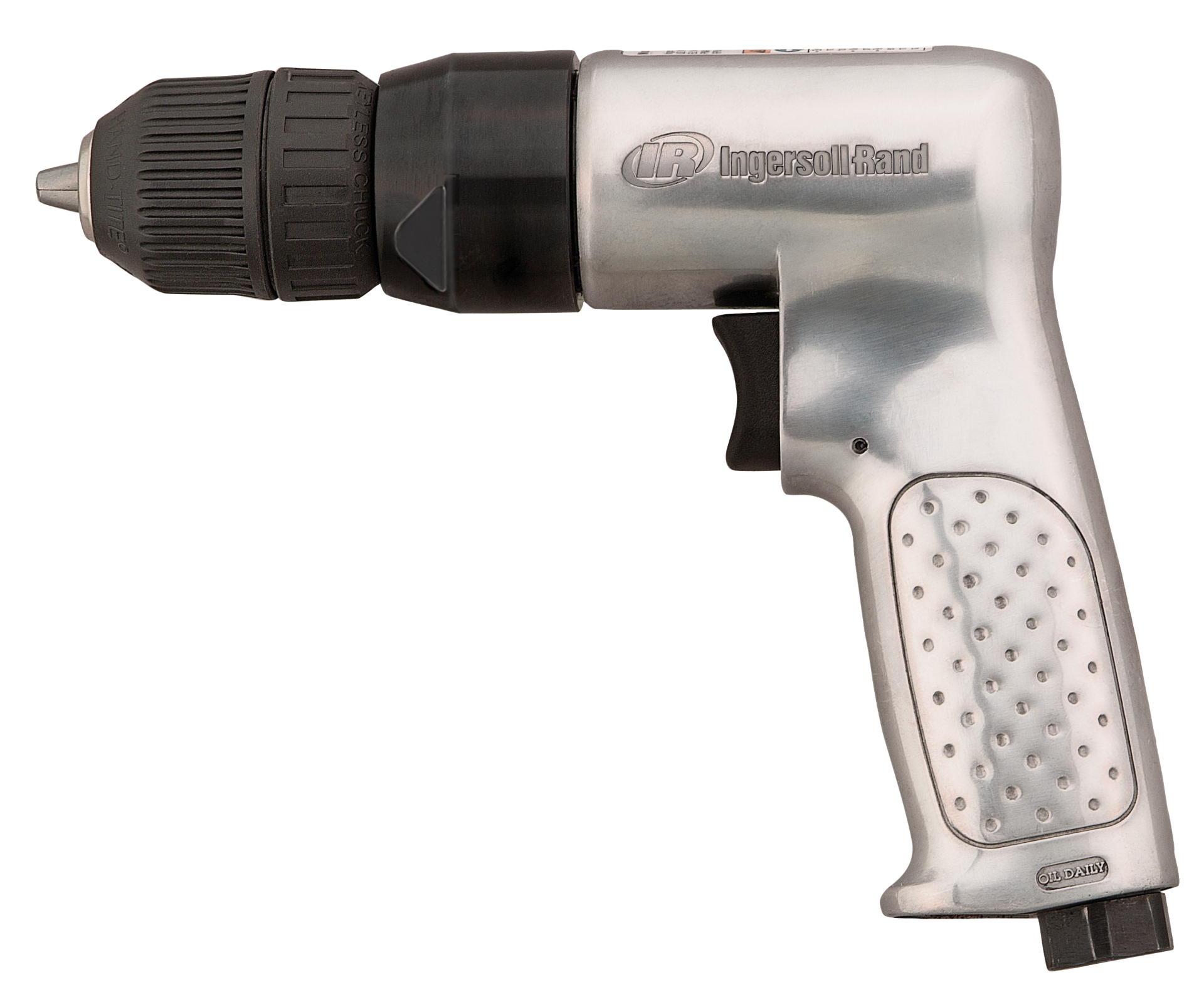

IR 7802AKC
3/8" Keyless Chuck Air Drill, 2000 RPM, 0.5 HP, 2.65in-lb Torque, Pistol
A classic pistol-shaped 3/8" air drill with a keyless chuck and is great for honing, reaming or drilling holes.
Features And Benefits
- Reliable: With a sturdy aluminum housing and variable speed throttle, you can be sure you’ll be able to control your tool and trust that it’ll perform the way you want it to. Comes with a 1-year warranty.
Product Application and Uses: These drills are designed for drilling, valve guide reaming and cylinder honing operations.
Actuation/Throttle Type/Switch Type: Trigger
Air Consumption @ Load (cfm): 26
Air Consumption @ Load (l/min): 736
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 3/8"-24 Thread
Average Air Consumption (cfm): 4
Average Air Consumption (l/min): 113
Bearing Type: Double Row Ball
Chuck Capacity/Bit Capacity (in): 3/8
Chuck Type: Keyless Chuck
Color: Silver
Configuration/Handle Type: Pistol Grip
Duty Rating: Industrial Duty
Exhaust Location: Handle
Gear Train: Planetary
Handle Material: Aluminum
Height Over Spindle (in): 7.8
Housing Material: Aluminum
Max Free Speed (rpm): 2000
Max Pressure (bar): 6.2
Max Torque (ft-lb): 0.2
Max Torque (in-lb): 2.7
Max Torque (nm): 0.3
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 7.8
Product Weight (lb): 2.6
Rated Power (hp): 0.5
Reversible: Non-reversible
Side to Center Distance (in): 0.9
Side to Center Distance (mm): 23
Sound Pressure/Power Db(A): 83
Speed Setting: Variable Speed
Vibration Level (m/s2): 2.8
Warranty: 1-year
