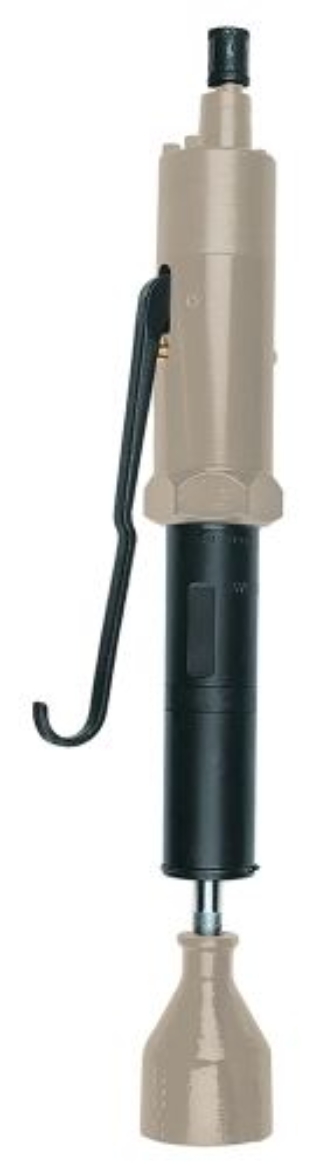

Bench Sand Rammer

IR 130A1M

Pneumatic Bench Sand Rammer, 2-1/2" Round Malleable Butt, 2.5" Stroke, 1" Bore

Description: With dual-action sand wipers, a built-in muffler and a side exhaust, this tool is built for heavy use. Ideal for compacting small sand molds in a foundry or casting facility. Its shorter height and light weight allow this unit to be used on smaller molds that are set up waist high.

Features And Benefits:

• Reliability: Thanks to a built-in lubricator, these tools will run smoothly and last.
• Durability: With a plated piston and front-end seal to protect your tool, this Backfill Tamper can be used in the toughest environments. The sand-wiper seal prevents dirt and grit from getting inside the tool.
• Access: This tool is as lightweight as it is powerful, making compact spaces easy to reach.

Product Application and Uses:

Ideal for compacting small sand molds in a foundry or casting facility

• Actuation/Throttle Type/Switch Type: Lever
• Air Consumption @ Load (cfm): 14
• Air Consumption @ Load (l/min): 396
• Air Inlet: 1/4" NPT
• Air Pressure (psi): 90

• Blows per Min: 870
• Bore Diameter (in): 1
• Butt Diameter (in): 2.5
• Butt Material: Malleable/ Steel
• Butt Shape: Round

• Color: Beige
• Configuration/Handle Type: Straight
• Duty Rating: Super Duty

• Exhaust Location: Side

• Housing Material: Steel
• Inline Oilers: Yes

• Max Pressure (bar): 6.2
• Min Hose Size (in): 3/8
• Muffler: Built In

• Power Source: Air Powered
• Product Length (in): 21.5

• Product Weight (lb): 11.56
• Retainer Type: Latch

• Shank Opening: 1/2" Tapered Rod

• Special Features: Time Tested Valve Design, Round Piston Rod, Built In Muffler, Optional Front End Butts Available.
• Steels: Yes
• Stroke Length (in): 2.5

• Warranty: 1-year

• Accessories: 12SR-83

• Lubrication: 10G
• Lubrication: 10P
• Parts: 130SR-188
• Parts: 241SR-122
