Glutton Pump, (12:1 Cs)

GG 237009

GLUTTON PUMP, (12:1 CS)

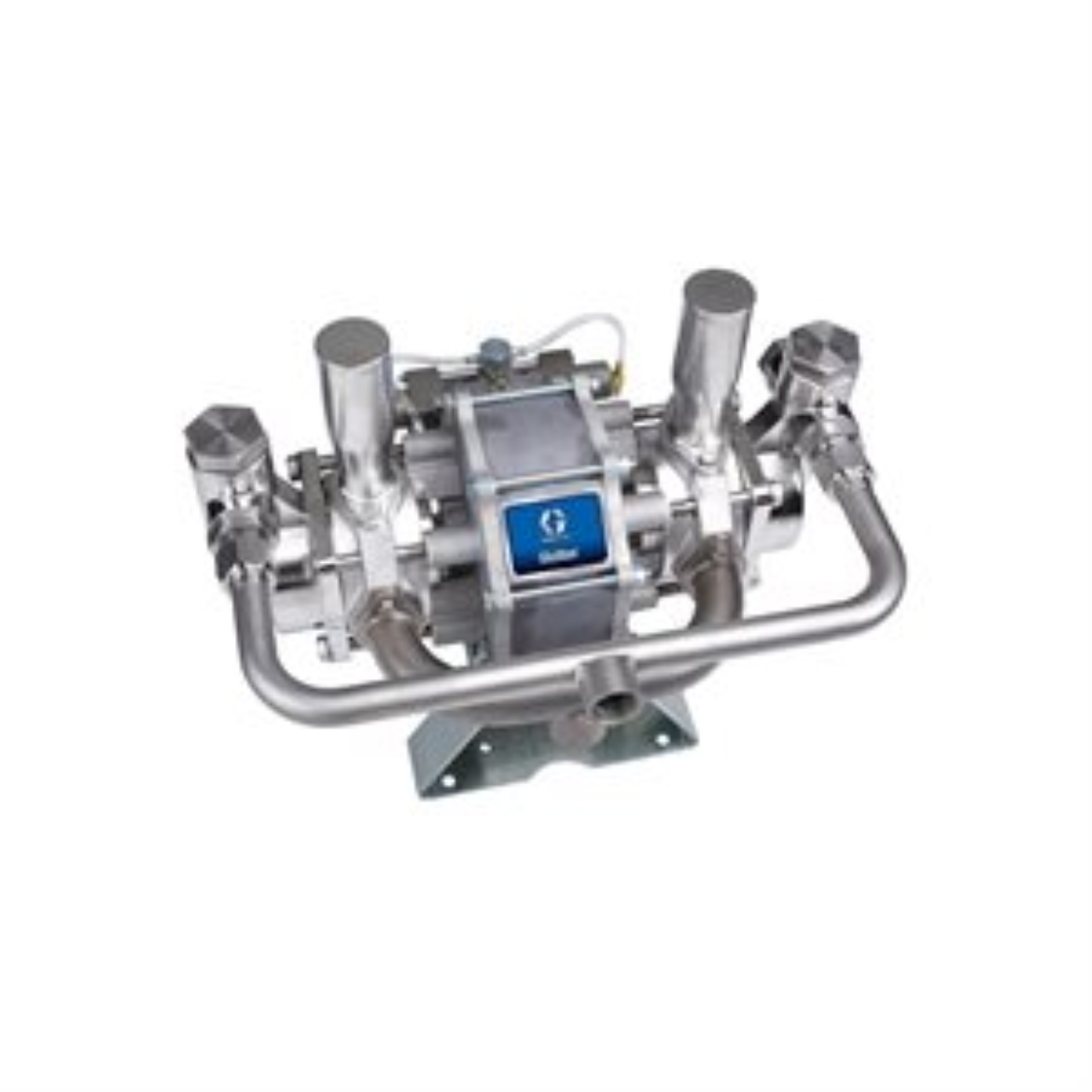

Graco 237009 Glutton 12:1 Bellows Pump, CS, Series A

The Glutton plunger pump is ideal for air assisted and airless spray applications. It features a bellows seal that virtually eliminates the possibility of air or moisture contaminating the fluid. Pump ratios include 4:1, 12:1 and 25:1

• Bellows seal design provides low maintenance with no seals exposed to the atmosphere and eliminates conventional throat seals, providing high reliability for moisture-sensitive materials
• Designed to handle a broad range of applications, including abrasive materials
• Reversible outlet manifold simplifies plumbing installations

• Model: Glutton
• Series: Bellows

• Air Inlet Size (in): 0.5
• Air Inlet Size (mm): 12.7
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Circulation

• Compatible Material: Waterborne, Solvent borne, High Solids, Xirallic, Metallics, UV Coating, Stains, Varnish, CARC

• Fluid Outlet Size (in): 1
• Fluid Outlet Size (mm): 25.4
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT
• Fluid Section Type: Sealed

• Material: Carbon Steel

• Maximum Air Inlet Pressure (bar): 6.9
• Maximum Air Inlet Pressure (kPa): 690
• Maximum Air Inlet Pressure (psi): 100

• Maximum Continuous Cycle Rate (CPM): 60

• Maximum Flow Rate (GPM): 2
• Maximum Flow Rate (L/min): 7.57

• Maximum Operating Temperature ( degree C): 66
• Maximum Operating Temperature ( degree F): 150

• Maximum Working Pressure (bar): 83
• Maximum Working Pressure (kPa): 8300
• Maximum Working Pressure (MPa): 8.3
• Maximum Working Pressure (psi): 1200

• Portable: Non-Portable

• Pump Ratio: 12:1
