GG 17K659
KIT, PUMP, 4B, BELLOWS, 2000 CC

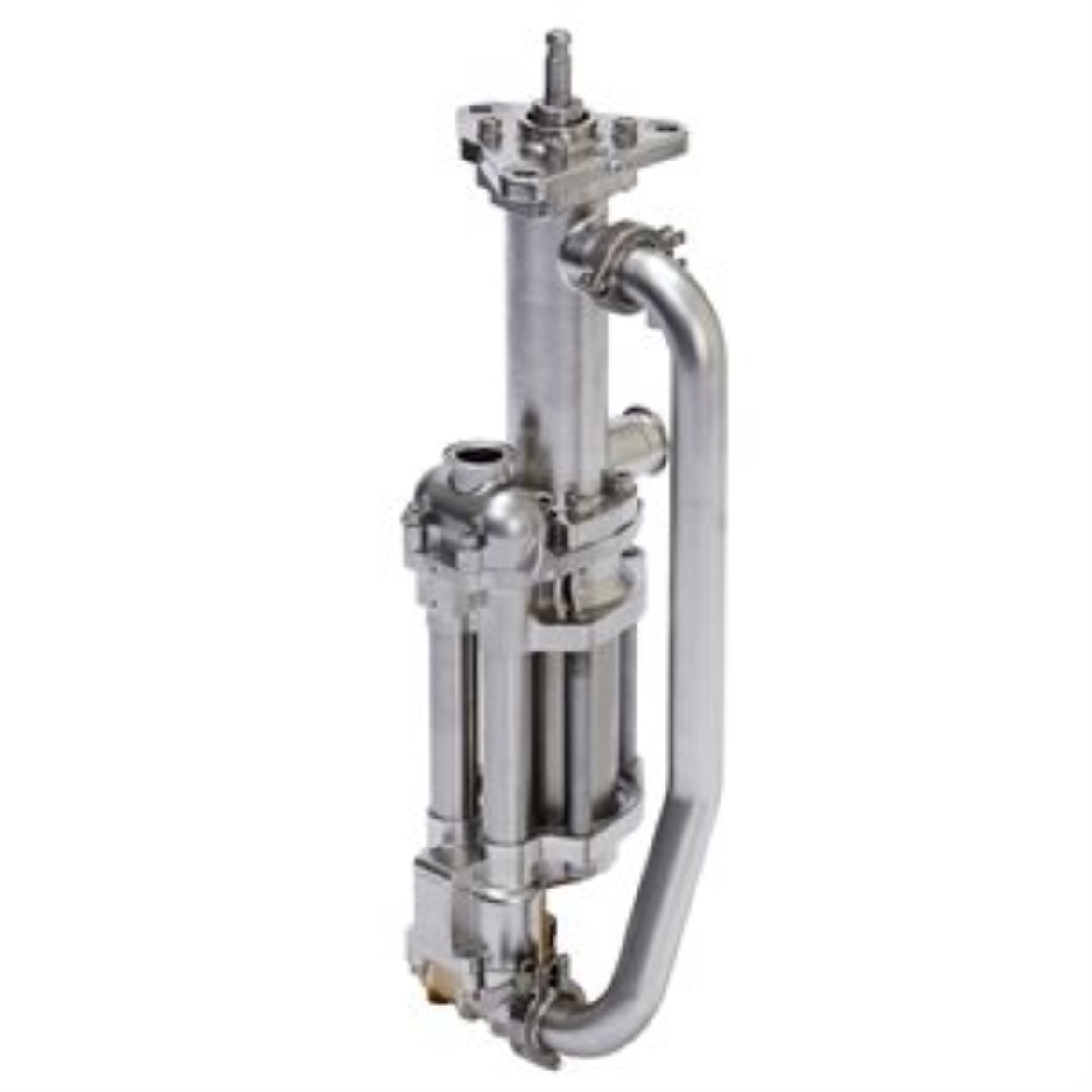

Graco 17K659 Sealed 4-Ball Lower, 2000 cc, Stainless Steel, Ultralife Rod & Cylinder, Tri-Clamp Fittings
Graco's Sealed 4-Ball Lower needs no routine maintenance and prevents unexpected downtime. The sealed fluid section eliminates the need for TSL (throat seal liquid). Designed to keep pumping in the event of a bellows failure, the lower allows you to schedule maintenance.
- Ultralife coating on lower rods and cylinders means a smoother finish, better wear and longer seal life for most applications.
- Connection kits contain tie rods and adapters - everything required to upgrade most legacy Graco circulation pumps to the latest technology. Refer to manual 311876 for complete information.
- Fluid Inlet Size (cm): 3.81
- Fluid Inlet Size (in): 1.5
- Fluid Inlet Thread Gender: Male
- Fluid Inlet Thread Type: Tri-Clamp
- Fluid Outlet Size (in): 1.5
- Fluid Outlet Thread Gender: Male
- Fluid Outlet Thread Type: Tri-Clamp
- Maximum Flow Rate (GPM): 10.6
- Maximum Operating Temperature ( degree F): 150
- Maximum Output (cm cu ): 40000
- Maximum Pump Speed (CPM): 20
- Maximum Working Pressure (psi): 460
