Balancers

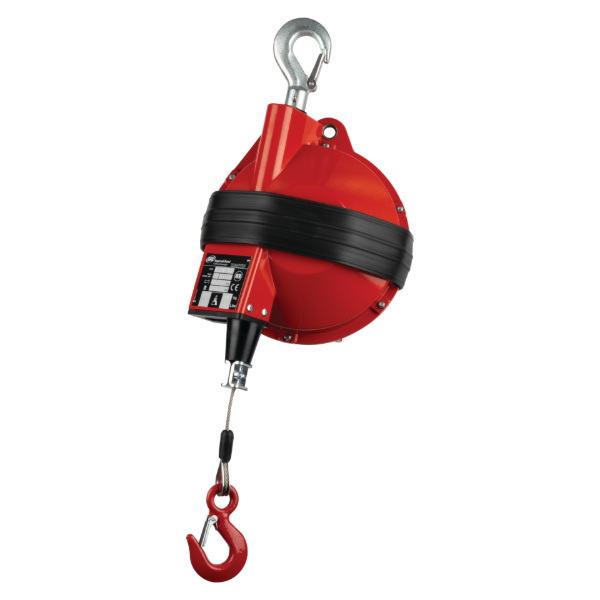

IR BHD-20

Heavy Duty Spring Balancer, 33-44 lb Capacity, 6.5' Lift

Description: B Series spring balancers are designed to increase productivity in any situation where repetitive or prompt vertical movement of fixed load is required. They compensate weight of your power tools or other manufacturing equipment and enable operator to lift or lower it with minimal effort. Experience the effect of tool float with our spring balancers. This "gravity-free" effect on all B Series models allows users to move tools with minimal effort along cable travel.

Features And Benefits:

• Stainless steel cable and anti-friction cable guide
• Gravity-free suspension capability
• Ribbed and sealed monobloc construction in aluminum alloy
• Safety device against load dropping due to the spring breakage (>6.5 lb)
• Locking device to block the load at any height
• Upper rotary suspension with safety hook
• Adjustable stroke limiting device

• Cable Material: Stainless steel
• Capacity (lb): 33 - 44

• Color: Red
• Duty Rating: Heavy Duty

• Housing Material: Aluminum
• Lift (ft): 6.5
• Lock Mechanism: Non-Locking
• Lower Hook: Spring Loaded Safety Hook

• Product Length (in): 8.7

• Product Width (in): 9.8
• Product Height (in): 24
• Product Weight (lb): 23.4
• Reel Height (in): 25.47
• Reel Mount Type: Spring Loaded Safety Hook
• Rotation Type: Swiveling

• Tension Adjustment: Worm Screw

• Warranty: 1-year

IR BMDLLN-8

Medium-Duty Locking Long Cable Spring Balancer, 13.2-17.6 lb Capacity, 8.2' Lift

Description: B Series spring balancers are designed to increase productivity in any situation where repetitive or prompt vertical movement of fixed load is required. They compensate weight of your power tools or other manufacturing equipment and enable operator to lift or lower it with minimal effort.

Features And Benefits:

• Rugged construction, cast aluminum body
• Stainless steel cable and anti-friction cable guide
• Adjustable capacity
• Adjustable stroke limiting device
• Upper suspension shackle included on balancer for ease of installation
• Axial Mounting Circlip to ensure greater durability
• Anti-reverse spanner adjustable bushing to protect the balancer from potential damages caused by an incorrect spring unloading
• Safety Cap added to the front of the balancer for greater durability by absorbing impact while in motion
• Equipped with a ratchet locking device to prevent load from retracting when cable is extended
• Safety device against load dropping due to the spring breakage (>3 kg)

• Cable Material: Stainless steel
• Capacity (lb): 13.2 - 17.6

• Color: Red
• Duty Rating: Medium Duty

• Housing Material: Aluminum
• Lift (ft): 8.2
• Lock Mechanism: Ratchet
• Lower Hook: Spring Clip

• Product Width (in): 7.1
• Product Weight (lb): 7.6
• Reel Height (in): 15
• Reel Mount Type: Suspension Shackle
• Rotation Type: Fixed

• Tension Adjustment: Front Screw with Spanner Wrench

• Warranty: 1-year

WM ELF-9

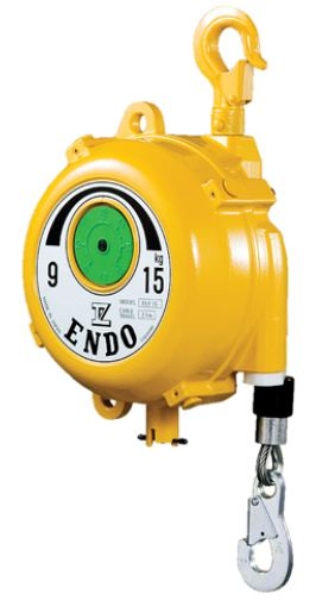

WM XA-ELF-15

ZM 11125

ZM 13343

ZM 13825

ZM 16405

ZM 30279

ZM 30561

ZM 41289

ZM 41851

ZM 65008

ZM 90369

ZM 93861

ZM ZHS10114

ZM ZHS90027

AIM ASB-3C

IR 54041819

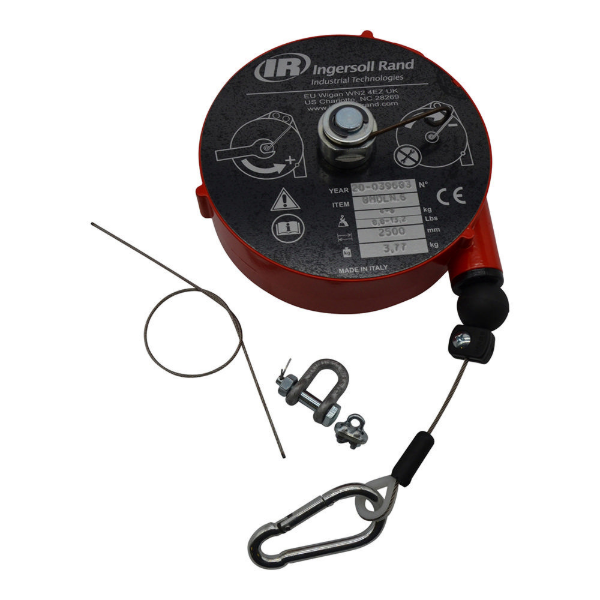

IR BMDLN-6

Medium-Duty Long Spring Cable Balancer, 8.8-13.2 lb Capacity, 8.2' Lift

Description: B Series spring balancers are designed to increase productivity in any situation where repetitive or prompt vertical movement of fixed load is required. They compensate weight of your power tools or other manufacturing equipment and enable operator to lift or lower it with minimal effort.

Features And Benefits:

• Rugged construction, cast aluminum body
• Stainless steel cable and anti-friction cable guide
• Adjustable capacity
• Adjustable stroke limiting device
• Upper suspension shackle included on balancer for ease of installation
• Axial Mounting Circlip to ensure greater durability
• Anti-reverse spanner adjustable bushing to protect the balancer from potential damages caused by an incorrect spring unloading
• Safety Cap added to the front of the balancer for greater durability by absorbing impact while in motion
• Safety device against load dropping due to the spring breakage (>6.5 lb)

• Cable Material: Stainless steel
• Capacity (lb): 8.8 - 13.2

• Color: Red
• Duty Rating: Medium Duty

• Housing Material: Aluminum
• Lift (ft): 8.2
• Lock Mechanism: Ratchet
• Lower Hook: Spring Clip

• Product Length (in): 11.75

• Product Width (in): 5.75
• Product Weight (lb): 7.1
• Reel Height (in): 15
• Reel Mount Type: Suspension Shackle
• Rotation Type: Fixed

• Tension Adjustment: Front Screw with Spanner Wrench

• Warranty: 1-year

IR BW050080

IR BWR3A

WM EW-3

WM EW-5

WM XA-EW-5
