Z-Pump, 50 CC, Severe Duty, S4

GG L050S4

LOWER, CHEMICAL, 050, SST, UCUP

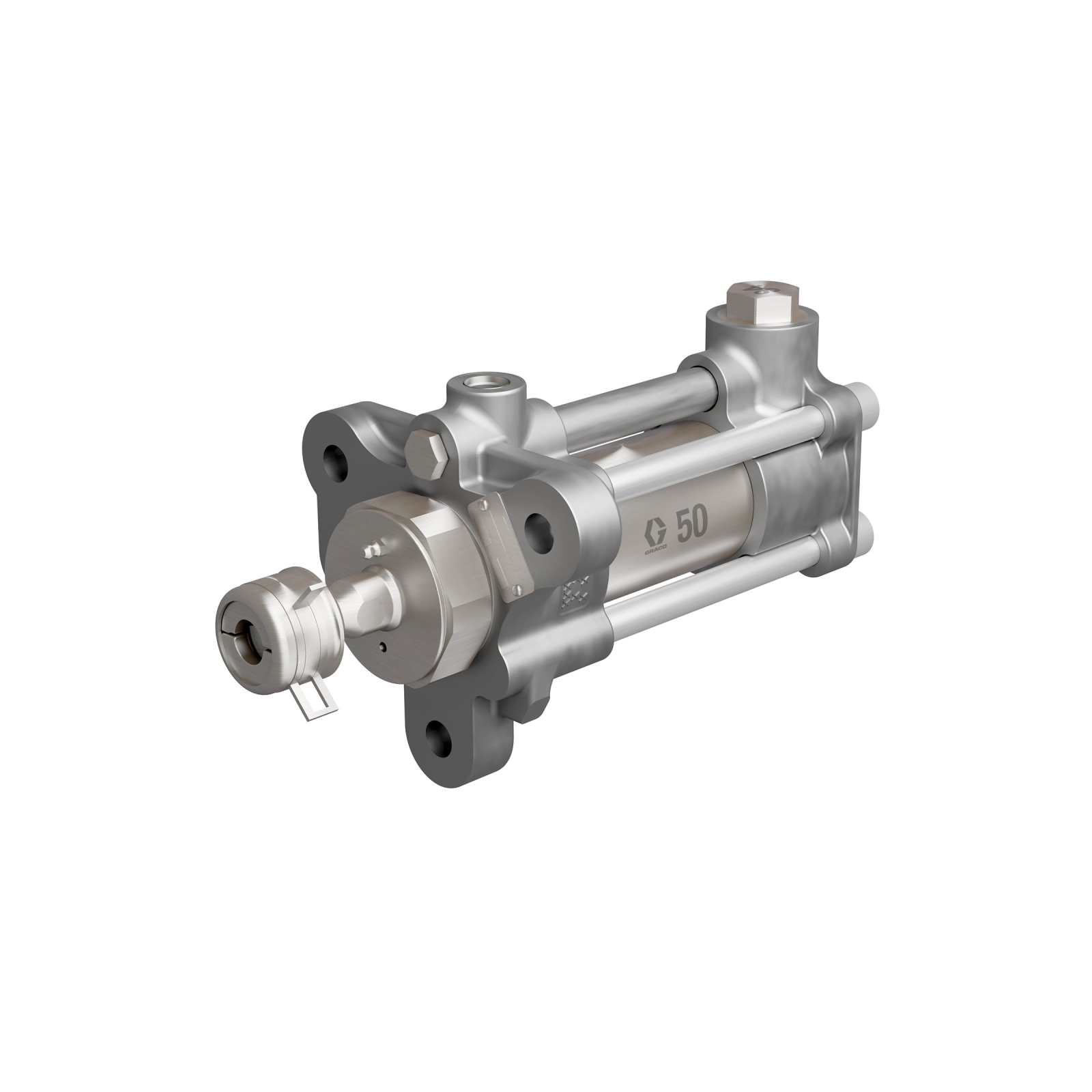

Graco L050S4 Z-Pump, 50 cc, Severe Duty, S4

Z-Pumps are positive displacement pump components for use with the Graco and meter, mix, and dispense systems and are ideal for two-component sealant and adhesives requiring precision ratio, flow, and volume controls.

• Severe Duty coatings and 1/2 inch (1.27 cm) checks easily manage material wear from silicones, sealants, epoxies, and structural adhesives.
• Precision control eliminates pressure spikes and guarantees on ratio dispense.
• Pump seals are the only wear parts, which reduces maintenance downtime and repair costs.

• Model: Z-Pump
• Series: S4

• Ambient/Warm Melt/Hot Melt: Ambient
• Application: Industrial

• Ball Check Size (in): 1/2
• Ball Material: Silicon Nitride

• Coating Type: Severe Duty

• Feed Type: Pressure Feed

• Fluid Inlet Size (cm): 1.905
• Fluid Inlet Size (in): 3/4
• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: SAE

• For Use With: EFR, HFR

• Maximum Flow Rate (GPM): 0.79

• Maximum Operating Temperature (°F): 180
• Maximum Output (cm³): 50

• Maximum Pump Speed (CPM): 60

• Maximum Viscosity (cP): 3000000
