XP70 Cart Mounted Sprayer,Xtr Gun

GG 571102

XP SYSTEM, 1:1, 90/90, BF, CH

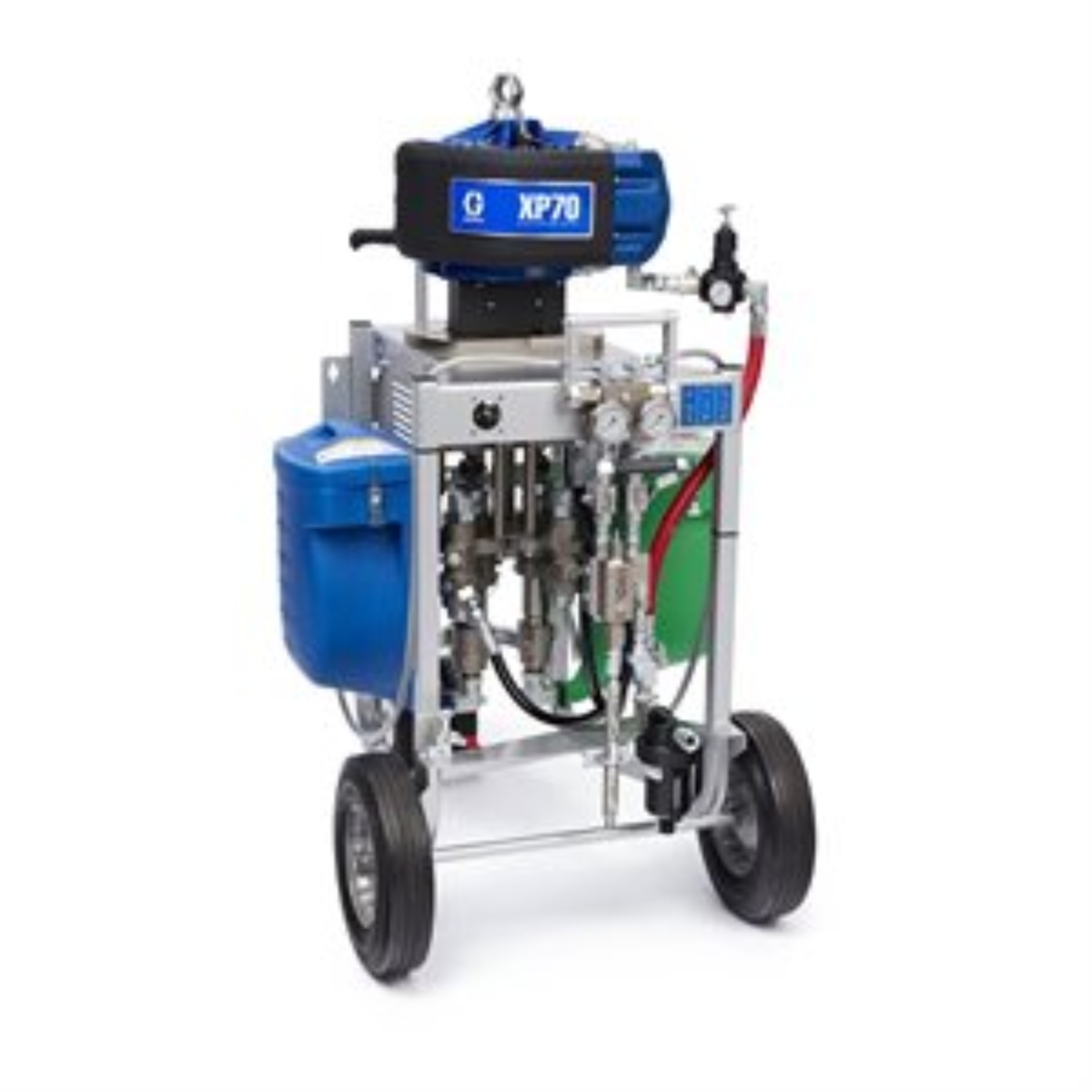

Graco 571102 XP70 Hazardous Location Spray Package, Cart, 1:1 Mix Ratio, Hopper, XTR Gun

The Graco XP70 Plural-Component Sprayer is designed to pump, mix and atomize high-viscosity, high-solids coatings with superior results. In addition, the XP70's design allows you to gravity feed, which may eliminate the need for feed pumps, saving you money. When you upgrade from hand mixing, youll find that the XP70 provides excellent return on investment, by reducing material waste and by using less clean-up solvent.

• Reduced material waste
• No more throwing away unused mixed material at the end of the day
• Save money by using less clean-up solvent
• Easy to operate - minimal training required
• Reduced maintenance costs
• Rated for 7250 psi (500 bar, 50 MPa) to handle viscous materials and long hose lengths

• Series: XP70

• Air Inlet Size (in): 3/4
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPSM

• Applicator Type: Automatic Airless, Manual Airless

• Compatible Material: Protective Coatings, Primer, Epoxies, Polyurethane, Two-Component Coating, Solvents

• Component Type: Plural-Component
• Configuration: Cart Mount with 7 gallon (26.5 Liter) Hopper

• Fluid Inlet Size (in): 1-1/4
• Fluid Inlet Thread Gender: Male
• Fluid Inlet Thread Type: NPSM

• Fluid Outlet Size (in): 1/2
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT
• Flush Type: Solvent

• Hose Length (ft): 35
• Hose Length (m): 10.7

• Includes: XTR Spray Gun, Fluid Hose, NXT Air Motor

• Material Application: Coatings, Paints, Primers

• Maximum Air Consumption (SCFM): 75 scfm/gpm at 100 psi
• Maximum Air Inlet Pressure (bar): 12.07
• Maximum Air Inlet Pressure (kPa): 1207
• Maximum Air Inlet Pressure (MPa): 1.21
• Maximum Air Inlet Pressure (psi): 175

• Maximum Cycle Rate (CPM): 40

• Maximum Flow Rate (cc/min): 7200

• Maximum Flow Rate (GPM): 1.9
• Maximum Flow Rate (L/min): 7.2

• Maximum Fluid Temperature (°C): 71
• Maximum Fluid Temperature (°F): 160
• Maximum Fluid Viscosity (cP): 20000

• Maximum Fluid Temperature (°C): 71
• Maximum Fluid Temperature (°F): 160
• Maximum Fluid Viscosity (cP): 20000

• Maximum Hose Length (ft): 300
• Maximum Hose Length (m): 91.4

• Maximum Operating Temperature (°C): 54
• Maximum Operating Temperature (°F): 130

• Maximum Spray Pressure (bar): 500

• Maximum Spray Pressure (kPa): 50000
• Maximum Spray Pressure (MPa): 50
• Maximum Spray Pressure (psi): 7250

• Maximum Working Pressure (bar): 500
• Maximum Working Pressure (kPa): 50000
• Maximum Working Pressure (MPa): 50
• Maximum Working Pressure (psi): 7250
• Measuring Type: Fixed Mechanical Positive Displacement

• Minimum Fluid Viscosity (cP): 200

• Mix Accuracy (%): +/- 5
• Mix Ratio: 1:1

• Number of Catalysts: 1

• Number of Reducers: 0

• Number of Resin Colors: 1
• Number of Tanks: 2

• Overall Depth (cm): 132.1
<
