GG XNL65D
XDX SERIES 20 REEL, HOSE

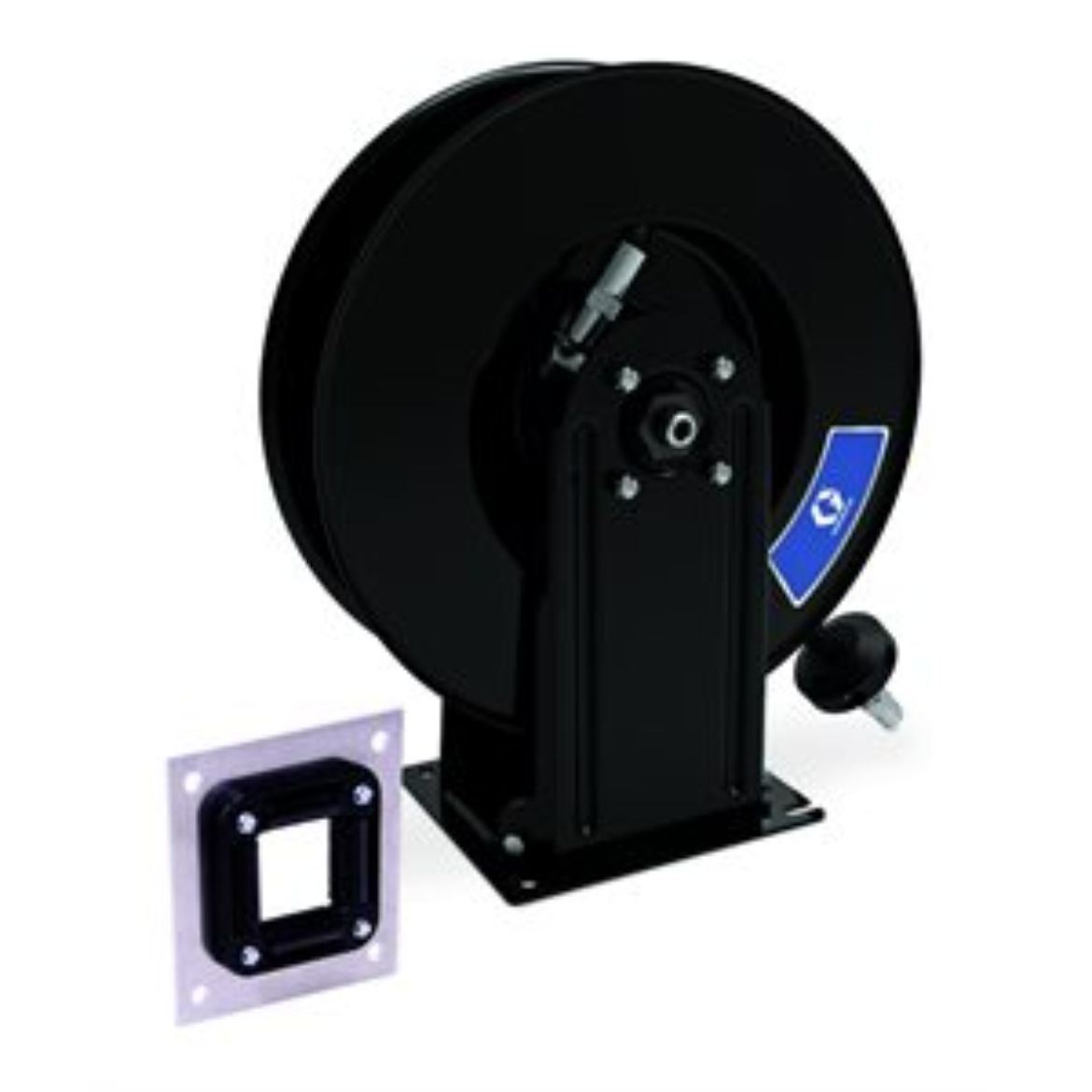

Graco XNL65D XDX™ 20, Air/Water/Antifreeze/WWS, 1/2 in (13 mm) Inlet, 1/2 in X 50 ft (13 mm X 15 m) Hose, NPT, No Guide Arms, Black
Graco’s heavy-duty XDX hose reel features a heavy-gauge, robust, dual-pedestal metal frame, steel spool, sealed components and innovative swivel design for high-quality performance in the most demanding applications.
Application: Ideal for rugged indoor and outdoor use in heavy-duty truck dealerships, fleet maintenance, mining maintenance, public works garages, construction vehicle maintenance, agriculture and service trucks.
- Spring Adjustment - Increase or decrease spring tension while reel is pressurized with fluid
- Full-Flow Swivel - Maximize material flow with minimal pressure drop for faster fills to get more vehicles through your shop
- Optional Adjustable Arm - Easily change the arm position for your application, order with arm (XD models) or without (XN models)
- Large Hose Capacity with Small Profile - Compact pedestal and spool fits into tight spaces and can accommodate 35-65 foot (107-198 meters) hose capacity for a wide variety of applications
- Application: Air, Water, Antifreeze, WWS
- Frame Type: Dual Pedestal
- Hose Inside Diameter (in): 1/2
- Hose Inside Diameter (mm): 12.7
- Hose Length (ft): 75
- Hose Length (m): 23
- Hose Reel Type: Reel with Hose
- Includes Hose: Yes
- Inlet Size (in): 1/2
- Inlet Size (mm): 12.7
- Inlet Thread Gender: Male
- Inlet Thread Type: NPSM
- Maximum Temperature (°C): 87
- Maximum Temperature (°F): 190
- Maximum Working Pressure (psi): 300
- Outlet Size (in): 1/2
- Outlet Size (mm): 12.7
- Outlet Thread Gender: Male
- Outlet Thread Type: NPT
- Overall Height (in): 25.2
- Overall Height (mm): 640
- Overall Length (in): 21
- Overall Length (mm): 533
- Overall Width (in): 7.5
- Overall Width (mm): 191
- Recommended Environment: Indoor, Outdoor
- Recommended Fluid Type: Air, Water, Antifreeze, WWS
