Valve, Vent, 12V Dc, N.O. Npt

GG 24M478

VALVE, VENT, 12VDC, N.O. NPT, DEU RH

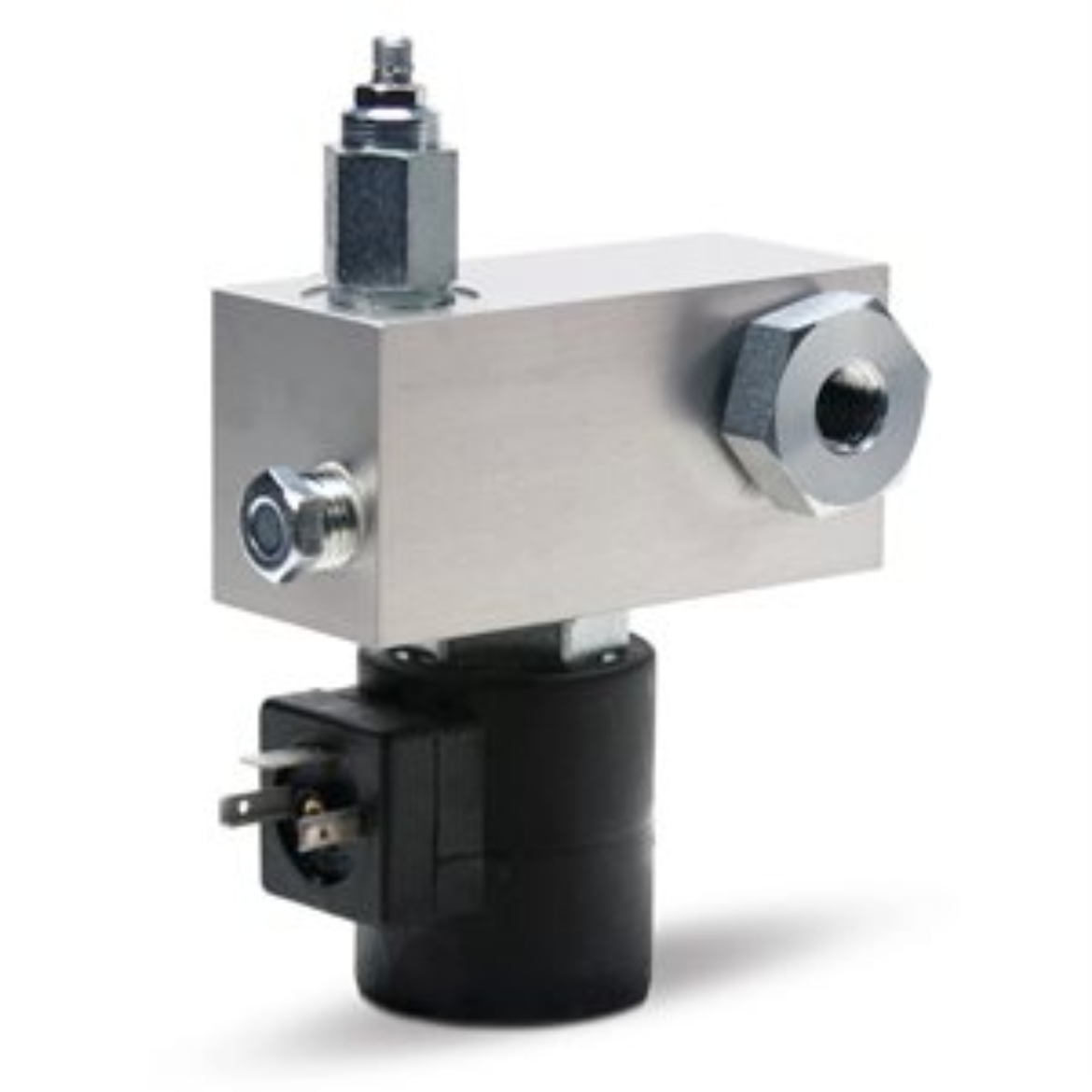

Graco 24M478 Direct-Mount Vent Valves for G3 Pumps - NPT, 12 VDC, 500-3500 psi (35-241 bar), Normally Open, RH

Industry leading feature for your lube system needs.

• Easily mounts to your G3 pump.
• Eliminates time and material costs associated with remote mounted vent valves.
• 12 VDC
• The normally open valve works with the G3 Standard no control pump. With an external control just add power to the pump and valve to run a lube cycle, and remove power from both to vent pressure.
• Adjustable pressure relief is integrated into the valve, no need to purchase an additional relief valve.
• Deutsch Power Connection

• Model: Trabon

• Application: On-Road Vehicles, Off-Road Equipment

• Compatible Material: Grease

• Factory Set Pressure (bar): 280
• Factory Set Pressure (kPa): 28000
• Factory Set Pressure (psi): 4000

• For Use With: G3 Pumps

• Inlet Thread Type: NPT

• Maximum Flow Rate (GPM): 5
• Maximum Flow Rate (L/min): 19

• Maximum Working Pressure (bar): 241
• Maximum Working Pressure (kPa): 24100
• Maximum Working Pressure (MPa): 24
• Maximum Working Pressure (psi): 3500

• Outlet Thread Type: NPT
