    Valve,SDV15,Gear Lube

    Manufacturer: GRACO INC. S10595

    GG 247714

    SDV15 VALVE, GEAR LUBE EXT

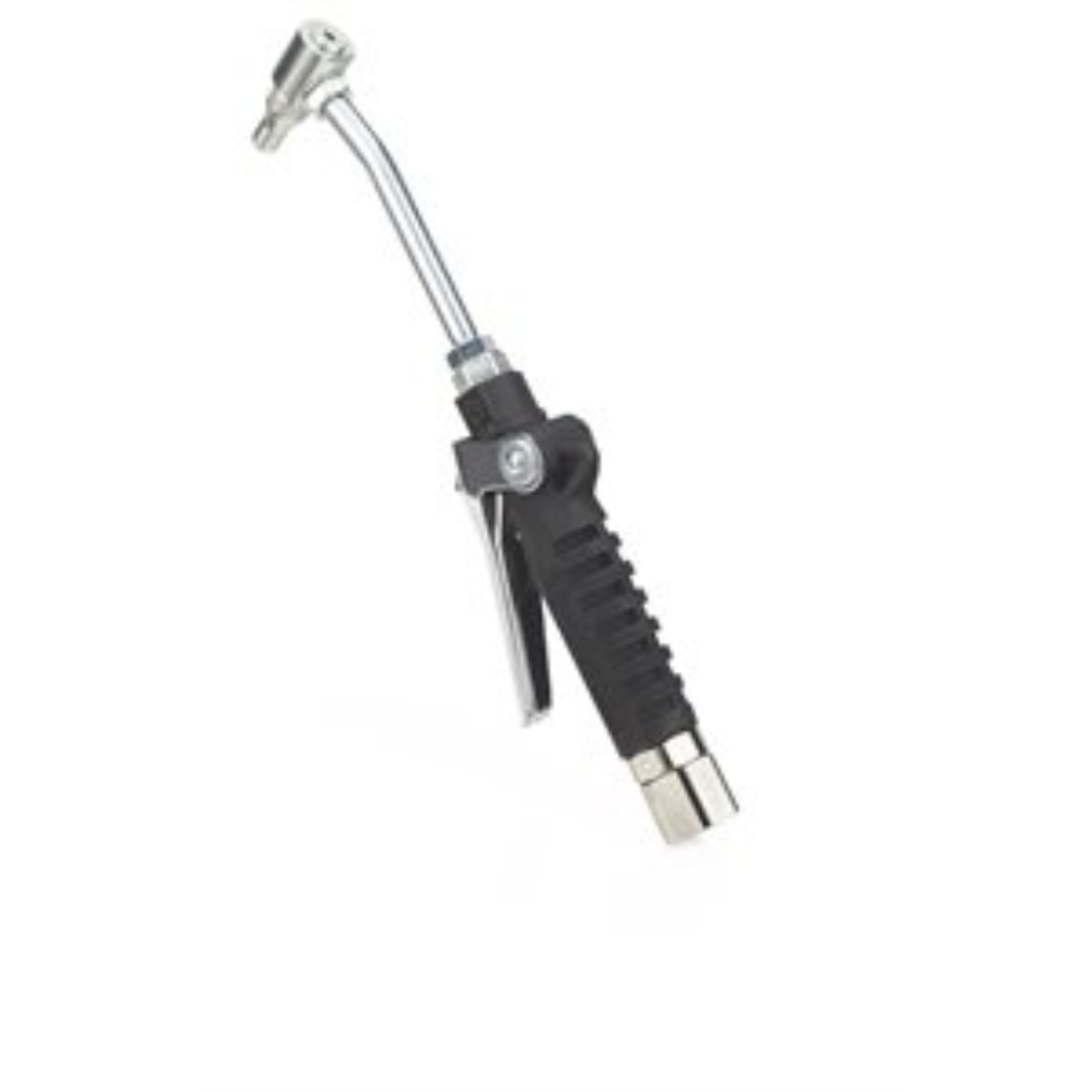

    Graco 247714 SDV15 Series Gear Fluid Control Valve - Gear Extension - 1/2 in. (13 mm) Inlet - NPT

    For standard and heavy-duty applications, both indoor and outdoor, the SDV15 control valves are designed to perform in larger dealerships with longer plumbing runs and greater fluid usage. The control valve is compatible with a wide range of nozzles and fluid extensions and is capable of pumping oil up to 15 gpm (56.8 lpm).

    Application: Typical applications include Automotive dealerships, Heavy-duty dealerships, Fast lube centers, Fleet service facilities, Service shops, In-plant, Lube trucks, and Mining.
    • Lock-on/Lock-off trigger allows hands free operation
    • Sturdy cast body designed for use in tough environments
    • Inlet 1/2 in. NPT with swivel


    • Model: SDV15
    • Compatible Material: Gear Lube
    • Dispense Type: Manual
    • Display Type: N/A
    • Extension Type: Gear Lube
    • Includes: Nozzle, Extension
    • Inlet Size (cm): 1.27
    • Inlet Size (in): 1/2
    • Inlet Size (mm): 12.7
    • Inlet Thread Gender: Female
    • Inlet Thread Type: NPT
    • Maximum Operating Temperature (°C): 82
    • Maximum Operating Temperature (°F): 180
    • Maximum Working Pressure (bar): 103.4
    • Maximum Working Pressure (kPa): 10340
    • Maximum Working Pressure (psi): 1500
    • Minimum Operating Temperature (°C): -40
    • Minimum Operating Temperature (°F): -40
    • Outlet Size (cm): 1.905
    • Outlet Size (in): 3/4
    • Outlet Size (mm): 19.05
    • Outlet Thread Gender: Female
    • Outlet Thread Type: Straight Thread O-Ring Boss
    • Recommended Environment: Indoor, Outdoor
    SKU: GG 247714
    Availability:
    Price: $463.00
