SD SERIES SDM8 VALVE, 1/2NPT, GL

Manufacturer: GRACO INC. S10595

GG 25M413

SD SERIES SDM8 VALVE, 1/2NPT, GL

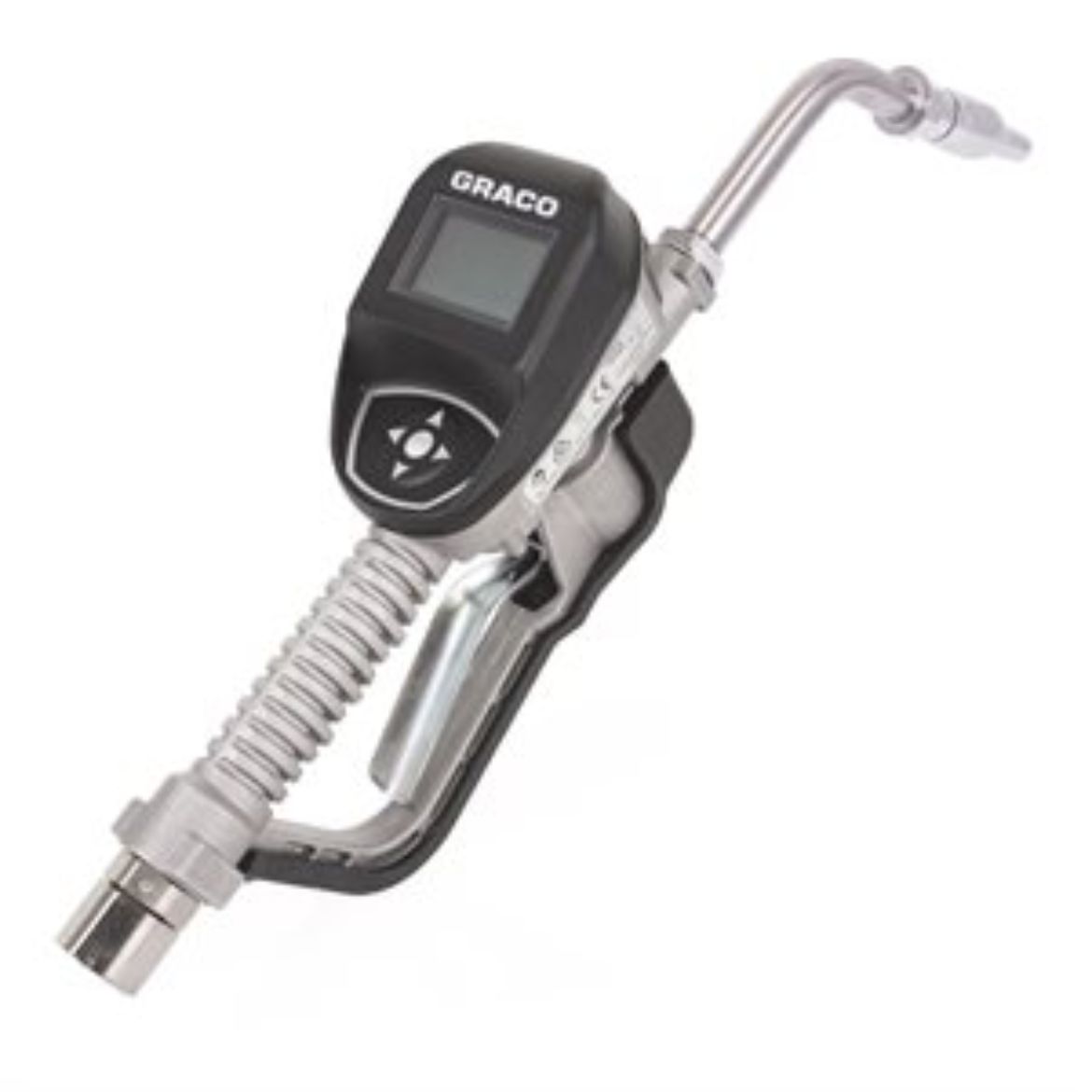

Graco 25M413 SDM8 Series Electronic Manual Gear Lube Meter - Rigid Extension - 1/2 in. (13 mm) Inlet

Graco’s premium SD meters were designed from the ground up to provide the best user experience. These robust meters feature high flow, improved ergonomics and a large high-contrast LCD screen to make viewing dispense amounts easy in all lighting conditions.

  • Large, Intuitive Display—high-contrast display for low and bright light conditions
  • Long valve life—cartridge spool valve specifically designed to reduce wear and reduce costly down time
  • Ergonomic—four-finger trigger and easy-to-use button pad reduce worker fatigue
  • Durable - Thick cast aluminum body allows this meter to endure harsh, heavy-duty applications
  • Long battery life—uses 4 AA easy-to-replace batteries


  • Model: SDM8
  • Compatible Material: Gear Oil, Oil, ATF
  • Dispense Type: Manual
  • Display Type: Electronic
  • Extension Type: Rigid
  • Fluid Inlet Thread Gender: Female
  • Fluid Outlet Thread Gender: Female
  • Includes: Nozzle, Gear Lube Extension
  • Inlet Size (cm): 1.27
  • Inlet Size (in): 1/2
  • Inlet Size (mm): 12.7
  • Inlet Thread Type: NPT
  • Maximum Flow Rate (GPM): 8
  • Maximum Flow Rate (L/min): 30
  • Maximum Operating Temperature (°C): 70
  • Maximum Operating Temperature (°F): 158
  • Maximum Recorded Dispense: 9999
  • Maximum Storage Temperature (°C): 70
  • Maximum Storage Temperature (°F): 158
  • Maximum Working Pressure (bar): 103.4
  • Maximum Working Pressure (kPa): 10340
  • Maximum Working Pressure (MPa): 10.3
  • Maximum Working Pressure (psi): 1500
  • Meter Accuracy (%): ±0.5
  • Meter Technology: Oval Gear
  • Metering Gun Weight (kg): 2.4
  • Metering Gun Weight (lb): 5.3
  • Minimum Flow Rate (GPM): 0.25
  • Minimum Flow Rate (L/min): 0.9
  • Minimum Operating Temperature (°C): -16
  • Minimum Operating Temperature (°F): 4
  • Nozzle Type: Manual
  • Outlet Thread Type: Straight Thread O-Ring Boss
  • Overall Height (cm): 14.6
  • Overall Height (in): 5.75
  • Overall Height (mm): 146
  • Overall Length (cm): 33
  • Overall Length (in): 13
  • Overall Length (mm): 330
  • Overall Width (cm): 9.5
  • Overall Width (in): 3.75
  • Overall Width (mm): 95
  • Recommended Environment: Indoor
SKU: GG 25M413
Availability:
Price: $1,030.00
