Valves and Cylinders

GG 167476

GG 168210

GG 169584

GG 169845

GG 17J520

GG 197315

GG 197316

GG 20878-00

GG 21228-00

GG 21660-00

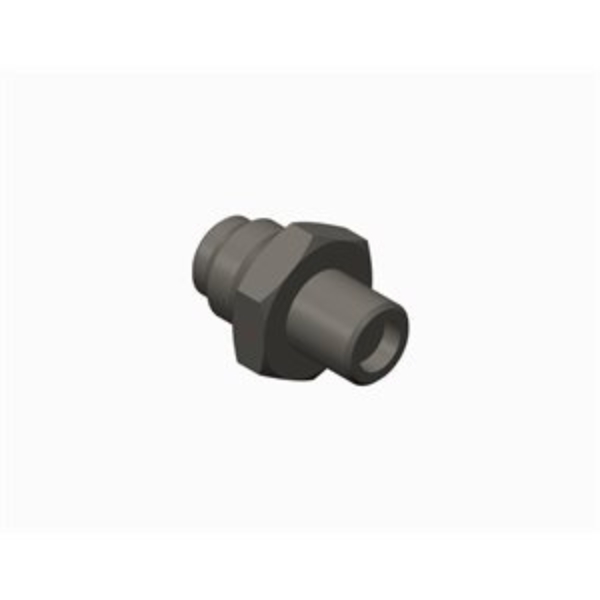

GG 21664-00

VALVE, CHECK

Graco 21664-00 Solvent/Air Purge Check Valve

• Compatible Material: Solvent Purge, Air Purge

GG 22235-00

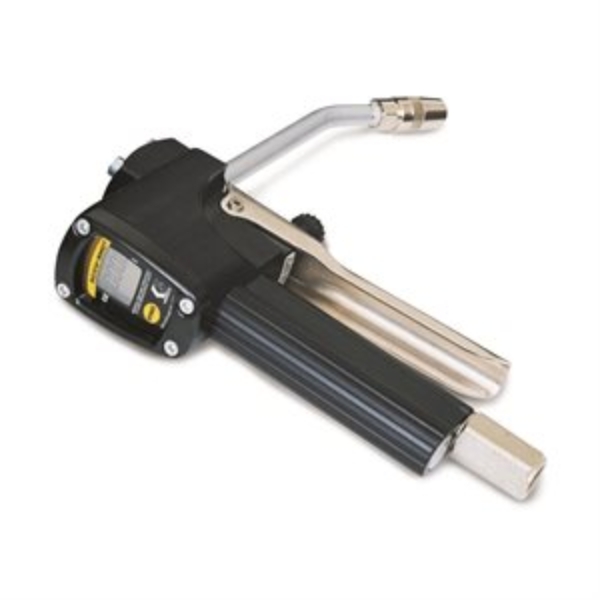

GG 233933

VALVE, METERED, GREASE, METRIC

Graco 233933 Standard Nozzle Extension and 1/4 in. NPT Inlet, Metric Measurement, Includes Extension and Hydraulic Coupler

Designed to perform in heavy-equipment shops, fleet maintenance

shops, municipal garages and higher-volume in-plant applications

with longer plumbing runs and larger fluid usage.

Application: Typical applications include heavy-duty dealerships, fleet service facilities, in-plant, lube trucks, and mining.

• Easy-to-Read LCD
• Easily reset electronic display.
• Accurate Grease Metering
• Handles Pressure up to 5,000 psi (345 bar)
• Flow up to 36 oz/min (1 kg/min).

• Approvals: CE

• Compatible Material: Grease

• Extension Type: Rigid

• Fluid Inlet Thread Gender: Female

• Fluid Outlet Thread Gender: Female

• Includes: Extension, Hydraulic Coupler
• Inlet Size (cm): 0.635
• Inlet Size (in): 1/4
• Inlet Size (mm): 6.35

• Inlet Thread Type: NPTF

• Maximum Operating Temperature ( degree C): 60
• Maximum Operating Temperature ( degree F): 140

• Maximum Storage Temperature ( degree C): 70
• Maximum Storage Temperature ( degree F): 158

• Maximum Working Pressure (bar): 345
• Maximum Working Pressure (kPa): 34500
• Maximum Working Pressure (MPa): 34.5
• Maximum Working Pressure (psi): 5000
• Meter Accuracy (%): plus/minus 00.3
• Meter Technology: Oval Gears

• Metering Gun Weight (kg): 1.0
• Metering Gun Weight (lb): 2.2

• Nozzle Type: Rigid

• Outlet Size (cm): 0.32
• Outlet Size (in): 1/8
• Outlet Size (mm): 3.18
• Outlet Thread Type: NPTF

• Overall Height (cm): 22.35
• Overall Height (in): 8.8
• Overall Height (mm): 223.5
• Overall Length (cm): 8.13
• Overall Length (in): 3.2
• Overall Length (mm): 81.28
• Overall Width (cm): 4.572
• Overall Width (in): 1.8
• Overall Width (mm): 45.72

• Power Type: Hydraulic

• Recommended Environment: Indoor

GG 25M413

SD SERIES SDM8 VALVE, 1/2NPT, GL

Graco 25M413 SDM8 Series Electronic Manual Gear Lube Meter - Rigid Extension - 1/2 in. (13 mm) Inlet

Graco's premium SD meters were designed from the ground up to provide the best user experience. These robust meters feature high flow, improved ergonomics and a large high-contrast LCD screen to make viewing dispense amounts easy in all lighting conditions.

• Large, Intuitive Display - high-contrast display for low and bright light conditions
• Long valve life - cartridge spool valve specifically designed to reduce wear and reduce costly down time
• Ergonomic - four-finger trigger and easy-to-use button pad reduce worker fatigue
• Durable - Thick cast aluminum body allows this meter to endure harsh, heavy-duty applications
• Long battery life - uses 4 AA easy-to-replace batteries

• Model: SDM8

• Compatible Material: Gear Oil, Oil, ATF

• Dispense Type: Manual

• Display Type: Electronic

• Extension Type: Rigid

• Fluid Inlet Thread Gender: Female

• Fluid Outlet Thread Gender: Female

• Includes: Nozzle, Gear Lube Extension
• Inlet Size (cm): 1.27
• Inlet Size (in): 1/2
• Inlet Size (mm): 12.7

• Inlet Thread Type: NPT

• Maximum Flow Rate (GPM): 8
• Maximum Flow Rate (L/min): 30

• Maximum Operating Temperature ( degree C): 70
• Maximum Operating Temperature ( degree F): 158

• Maximum Recorded Dispense: 9999

• Maximum Storage Temperature ( degree C): 70
• Maximum Storage Temperature ( degree F): 158

• Maximum Working Pressure (bar): 103.4
• Maximum Working Pressure (kPa): 10340
• Maximum Working Pressure (MPa): 10.3
• Maximum Working Pressure (psi): 1500
• Meter Accuracy (%): plus/minus 00.5
• Meter Technology: Oval Gear

• Metering Gun Weight (kg): 2.4
• Metering Gun Weight (lb): 5.3

• Minimum Flow Rate (GPM): 0.25
• Minimum Flow Rate (L/min): 0.9

• Minimum Operating Temperature ( degree C): -16
• Minimum Operating Temperature ( degree F): 4

• Nozzle Type: Manual

• Outlet Thread Type: Straight Thread O-Ring Boss

• Overall Height (cm): 14.6
• Overall Height (in): 5.75
• Overall Height (mm): 146
• Overall Length (cm): 33
• Overall Length (in): 13
• Overall Length (mm): 330
• Overall Width (cm): 9.5
• Overall Width (in): 3.75
• Overall Width (mm): 95

• Recommended Environment: Indoor

GG 82/0241/11

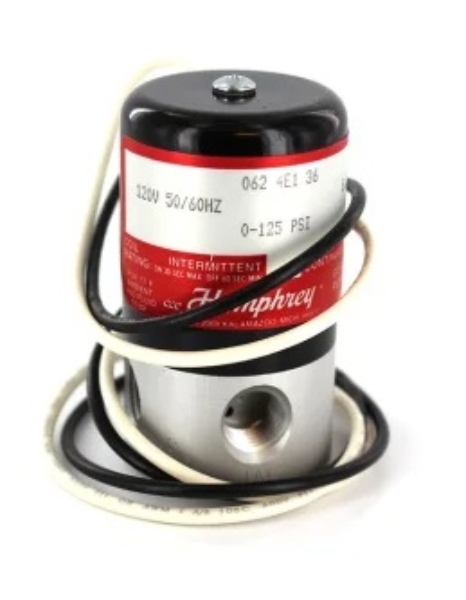

HU 062-4E1-36-120VAC

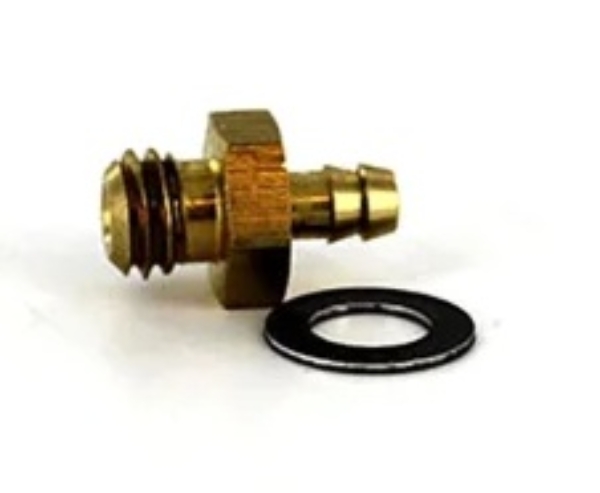

HU BF

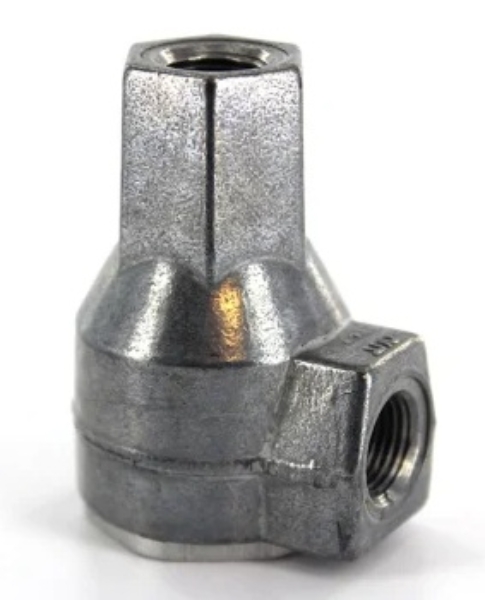

HU SQE-1

AA A211SS-000-N

AA M212LM-R

BA D-166-3

BA D-9

BB 107-1649

GG 02/0706-00/50

GG 080803
