Hose, Coupled, 4 Ft, 061257

GG 109149

Hose, Coupled, 4 Ft, 061257

$97.00

Hose, Coupled, 15 Ft, 061257

GG 109152

Hose, Coupled, 15 Ft, 061257

$231.50

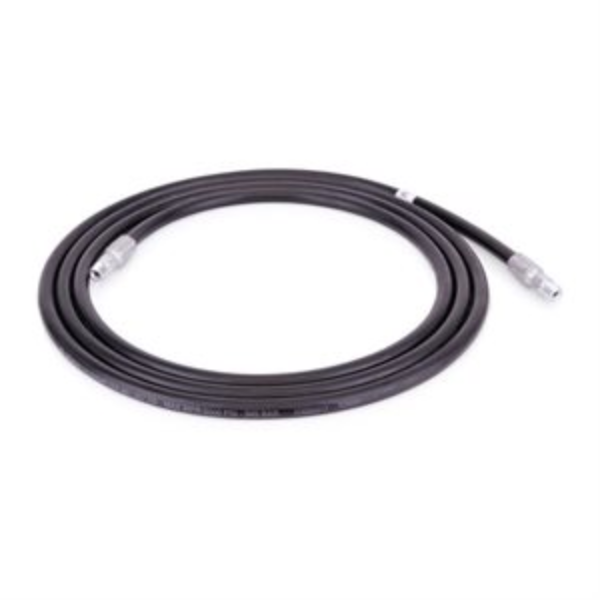

Hose, Coupled, 25 Ft, 061257

GG 109154

Hose, Coupled, 25 Ft, 061257

$350.00

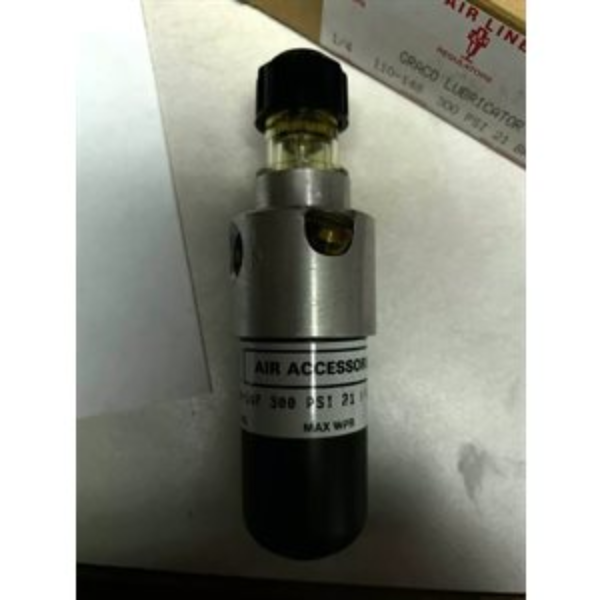

Lubricator, Air Line 1/4" Npt

GG 110148

Lubricator, Air Line 1/4" Npt

$139.50

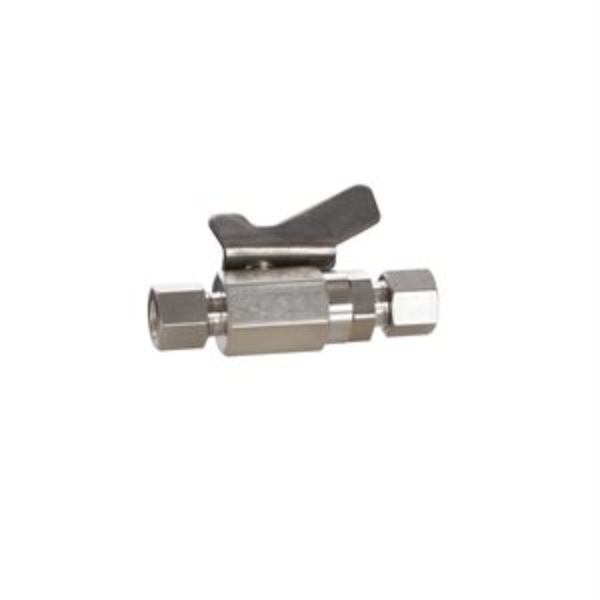

VALVE, BALL

Graco 237537 Low Pressure Ball Valve compatible with stainless steel, catalyst and waterborne materials, 3/8 in. OD Tube x 3/8 in. OD Tube

Use for on/off fluid control. Allows safer system operation by permitting relief of fluid pressure or isolation of components from pressure during maintenance. Ball vales must be used in the fully open or closed position. Do not throttle the valve - it could cause premature seal failure.

Stainless steel and PTFE materials are compatible with catalyst, waterborne, and other finishing materials
Many different connection options to meet your specific needs

Handle Type: Lever

Inlet Size (cm): 0.9525
Inlet Size (in): 3/8
Inlet Size (mm): 9.525
Inlet Thread Type: Tube End
Maximum Working Pressure (bar): 35
Maximum Working Pressure (kPa): 3500
Maximum Working Pressure (MPa): 3.5
Maximum Working Pressure (psi): 500
Outlet Size (cm): 0.9525
Outlet Size (in): 3/8
Outlet Size (mm): 9.525
Outlet Thread Type: Tube End

$171.50

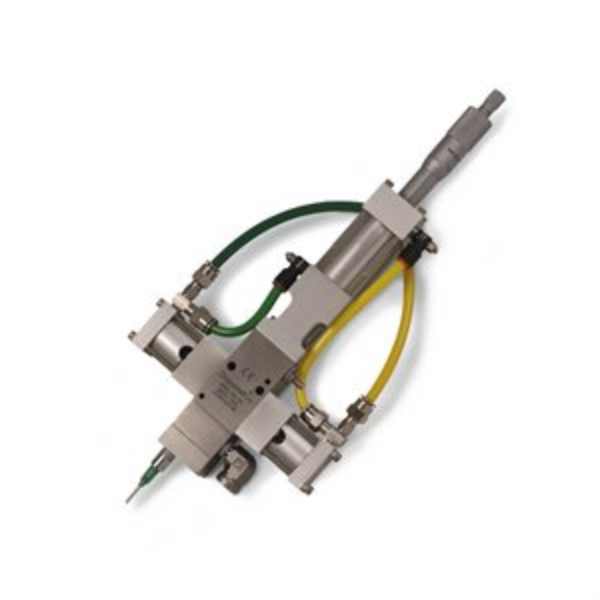

1052-10A-2RS1-125-V, DISPENSE VALVE

GG A2A03073

1052-10A-2RS1-125-V, DISPENSE VALVE

Graco A2A03073 1052 Dispensit Valve with 1 inch stroke, 0.125 diameter rod, nitrided tool steel wetted components

The 1052 is a pneumatically-controlled valve with micrometer adjustable dispense volumes for accurate, repeatable, shot-to-shot dispensing.

Application: 1052 positive displacement metering rod valve for low to high viscosity materials.

For low to high viscosity materials with various wetted component configurations for abrasive filled, or corrosive materials.
Pneumatic and electronic controls that can be integrated for automated applications.

Model: Dispensit
Series: 1052

Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Metering
Component Type: Single Component
Maximum Working Pressure (bar): 138
Maximum Working Pressure (kg/cm²): 141
Maximum Working Pressure (kPa): 13800
Maximum Working Pressure (MPa): 14
Maximum Working Pressure (psi): 2000
Meter Type: Positive Displacement
