GG 237537
VALVE, BALL

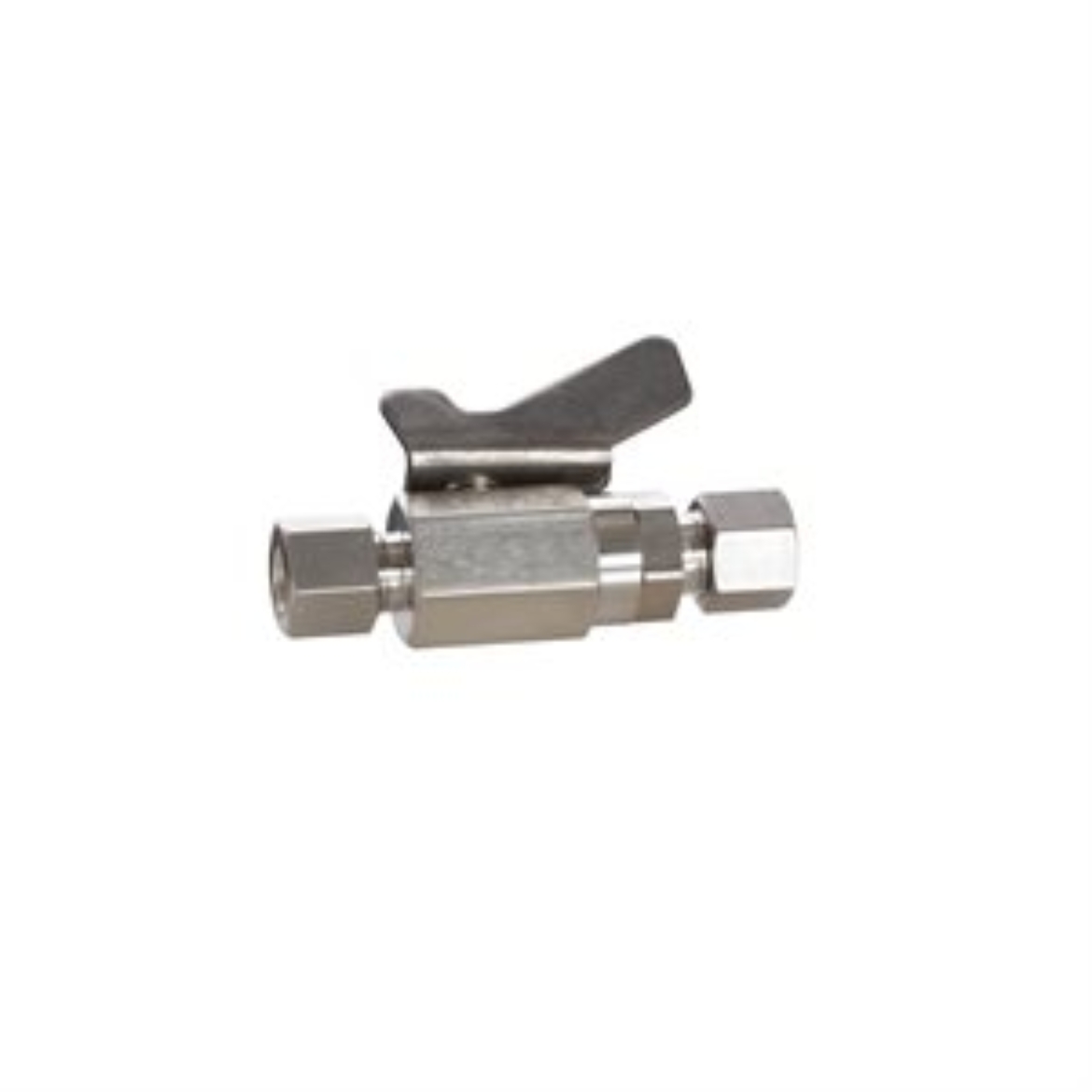

Graco 237537 Low Pressure Ball Valve compatible with stainless steel, catalyst and waterborne materials, 3/8 in. OD Tube x 3/8 in. OD Tube
Use for on/off fluid control. Allows safer system operation by permitting relief of fluid pressure or isolation of components from pressure during maintenance. Ball vales must be used in the fully open or closed position. Do not throttle the valve - it could cause premature seal failure.
- Stainless steel and PTFE materials are compatible with catalyst, waterborne, and other finishing materials
- Many different connection options to meet your specific needs
- Inlet Size (cm): 0.9525
- Inlet Size (in): 3/8
- Inlet Size (mm): 9.525
- Inlet Thread Type: Tube End
- Maximum Working Pressure (bar): 35
- Maximum Working Pressure (kPa): 3500
- Maximum Working Pressure (MPa): 3.5
- Maximum Working Pressure (psi): 500
- Outlet Size (cm): 0.9525
- Outlet Size (in): 3/8
- Outlet Size (mm): 9.525
- Outlet Thread Type: Tube End
