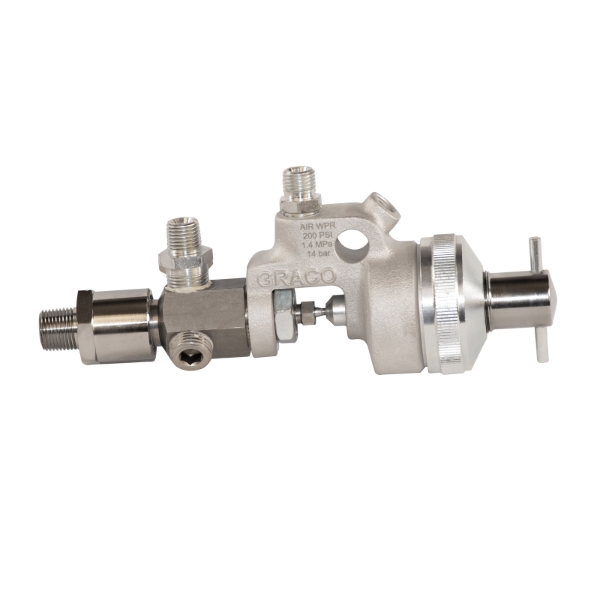

VALVE, DISP,AUTO

Graco 207440 Auto Dispense Valve

$2,450.00

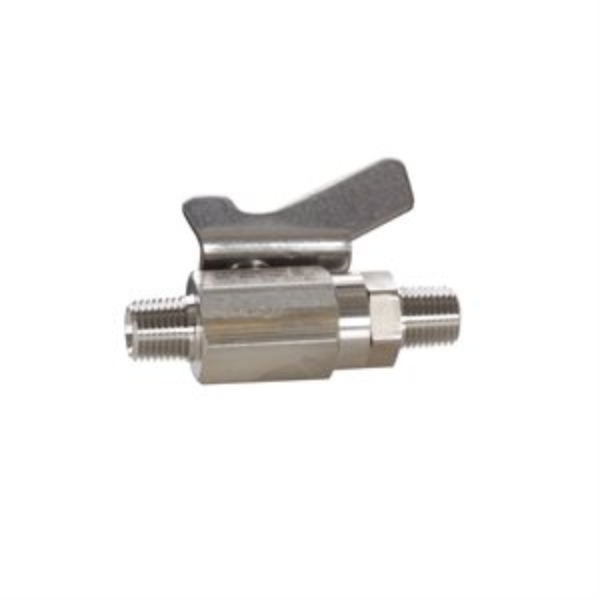

VALVE, BALL

Low Pressure Ball Valve compatible with stainless steel, catalyst and waterborne materials, 1/4 in. npt(m) x 1/4 in. npt(m)

Use for on/off fluid control. Allows safer system operation by permitting relief of fluid pressure or isolation of components from pressure during maintenance. Ball vales must be used in the fully open or closed position. Do not throttle the valve - it could cause premature seal failure.

Stainless steel and PTFE materials are compatible with catalyst, waterborne, and other finishing materials Many different connection options to meet your specific needs

$99.50

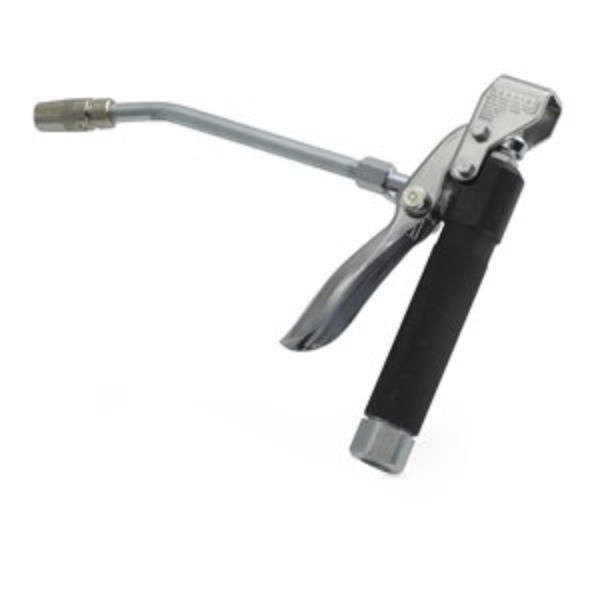

PRO-SHOT VALVE, GREASE, 3/8-18 NPT, W/ADP

GG 242058

PRO-SHOT VALVE, GREASE, 3/8-18 NPT, W/ADP

Graco 242058 Pro-Shot™ Dispense Valve - 3/8 NPT Inlet With Coupler and Extension

For heavy-duty applications, this non-metered dispense valve is designed to perform in heavy equipment shops, fleet maintenance shops, and municipal garages.

Application: Typical applications include service shops, Heavy-duty dealerships, Fast lube centers, Automotive dealerships, In-plant, Lube trucks, and Mining.

Pressure-assisted trigger for ease of operation
Easy top adjustment with locking nut
Rugged design to withstand harsh environments
Includes coupler and extension

Model: Pro-Shot

Compatible Material: Grease
Extension Type: Rigid
Includes: Coupler
Inlet Size (cm): 0.9525
Inlet Size (in): 3/8
Inlet Size (mm): 9.525
Inlet Thread Gender: Female
Inlet Thread Type: NPT
Maximum Working Pressure (bar): 552
Maximum Working Pressure (kg/cm²): 562.46
Maximum Working Pressure (kPa): 55200
Maximum Working Pressure (psi): 8000
Outlet Thread Gender: Female
Outlet Thread Type: NPT
Power Type: Manual

$341.00

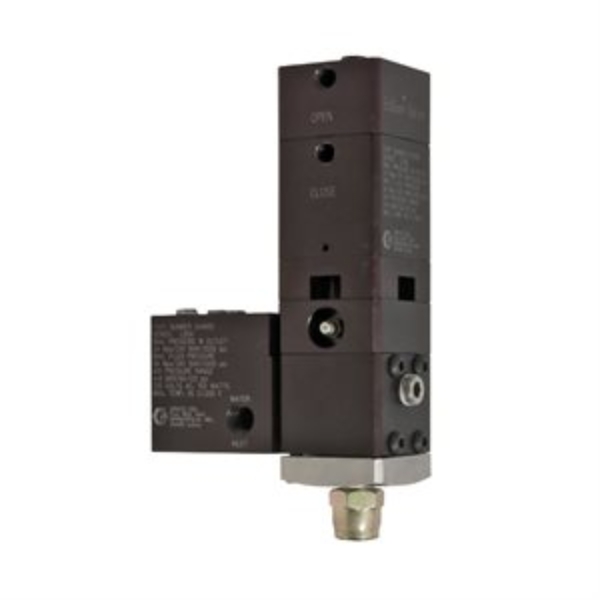

ENDURE VALVE, AMB OR T/C

GG 244910

ENDURE VALVE, AMB OR T/C

Graco 244910 Endure Valve with Ambient or Temperature Conditioning Manifold

The EnDure Valve offers high reliability for high pressure, high flow sealant and adhesive dispensing applications.

Dual seal design
Air operated with spring-assisted closing
Replace 918512, C27340 valves

Model: EnDure

Air Inlet Size (in): 1/8
Air Inlet Thread Gender: Female
Air Inlet Thread Type: NPT
Ambient/Warm Melt/Hot Melt: Ambient, Warm Melt
Application: Bonding, Sealing, Gasketing
Compatible Material: Sealants, Adhesives
Component Type: Single Component
Fluid Inlet Size (cm): 1.27
Fluid Inlet Size (in): 1/2
Fluid Inlet Thread Gender: Female
Fluid Inlet Thread Type: NPT
Fluid Outlet Size (in): 5/8-18
Fluid Outlet Thread Gender: Male
Fluid Outlet Thread Type: UNF
Gun Activation: Automatic
Inlet Size (in): 1/2
Maximum Working Pressure (bar): 241
Maximum Working Pressure (kg/cm²): 246
Maximum Working Pressure (kPa): 24100
Maximum Working Pressure (psi): 3500
Orifice Diameter (in): 0.125
Outlet Size (in): 5/8-18

$3,930.00

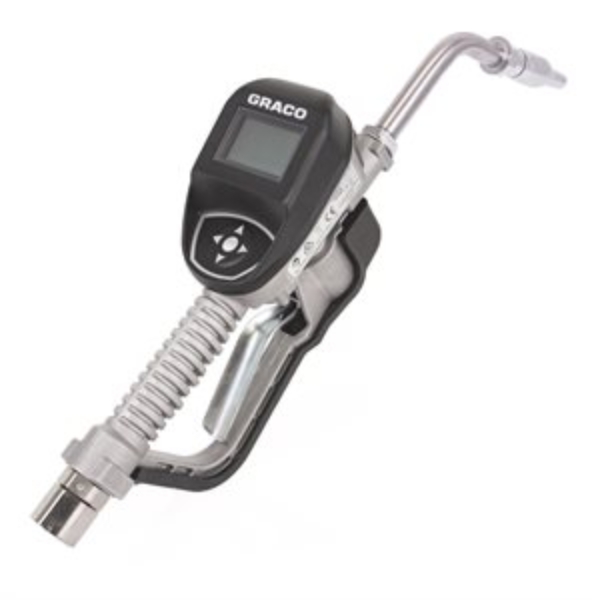

SD SERIES SDP8 VALVE, FC, 1/2NPT, RIGD, AF

GG 26C385

SD SERIES SDP8 VALVE, FC, 1/2NPT, RIGD, AF

Graco 26C385 SDP8 Series Electronic Preset Antifreeze Meter - Rigid Extension - 1/2 in. (13 mm) Inlet

Graco’s premium SD meters were designed from the ground up to provide the best user experience. These robust meters feature high flow, improved ergonomics and a large high-contrast LCD screen to make viewing dispense amounts easy in all lighting conditions.

Upgradeable—SD Preset meters are compatible with PULSE FC fluid control system
Large, Intuitive Display—high-contrast display for low and bright light conditions
Long valve life—cartridge spool valve specifically designed to reduce wear and reduce costly down time
Reliable—time-tested Graco engineering
Durable—Thick cast aluminum body allows this meter to endure harsh, heavy-duty applications
Long battery life—uses 4 AA easy-to-replace batteries

Model: SDP8

Compatible Material: Antifreeze, Oil, ATF
Dispense Type: Preset
Display Type: Electronic
Extension Type: Rigid
Fluid Inlet Thread Gender: Female
Fluid Outlet Thread Gender: Female
Includes: Nozzle, Rigid Extension
Inlet Size (cm): 1.27
Inlet Size (in): 1/2
Inlet Size (mm): 12.7
Inlet Thread Type: NPT
Maximum Flow Rate (GPM): 8
Maximum Flow Rate (L/min): 30
Maximum Operating Temperature (°C): 70
Maximum Operating Temperature (°F): 158
Maximum Recorded Dispense: 9999
Maximum Storage Temperature (°C): 70
Maximum Storage Temperature (°F): 158
Maximum Working Pressure (bar): 103.4
Maximum Working Pressure (kPa): 10340
Maximum Working Pressure (MPa): 10.3
Maximum Working Pressure (psi): 1500
Meter Accuracy (%): ±0.5
Meter Technology: Oval Gear
Metering Gun Weight (kg): 2.4
Metering Gun Weight (lb): 5.3
Minimum Flow Rate (GPM): 0.25
Minimum Flow Rate (L/min): 0.9
Minimum Operating Temperature (°C): -16
Minimum Operating Temperature (°F): 4
Nozzle Type: Oil Automatic Quick-Close
Outlet Thread Type: Straight Thread O-Ring Boss
Overall Height (cm): 14.6
Overall Height (in): 5.75
Overall Height (mm): 146
Overall Length (cm): 33
Overall Length (in): 13
Overall Length (mm): 330
Overall Width (cm): 9.5
Overall Width (in): 3.75
Overall Width (mm): 95
Product Type: Meter
Recommended Environment: Indoor
