Valve, Fms, 1/2 Npt Rigid, Oil

GG 25M323

PULSE PRO METER VALVE, FMS, 1/2 NPT, RIGID, OIL, HF

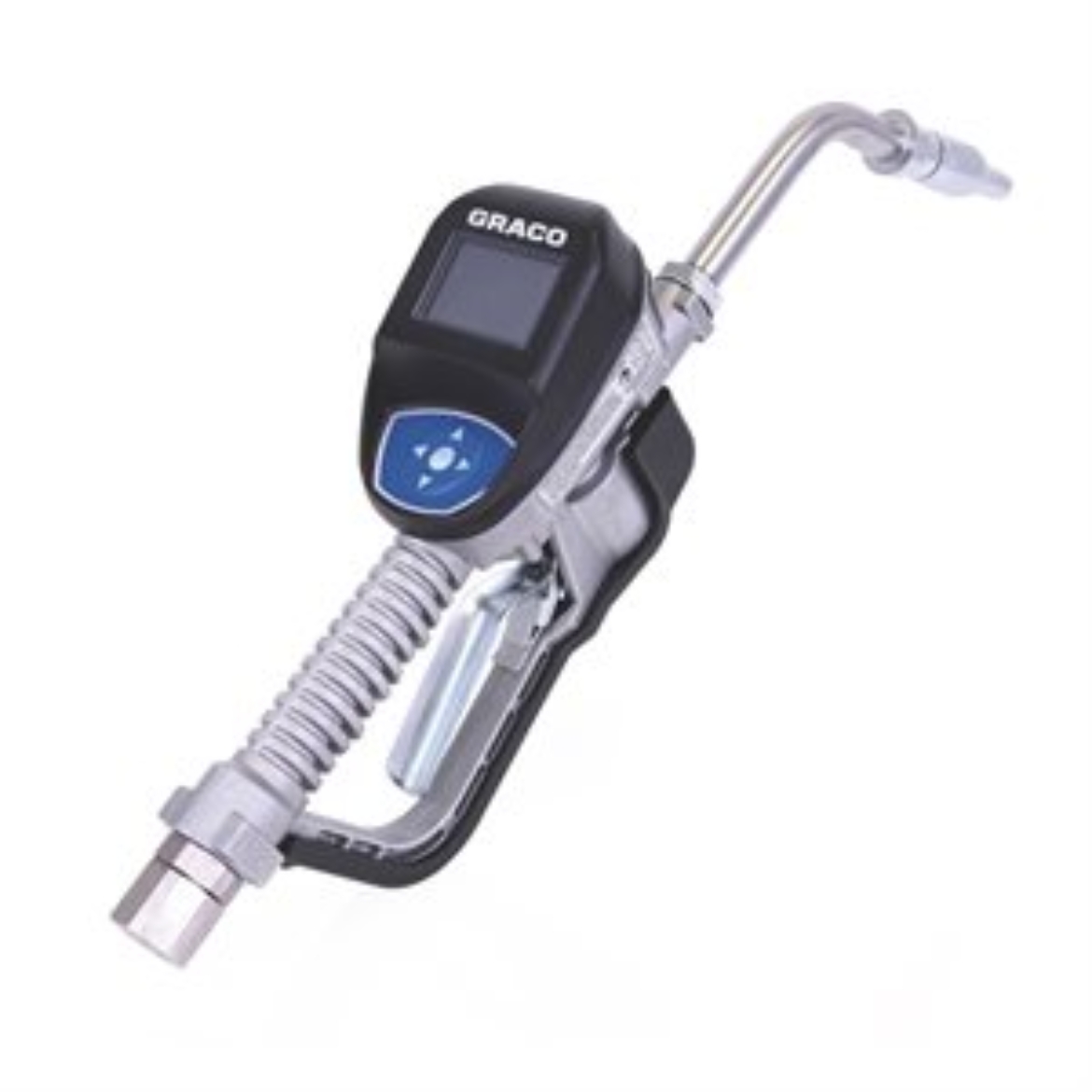

Graco 25M323 Pulse Metered Dispense Valve for Oil Applications - 1/2 in NPT, Rigid Extension, High Flow Nozzle

Graco dispense meters designed for our Pulse fluid management system are durable and easy to use. Everything you need is at your fingertips. Enter PINs and other data using the intuitive display.

• Track and record inventory levels with electronic metering
• Increase technician productivity
• Flexible - one meter can handle all fluids
• Large, Intuitive Display - high-contrast display for low and bright light conditions
• Protective trigger guard - prevents accidental dispenses
• Four finger trigger with lock-on feature
• No need to leave bay or use computer to complete dispense
• Long battery life - uses 4 AA easy-to-replace batteries

• Model: Pulse

• Display Type: LCD

• Extension Type: Rigid

• Fluid Inlet Thread Gender: Female

• Includes: Extension, Nozzle, Batteries, Swivel Boot
• Inlet Size (cm): 1.27
• Inlet Size (in): 1/2
• Inlet Size (mm): 12.7

• Inlet Thread Type: NPT

• Maximum Flow Rate (GPM): 18

• Maximum Operating Temperature ( degree C): 70
• Maximum Operating Temperature ( degree F): 158

• Maximum Storage Temperature ( degree C): 70
• Maximum Storage Temperature ( degree F): 158

• Maximum Working Pressure (bar): 103.4
• Maximum Working Pressure (kPa): 10340
• Maximum Working Pressure (MPa): 10.3
• Maximum Working Pressure (psi): 1500
• Meter Accuracy (%): plus/minus 00.5
• Meter Technology: Oval Gear

• Metering Gun Weight (kg): 2.4
• Metering Gun Weight (lb): 5.3

• Minimum Flow Rate (GPM): 0.25
• Minimum Flow Rate (L/min): 0.9

• Minimum Operating Temperature ( degree C): -16
• Minimum Operating Temperature ( degree F): 4

• Nozzle Type: High Flow

• Overall Length (cm): 33
• Overall Length (ft): 1
• Overall Length (in): 13
• Overall Length (m): 0.33
• Overall Length (mm): 330
• Overall Width (cm): 9.5
• Overall Width (in): 3.75
• Overall Width (mm): 95

• Product Type: Meter
