GG 120581
VALVE, EVAC, 4-WAY, 1 IN

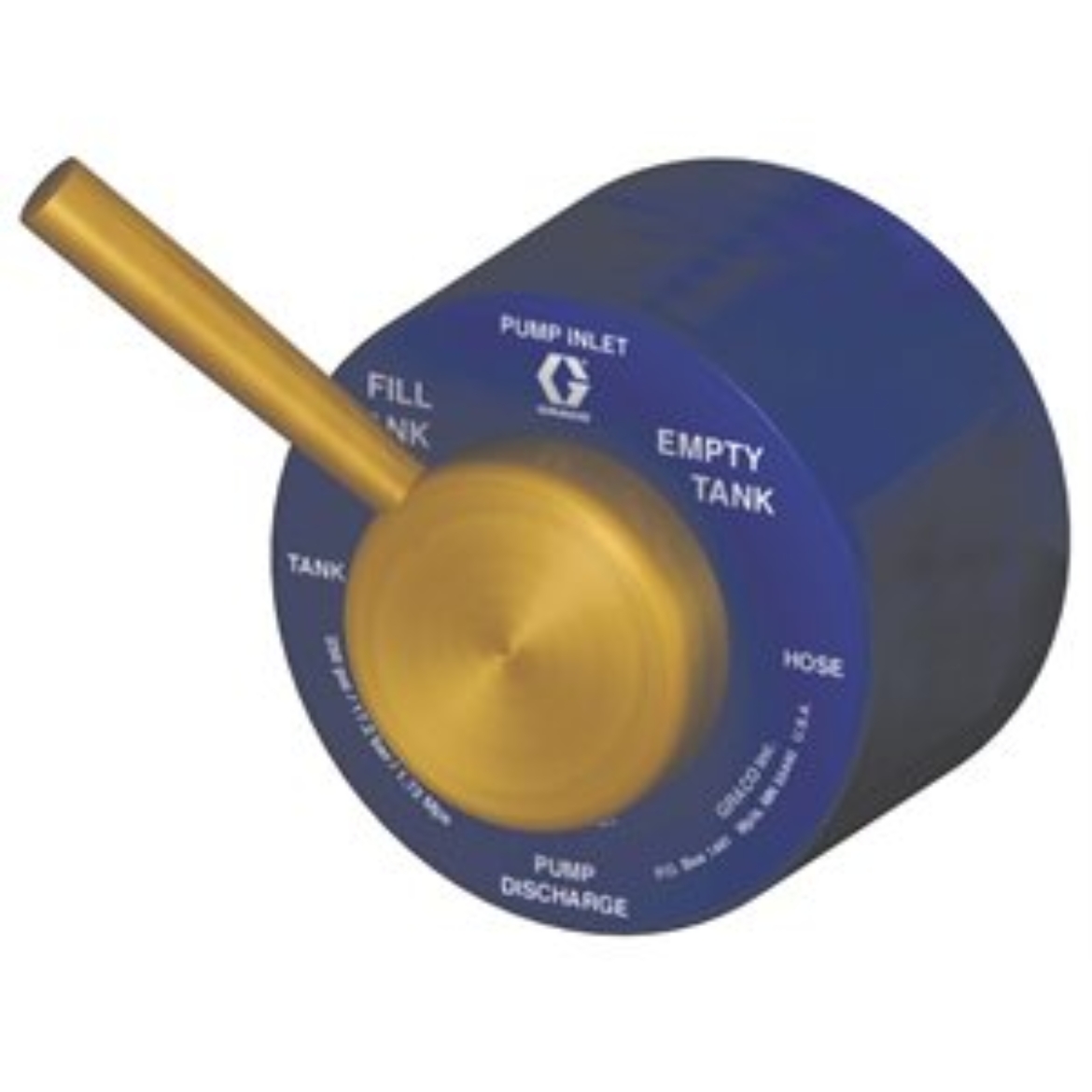

Graco 120581 1 in. Female NPT 4-Way Evacuation Valve
Application: The 4-way evacuation valve is a directional control valve used to simplify the filling and emptying of tanks. Typical applications include filling and emptying waste containers on lube trucks and transferring fluids from bulk supply tanks to operational day tanks. Typical fluids handled include petroleum and synthetic-based oils, fuels, anti-freeze and windshield wash fluid.
- Simplifies installation by eliminating need for multiple valves
- Unrestricted flow - no pressure or volume loss
- Two position tank fill and emptying control
- Four (4) 5/16 inch threaded bolt holes for flush mount installation
- Maximum Working Pressure (bar): 14
- Maximum Working Pressure (kPa): 1400
- Maximum Working Pressure (MPa): 1.4
- Maximum Working Pressure (psi): 200
- Overall Height (cm): 12.065
- Overall Height (in): 4.75
- Overall Height (mm): 120.65
- Overall Width (cm): 12.065
- Overall Width (in): 4.75
- Overall Width (mm): 120.65
