GG 287030
VALVE, SPRAY, PKG

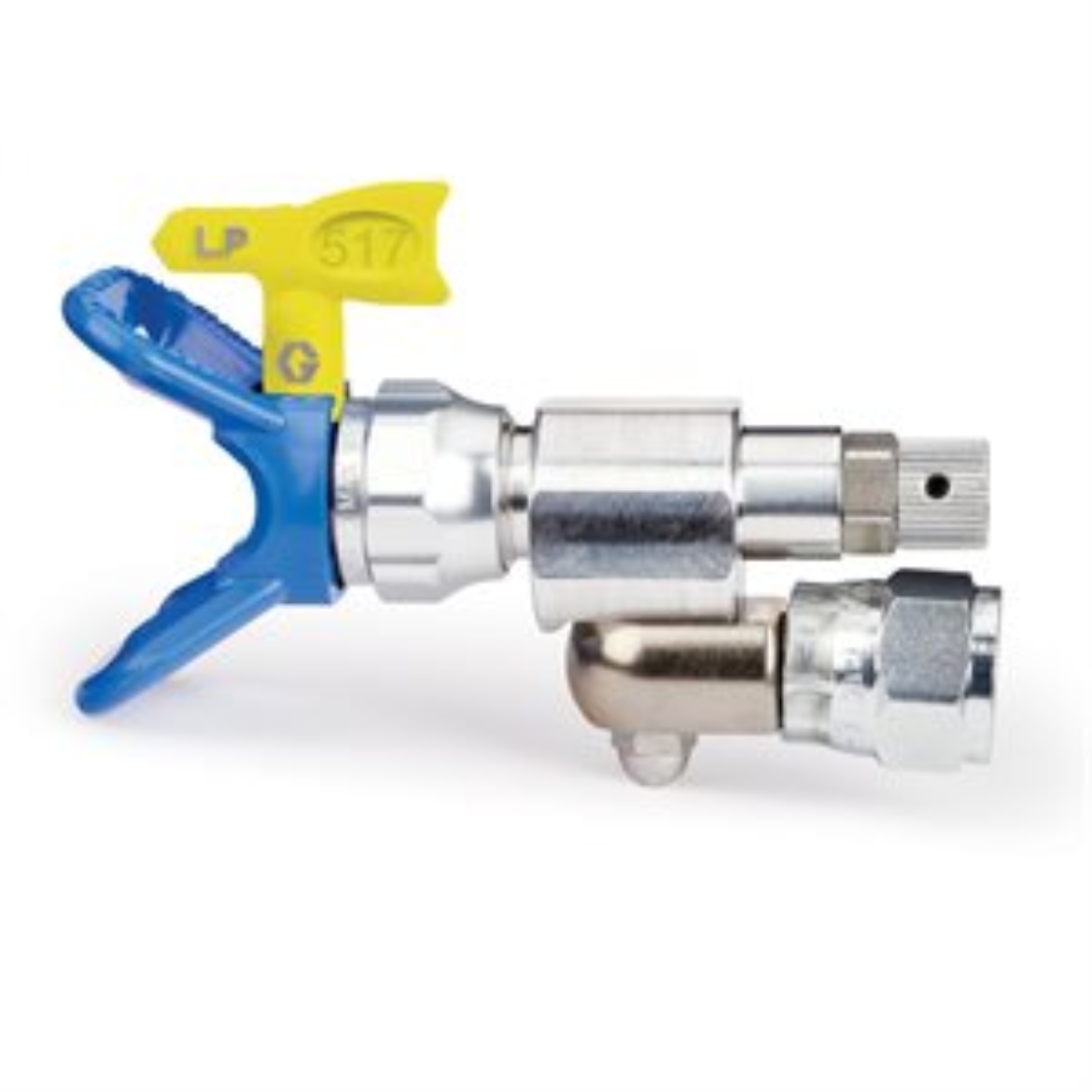

Graco 287030 CleanShot Valve
Unique needle valve shuts fluid off at the tip for a clean pattern, no spitting. A great addition to any extension.
- Unique needle valve shuts fluid off at the tip for a clean pattern – no spitting
- 180 degree tip swivel provides versatility when spraying walls and ceilings
- Pressure-actuated – operates at a minimum of 700 psi (4.8 MPa, 48 bar)
- Model: CleanShot
- Series: CleanShot
- Includes: Gasket
- Inlet Size (cm): 0.635
- Inlet Size (in): 1/4
- Inlet Size (mm): 6.35
- Maximum Working Pressure (bar): 248
- Maximum Working Pressure (kPa): 24800
- Maximum Working Pressure (MPa): 24.8
- Maximum Working Pressure (psi): 3600
- Outlet Size (cm): 2.2225
- Outlet Size (in): 7/8
- Outlet Size (mm): 22.225
- Outlet Thread Type: UNF
