GG 233933

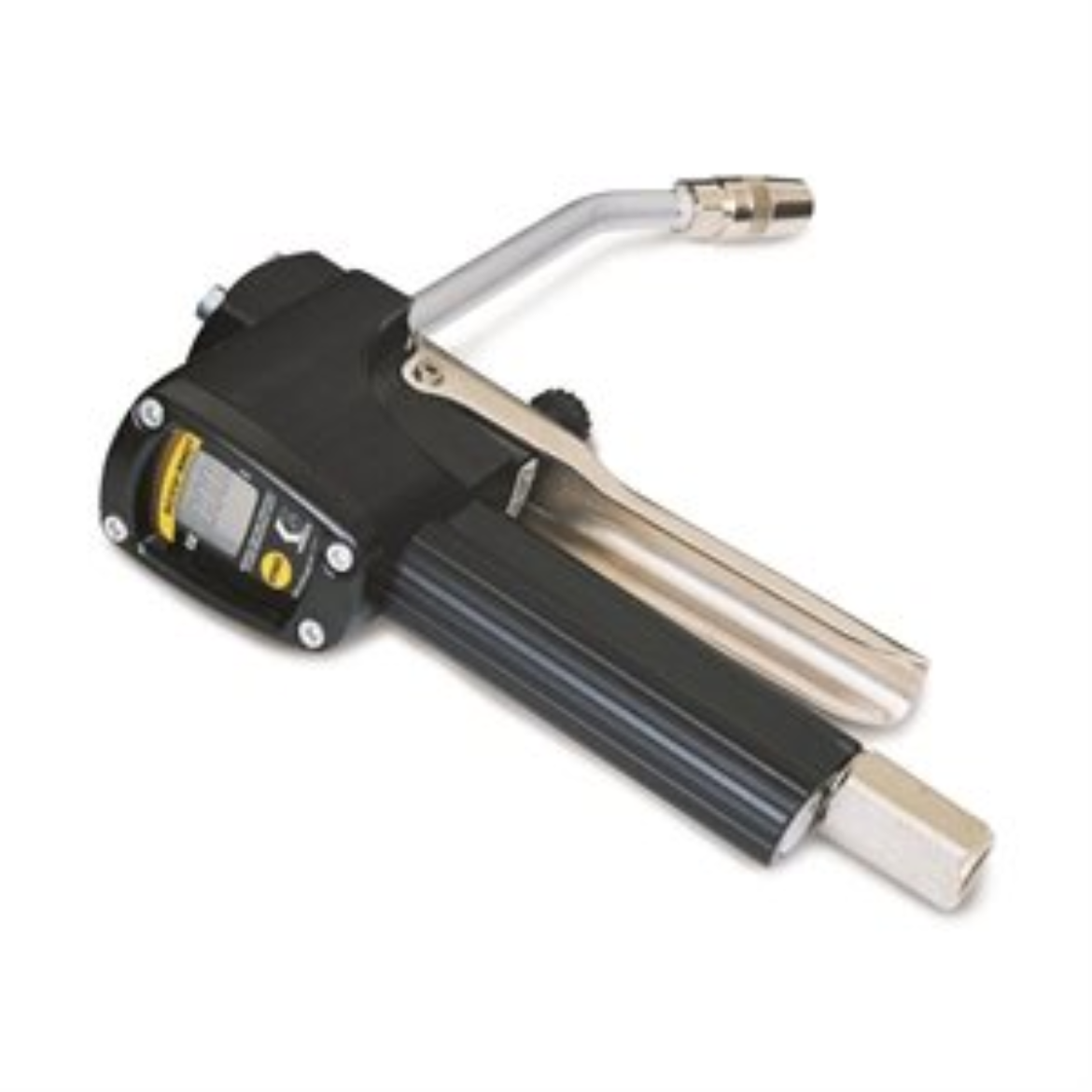

VALVE, METERED, GREASE, METRIC
Graco 233933 Standard Nozzle Extension and 1/4 in. NPT Inlet, Metric Measurement, Includes Extension and Hydraulic Coupler
Designed to perform in heavy-equipment shops, fleet maintenance
shops, municipal garages and higher-volume in-plant applications
with longer plumbing runs and larger fluid usage.
Application: Typical applications include heavy-duty dealerships, fleet service facilities, in-plant, lube trucks, and mining.
- Easy-to-Read LCD
- Easily reset electronic display.
- Accurate Grease Metering
- Handles Pressure up to 5,000 psi (345 bar)
- Flow up to 36 oz/min (1 kg/min).
- Compatible Material: Grease
- Fluid Inlet Thread Gender: Female
- Fluid Outlet Thread Gender: Female
- Includes: Extension, Hydraulic Coupler
- Inlet Size (cm): 0.635
- Inlet Size (in): 1/4
- Inlet Size (mm): 6.35
- Maximum Operating Temperature (°C): 60
- Maximum Operating Temperature (°F): 140
- Maximum Storage Temperature (°C): 70
- Maximum Storage Temperature (°F): 158
- Maximum Working Pressure (bar): 345
- Maximum Working Pressure (kPa): 34500
- Maximum Working Pressure (MPa): 34.5
- Maximum Working Pressure (psi): 5000
- Meter Accuracy (%): ±0.3
- Meter Technology: Oval Gears
- Metering Gun Weight (kg): 1.0
- Metering Gun Weight (lb): 2.2
- Outlet Size (cm): 0.32
- Outlet Size (in): 1/8
- Outlet Size (mm): 3.18
- Outlet Thread Type: NPTF
- Overall Height (cm): 22.35
- Overall Height (in): 8.8
- Overall Height (mm): 223.5
- Overall Length (cm): 8.13
- Overall Length (in): 3.2
- Overall Length (mm): 81.28
- Overall Width (cm): 4.572
- Overall Width (in): 1.8
- Overall Width (mm): 45.72
- Recommended Environment: Indoor
