Triton Spray Package

GG 233485

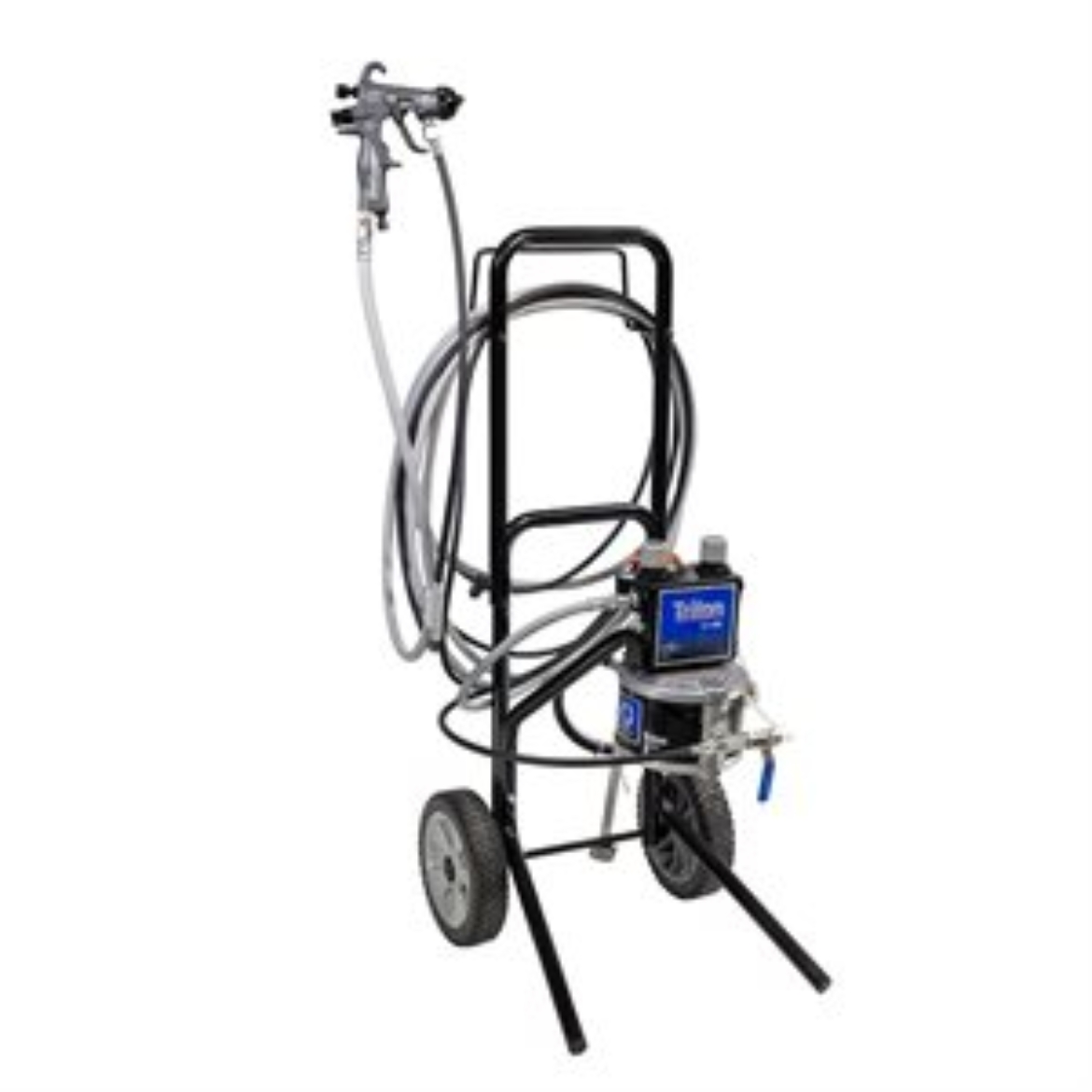

TRITON SPRAYER, SS PUMP, CART MNT

Graco 233485 Triton SST Spray Package, Cart, 100 psi Regulator, Suction, Air & Fluid Hoses, AirPro HVLP Gun .055 in (1.4 mm) Nozzle, Metal Applications

Air-operated diaphragm spray package designed for the finishing market. It is a more effective alternative to traditional pressure pots and standard diaphragm pumps.

• Superior finish quality for conventional, HVLP and compliant or electrostatic applications
• Supplies up to 35% extra air flow to gun for superior atomization
• Saves material and time during flushing, priming and color changes
• Rugged, stainless steel or aluminum construction pump handles a wide variety of fluids

• Model: Triton
• Series: 308

• Application: Metal

• Compatible Material: CARC, Enamel, Epoxies, High Solids, Latex, Lacquer, Metallics, Stains, Single Components, Solvent borne Paints, Solvent borne, Varnish Primers, Waterborne

• Feed Type: Suction Hose

• Fluid Inlet Size (cm): 1.905
• Fluid Inlet Size (in): 3/4
• Fluid Inlet Size (mm): 19.05
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (cm): 0.9525
• Fluid Outlet Size (in): 3/8
• Fluid Outlet Size (mm): 9.525
• Fluid Outlet Thread Type: NPT

• Gun Included: 1
• Gun Model: AirPro
• Gun Technology: HVLP
• Gun Type: Air Spray

• Includes: 25 ft Air Hose, 25 ft Fluid Hose, Regulator, Applicator

• Maximum Air Inlet Pressure (bar): 7
• Maximum Air Inlet Pressure (kPa): 700
• Maximum Air Inlet Pressure (psi): 100

• Maximum Flow Rate (GPM): 8.5
• Maximum Flow Rate (L/min): 32

• Maximum Working Pressure (bar): 7
• Maximum Working Pressure (kPa): 700
• Maximum Working Pressure (psi): 100

• Mount Location: Cart Mount
• Mount Type: Cart Mount

• Power Source: Air

• Pressure Type: Low Pressure
• Product Type: Spray Package

• Pump Ratio: 1:1
• Pump Type: Pneumatic Diaphragm Pump
