GG 562511
MJ VALVE, ASSY IND MJ 15T

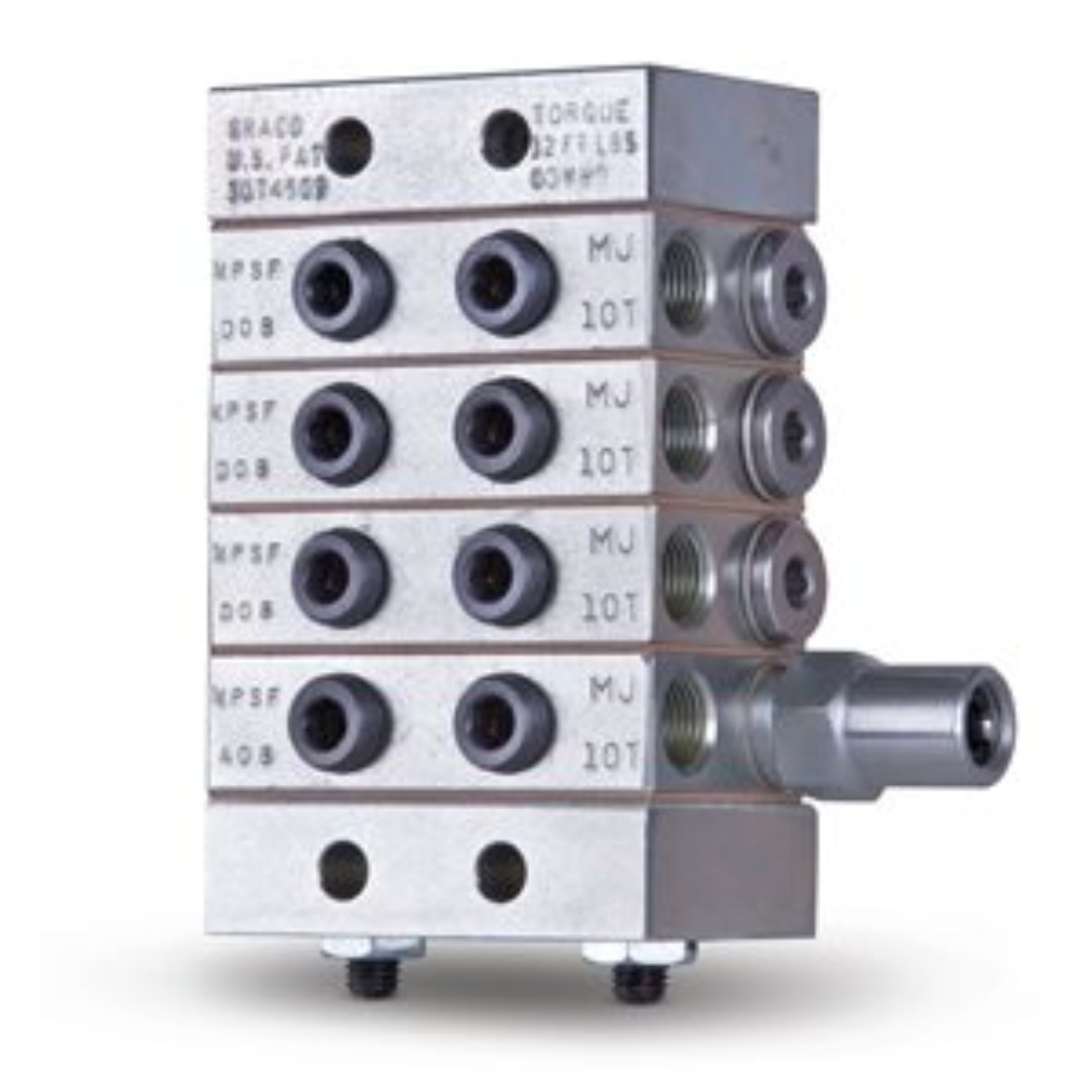

Graco 562511 Trabon MJ Series-Flo Divider Valve with Right Hand Cycle Pin - MJ-15T - 0.015 in cu (0.246 cm cu )
The Trabon MJ series features a compact and easily customizable design that can be tailor fit to meet a variety of specific lube requirements. Capable of handling grease grades up to NLGI #1.
Application: Compact and customizable divider block series for machine tool, product or press equipment.
- Space efficient - from 6 to 16 points from one block assembly
- Built-in outlet check valves ensure accurate lube delivery, every time
- Alternate outlet on face of valves can be fitted with optional performance indicators, taking the guesswork out of troubleshooting
- Lubriquip part number 001-015-602
- Application: On-Road Vehicles, Off-Road Equipment, In-Plant Machinery
- Compatible Material: Oil, Grease
- Cycle Indicator: Cycle Indicator
- Discharge Per Piston Stroke (in cu ): 0.015
- Maximum Cycle Rate (cycles/min): 60
- Maximum Operating Temperature ( degree C): 93
- Maximum Operating Temperature ( degree F): 200
- Maximum Working Pressure (bar): 138
- Maximum Working Pressure (kPa): 13800
- Maximum Working Pressure (psi): 2000
- Minimum Working Pressure (psi): 200
- Outlet Size (cm): 0.3175
- Outlet Size (in): 1/8
- Outlet Size (mm): 3.175
- Outlet Thread Gender: Female
- Outlet Thread Type: NPSF
