GG 562504
MJ VALVE, ASSY MJ 10T

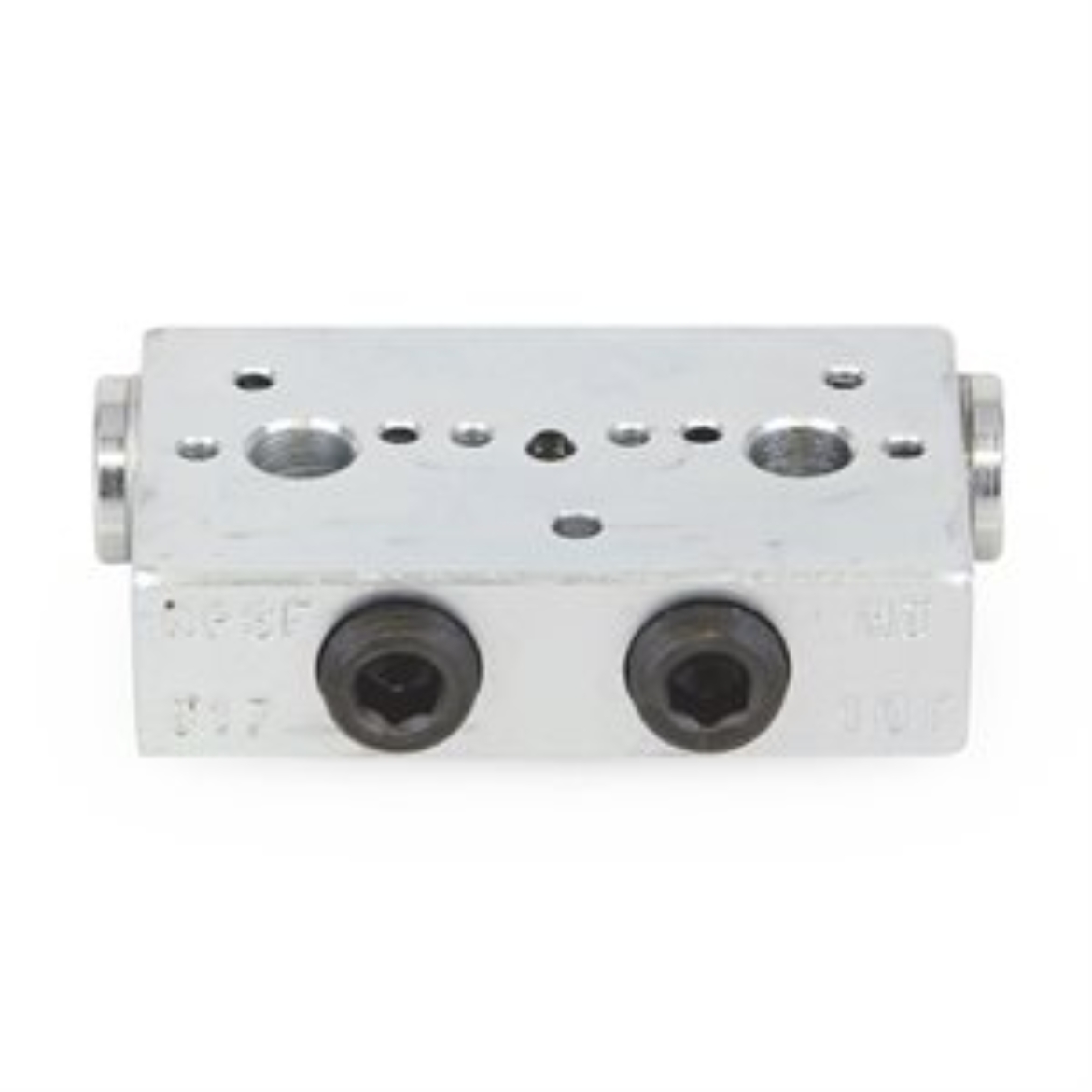

Graco 562504 Trabon® MJ Series-Flo Divider Valve - MJ-10T - 0.010 in³ (0.16 cm³)
The Trabon MJ series features a compact and easily customizable design that can be tailor fit to meet a variety of specific lube requirements. Capable of handling grease grades up to NLGI #1.
Application: Compact and customizable divider block series for machine tool, product or press equipment.
- Space efficient–from 6 to 16 points from one block assembly
- Built-in outlet check valves ensure accurate lube delivery, every time
- Alternate outlet on face of valves can be fitted with optional performance indicators, taking the guesswork out of troubleshooting
- Lubriquip part number 001-010-002
- Application: On-Road Vehicles, Off-Road Equipment, In-Plant Machinery
- Compatible Material: Oil, Grease
- Discharge Per Piston Stroke (in³): 0.010
- Maximum Cycle Rate (cycles/min): 200
- Maximum Operating Temperature (°C): 93
- Maximum Operating Temperature (°F): 200
- Maximum Working Pressure (bar): 138
- Maximum Working Pressure (kPa): 13800
- Maximum Working Pressure (psi): 2000
- Minimum Working Pressure (psi): 200
- Outlet Size (cm): 0.3175
- Outlet Size (in): 1/8
- Outlet Size (mm): 3.175
- Outlet Thread Gender: Female
- Outlet Thread Type: NPSF
