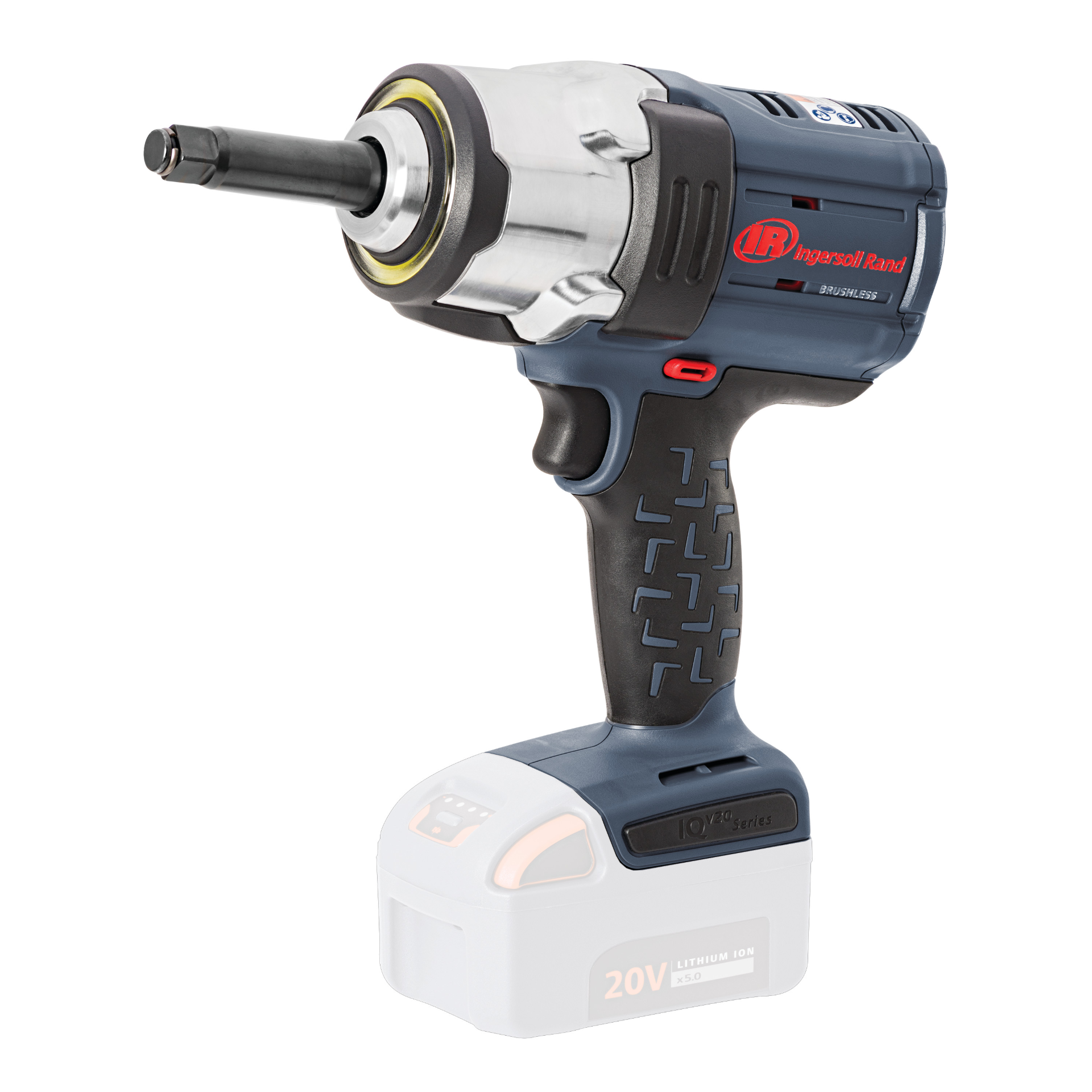

IR W7252-TL
1/2" 20V Cordless Impact Wrench, 2" Ext Anvil, 75 ft-lb Torque Limited Auto-Stop, Friction Ring Retainer, Pistol, Bare Tool
The W7252-TL delivers full breakaway power of 1500 ft-lbs of nut-busting torque and has only one auto-stop tightening mode designed for passenger tire installation.
Features And Benefits
- Power: Powerful brushless motor and ball and cam impact mechanism are finely tuned for best in class power-to-weight ratio. 1500 ft-lbs of nut-busting torque and 75 ft-lbs of forward tightening torque.
- Durable: Patented steel reinforced frame and impact-and-chemical resistant housing protects the W7252-TL from aggressive fluids, chemicals and repeated drops.
- Access: 360⁰ shadowless task light with 4 dimmable settings provides increased visibility and access. The 2-inch extended anvil provides you with increased reach that’s invaluable when working with deeper fasteners.
- Control: Includes the IQV® Power Control System with 1 mode to auto-stop pre-tightening passenger tires. Finish lug installation with a calibrated torque wrench for perfect installations.
- Variable-speed switch: With electronic brake provides maximum control of the tool and increased safety-release trigger, drive stops spinning.
- Lightweight: Weighs only 7.8 lbs (with BL2022 battery).
- Compatible with IQV® 20 Series Battery System.
- Ideally used in tire changing applications for removing and fastening passenger tire wheel bolts.
Includes: Bare tool only; batteries and charger sold separately.
Product Application and Uses: Ideally used in tire changing applications for removing and fastening passenger tire wheel bolts.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: 2" Extended
Blows per Min: 2450
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Drive Size (in): 1/2
Drive Type: Square
Duty Rating: General Duty
Hammer Case: Steel-lined Aluminum
Head Width (in): 2.7
Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame
Impact Mechanism: Ball and Cam
Max Bolt Diameter (in): 3/4
Max Free Speed (rpm): 1900
Max Torque (ft-lb): 1003
Max Torque (in-lb): 12037
Max Torque (nm): 1360
Motor: Brushless Motor
Number of Batteries Required: 1
Number of Power Settings: 2
Nut-busting/Breakaway Torque (ft-lb): 1505
Nut-busting/Breakaway Torque (in-lb): 18056
Nut-busting/Breakaway Torque (nm): 2040
Power Source: Battery Powered
Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 192.31
Product Length (in): 10.2
Product Width (in): 3.3
Product Height (in): 9.1
Product Height (in) (with Battery): 11.1
Product Weight (lb): 6.3
Product Weight (lb) (with Battery): 7.8
Recommended Forward Torque Range (ft-lb): 74
Recommended Forward Torque Range (in-lb): 894
Recommended Forward Torque Range (nm): 101
Retainer Type: Friction Ring
Side to Center Distance (in): 1.35
Side to Center Distance (mm): 34
Sound Pressure/Power Db(A): 95 / 105
Speed Setting: Variable Speed
Standards/Certifications: Ul Listed, Csa Certified
Vibration Level (m/s2): 17.2
Vibration Uncertainy K* (m/s2): 2.3
Voltage DC: 20
Warranty: 3-year tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: No Wireless Functionality
