GG FFLP212
RAC X FFLP TIP, SPRAY, (212)

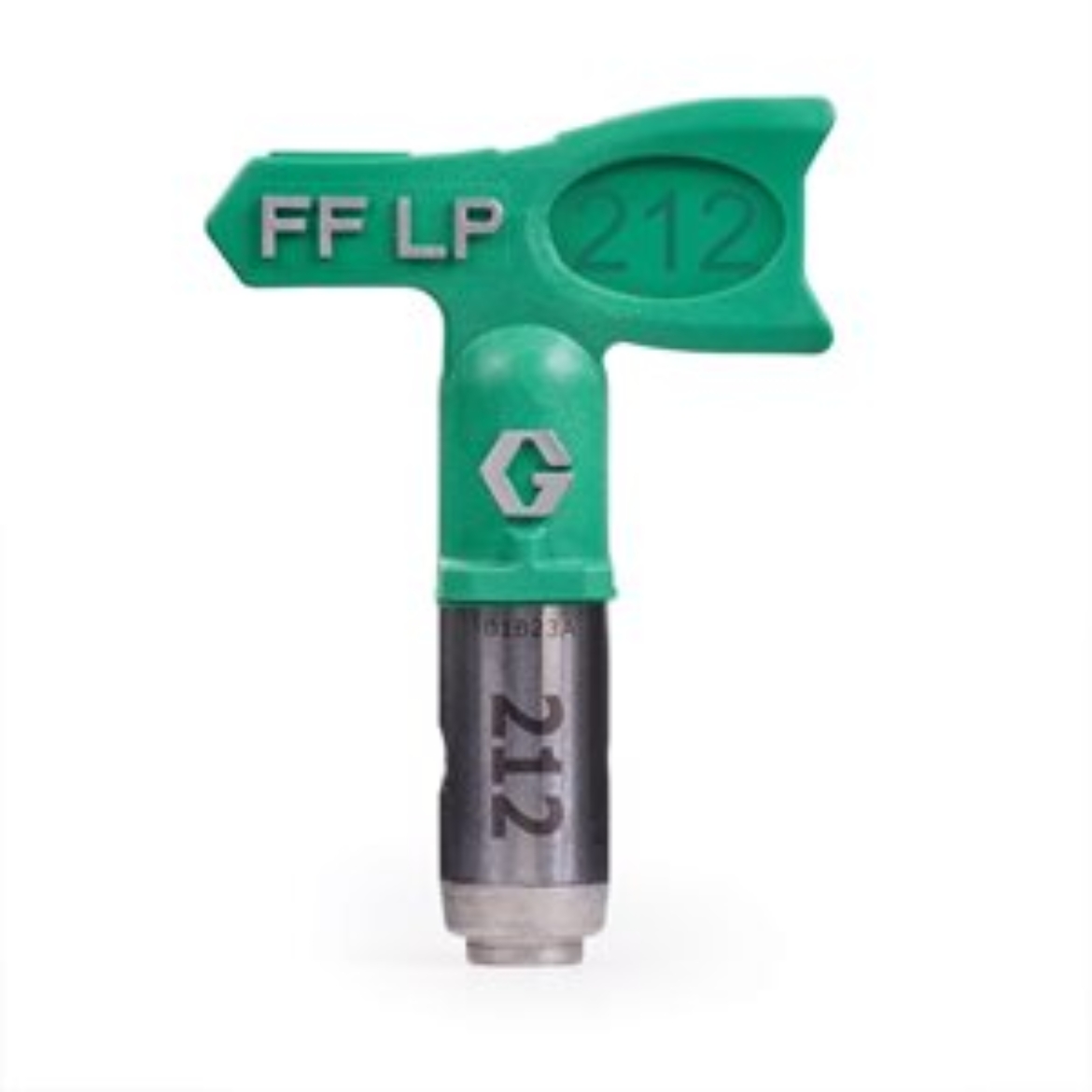

Graco FFLP212 Fine Finish Low Pressure RAC X FF LP SwitchTip, 212
Spray at up to 50% lower pressure with the Reverse-A-Clean (RAC) 212 Fine Finish Low Pressure (FF LP) RAC X SwitchTip. This fine finish tip produces a 4 to 6 inch Fan pattern and has a 0.012 inch orifice, ideal for finishing materials. Reverse the SwitchTip to easily clear clogs.
Application: For fine finish applications
- Less Prep & Cleanup Time
Less mess with less overspray
Put the paint where you want it
- Easiest Pattern Overlap
Softer spray fan pattern
Easy to apply any material to any surfance
Consistent blended finish quality
- Extended Life
Spraying at half pressure doubles tip life
Reduced sprayer maintenance – up to 2X life
- Best Tip on the Market
Works with any airless sprayer
Longest lasting Fan pattern
Highest quality finish with a consistent spray pattern
- Easy to Identify Tip Size
Large raised tip size numbers are always legible – even when covered with paint
- Superior Tip Design
Locking tab ensures tip stays securely in guard
Snaps tip in spray or reverse position
OneSeal tip gasket installs with no tools
Solvent seal available when using extremely hot solvents
- Model: RAC X
- Series: FF LP SwitchTip
- Compatible Material: Primer, Stains, Varnish, Water-Based Paint, Enamel, Latex, Solvent borne Paints
- For Use With: RAC X HandTite Tip Guard
- Material: Tungsten Carbide
- Maximum Fan Width (cm): 10
- Maximum Fan Width (in): 4
- Maximum Fan Width (mm): 152
- Maximum Flow Rate (GPM): 0.15
- Maximum Flow Rate (L/min): 0.57
- Maximum Working Pressure (bar): 280
- Maximum Working Pressure (kPa): 28000
- Maximum Working Pressure (psi): 4050
- Minimum Fan Width (in): 4
- Minimum Fan Width (mm): 102
- Orifice Diameter (in): 0.012
- Pattern Size (in): 4 to 6
- Pattern Size (mm): 101.6 to 152.4
