GG XHD423
XHD RAC TIP, SPRAY, CYLINDER, 423

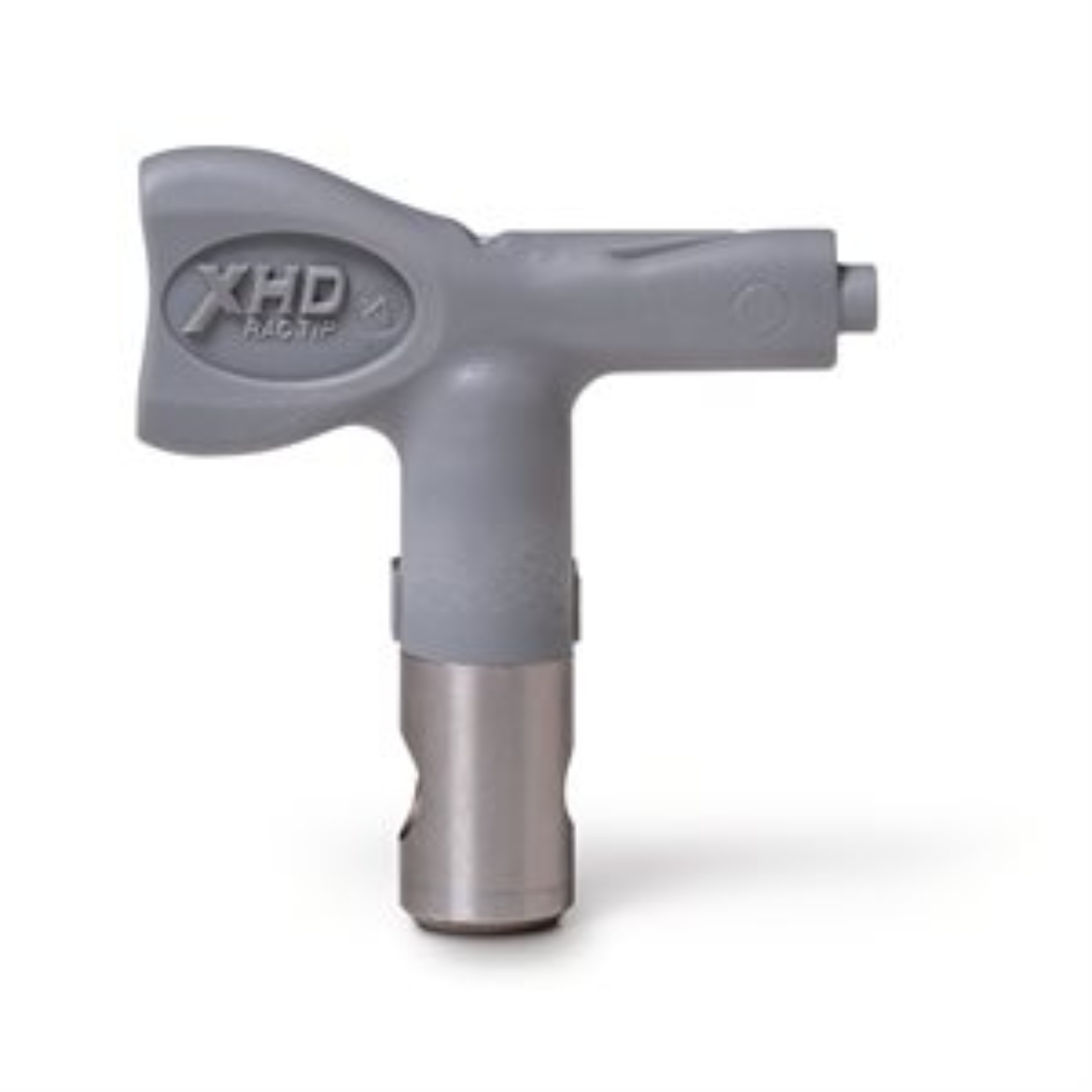

Graco XHD423 XHD RAC SwitchTip, .423
With its Reverse-A-Clean (RAC) Tip, it’s easy to clear clogs. The Switch Tip design lets you change tip sizes in seconds – without removing the tip guard and housing.
Application: High-Pressure Airless Spray Tip for XTR and XHF Guns. Designed for spraying high-solids coatings at high pressures.
- Saves time – no screwdriver required, change tip sizes in seconds
- For heavy-duty applications up to 7250 psi (500 bar)
- Recommended for use with Xtreme Sprayers and XTR Guns
- Model: XHD RAC
- Series: SwitchTip
- Compatible Material: Solvent borne Paints, Water-Based Paint
- For Use With: Xtreme Sprayers, XTR Airless Spray Guns
- Maximum Fan Width (cm): 25.4
- Maximum Fan Width (in): 10
- Maximum Fan Width (mm): 254
- Maximum Flow Rate (GPM): 0.57
- Maximum Flow Rate (L/min): 2.16
- Maximum Working Pressure (bar): 500
- Maximum Working Pressure (kPa): 50000
- Maximum Working Pressure (psi): 7250
- Minimum Fan Width (in): 8
- Minimum Fan Width (mm): 203
- Orifice Diameter (in): 0.023
