GG LP515
RAC X LP TIP, SPRAY, (515)

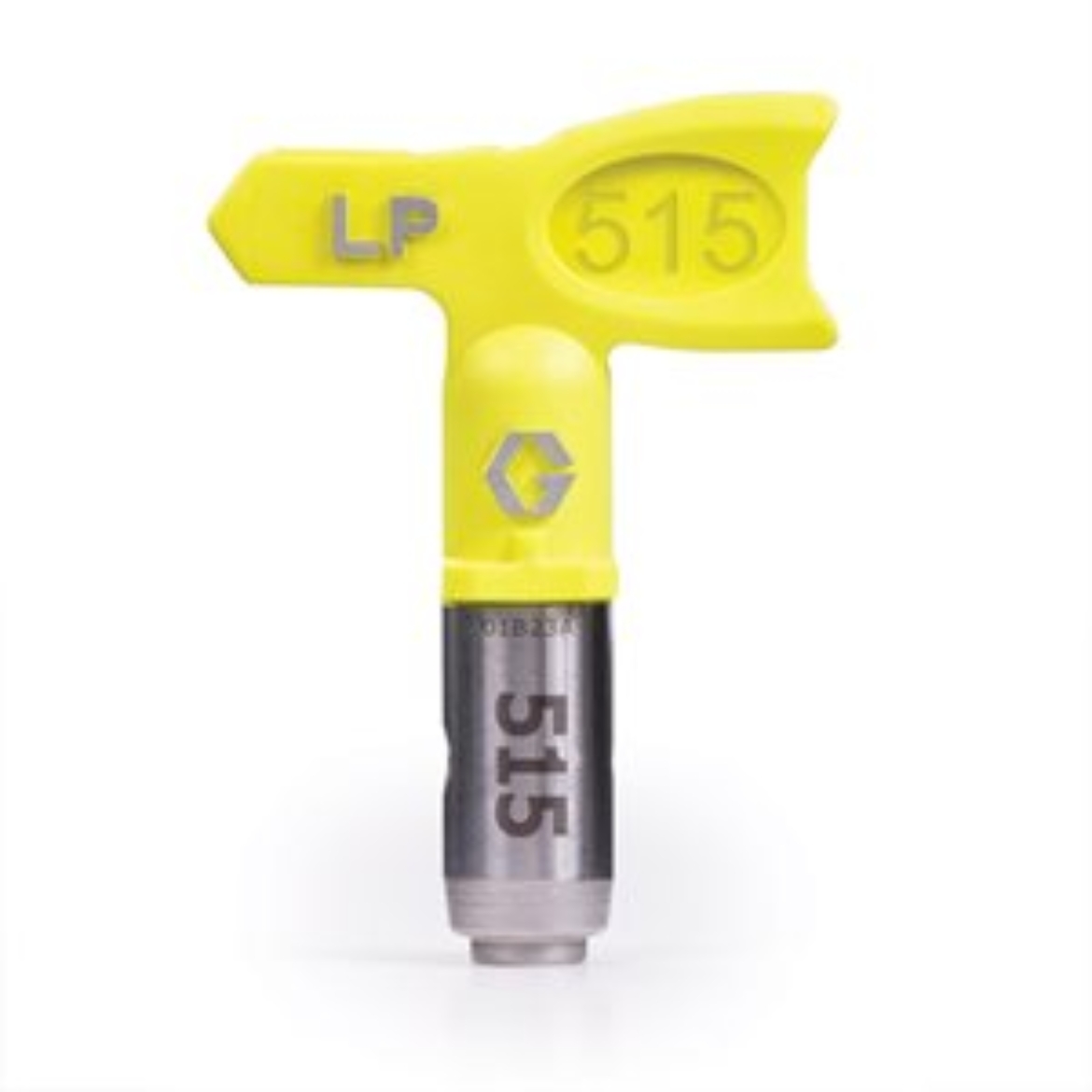

Graco LP515 Low Pressure RAC X LP SwitchTip, 515
Spray at up to 50% lower pressure with the Reverse-A-Clean (RAC) 515 Low Pressure (LP) RAC X SwitchTip. This low pressure tip produces a 10 to 12 inch fan pattern and has a 0.015 inch orifice. Reverse the SwitchTip to easily clear clogs.
Application: For large surfance areas such as walls and ceilings
- Less Prep & Cleanup Time
Less mess with less overspray
Put the paint where you want it
- Easiest Pattern Overlap
Softer spray fan pattern
Easy to apply any material to any surfance
Consistent blended finish quality
- Extended Life
Spraying at half pressure doubles tip life
Reduced sprayer maintenance – up to 2X life
- Best Tip on the Market
Works with any airless sprayer
Longest lasting fan pattern
Highest quality finish with a consistent spray pattern
- Easy to Identify Tip Size
Large raised tip size numbers are always legible – even when covered with paint
- Superior Tip Design
Locking tab ensures tip stays securely in guard
Snaps tip in spray or reverse position
OneSeal tip gasket installs with no tools
Solvent seal available when using extremely hot solvents
- Model: RAC X
- Series: LP SwitchTip
- For Use With: RAC X HandTite Tip Guard
- Maximum Fan Width (cm): 25
- Maximum Fan Width (in): 10
- Maximum Fan Width (mm): 305
- Maximum Flow Rate (GPM): 0.24
- Maximum Flow Rate (L/min): 0.91
- Maximum Working Pressure (bar): 280
- Maximum Working Pressure (kPa): 28000
- Maximum Working Pressure (psi): 4050
- Minimum Fan Width (in): 10
- Minimum Fan Width (mm): 254
- Orifice Diameter (in): 0.015
