GG 17W739
TANK, SURGE, SUPPRESSOR

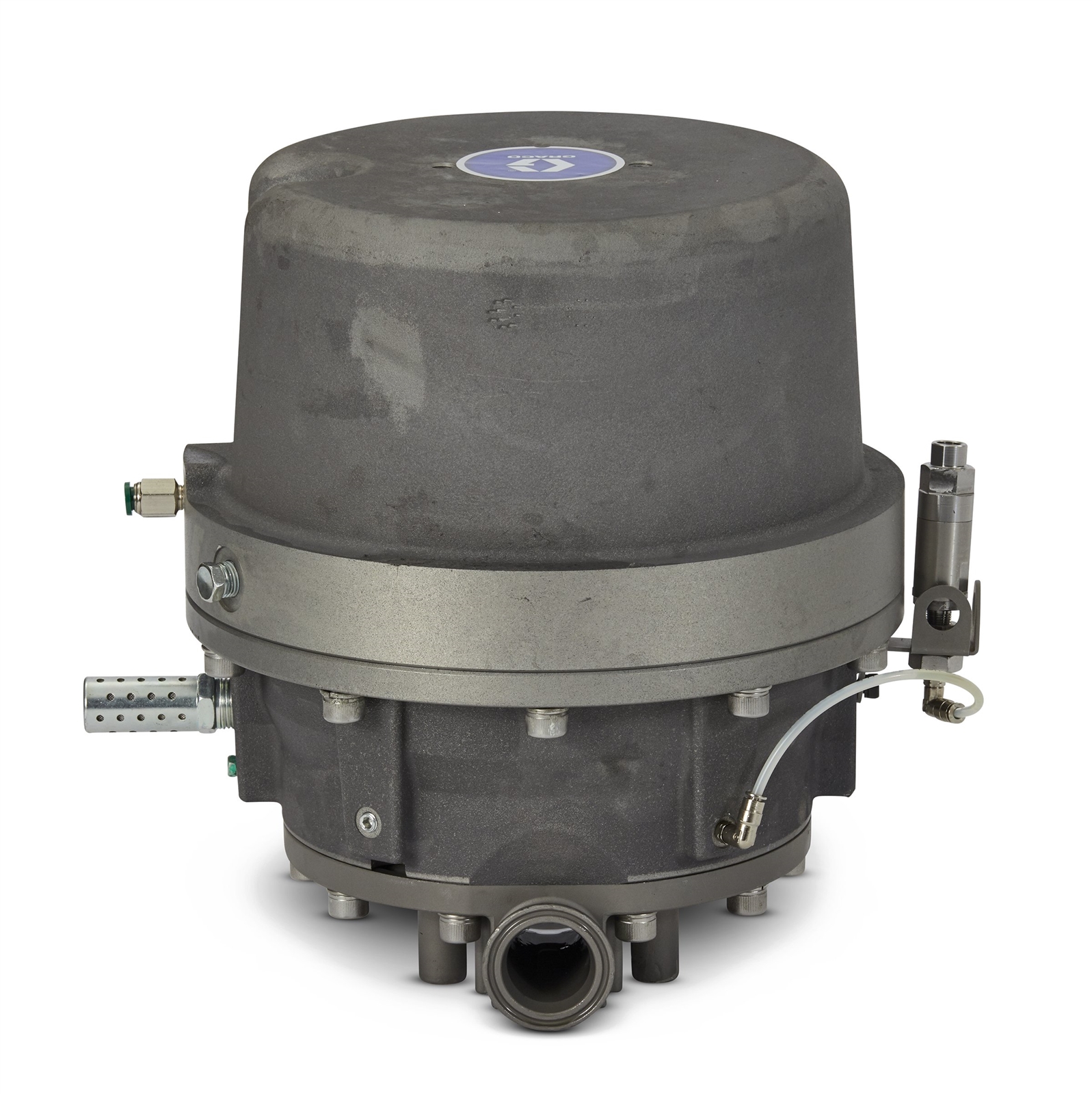

Graco 17W739 Active Surge Suppressor
Manufacturers concerned about paint line pulsation can set and forget the active surge suppressor. It automatically adjusts itself for peak performance in changing conditions. Once you set it up, you can forget about manual adjustments.
- Works off shop air, eliminating need for and extra cost of high pressure charge air
- Flushes cleanly and thoroughly in between colors
- Saves space with pump-mount configuration
- Inlet Size (cm): 3.81
- Inlet Size (in): 1-1/2
- Inlet Size (mm): 38.1
- Maximum Flow Rate (GPM): " 10 (single pump), 20 (E-flo DC 2X)"
- Maximum Flow Rate (L/min): 76
- Maximum Fluid Pressure (bar): 21
- Maximum Fluid Pressure (kPa): 2100
- Maximum Fluid Pressure (MPa): 2.1
- Maximum Fluid Pressure (psi): 300
- Maximum Fluid Pressure (bar): 21
- Maximum Fluid Pressure (kPa): 2100
- Maximum Fluid Pressure (MPa): 2.1
- Maximum Fluid Pressure (psi): 300
- Outlet Size (cm): 3.81
- Outlet Size (in): 1-1/2
- Outlet Size (mm): 38.1
